D3023: DescriptionRF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size150KB，4 Pages; ManufacturerETC2

Download Datasheet Parametric Compare View All

D3023 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D3023	-	-	View	Buy Now

D3023 Overview

RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT

D3023 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
maximum isolation	-22.3 dB
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	TRANSFERRED
seal	IP67
Coil power	80 mW
Relay action	Transient
Relay function	Double Knife Double Throw
Coil resistance	113 ohm
Electrical life	100000 Cycle(s)
terminal coating	NOT SPECIFIED
Manufacturer Series	D30
Maximum DC coil current	0.0270 A
Maximum DC coil voltage	3 V
Maximum AC contact current	2 A
Maximum DC contact current	2 A
Maximum AC contact voltage	250 V
Maximum DC contact voltage	125 V
DC coil operating voltage	2.25 V
DC coil release voltage	0.3000 V
width	9 mm
high	5 mm
length or diameter	14 mm
Maximum insertion loss	-0.2500 dB
Installation features	Through hole installation
operating hours	9 ms
Relay type	RF relay
release time	9 ms
conversion time	18 ms
Terminal type	welding
voltage standing wave ratio	1.07

Preview

Download Datasheet

View All

DAGNALL ELECTRONICS LIMITED

Shuttleworth Road, Elms Industrial Estate, Bedford. MK41 0EP UK

TEL +44(0)1234 330077 FAX +44(0)1234 330088

E-mail sales@dagnall-electronics.com

Iss 1 13/05/03

•

1 of 4

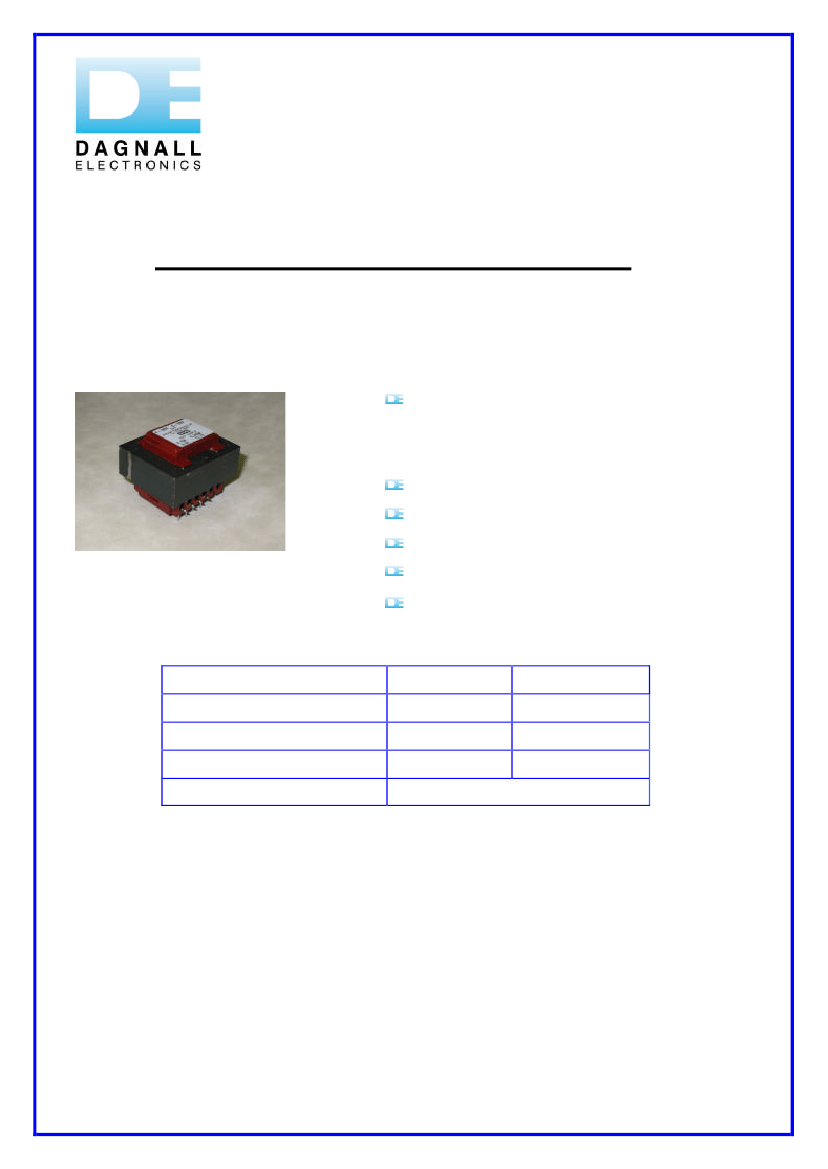

P R O D U C T

D A T A S H E E T

12VA PCB MOUNTED TRANSFORMER

Designed, manufactured and tested in

accordance with;

BS3535, EN60742*, EN61558*, EN60950

CE Marked

Single 230V or Dual 115V primaries

Comprehensive choice of secondary voltages

Flame retardant bobbins and shrouds

Fully shrouded construction

Weight

Typical Regulation

Frequency

Max Ambient

Bobbin Material

0.4

50/60

UL94-V0 Class “B” 130

* requires additional over-current / over-temperature protection.

Please see sheet 2 for part numbers.

THIS DOCUMENT IS THE PROPERTY OF DAGNALL ELECTRONICS LIMITED WHICH HOLDS THE COPYRIGHT IN THE DRAWING AND ALL

THE DESIGN RIGHTS IN THE PRODUCT OR COMPONENTS DESCRIBED. ANY INFORMATION SHALL NOT BE COPIED, REPRODUCED OR

DIVULGED TO A THIRD PARTY NOR SHALL THE PRODUCT OR COMPONENTS BE MADE, COPIED OR REPRODUCED OR ITS EXISTENCE

DISCLOSED TO A THIRD PARTY WITHOUT THE PRIOR CONSENT IN WRITING OF DAGNALL ELECTRONICS LIMITED.

IN THE INTEREST OF TECHNICAL IMPROVEMENT AND/OR CUSTOMER SERVICE DAGNALL ELECTRONICS RESERVES THE RIGHT TO

INTRODUCE MODIFIED SPECIFICATIONS TO ANY OF THE PRODUCTS ILLUSTRATED OR DESCRIBED IN THIS DATASHEET. E&OE

D3023 Related Products

	D3023	D3016	D3017	D3018	D3019	D3020	D3021	D3022
Description	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.027A (COIL), 3VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.018A (COIL), 4.5VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
maximum isolation	-22.3 dB	-22.3 dB	-22.3 dB	-22.3 dB	-22.3 dB	-22.3 dB	-22.3 dB	-22.3 dB
Maximum operating frequency	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz
Minimum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	Active
seal	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Relay action	Transient	Transient	Transient	Transient	Transient	Transient	Transient	MOMENTARY
Relay function	Double Knife Double Throw	Double Knife Double Throw	Double Knife Double Throw	Double Knife Double Throw	Double Knife Double Throw	Double Knife Double Throw	Double Knife Double Throw	DPDT
Coil resistance	113 ohm	113 ohm	113 ohm	113 ohm	113 ohm	113 ohm	113 ohm	253 ohm
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Manufacturer Series	D30	D30	D30	D30	D30	D30	D30	D30
Maximum DC coil current	0.0270 A	0.0270 A	0.0270 A	0.0270 A	0.0270 A	0.0270 A	0.0270 A	0.0180 A
Maximum DC coil voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	4.5 V
Maximum AC contact current	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Maximum DC contact current	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Maximum AC contact voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Maximum DC contact voltage	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
DC coil operating voltage	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V	3.38 V
DC coil release voltage	0.3000 V	0.3000 V	0.3000 V	0.3000 V	0.3000 V	0.3000 V	0.3000 V	0.4500 V
width	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm
high	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
length or diameter	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Maximum insertion loss	-0.2500 dB	-0.2500 dB	-0.2500 dB	-0.2500 dB	-0.2500 dB	-0.2500 dB	-0.2500 dB	-0.2500 dB
Installation features	Through hole installation	Through hole installation	Through hole installation	Through hole installation	Through hole installation	Through hole installation	Through hole installation	THROUGH HOLE-STRAIGHT MOUNT
operating hours	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms
Relay type	RF relay	RF relay	RF relay	RF relay	RF relay	RF relay	RF relay	RF RELAY
release time	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms
conversion time	18 ms	18 ms	18 ms	18 ms	18 ms	18 ms	18 ms	18 ms
Terminal type	welding	welding	welding	welding	welding	welding	welding	SOLDER
voltage standing wave ratio	1.07	1.07	1.07	1.07	1.07	1.07	1.07	1.07
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-
Coil power	80 mW	80 mW	80 mW	80 mW	80 mW	80 mW	80 mW	-
