ZAD-12BR: DescriptionDouble Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, CASE M22; CategoryWireless rf/communication Radio frequency and microwave; File Size181KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZAD-12BR Overview

Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, CASE M22

ZAD-12BR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknow
Other features	BNC
structure	COAXIAL
Maximum frequency conversion loss	7.5 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e0
Maximum operating frequency	1250 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.64

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

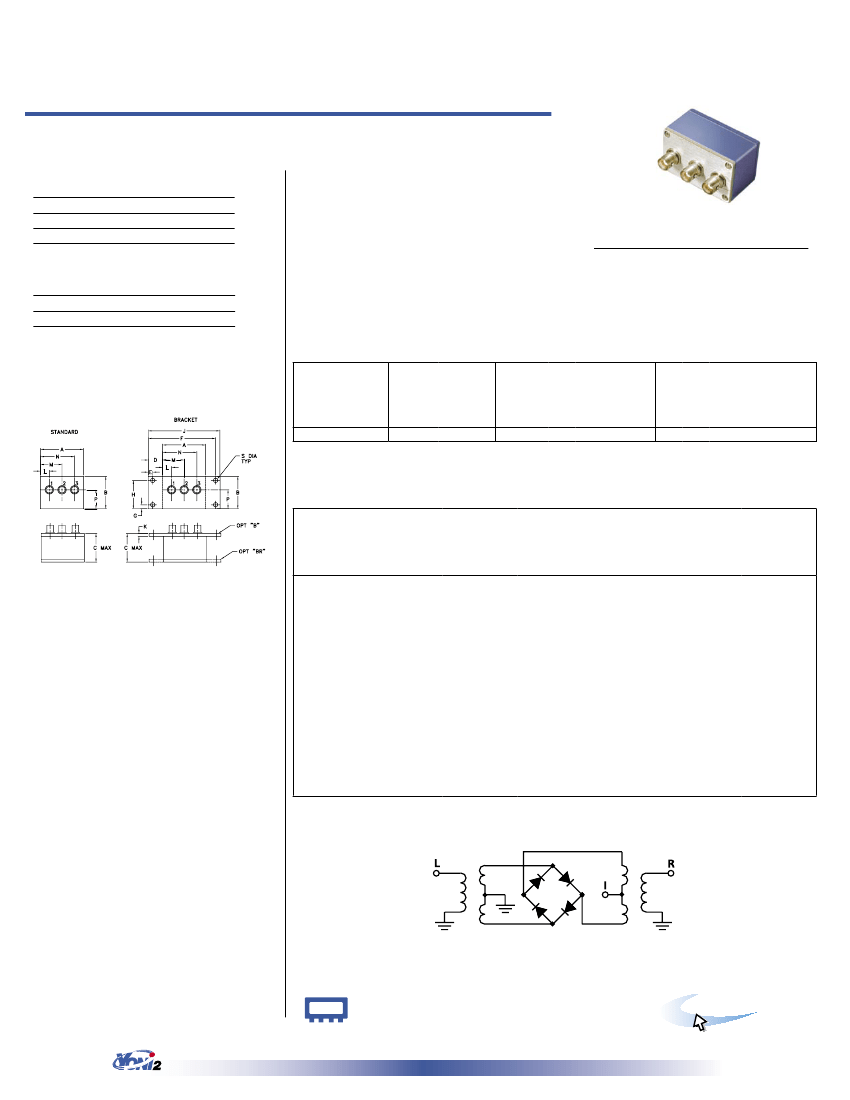

ZAD-12

800 to 1250 MHz

Features

• low conversion loss, 6.21 dB typ.

• wideband, 800 to 1250 MHz

• rugged shielded case

CASE STYLE: M22

Connectors Model

BNC

ZAD-12(+)

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

Qty.

$61.95 ea. (1-9)

Applications

• cellular

• UHF

• instrumentation

Coaxial Connections

LO

RF

IF

1

3

2

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

800-1250

50-90

1 dB COMP.: +1 dBm typ.

IF

—

X

6.21

σ

0.13

Max.

7.5

Typ.

35

Min

25

Typ.

30

Min

20

CONVERSION LOSS

(dB)

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

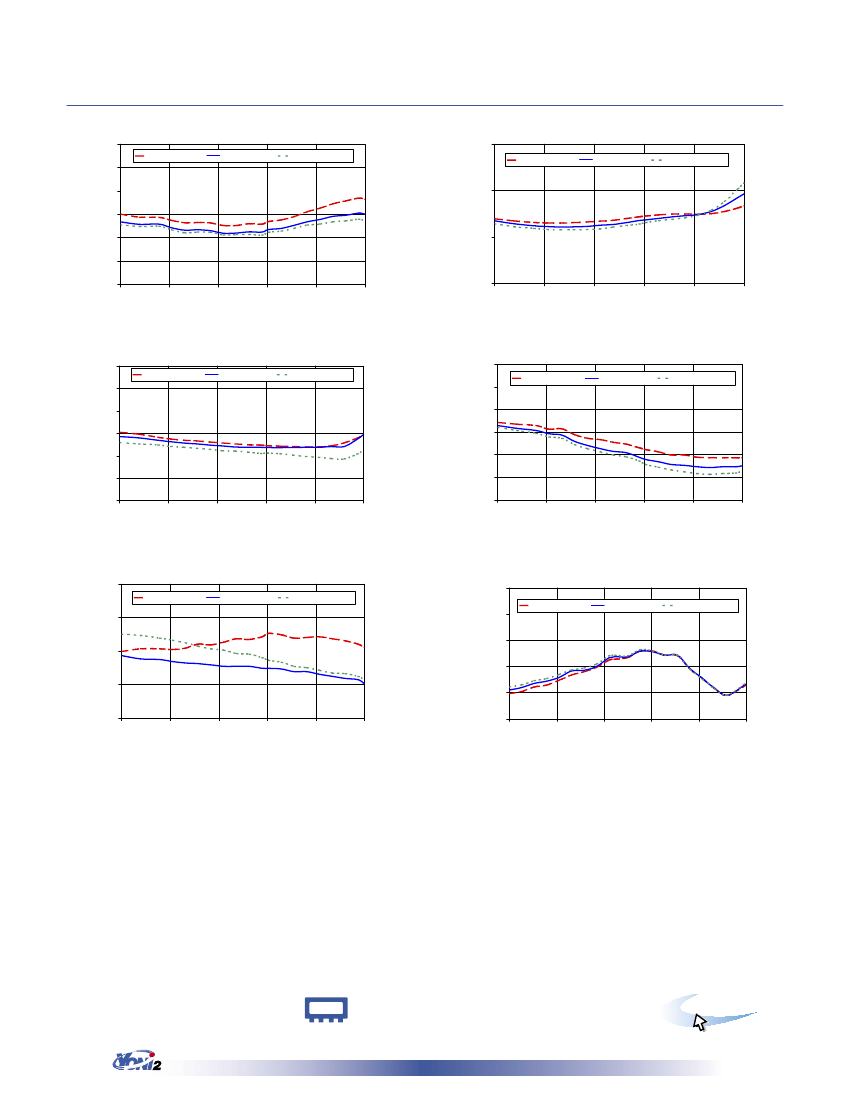

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

730.00

765.53

801.05

824.74

848.42

872.10

895.79

919.47

943.20

966.80

990.50

1002.40

1026.10

1049.70

1073.40

1097.10

1120.80

1144.50

1168.20

1180.00

LO

+7dBm

6.67

6.56

6.57

6.41

6.31

6.33

6.29

6.18

6.19

6.24

6.23

6.34

6.39

6.52

6.67

6.77

6.90

6.95

7.04

7.00

Isolation

L-R

(dB)

LO

+7dBm

33.42

32.78

32.33

32.16

32.06

32.10

32.20

32.44

32.61

33.00

33.47

33.61

33.93

34.25

34.50

34.75

35.42

36.69

38.41

39.24

Isolation

L-I

(dB)

LO

+7dBm

34.21

33.92

33.41

33.06

32.78

32.59

32.33

32.15

31.91

31.84

31.77

31.75

31.80

31.82

32.00

33.59

34.65

VSWR

RF Port

(:1)

LO

+7dBm

2.64

2.58

2.53

2.46

2.43

2.29

2.20

2.13

2.07

2.04

1.94

1.89

1.84

1.78

1.76

1.73

1.71

1.73

1.75

VSWR

LO Port

(:1)

LO

+7dBm

1.93

1.88

1.87

1.84

1.82

1.81

1.79

1.77

1.74

1.73

1.69

1.65

1.62

1.59

1.57

1.51

RF

800.00

835.53

871.05

894.72

918.42

Outline Dimensions (

inch

)

mm

A

2.25

57.15

J

3.25

82.55

B

1.38

35.05

K

.10

2.54

C

1.24

31.50

L

.40

10.16

D

.50

12.70

M

1.15

29.21

E

.150

3.81

N

1.86

47.24

F

3.100

78.74

P

.64

16.26

G

.138

3.51

H

1.238

31.45

942.10

965.79

989.47

1013.20

1036.80

1060.50

1072.40

1096.10

1119.70

1143.40

1167.10

1190.80

1214.50

1238.20

1250.00

S

wt

.150 grams

3.81

74.0

Electrical Schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

®

minicircuits.com

REV. OR

M98898

ZAD-12

DJ/TD/CP

061211

Page 1 of 2

EW

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

ZAD-12BR Related Products

	ZAD-12BR	ZAD-12+	ZAD-12BR+	ZAD-12B+	ZAD-12B
Description	Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, CASE M22	Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22	Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22	Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22	Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, CASE M22
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
Other features	BNC	BNC	BNC	BNC	BNC
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum frequency conversion loss	7.5 dB	7.5 dB	7.5 dB	7.5 dB	7.5 dB
Maximum input power (CW)	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm
Maximum operating frequency	1250 MHz	1250 MHz	1250 MHz	1250 MHz	1250 MHz
Minimum operating frequency	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.64	2.64	2.64	2.64	2.64
Is it lead-free?	Contains lead	Lead free	Lead free	-	-
Is it Rohs certified?	incompatible	conform to	conform to	conform to	-
