ZAPD-900-5W-S: DescriptionCombiner, 100MHz Min, 900MHz Max, 1dB Insertion Loss-Max, CASE F14; CategoryWireless rf/communication Radio frequency and microwave; File Size121KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZAPD-900-5W-S Overview

Combiner, 100MHz Min, 900MHz Max, 1dB Insertion Loss-Max, CASE F14

ZAPD-900-5W-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknow
Other features	SMA, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum insertion loss	1 dB
JESD-609 code	e0
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

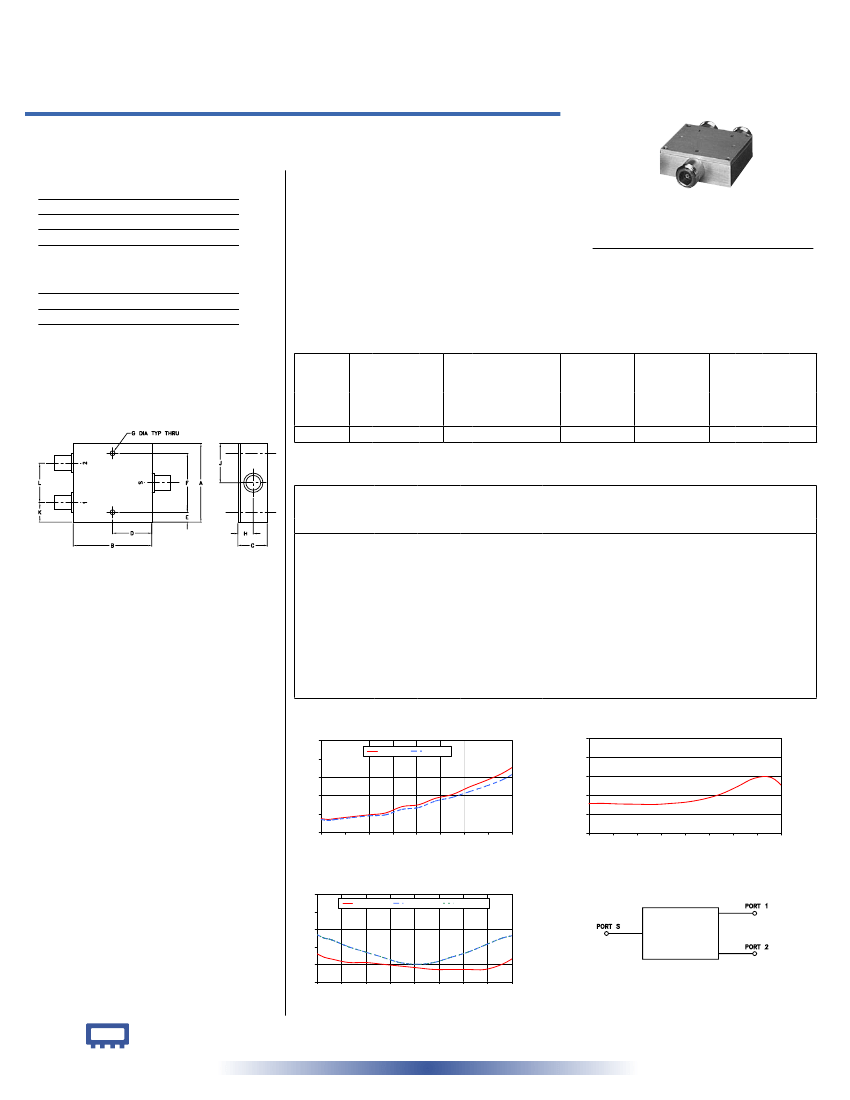

Power Splitter/Combiner

2 Way-0°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

5W max.

1W max.

Coaxial

ZAPD-900-5W

50Ω

100 to 900 MHz

Features

• wideband, 100 to 900 MHz

• low insertion loss, 0.3 dB typ.

• good isolation, 26 dB typ.

• up to 5W power input as splitter

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 1 deg. typ.

• rugged shielded case

N-Type version shown

Coaxial Connections

SUMPORT

PORT 1

PORT 2

S

1

2

CASE STYLE: F14

Connectors Model

Price

N-TYPE

ZAPD-900-5W-N

$59.95

SMA

ZAPD-900-5W-S

$59.95

Qty.

(1-9)

Applications

• VHF/UHF

• communication systems

• instrumentation

Splitter Electrical Speciﬁcations

FREQ.

RANGE

(MHz)

ISOLATION

(dB)

INSERTION LOSS

(dB)

ABOVE 3.0 dB

Typ.

0.3

Max.

1.0

PHASE

UNBALANCE

(Degrees)

Max.

3

AMPLITUDE

UNBALANCE

(dB)

S

Max.

0.3

Typ.

1.15

VSWR

(:1)

OUT

Max.

1.5

Typ.

1.22

Max.

1.5

Outline Drawing

f

L

-f

U

100-900

Typ. Min.

23

18

Typical Performance Data

Frequency

(MHz)

Insertion Loss

(dB)

S-1

100.00

130.00

160.00

230.00

300.00

3.15

3.14

3.15

3.17

3.19

3.21

3.28

3.30

3.37

3.41

3.49

3.56

3.64

3.74

Amplitude

Unbalance

(dB)

0.01

0.00

0.01

0.02

0.03

0.04

0.05

0.07

0.09

Isolation

(dB)

VSWR

S

VSWR

1

VSWR

2

S-2

3.14

3.13

3.14

3.16

3.18

3.19

3.25

3.27

3.34

3.38

3.44

3.50

3.57

3.66

22.80

22.85

22.87

22.70

22.65

22.56

22.84

23.22

24.02

25.31

27.32

29.51

29.70

26.35

1.16

1.14

1.13

1.11

1.10

1.09

1.08

1.07

1.10

1.15

1.27

1.25

1.24

1.20

1.17

1.14

1.11

1.10

1.11

1.14

1.17

1.21

1.25

1.27

1.25

1.24

1.20

1.17

1.14

1.11

1.10

1.11

1.14

1.17

1.21

1.25

1.27

Outline Dimensions (

inch

)

mm

A

2.00

50.80

H

.39

9.91

B

2.00

50.80

J

1.00

25.40

C

.75

19.05

K

.50

12.70

D

1.00

25.40

L

1.00

25.40

E

.25

6.35

F

1.500

38.10

G

.125

3.18

wt

grams

170.0

370.00

440.00

510.00

580.00

650.00

720.00

790.00

860.00

924.00

ZAPD-900-5W

INSERTION LOSS

4.0

INSERTION LOSS (dB)

S-1(dB)

S-2(dB)

ZAPD-900-5W

ISOLATION

40

ISOLATION (dB)

35

30

25

20

15

100

3.8

3.6

3.4

3.2

3.0

100

200

300

400

500

600

700

800

900

200

300

400

500

600

700

800

900

FREQUENCY (MHz)

ZAPD-900-5W

VSWR

1.5

#S-VSWR

#1-VSWR

#2-VSWR

electrical schematic

1.4

VSWR

1.3

1.2

1.1

1.0

100

200

300

400

500

600

700

800

900

FREQUENCY (MHz)

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M94665

ZAPD-900-5W

HY/TD/CP

060828

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZAPD-900-5W-S Related Products

	ZAPD-900-5W-S	ZAPD-900-5W-N
Description	Combiner, 100MHz Min, 900MHz Max, 1dB Insertion Loss-Max, CASE F14	Combiner, 100MHz Min, 900MHz Max, 1dB Insertion Loss-Max, CASE F14
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	unknown
Other features	SMA, ISOLATION-MIN (DB):18	N, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	36.99 dBm	36.99 dBm
Maximum insertion loss	1 dB	1 dB
JESD-609 code	e0	e0
Maximum operating frequency	900 MHz	900 MHz
Minimum operating frequency	100 MHz	100 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.5	1.5
