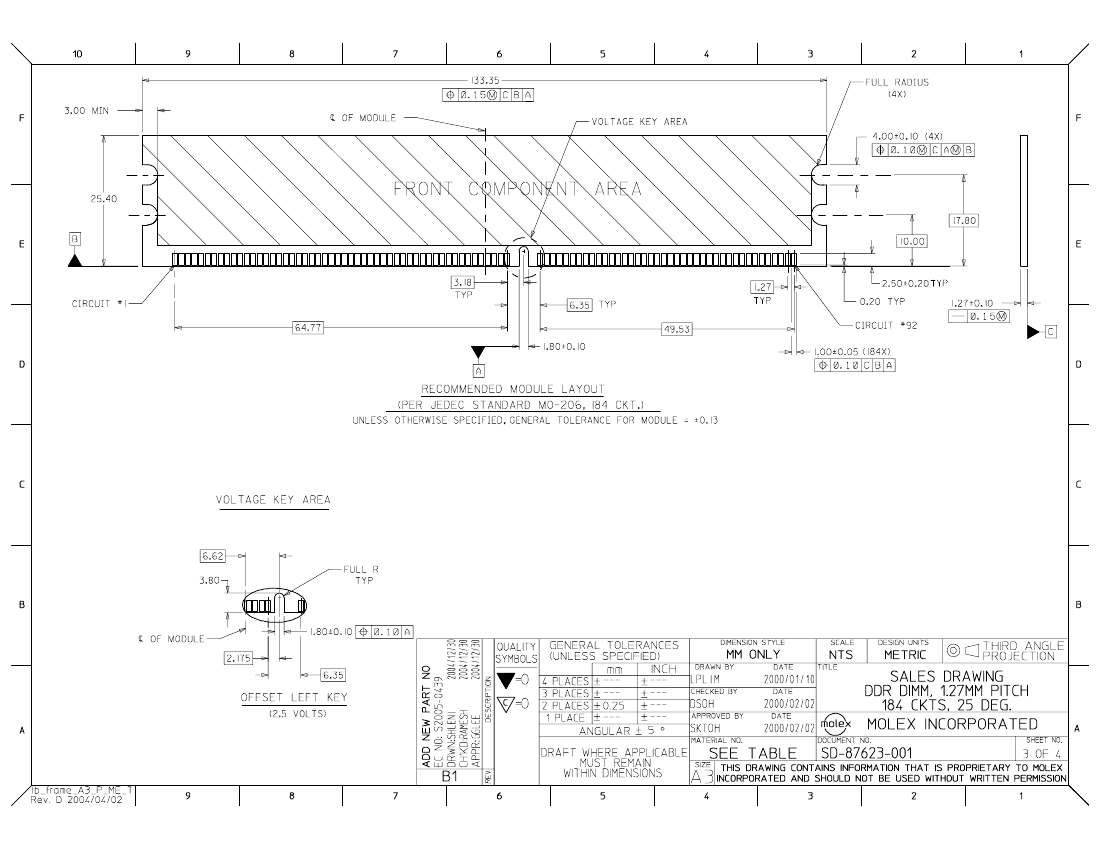

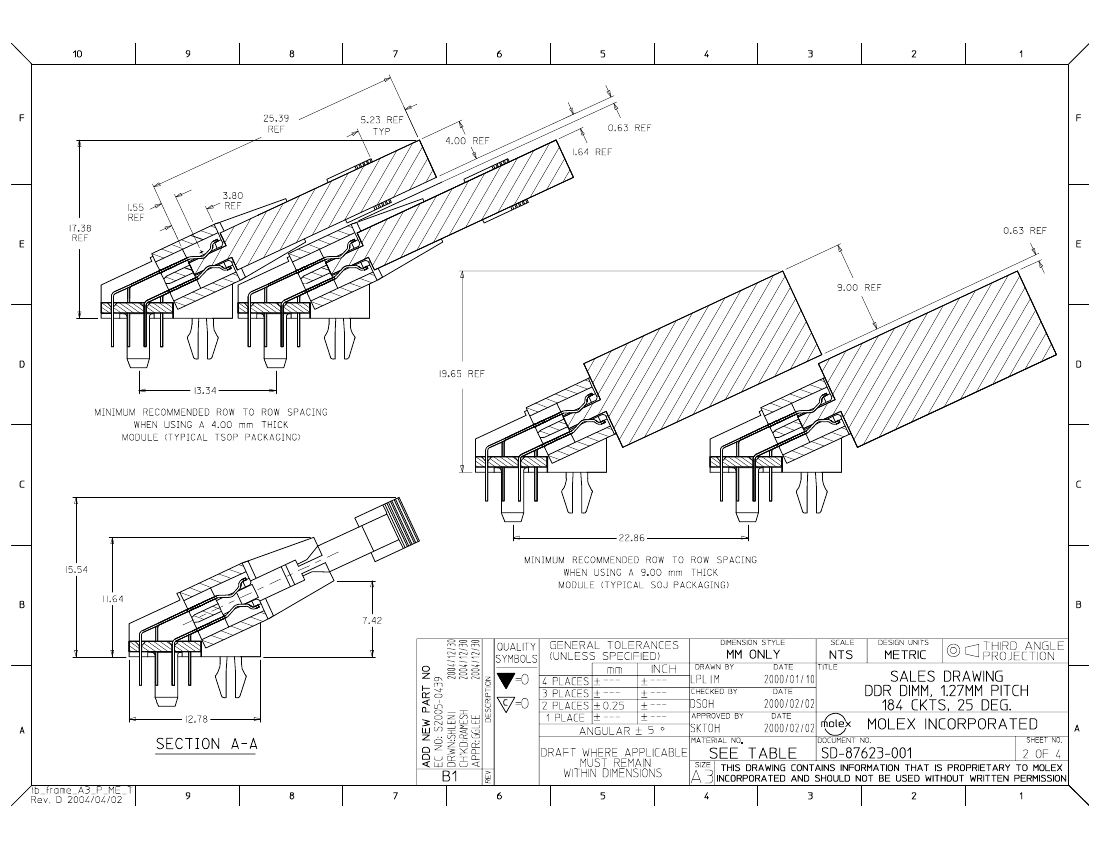

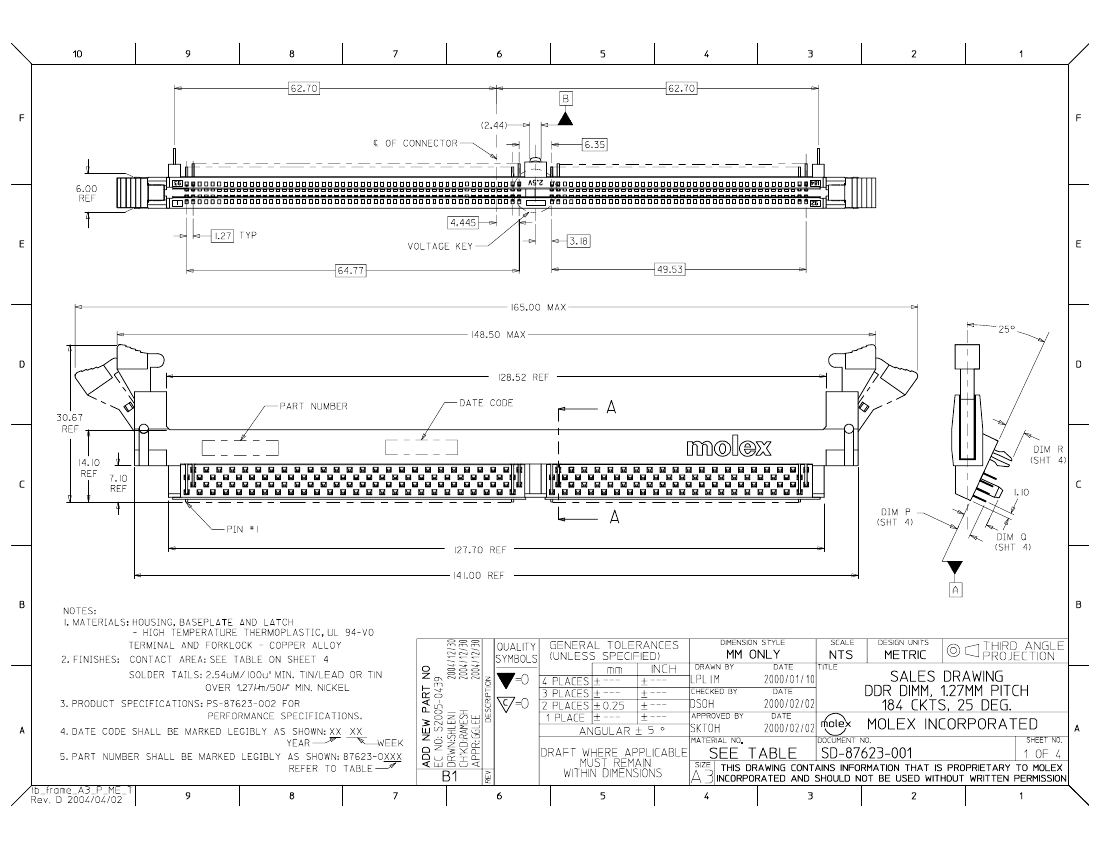

Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket

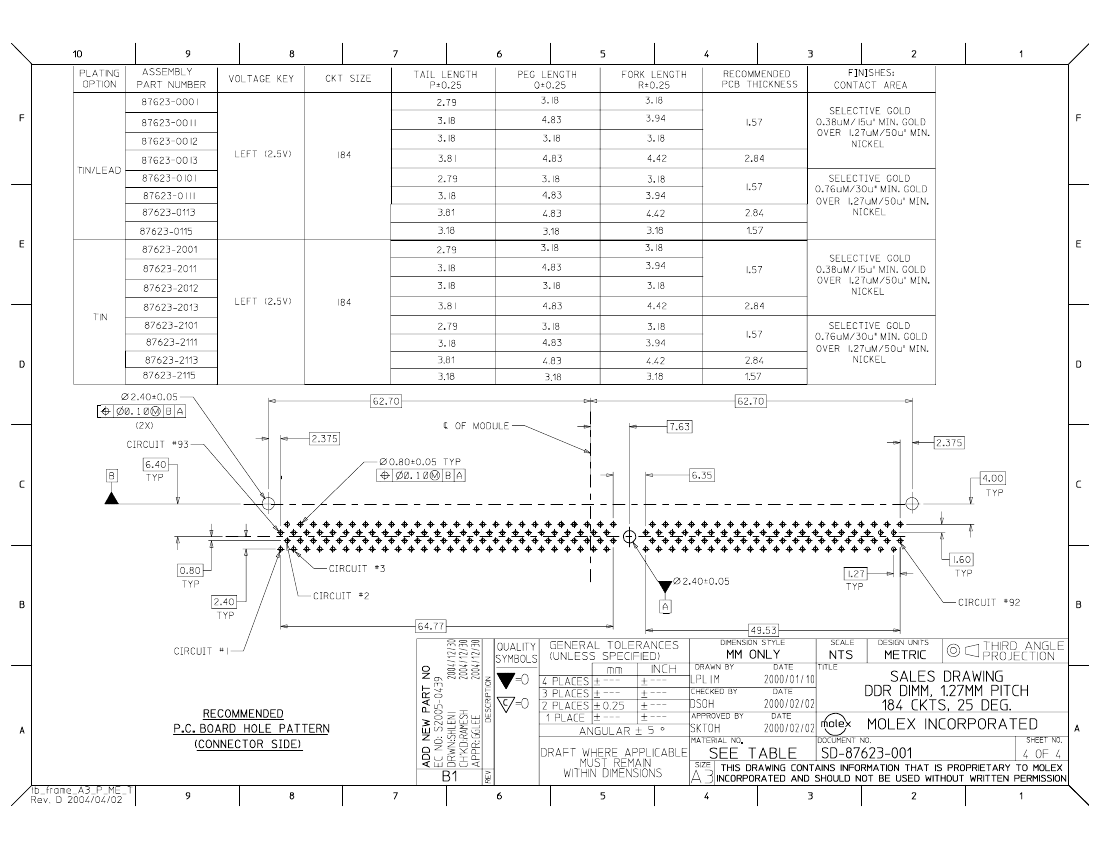

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | LATCHED, POLARIZED |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.458 inch |
| body length | 5.551 inch |
| Body/casing type | SOCKET |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 50 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .7784 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | 87623 |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH & EJECT |
| Installation option 2 | LOCKING |
| Installation method | 25 DEGREE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 0.063 mm |
| Plating thickness | 15u inch |
| polarization key | LEFT |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.125 inch |
| Terminal pitch | 1.27 mm |
| Termination type | SOLDER |
| Total number of contacts | 184 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0834 N |
| 87623-0012 | 87623-0113 | 87623-0011 | 87623-0101 | 87623-0115 | 87623-0111 | |
|---|---|---|---|---|---|---|
| Description | Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket | Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket | Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket, | Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket | Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, Solder Terminal | Card Edge Connector, 184 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket, |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | unknow | unknown | compliant | unknown | unknown | compliant |
| Other features | LATCHED, POLARIZED | LATCHED, POLARIZED | LATCHED, POLARIZED | LATCHED, POLARIZED | LATCHED, POLARIZED | LATCHED, POLARIZED |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 87623 | 87623 | 87623 | 87623 | 87623 | 87623 |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | 25 DEGREE | 25 DEGREE | 25 DEGREE | 25 DEGREE | 25 DEGREE | 25 DEGREE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 184 | 184 | 184 | 184 | 184 | 184 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | - | incompatible |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Board mount options | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | - | SPLIT BOARD LOCK |
| body width | 0.458 inch | 0.458 inch | 0.458 inch | 0.458 inch | - | 0.458 inch |
| body length | 5.551 inch | 5.551 inch | 5.551 inch | 5.551 inch | - | 5.551 inch |
| Body/casing type | SOCKET | SOCKET | SOCKET | SOCKET | - | SOCKET |
| Contact to complete cooperation | AU ON NI | AU ON NI | NOT SPECIFIED | NOT SPECIFIED | - | TIN LEAD |
| Contact material | COPPER ALLOY | COPPER ALLOY | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| Contact resistance | 50 mΩ | 50 mΩ | 50 mΩ | 50 mΩ | - | 50 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | - | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | - | 500VAC V |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | - | 25 Cycles |
| maximum insertion force | .7784 N | .7784 N | .7784 N | .7784 N | - | .7784 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | - | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - | THERMOPLASTIC |
| Plug contact pitch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch | - | 0.05 inch |
| Installation option 1 | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | - | LATCH & EJECT |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | - | LOCKING |
| Number of connectors | ONE | ONE | ONE | ONE | - | ONE |
| PCB row number | 4 | 4 | 4 | 4 | - | 4 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | - | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | - | -40 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | - | STAGGERED |
| PCB contact row spacing | 0.063 mm | 0.063 mm | 0.063 mm | 0.063 mm | - | 0.063 mm |
| Plating thickness | 15u inch | 30u inch | 15u inch | 30u inch | - | 30u inch |
| polarization key | LEFT | LEFT | LEFT | LEFT | - | LEFT |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | - | 1 A |
| Guideline | UL | UL | UL | UL | - | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.125 inch | 0.15 inch | 0.125 inch | 0.11 inch | - | 0.125 inch |
| Evacuation force-minimum value | .0834 N | .0834 N | .0834 N | .0834 N | - | .0834 N |
