BAT14-03W: DescriptionSILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE; CategoryDiscrete semiconductor diode; File Size388KB，3 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT14-03W Overview

SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE

BAT14-03W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	SOD
package instruction	SOD-323, 2 PIN
Contacts	2
Manufacturer packaging code	SOD-323
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Configuration	SINGLE
Maximum diode capacitance	0.35 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	0.45 V
frequency band	X BAND
JESD-30 code	R-PDSO-G2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum output current	0.09 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	4 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Schottky barrier type	LOW BARRIER
Base Number Matches	1

Preview

Download Datasheet

View All

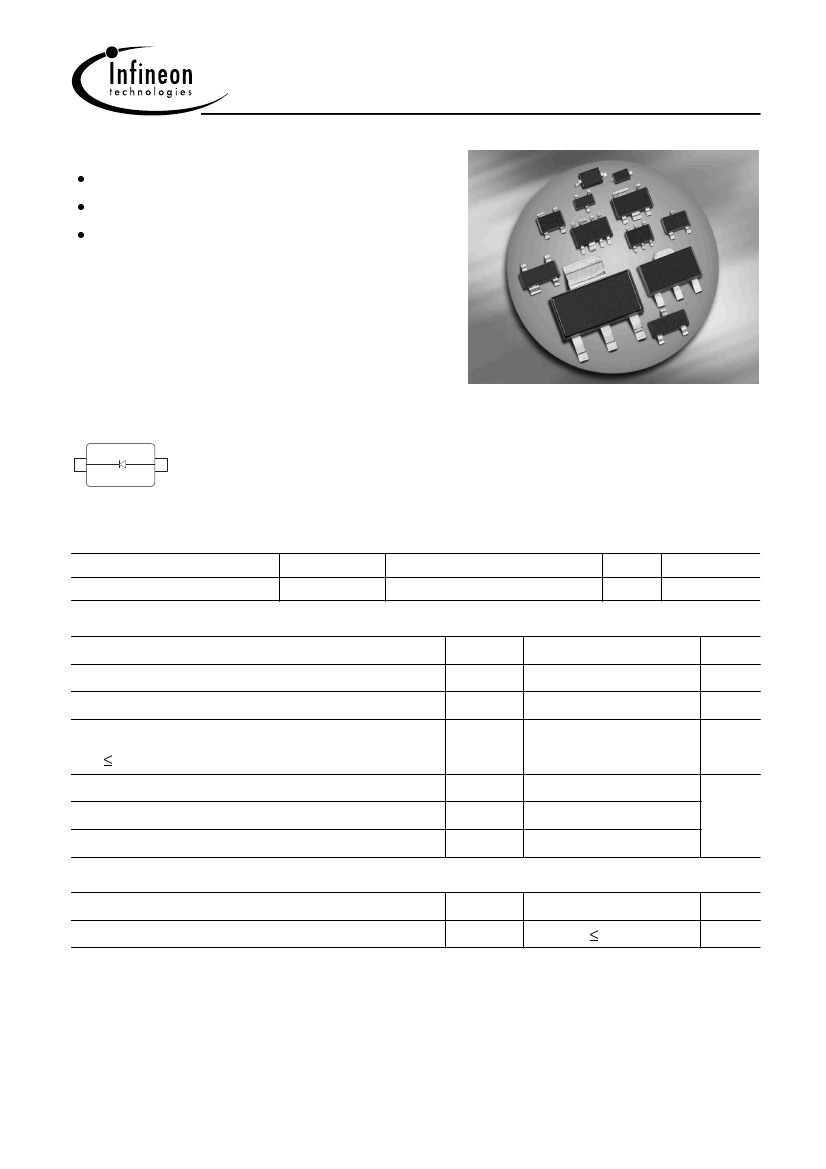

BAT14...

Silicon Schottky Diode

DBS mixer applications up to 12 GHz

Low noise figure

Low barrier type

1

BAT14-03W

2

ESD

:

E

lectro

s

tatic

d

ischarge sensitive device, observe handling precaution!

Type

BAT14-03W

Package

SOD323

Configuration

single

L

S

(nH)

Marking

1.8

O/white

Maximum Ratings

at

T

A

= 25°C, unless otherwise specified

Parameter

Symbol

V

R

I

F

P

tot

T

j

T

op

T

stg

Symbol

R

thJS

Value

Unit

Diode reverse voltage

Forward current

Total power dissipation

Junction temperature

Operating temperature range

Storage temperature

Thermal Resistance

Parameter

T

S

4

90

100

150

-55 ... 125

-55 ... 150

V

mA

mW

°C

85 °C

1

For

calculation of

R

thJA

please refer to Application Note Thermal Resistance

1

Junction - soldering point

1)

Value

Unit

690

K/W

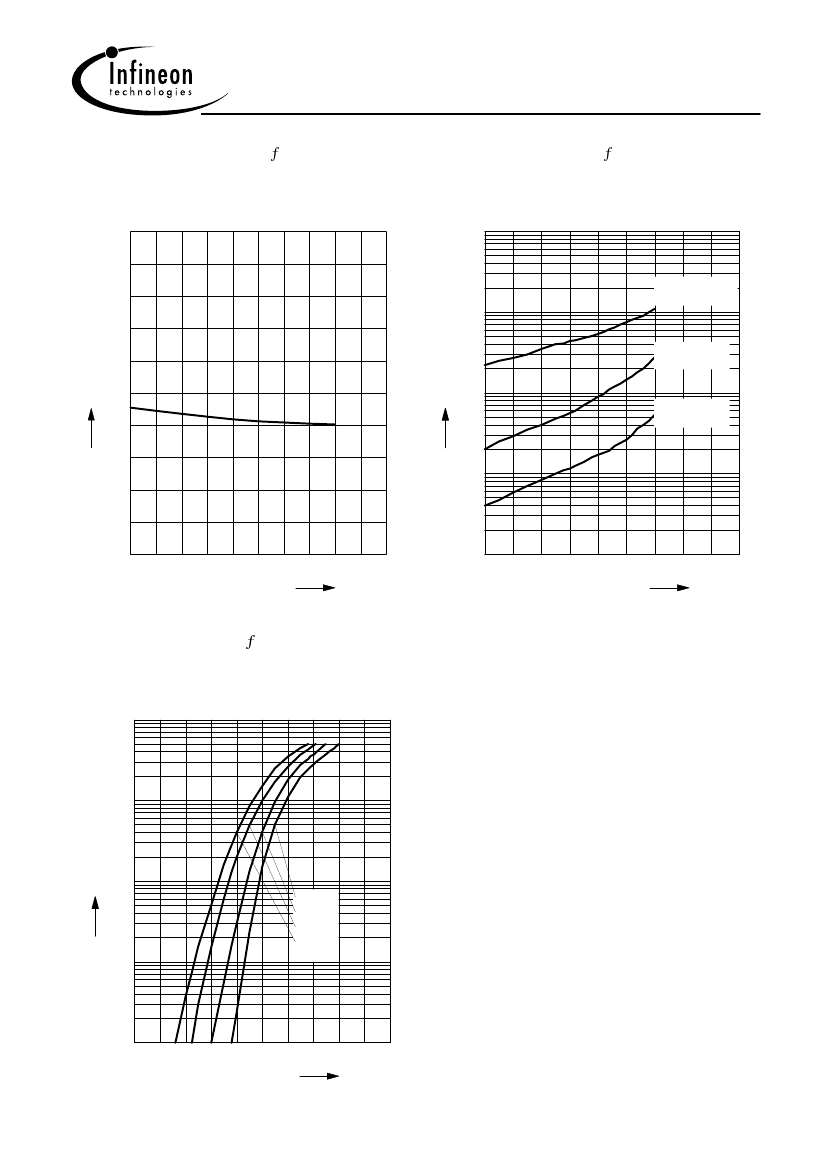

Feb-03-2003
