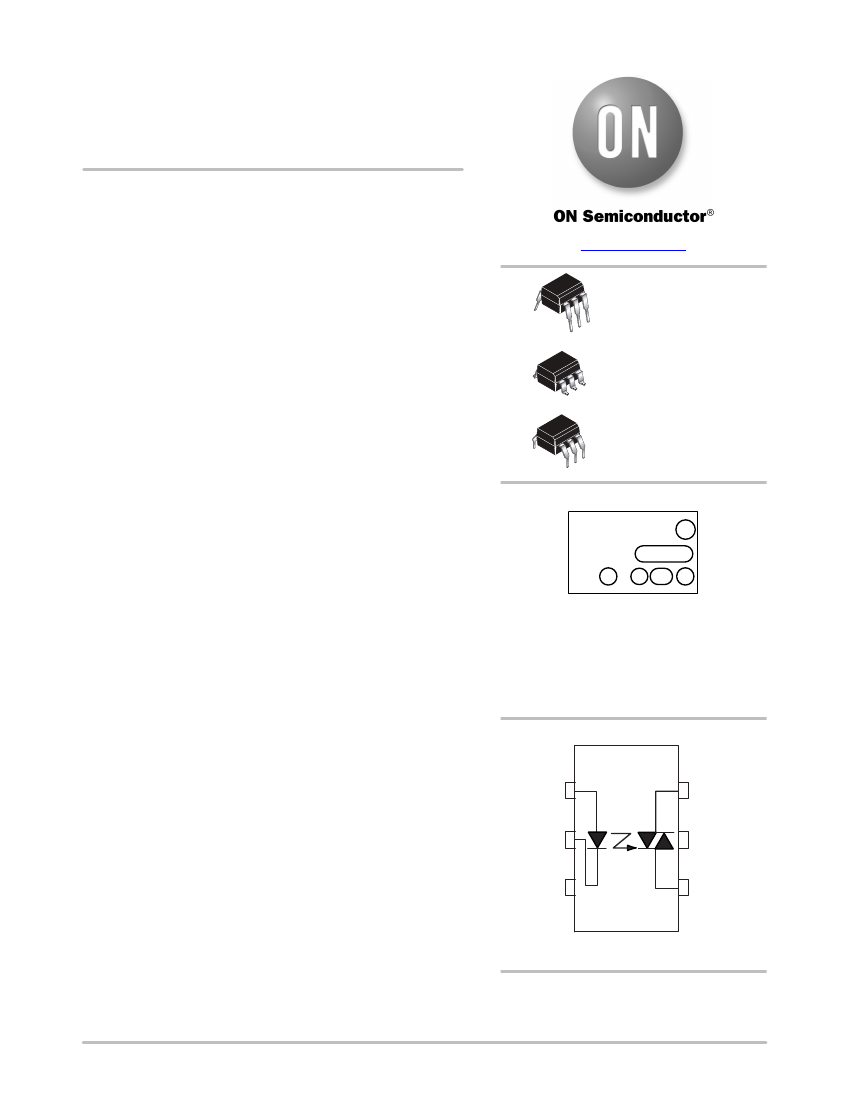

6-Pin DIP High dv/dt

Random Phase Triac

Drivers

FOD420, FOD4208,

FOD4216, FOD4218

Description

www.onsemi.com

The FOD420, FOD4208, FOD4216 and FOD4218 devices consist

of an infrared emitting diode coupled to a hybrid random phase triac

formed with two inverse parallel SCRs which form the triac function

capable of driving discrete triacs. The FOD4216 and FOD4218 utilize

a high efficiency infrared emitting diode which offers an improved

trigger sensitivity. These devices are housed in a standard 6−pin dual

in−line (DIP) package.

Features

PDIP6 GW

CASE 709AG

PDIP6 7.3x6.5, 2.54P

CASE 646CE

•

300 mA

peak

On−State Current

•

High Blocking Voltage

♦

•

600 V (FOD420, FOD4216)

♦

800 V (FOD4208, FOD4218)

High Trigger Sensitivity

♦

1.3 mA (FOD4216, FOD4218)

♦

2 mA (FOD420, FOD4208)

High Static dv/dt (10,000 V/ms)

Safety and Regulatory Approvals:

♦

UL1577, 5,000 VAC

RMS

for 1 Minute

♦

DIN−EN/IEC60747−5−5

These Devices are Pb−Free and are RoHS Compliant

PDIP6 7.3x6.5, 2.54P

CASE 646CF

MARKING DIAGRAM

FOD420

Applications

Solid−State Relays

Industrial Controls

Lighting Controls

Static Power Switches

AC Motor Starters

= ON Semiconductor Logo

FOD420 = Device Number

= VDE mark. DIN EN/IEC60747−5−5

Option (only appears on component

ordered with this option)

= One−Digit Year Code

= Digit Work Week

= Assembly Package Code

FUNCTIONAL SCHEMATIC

ANODE 1

6 MAIN TERM.

CATHODE 2

5 NC*

N/C 3

4 MAIN TERM.

*DO NOT CONNECT

(TRIAC SUBSTRATE)

ORDERING INFORMATION

See detailed ordering and shipping information on page 8

of this data sheet.

Semiconductor Components Industries, LLC, 2018

August, 2020

−

Rev. 4

Publication Order Number:

FOD4218/D
