BAT15

Description
SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE
Categorysemiconductor    Discrete semiconductor
File Size529KB,10 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Compare View All

BAT15 Overview

SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE

BAT15...

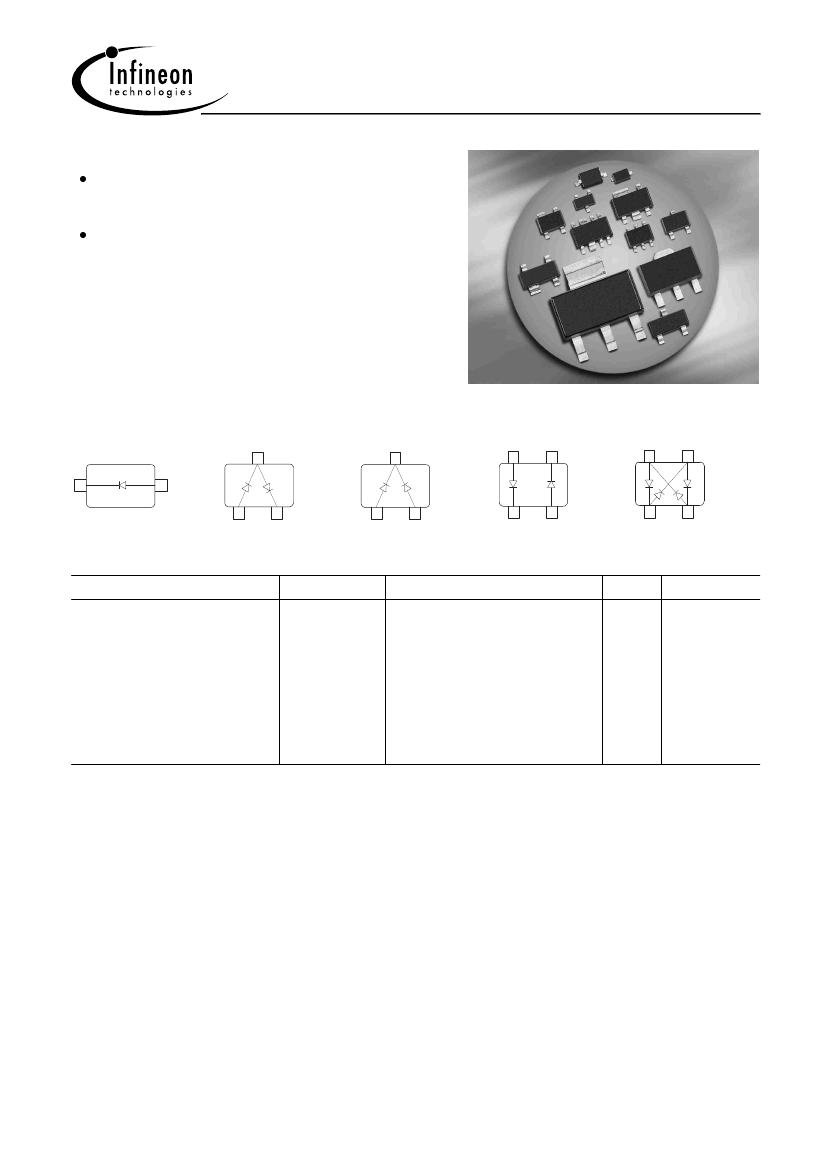

Silicon Schottky Diodes
Low barrier type for DBS mixer applications
up to 12 GHz, phase detectors and modulators
Low noise figure

1

BAT15-02L/V
BAT15-03W
BAT15-04W
3
BAT15-05W
3
BAT15-099
4
3
BAT15-099R
4
3
2
D 1
D 2
D 1
D 2
D 1
D 2
D 1
D 3
D 4
D 2
1
2
1
2
1
2
1
2
ESD
:
E
lectro
s
tatic
d
ischarge sensitive device, observe handling precaution!
Type
BAT15-02L*
BAT15-02V
BAT15-03W
BAT15-04W
BAT15-05W
BAT15-099
BAT15-099R
Package
TSLP-2-1
SC79
SOD323
SOT323
SOT323
SOT143
SOT143
Configuration
single, leadless
single
single
series
common cathode
anti-parallel pair
crossover ring
L
S
(nH)
0.4
0.6
1.8
1.4
1.4
2
2
Marking
NP
n
P white
S8s
S5s
S5s
S6s
* target data
1
Jan-30-2003

BAT15 Related Products

BAT15 BAT15-02V BAT15-02L
Description SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE
Parts packaging code - SC-79 DFN
package instruction - R-PDSO-F2 R-XBCC-N2
Contacts - 2 2
Reach Compliance Code - compli compli
ECCN code - EAR99 EAR99
Other features - LOW NOISE LOW NOISE
Configuration - SINGLE SINGLE
Maximum diode capacitance - 0.35 pF 0.35 pF
Diode component materials - SILICON SILICON
Diode type - MIXER DIODE MIXER DIODE
Maximum forward voltage (VF) - 0.41 V 0.41 V
frequency band - X BAND X BAND
JESD-30 code - R-PDSO-F2 R-XBCC-N2
JESD-609 code - e3 e3
Number of components - 1 1
Number of terminals - 2 2
Maximum operating temperature - 150 °C 150 °C
Maximum output current - 0.11 A 0.11 A
Package body material - PLASTIC/EPOXY UNSPECIFIED
Package shape - RECTANGULAR RECTANGULAR
Package form - SMALL OUTLINE CHIP CARRIER
Maximum power dissipation - 0.1 W 0.1 W
Certification status - Not Qualified Not Qualified
Maximum repetitive peak reverse voltage - 4 V 4 V
surface mount - YES YES
technology - SCHOTTKY SCHOTTKY
Terminal surface - MATTE TIN MATTE TIN
Terminal form - FLAT NO LEAD
Terminal location - DUAL BOTTOM
Schottky barrier type - LOW BARRIER LOW BARRIER
Base Number Matches - 1 1
