TECHNICAL DATA SHEET
1/2

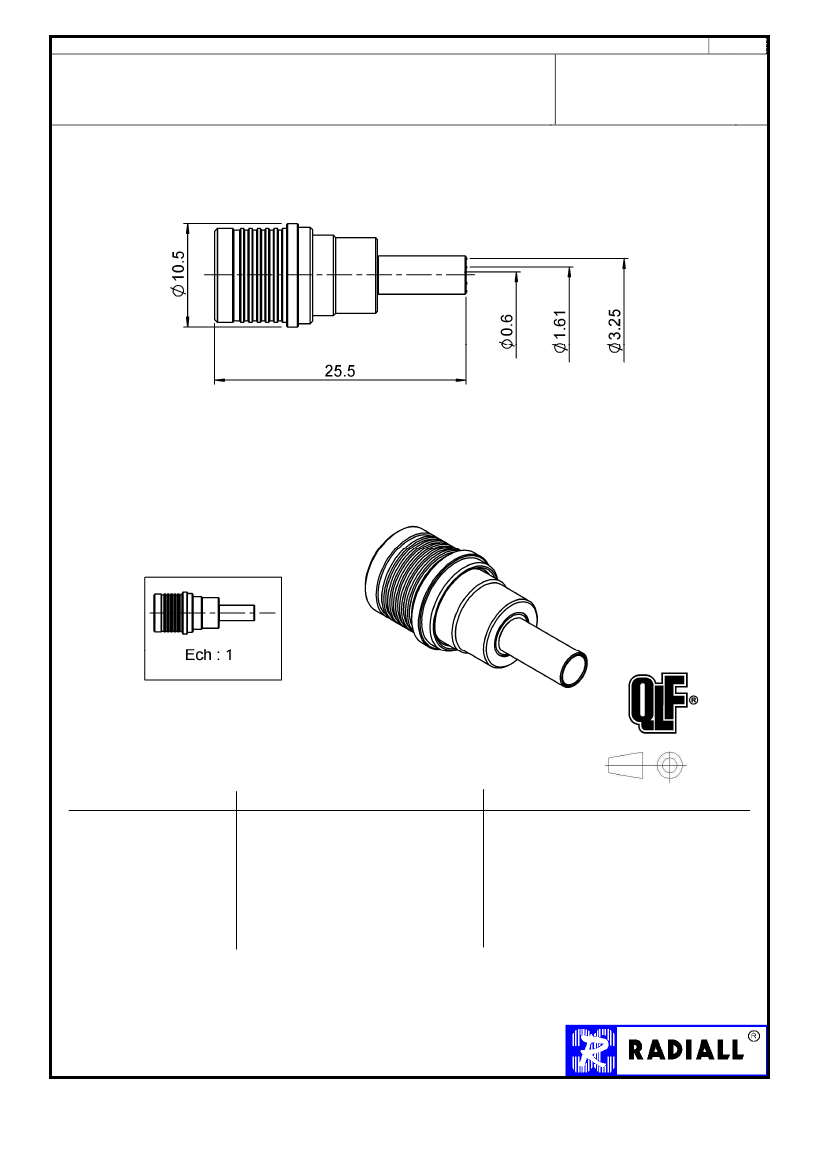

STRAIGHT PLUG FULL CRIMP
CABLE 2.6/50 S
R123.071.000
Series :
QMA
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
BRASS
BRASS
BRASS
PTFE
-
BRASS
-
-
MATERIALS
BBR 2
NPGR
BBR 2
PLATINGS
(µm)
BBR 2
-
-
Issue : 0923 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/2
STRAIGHT PLUG FULL CRIMP
CABLE 2.6/50 S
R123.071.000
Series :
QMA
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-6
GHz
VSWR
+ 0,0000
x F(GHz) Maxi
Insertion loss
.05
√F(GHz)
dB Maxi
RF leakage
-(
80
- F(GHz)) dB Maxi
Voltage rating
250
Veff Maxi
Dielectric withstanding voltage
750
Veff mini
Insulation resistance
5000
MΩ mini
Stripping
CABLE ASSEMBLY
a
3,00
b
6,30
c
10,8
d
0,00
e
7,80
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
RG 188
RG 316
KX 22A
Crimp 02
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
18
N mini
18
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
90
N mini
NA
N.cm
TOOLING
Description
.
CRIMPING TOOL
CRIMPING DIES
M22520/5-03
R282.281.000 CRIMPING TOOL
R282.293.000 CRIMPING TOOL
M22520/5-01
R282.967.015 POSITIONER FOR
CRIMPIMG TOOL
R299.511.016 STRIPPING
CASETTE .059/.248
Part Number
.
R282.211.000
R282.235.003
Hexagon
.
3.25
3.25
2x4 (pos.
5)
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
100
Cycles mini
5,7800
g
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+105
° C
NA
Atm.cm3/s
NA
denudage
B, E
OTHERS CHARACTERISTICS
VSWR : 1.12 max from 0 to 3GHz
Intermod.: -120 dBc at 1.8GHz (2x20W)
RF leakage(interf.): 3<F<6GHz: >70dB
Issue : 0923 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
