DT113ZSA datasheet, PDF - EEWORLD Datasheet

DT113ZSA: DescriptionPeripheral Driver, 1 Driver, BIPolar; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size66KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

DT113ZSA Overview

Peripheral Driver, 1 Driver, BIPolar

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	, SIP3
Reach Compliance Code	compli
ECCN code	EAR99
Number of drives	1
Number of terminals	3
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal location	SINGLE

Transistors

Digital transistors (built-in resistors)

DTC113ZUA / DTC113ZKA / DTC113ZSA

FFeatures

1) Built-in bias resistors enable the

configuration of an inverter circuit

without connecting external input

resistors (see equivalent circuit).

2) Each bias resistor is a thin-film re-

sistor. Since they are completely in-

sulated, the input can be negatively

biased. The insulation also elimi-

nates most of the parasitic effects.

3) Only the on / off conditions need to

be set for operation, making device

design easy.

FStructure

NPN digital transistor

(with built in resistors)

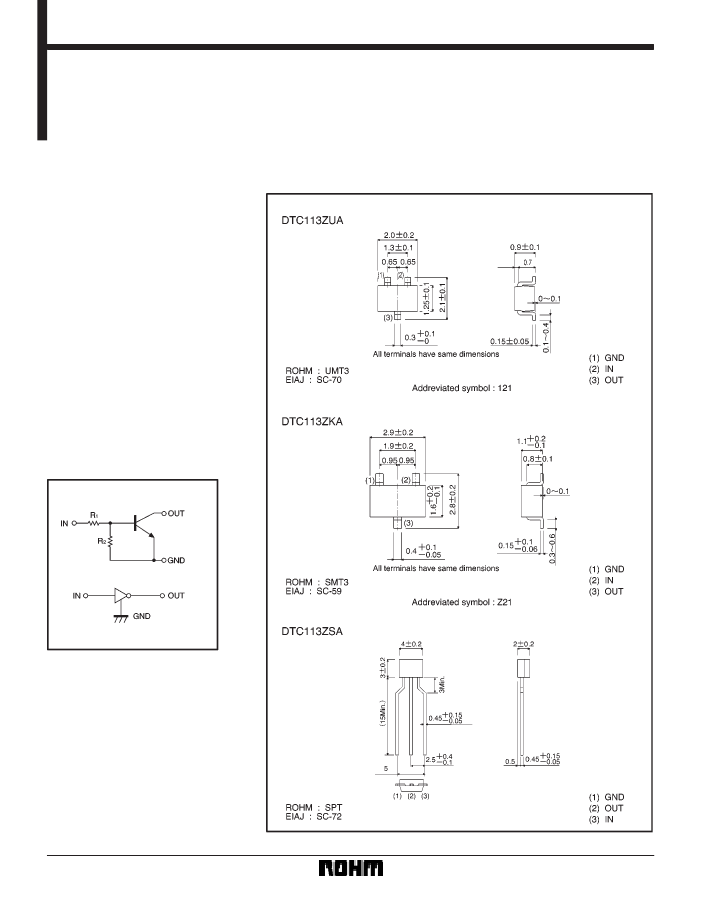

FEquivalent

circuit

FExternal

dimensions (Units: mm)

(96S-623-C113Z)

390
