CL03C0R2BA3GNNH: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000002uF, Surface Mount, 0201, CHIP; CategoryPassive components capacitor; File Size59KB，1 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

CL03C0R2BA3GNNH Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000002uF, Surface Mount, 0201, CHIP

CL03C0R2BA3GNNH Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
package instruction	, 0201
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	2e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	50%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, CARDBOARD PAPER, 7 INCH
positive tolerance	50%
Rated (DC) voltage (URdc)	25 V
size code	0201
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

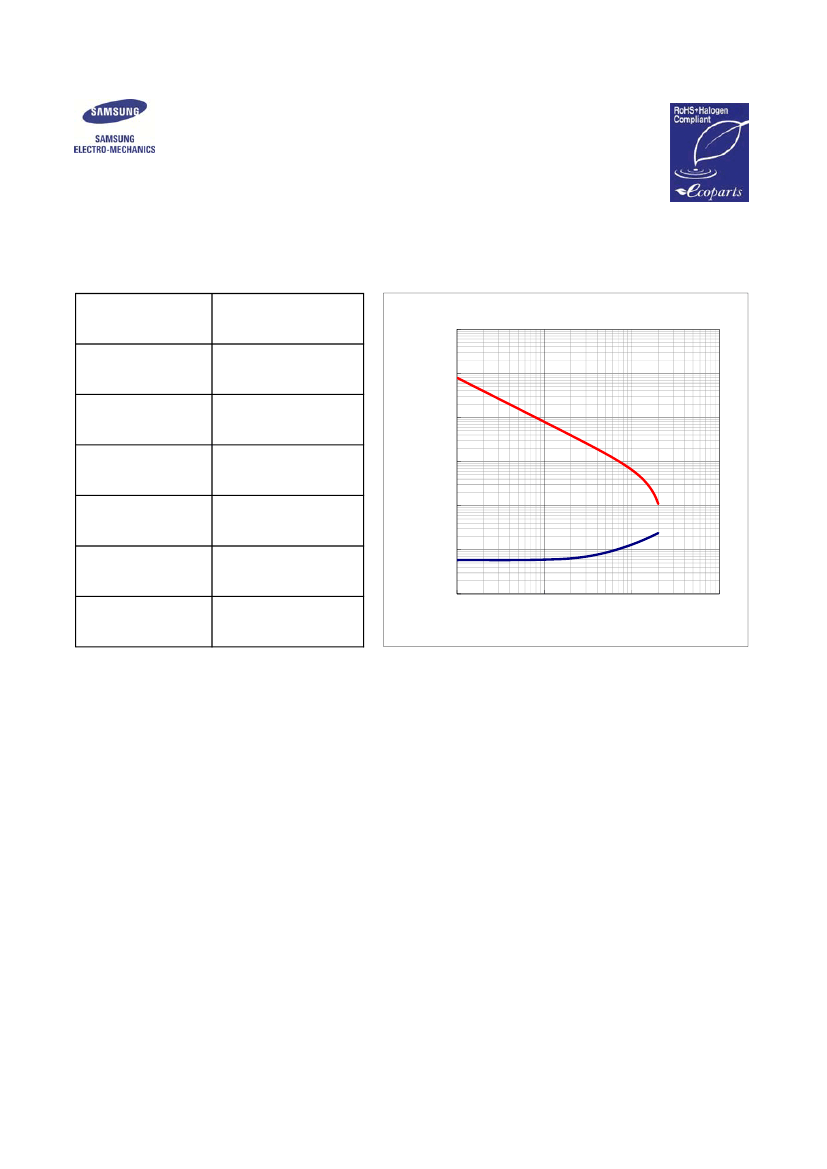

Multi Layer Ceramic Capacitor (MLCC)

1. Model : CL03C0R2BA3GNNH

2. Description

3. Frequency characteristics

Network Analyzer N5230, 100MHz to 20GHz

Part no.

CL03C0R2BA3GNNH

Impedance |Z|, ESR

100000

Size (inch / mm)

0201/0603

10000

|Z|

Temperature

charateristics

Capacitance

tolerance (%)

Voltage

(V)

|Z|, ESR [Ohm]

Thickness (mm)

0.3

1000

C0G

100

10

0.2㎊

1

ESR

± 0.1pF

0.1

100

1000

10000

100000

25

Frequency [MHz]
