BAT18-04

Description
PIN DIODE
CategoryDiscrete semiconductor    diode
File Size39KB,2 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAT18-04 Overview

PIN DIODE

BAT18-04 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSIEMENS
package instructionR-PDSO-G3
Reach Compliance Codeunknown
ECCN codeEAR99
applicationSWITCHING
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance1 pF
Nominal diode capacitance0.75 pF
Diode component materialsSILICON
Maximum diode forward resistance0.7 Ω
Diode resistance test current5 mA
Diode resistance test frequency100 MHz
Diode typePIN DIODE
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Number of components2
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Reverse test voltage20 V
surface mountYES
technologyPOSITIVE-INTRINSIC-NEGATIVE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1

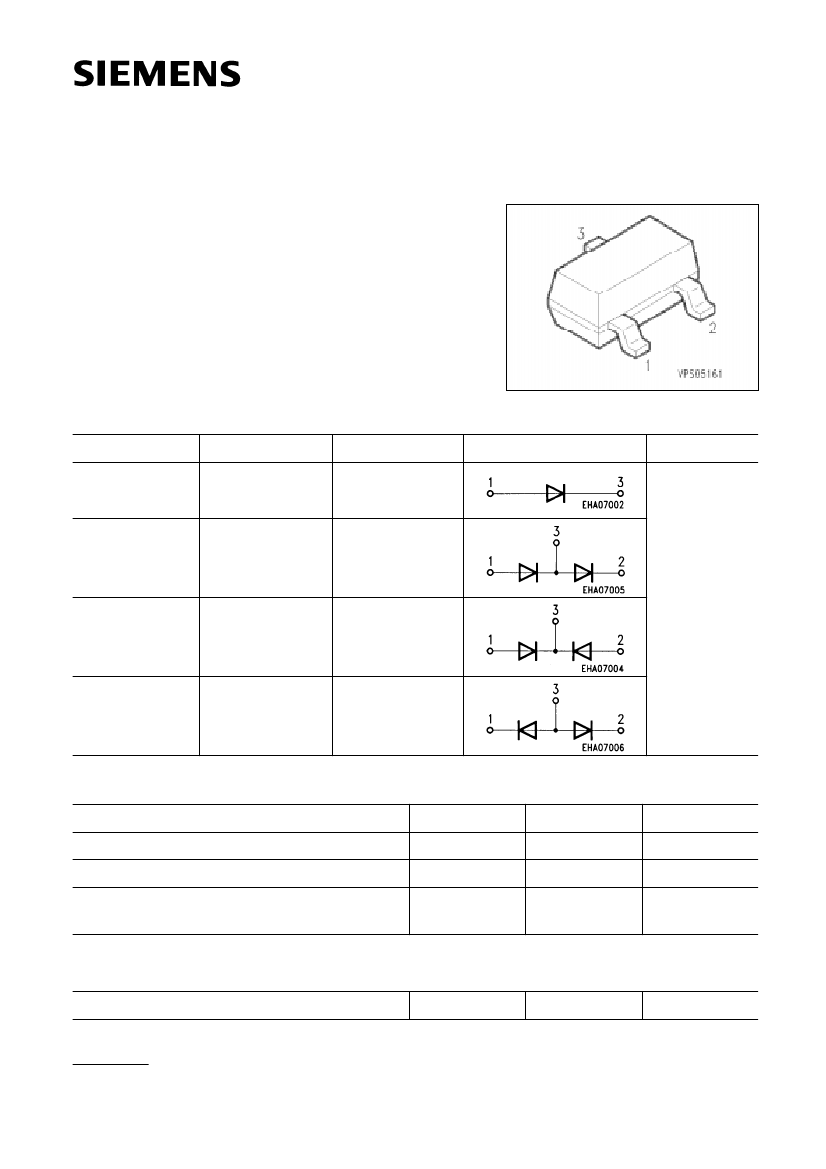

BAT 18
Silicon RF Switching Diode
q
Low-loss VHF/UHF switch above 10 MHz
q
Pin diode with low forward resistance
BAT 18 …
Type
BAT 18
BAT 18-04
Marking
A2
AU
Ordering Code Pin Configuration
Q62702-A787
Q62702-A938
Package
1)
SOT 23
BAT 18-05
AS
Q62702-A940
BAT 18-06
AT
Q62702-A942
Maximum Ratings per Diode
Parameter
Reverse voltage
Forward current
Operating and
storage temperature range
Thermal Resistance
Junction - ambient
R
th JA
450
Symbol
V
R
I
F
T
op
T
stg
Values
35
100
Unit
V
mA
– 55 … + 150 ˚C
K/W
1)
2)
For detailed information see chapter Package Outlines.
Package mounted on alumina 15 mm
×
16.7 mm
×
0.7 mm.
Semiconductor Group
1
07.94
