3.3 mm Contact Pitch, Connectors for Internal Power Supplies
DF33 Series
Complete
Locking
Function
Completely
enclosed
locking system
Protection from
shorts circuits
between adjacent
Contacts
■

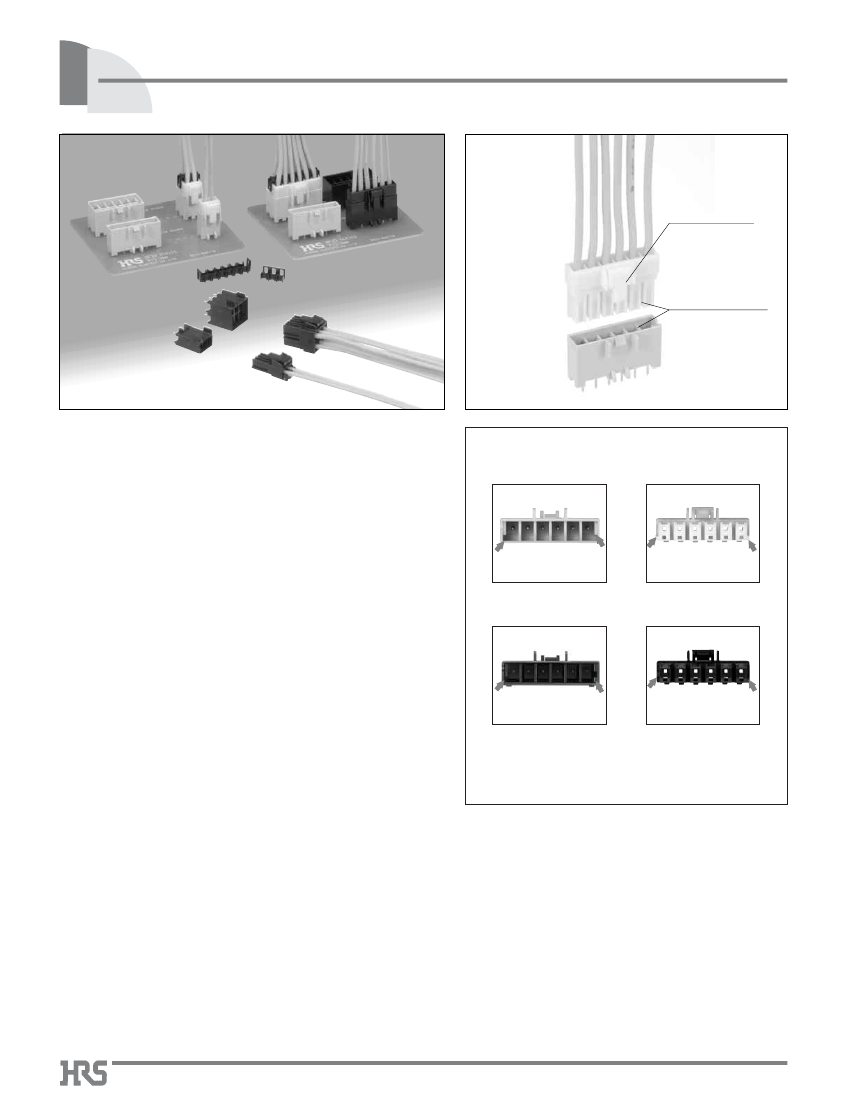

Features
1. 5 A maximum current
Single row connector can carry current of 5 A with #20 AWG
conductor. Please refer to Table #1 for current ratings for multi-
position connectors using other conductor sizes.
Prevention of Incorrect Connections
●Standard
Type
(Color: natural)
2. Complete Locking Function
Reliable interior lock protects mated connectors from
accidental disconnection.
3. Prevention of Incorrect Connections
To prevent incorrect connection when using multiple
connectors having the same Number of contacts, 3 product
types having different mating configurations are available.
●R
Type
(Color: black)
4. Prevention of incorrect board placement
Built-in posts assure correct connector placement and
orientation on the board.
5. Supports encapsulation
Connectors can be encapsulated up to 10 mm without affecting
the performance.
6. Prevention of Short Circuits Between
Adjacent Contacts
Each Contact is completely surrounded by the insulator
housing electrically isolating it from adjacent contacts.
*The
photographs on the left show header (the board dip side),
the photographs on the right show the socket (cable side).
*The
guide key position is indicated in position facing
the mating surface of the header.
7. Increased Retention Force of Crimped
Contacts and confirmation of complete
contact insertion
Separate contact retainers are provided for applications where
extreme pull-out forces may be applied against the wire or
when a visual confirmation of the full contact insertion is
required.
■
Applications
Office equipment, power supplies for industrial, medical and
instrumentation applications, variety of consumer electronic, and
electrical applications.
B138
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
Series●3.3 mm Contact Pitch, Connectors for
contact your
Power Supplies
DF33
the Hirose website RoHS search at www.hirose-connectors.com, or
Internal
Hirose sales representative.
■Product
Specifications
Ratings
Current
rating
Voltage
rating
Item
1. Contact resistance
2. Insulator resistance
3. Withstanding voltage
Number of rows
1
2
Number of contacts
2 to 6
4 to 12
AC/DC
500V
AWG20
5A
5A
AWG22
5A
4A
Operating temperature range -35ç to 85ç (Note 1)
Operating humidity range
40% to 80%
Storage temperature range -10ç to 60ç (Note 2)
Storage humidity range 40% to 70% (Note 2)
Condition
20mV max., 1mA
500 V DC
1500 V AC for 1 minute
Measured with a steel pin of 0.5 x 0.5
±
0.002 thickness
30 cycles
Frequency 10 to 55 Hz, single amplitude of 0.75 mm, 3 axis, duration of 2 hours
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave waveform, 3 cycles in each of the 3 axis.
Temperature 40ç
±
2ç, 90% to 95% RH, 96 hours
(-55ç: 30 minutes➝ 5 to 35ç: 5 minutes➝85ç: 30 minutes➝5 to 35ç: 5 minutes) for 5 cycles
Flow solder temperature 260ç, for 10 seconds
Manual soldering: Soldering iron temperature 320ç, 3 seconds
Specification
Contact resistance(Initial value): 10 m ohms max.
1000 M ohms min.
No flashover or Insulator breakdown
4. Insertion-Extraction force (per contact) 0.5N min., 4.5N max.
5. Durability (mating/unmating)
6. Vibration
7. Shock
8. Humidity
9. Temperature cycle
10. Resistance to Soldering heat
Contact resistance of 20 m ohms max.
No electrical discontinuity of 1
μs.
min.
No electrical discontinuity of 1
μs.
min.
Contact resistance 20 m ohms max.
Contact resistance of 20 m ohms max.
No deformation of the insulator parts affecting performance
Note 1: Includes temperature rise caused by the current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity
range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
■Materials
Product
Sockets
Crimp contacts
Headers
Retainer
Part
Insulator
Contacts
Insulator
Contacts
Insulator
Material
Polyamide
Copper alloy
Polyamide (Glass reinforced)
Copper alloy
PBT
Finish
Color: Natural white
Tin plated
Color: Natural beige
Tin plated
Color: Black
(Note 1)
(Note 2)
(Note 1)
(Note 2)
Remarks
UL94V-0
----------
UL94V-0
----------
UL94V-0
Note 1: Standard Color, colors of the differing coupling forms are black for DF33R.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Ordering
Information
●Socket,
Header
●Contacts
DF33 R - 2 S - 3.3 C
1
2
3
4
5
6
4
Connector type
S
DS
P
DP
RS
RDS
5
Contact pitch
DF33A - 2022 SCF
1
: Single-row socket
: Double-row socket
: Single-row header
: Double-row header
: Single-row retainer
: Double-row retainer
: 3.3 mm
7
8
1
Series name: DF33
2
Guide key type
Blank : Inside (Color: natural)
R : Right side (Color: black)
3
Number of contacts : 2 to 6(Single row)
4 to 12(Double row)
6
Type of housing
C
: Crimp housing
DSA
: Straight header
7
Applicable conductor
2022 : AWG 20 to AWG 22
8
Packaging
SCF : Socket contacts / reel
SC : Socket contacts / bag
B139
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check
Internal Power
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF33 Series●3.3 mm Contact Pitch, Connectors for
the products status
Supplies

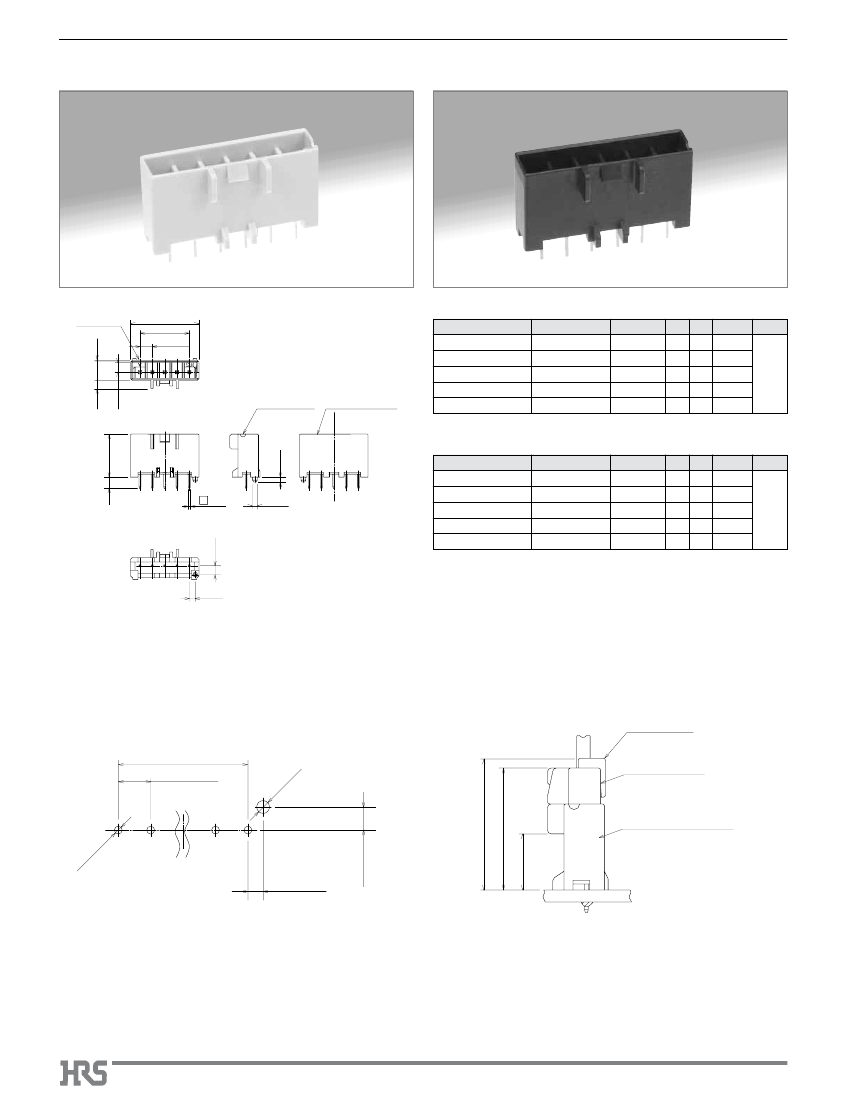

■Single
row - Straight header
Standard Type
R Type
Standard Type (Guide Key: Inside, Color: Natural Beige)
Cavity No.
0.5
A
B
P=3.3
Polarity mark
Lot No. indicator
Pat number
DF33-2P-3.3DSA(24)
DF33-3P-3.3DSA(24)
DF33-4P-3.3DSA(24)
DF33-5P-3.3DSA(24)
DF33-6P-3.3DSA(24)
CL No.
No. of contacts A B Q'ty/tray RoHS
2
CL676-1016-4-24
8.4 3.3 135
3
CL676-1017-7-24
11.7 6.6 95
YES
4
CL676-1018-0-24
15.0 9.9 75
5
CL676-1019-2-24
18.3 13.2 60
6
CL676-1020-1-24
21.6 16.5 50
2.2
5.4
2.6
3L09
11.5
R Type (Guide Key: Right Side, Color: Black)
Pat number
DF33R-2P-3.3DSA(24)
DF33R-3P-3.3DSA(24)
DF33R-4P-3.3DSA(24)
DF33R-5P-3.3DSA(24)
DF33R-6P-3.3DSA(24)
CL No.
No. of contacts A B Q'ty/tray RoHS
2
CL676-1043-7-24
8.4 3.3 135
3
CL676-1044-0-24
11.7 6.6 95
YES
4
CL676-1045-2-24
15.0 9.9 75
5
CL676-1046-5-24
18.3 13.2 60
6
CL676-1047-8-24
21.6 16.5 50
0.5
Ø1.25
3
1.55
Order by number of tray Q'ty.
BPCB
mounting pattern
(Board thickens: 1.6±0.1)
+
0
0 .1
2.35
1.3
BMating
Dimensions
DF33-*RS-3.3
B±0.05
P=3.3±0.05
DF33(R)-*S-3.3C
Ø1
.3
17.6
16.3
+
0.
0 05
DF33(R)-*P-3.3DSA(24)
2.35±0.05
0.
8
1.55±0.05
Note: Retainer is comment. Standard type and R type.
B140
7.5
*
-Ø
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
Series●3.3 mm Contact Pitch, Connectors for
contact your
Power Supplies
DF33
the Hirose website RoHS search at www.hirose-connectors.com, or
Internal
Hirose sales representative.

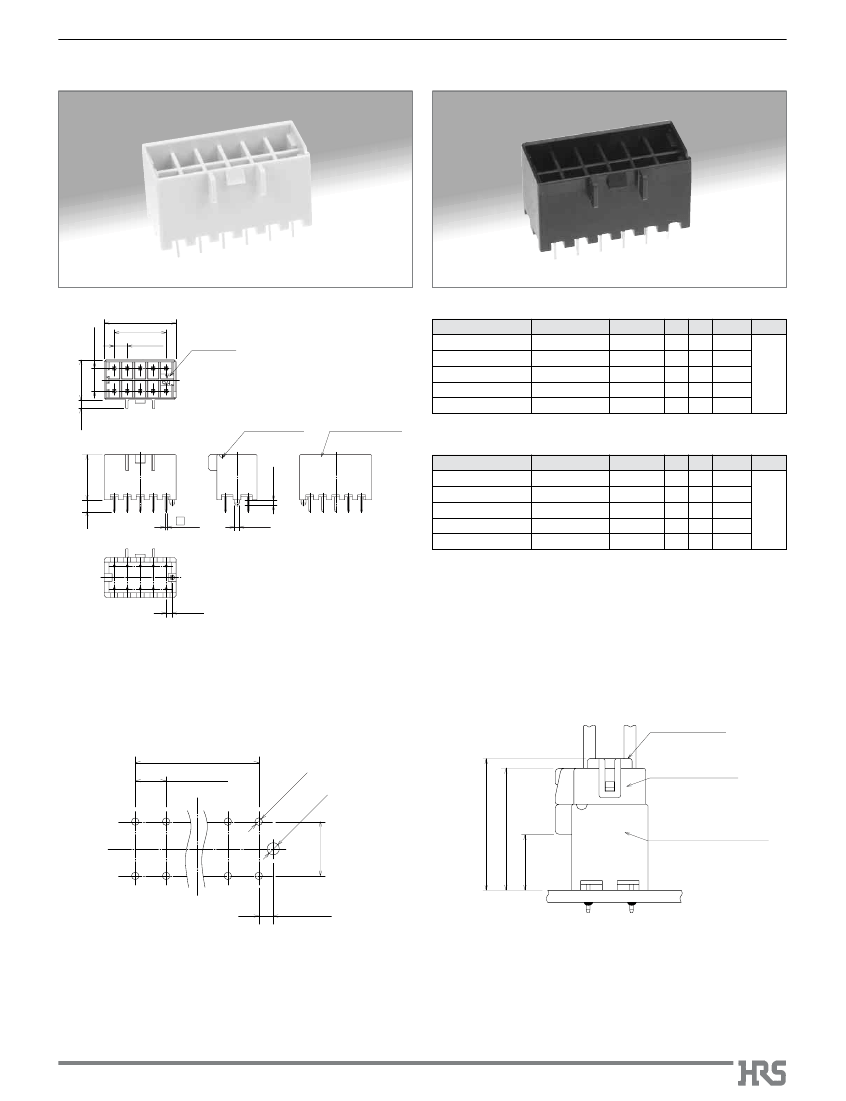

■Double
row - Straight header
Standard Type
R Type
P=5.8
A
B
P=3.3
Standard Type (Guide Key: Inside, Color: Natural Beige)
Cavity No.
Pat number
DF33-4DP-3.3DSA(24)
DF33-6DP-3.3DSA(24)
DF33-8DP-3.3DSA(24)
DF33-10DP-3.3DSA(24)
DF33-12DP-3.3DSA(24)
Polarity mark
Lot No. indicator
CL No.
No. of contacts A B Q'ty/tray RoHS
4
CL676-1001-7-24
8.4 3.3 135
6
CL676-1002-0-24
11.7 6.6 95
8
CL676-1003-2-24
15.0 9.9 75
YES
10
CL676-1004-5-24
18.3 13.2 60
12
CL676-1005-8-24
21.6 16.5 50
2.2
10.2
R Type (Guide Key: Right Side, Color: Black)
3L09
0.5
Ø1.25
Pat number
DF33R-4DP-3.3DSA(24)
DF33R-6DP-3.3DSA(24)
DF33R-8DP-3.3DSA(24)
DF33R-10DP-3.3DSA(24)
DF33R-12DP-3.3DSA(24)
CL No.
No. of contacts A B Q'ty/tray RoHS
8.4 3.3 135
4
CL676-1033-3-24
11.7 6.6 95
6
CL676-1034-6-24
15.0 9.9 75
YES
8
CL676-1035-9-24
18.3 13.2 60
10
CL676-1036-1-24
21.6 16.5 50
12
CL676-1037-4-24
11.5
3
1.55
Order by number of tray Q'ty.
BPCB
mounting pattern
(Board thickens: 1.6±0.1)
B±0.05
+
0.
0 05
1.3
BMating
Dimensions
DF33-*RDS-3.3
P=3.3±0.05
*
-Ø
DF33(R)-*DS-3.3C
+
0
0 .1
0.
8
Ø1
.3
17.6
5.8±0.05
16.3
DF33(R)-*DP-3.3DSA(24)
7.5
1.55±0.05
Note: Retainer is comment. Standard type and R type.
B141
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check
Internal Power
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF33 Series●3.3 mm Contact Pitch, Connectors for
the products status
Supplies

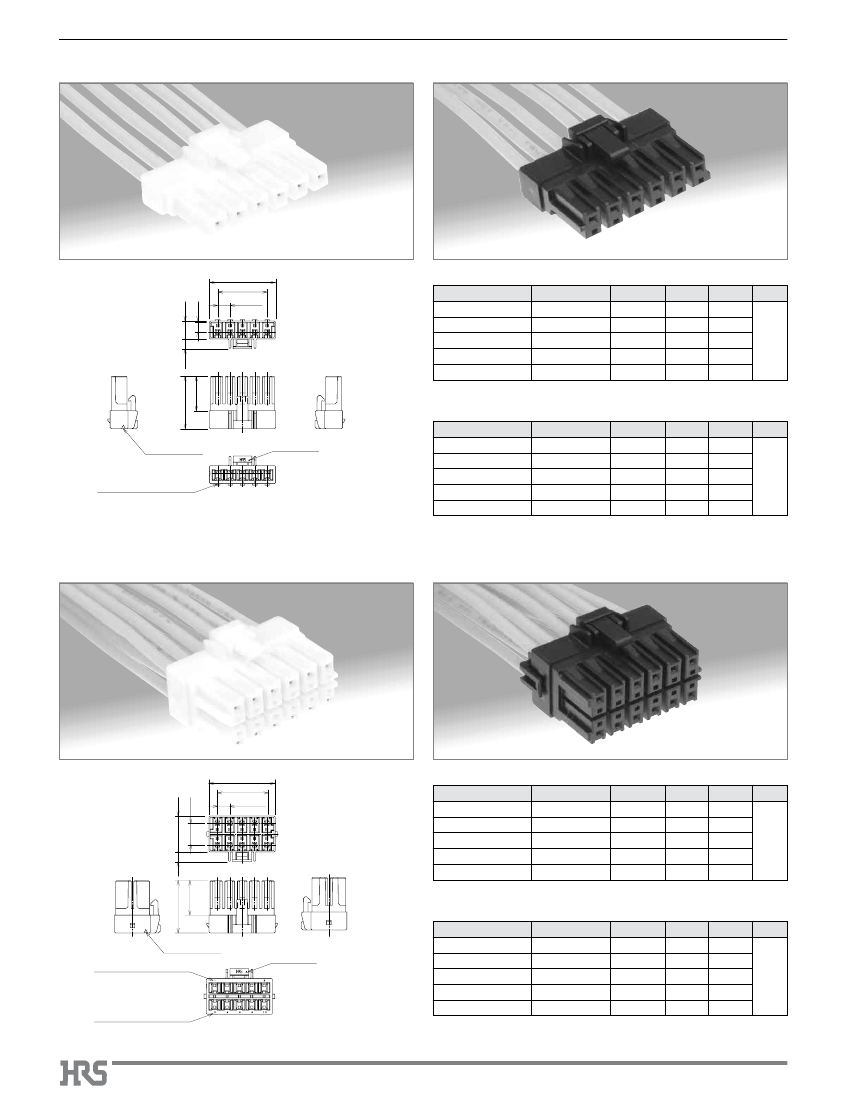

■Single
row - Crimp socket
Standard Type
R Type
4.8
2.6
A
B
P=3.3
Standard Type (Guide Key: Inside, Color: Natural Beige)
Pat number
DF33-2S-3.3C
DF33-3S-3.3C
DF33-4S-3.3C
DF33-5S-3.3C
DF33-6S-3.3C
CL No.
No. of contacts
CL676-1021-4
2
CL676-1022-7
3
CL676-1023-0
4
CL676-1024-2
5
CL676-1025-5
6
A
7.8
11.1
14.4
17.7
21.0
B
3.3
6.6
9.9
13.2
16.5
RoHS
YES
14
9.2
2.6
R Type (Guide Key: Right Side, Color: Black)
Cavity No.
Polarity mark
Contact No.1 indicator
Note: bag packaging (100 pieces/bag). Order by number of bags.
Refer to next page for retainer.
Pat number
DF33R-2S-3.3C
DF33R-3S-3.3C
DF33R-4S-3.3C
DF33R-5S-3.3C
DF33R-6S-3.3C
CL No.
No. of contacts
CL676-1048-0
2
CL676-1049-3
3
CL676-1050-2
4
CL676-1051-5
5
CL676-1052-8
6
A
7.8
11.1
14.4
17.7
21.0
B
3.3
6.6
9.9
13.2
16.5
RoHS
YES
■Double
row - Crimp socket
Standard Type
R Type
A
B
P=3.3
9.6
5.8
Standard Type (Guide Key: Inside, Color: Natural Beige)
Pat number
DF33-4DS-3.3C
DF33-6DS-3.3C
DF33-8DS-3.3C
DF33-10DS-3.3C
DF33-12DS-3.3C
CL No.
No. of contacts
CL676-1006-0
4
CL676-1007-3
6
CL676-1008-6
8
CL676-1009-9
10
CL676-1010-8
12
A
7.8
11.1
14.4
17.7
21.0
B
3.3
6.6
9.9
13.2
16.5
RoHS
YES
14
9.2
2.6
R Type (Guide Key: Right Side, Color: Black)
Pat number
DF33R-4DS-3.3C
DF33R-6DS-3.3C
DF33R-8DS-3.3C
DF33R-10DS-3.3C
DF33R-12DS-3.3C
CL No.
No. of contacts
CL676-1038-7
4
CL676-1039-0
6
CL676-1040-9
8
CL676-1041-1
10
CL676-1042-4
12
A
7.8
11.1
14.4
17.7
21.0
B
3.3
6.6
9.9
13.2
16.5
RoHS
Polarity mark
Contact No.1 indicator
Cavity No.
YES
Contact No.2 indicator
Note: bag packaging (100 pieces/bag). Order by number of bags.
京公网安备 11010802033920号
EEWORLD
