5mm Pitch Miniature Potting Connector for Secondary Power Supply
DF5 Series
■Features
1. Potting Product

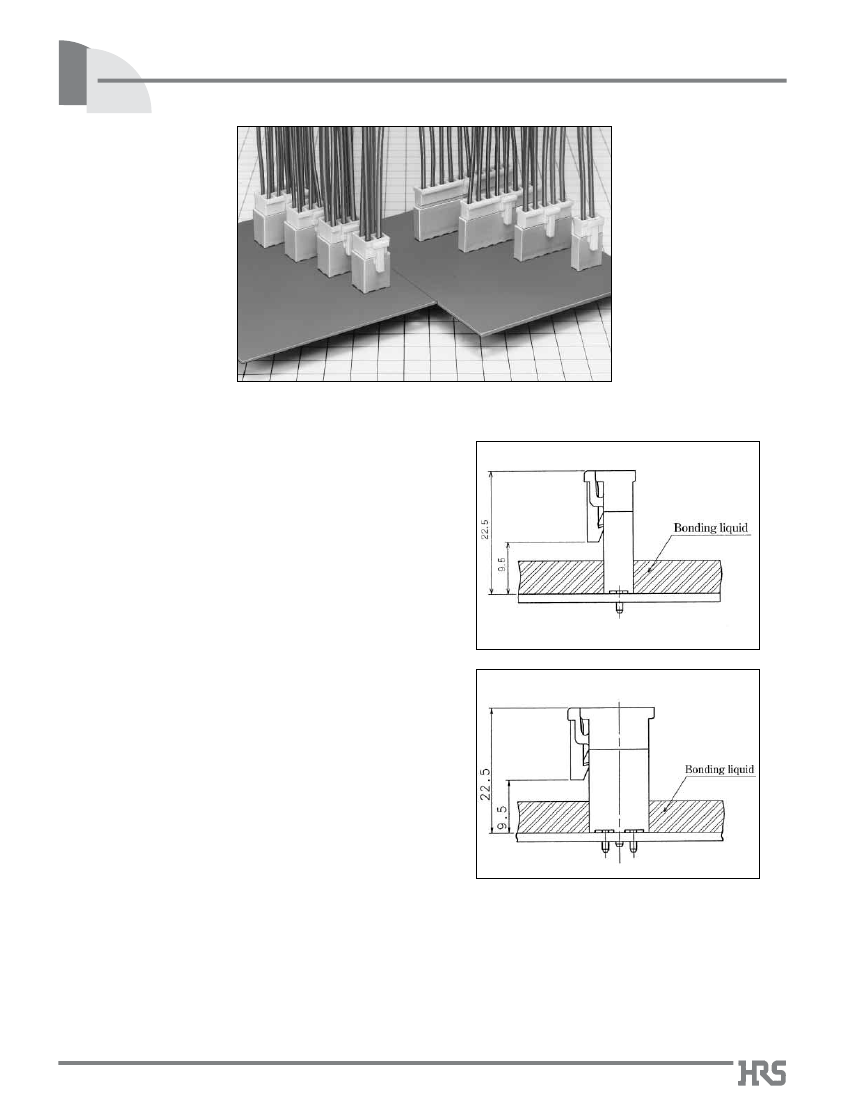

This connector is capable of potting 9mm maximum, and
22.5mm mounting height is a low profile. (Figure 1).
Single row type
2. Prevent Mis-insertion
When the socket and pin header are mated, this connector is
equipped with a mechanism to prevent reverse insertion or
dissimilar contact insertion.
3. Means to Prevent Solder Cracks
The pin header employs glass enforced resin, and takes
countermeasures to prevent solder cracks due to heat shrinkage.
Figure 1-1
4. Prevent Reverse Insertion in Printed Board
Boss is added to the pin header, and prevents reverse
insertion in the printed board.
Double row type
5. Full Lock Mechanism
The outer lock system employs full lock mechanism.
6. Current Capacity of 8A
Power can be supplied at 8 A maximum. Specification will
change according to applicable cable, number of contacts,
number of rows. For further information, refer to product
specifications as listed on next page.
Figure 1-2
■Applications
Business machines, industrial equipment, consumer
appliances (hot water supply, washing machines, refrigerator)
etc.
B123
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Miniature Potting Connector for
products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF5 Series●5mm Pitch
or will be discontinued soon. Please check the
Secondary Power Supply
■Product
Specifications
No. of rows
Single row
No. of contacts
2 to 10
4
6
8
10
12
14
16
AWG#18 AWG#20 AWG#22
8A
6A
5A
8A
6A
5A
8A
6A
5A
7A
6A
5A
7A
6A
5A
7A
6A
4A
7A
5A
4A
7A
5A
4A
500V AC
500V DC
1500V AC/1 minute
100mA
Measured with 1.14±0.002mm steel pin
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–55ç: 30 minutes
➝
15 to 35ç: 10 minutes
➝
85ç: 30 minutes
➝
5 to 35ç: 10 minutes ) 5 cycles
30 cycles
Flow: 260ç for 10 seconds
Manual soldering: 350ç for 3 seconds
Operating Temperature Range
Operating Moisture Range
–35
to
+85ç(Note
1)
40 to 80%
Rating
Current rating
Double row
Storage Temperature Range
Storage Humidity Range
–10
to
+60ç(Note
2)
40 to 70%(Note 2)
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Single Insertior/
Extraction Force
5. Vibration
6.
Humidity (Steady state)
7. Temperature Cycle
8. Durability (Mating/un-mating)
9.Resistance to
Soldering heat
Specification
1000M
ohms
min.
No flashover or insulation breakdown.
30m
ohms
max.
0.3N (30gt) min., 4.5N (450gt) max.
No electrical discontinuity of 10μs or more
Contact resistance: 30m
ohms
max., Insulation resistance: 500M
ohms
min.
Contact resistance: 30m
ohms
max., Insulation resistance: 1000M
ohms
min.
Contact resistance: 30m
ohms
max.
No deformation of
components affecting performance.
Condition
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Material
Product
Crimping Socket
Crimping Contact for Socket
Pin header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor bronze
Polyamide
Brass
Finish
White
Tin plated
Beige
Tin plated
Remarks
UL94V-0
--------------------
UL94V-0
--------------------
■Ordering
Information
●Connector
DF5A
1
1
2
3
-
*
S - 5 C
2
4
5
3
4
5
Contact Pitch: 5mm
Contact type
C : Crimping Socket
DSA : Straight pin header
Series Name: DF5A
Number of contacts: Single row: 2 to 10
Double row: 4 to 16
Connector type
S
: Single row socket
DS
: Double row socket
P
: Single row header
DP
: Double row header
●Contact
DF5A - 1822 SCF
1
1
Applicable cable type
None: UL 1007 equivalent (jacket diameter 1.5 to 2.2mm)
A: UL 1015 equivalent (jacket diameter 2.2 to 2.9mm)
Applicable cable size
1822: AWG#18~#22
2
3
3
packaging type
SCF : Socket contact, reel packaging
SC : Socket contact, bag packaging
2
B124
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search
Potting Connector for
or contact your Hirose sales
Supply
DF5 Series●5mm Pitch Miniature
at www.hirose-connectors.com,
Secondary Power
representative.

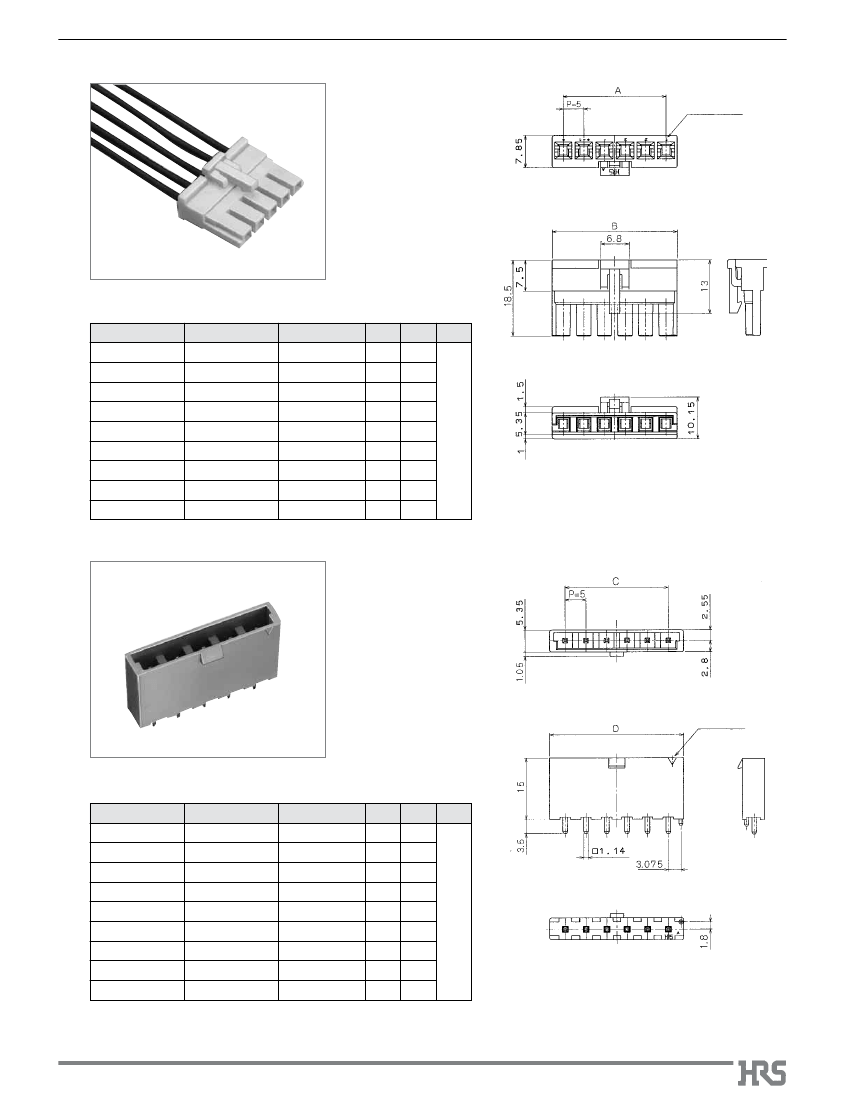

■Single
Row Socket
Contact
No. indicator
Contact Inserted
Product No
DF5A- 2S-5C
DF5A- 3S-5C
DF5A- 4S-5C
DF5A- 5S-5C
DF5A- 6S-5C
DF5A- 7S-5C
DF5A- 8S-5C
DF5A- 9S-5C
DF5A-10S-5C
CL No.
676-0007-8
676-0008-0
676-0009-3
676-0010-2
676-0011-5
676-0012-8
676-0013-0
676-0014-3
676-0015-6
Number of Contacts
2
3
4
5
6
7
8
9
10
A
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
B
10.5
15.5
20.5
25.5
RoHS
30.5 YES
35.5
40.5
45.5
50.5
Note: A packaging quantity is delivered by
the bag unit (100 pcs.).
■Single
Row Pin Header
Polarity mark
Part Number
DF5A- 2P-5DSA(05)
DF5A- 3P-5DSA(05)
DF5A- 4P-5DSA(05)
DF5A- 5P-5DSA(05)
DF5A- 6P-5DSA(05)
DF5A- 7P-5DSA(05)
DF5A- 8P-5DSA(05)
DF5A- 9P-5DSA(05)
DF5A-10P-5DSA(05)
CL No.
676-0016-9-05
676-0017-1-05
676-0018-4-05
676-0019-7-05
676-0020-6-05
676-0021-9-05
676-0022-1-05
676-0023-4-05
676-0024-7-05
Number of Contacts
2
3
4
5
6
7
8
9
10
C
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
D
12.5
17.5
22.5
27.5
32.5
37.5
42.5
47.5
52.5
RoHS
YES
Note: A packaging quantity is delivered by
the bag unit (100 pcs.).
B125
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Miniature Potting Connector for
products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF5 Series●5mm Pitch
or will be discontinued soon. Please check the
Secondary Power Supply

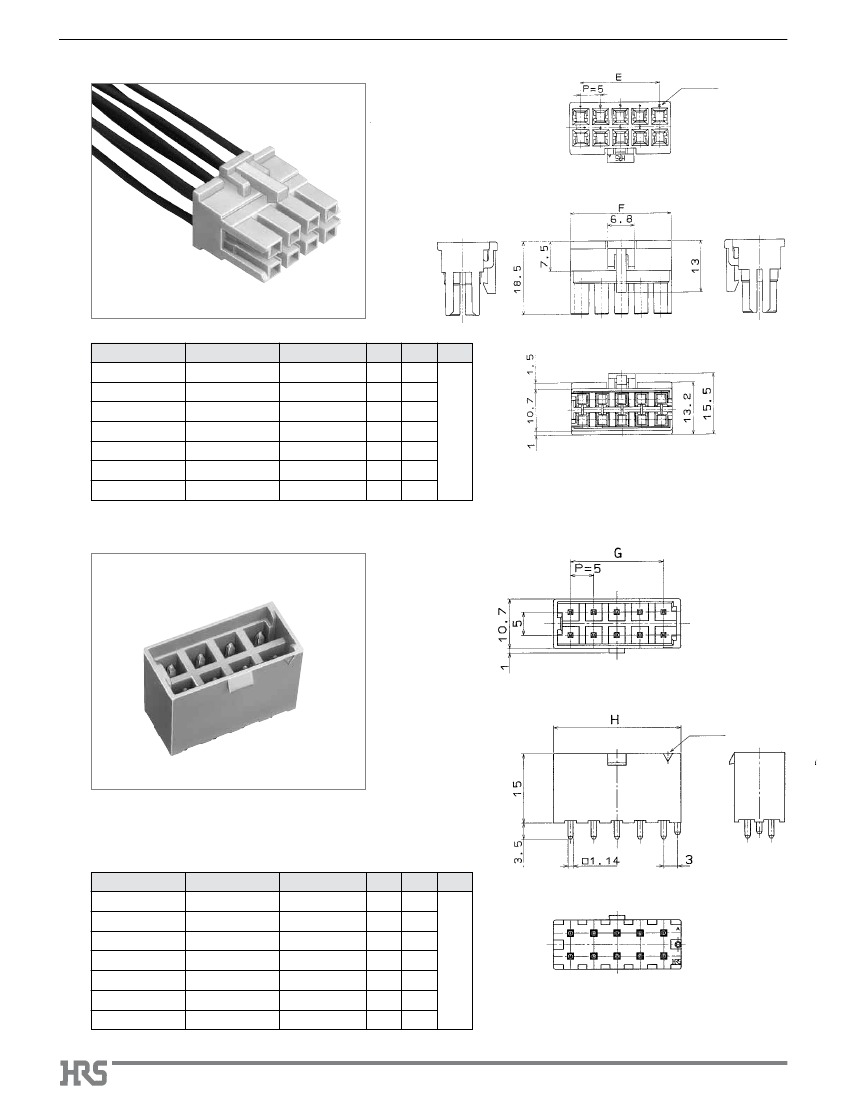

■Double
Row Socket
Contact
No. indicator
Contact Inserted
Part Number
DF5A- 4DS-5C
DF5A- 6DS-5C
DF5A- 8DS-5C
DF5A-10DS-5C
DF5A-12DS-5C
DF5A-14DS-5C
DF5A-16DS-5C
CL No.
676-0025-0
676-0026-2
676-0027-5
676-0028-8
676-0036-6
676-0037-9
676-0038-1
Number of Contacts
4
6
8
10
12
14
16
E
5.0
10.0
15.0
20.0
25.0
30.0
35.0
F
10.5
15.5
20.5
25.5
30.5
35.5
40.5
RoHS
YES
Note: A packaging quantity is delivered by the
bag unit (100 pcs.).
■Double
Row Pin Header
Polarity mark
Part Number
DF5A- 4DP-5DSA(05)
DF5A- 6DP-5DSA(05)
DF5A- 8DP-5DSA(05)
DF5A-10DP-5DSA(05)
DF5A-12DP-5DSA(05)
DF5A-14DP-5DSA(05)
DF5A-16DP-5DSA(05)
CL No.
676-0029-0-05
676-0030-0-05
676-0031-2-05
676-0032-5-05
676-0033-8-05
676-0034-0-05
676-0035-3-05
Number of Contacts
4
6
8
10
12
14
16
G
5.0
10.0
15.0
20.0
25.0
30.0
35.0
H
12.5
17.5
22.5
27.5
32.5
37.5
42.5
RoHS
YES
Note: A packaging quantity is delivered by the
bag unit (100 pcs.).
B126
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search
Potting Connector for
or contact your Hirose sales
Supply
DF5 Series●5mm Pitch Miniature
at www.hirose-connectors.com,
Secondary Power
representative.

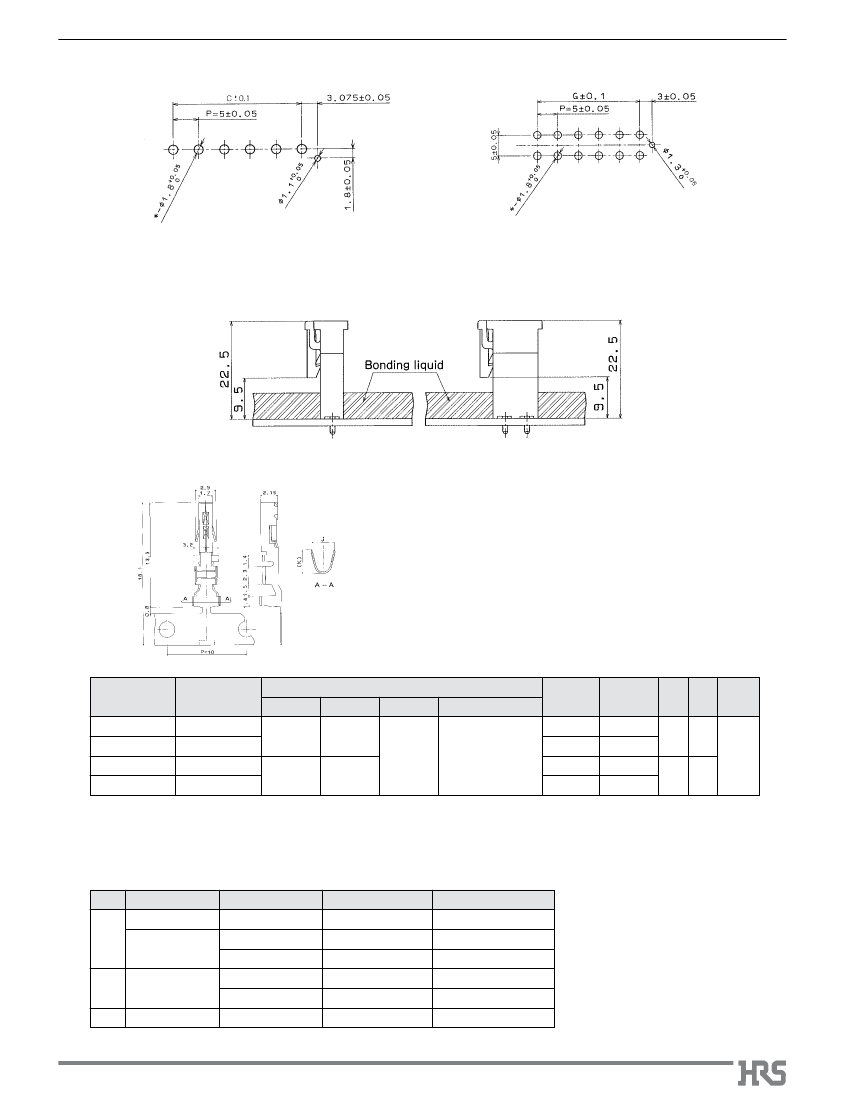

BPCB
mounting pattern (Board thickness = 1.6±0.1)
DF5A-*P-5DSA (05)
DF5A-*DP-5DSA (05)
Note 1. For C and G sizes, please refer to pages where individual product patterns are shown.
BApplication
Pattern
■Socket
Crimping Contact
Part Number
DF5-1822SCF
DF5-1822SC
DF5A-1822SCF
DF5A-1822SC
HRS. No.
676-0001-1
676-0002-4
676-0003-7
676-0004-0
Packaging
Type
UL style Jacket dia. AWG size Contact construction
1007
1015
1.5 to 2.2 AWG#18 43 cores/0.16mm
AWG#20 21 cores/0.18mm
2.2 to 3.2 AWG#22 17 cores/0.16mm
Reel
Bag
Reel
Bag
Applicable Cable
Quantity
5,000
100
5,000
100
J
2.8
3.8
K
3
RoHS
YES
4
Note 1. The applicable cable conductor is a tin plated and annealed copper wire.
Note 2. If other cables are used instead of the applicable cable, contact the HRS Sales Department.
Strip length: 3 to 4mm
BApplicable
Crimping Tools
Type
Item
Press unit
Auto-
matic
Applicator
Part Number
CM-105
AP105-DF5-1822S
AP105-DF5A-1822S
DF5-1822/CR-HT
DF5A-1822/CR-HT
RP13-PC-TP
CL No.
901-0005-4
901-4542-5
901-4546-6
550-0264-0
550-0265-2
150-0021-5
Applicable Contact
------------------------------
DF5-1822SCF
DF5A-1822SCF
DF5-1822SC
DF5A-1822SC
DF5/DF5A-1822SCF
Manual
-----
Manual crimping tool
Extraction tool
Note: If any trouble has been caused due to other tools, which are not designated by Hirose, Hirose won't guarantees any product.
[size=4]I have a foreign product, and its display is sent to a 128*64 display screen via the IIC protocol. How can I extract the transmitted data? [/size] [size=4]If there is an expert who can solve t...
I would like to ask you: When we were testing a DCDC buck, we found that the inductor made a sound when powered on at a low voltage, and the entire loop was unstable. However, this problem was not fou...
I want to make a program that SUSPENDs when IRQ3 is generated, but I don't know how to implement it? How to write an application using EVC? How to determine whether IRQ3 is generated? Thanks!...
I bought the EK-LM4F120XL - Stellaris LM4F120 LaunchPad board from TI. Ship Date: 11/19/2012. I sent a query the day before yesterday. Today, they replied to my email and gave me the courier number (S...
Chinese electronic products and spare parts are important purchasing targets for global buyers. From the types and quantities they purchase, it is not difficult to discover the future development tren...
Limited vocabulary recognition
According to the number of characters, words or short sentences in the vocabulary, it can be roughly divided into: less than 100 is small vocabulary; 100-1000 is...[Details]
On August 25th, TSMC, the world's leading contract chip manufacturer, attracted significant attention for its decision to build a chip manufacturing facility in Arizona. TSMC primarily manufactures...[Details]
On August 22, Lantu Motors officially launched its Lanhai Intelligent Hybrid technology via an online livestream. This intelligent hybrid technology, which integrates a full-range 800V high-voltage...[Details]
Have you ever heard stories about "crazy appliances"? Think of microwaves that turn on automatically or ovens that preheat without any human input? With radios and electromagnetic interfaces ubiqui...[Details]
Electric vehicles are now widespread, but they've brought with them a host of problems, the most prominent of which is charging. Small electric vehicles (EVs) are a new form of transportation in a ...[Details]
Compared to cloud databases, minicomputers are purpose-built for decentralized, rugged computing at the edge of the network. By moving applications, analytics, and processing services closer to the...[Details]
In the field of intelligent driving, regulations are becoming increasingly stringent, and the technical threshold continues to rise. Especially after the traffic accident in March 2025, the Ministr...[Details]
In daily life, when we purchase a transformer, we are faced with the installation and wiring procedures. Generally speaking, large transformers such as power transformers are equipped with speciali...[Details]
Shenzhen Baowei Power Supply high frequency pure sine wave power, communication inverter power supply has two communication interfaces, RS232 and R485 interfaces, their functions and characteristic...[Details]
As the range of electric vehicles continues to increase, driving electric vehicles for long-distance travel has become a trend. For high-speed travel, how much impact will high-speed driving of ele...[Details]
For new energy vehicles, the importance of batteries is unquestionable. Not only does it determine the performance of the vehicle, but the battery density also has a great relationship with the veh...[Details]
Tires are a very important component for cars. They are related to the driving experience of the vehicle. We are almost inseparable from cars in our daily lives. For tires, according to the role of...[Details]
On August 18th, China's largest expressway
charging station,
the G25 Changshen Expressway Tonglu Service Area (South Area), officially opened and launched its integrated solar-storage-charg...[Details]
In industrial production, many different controllers are often used, such as those for pressure, flow, electrical parameters, temperature, and sound. However, due to the limitations of the on-site ...[Details]
Amid the rapid advancement of automotive intelligence, on-board storage has become a thorny bottleneck restricting the "large-scale popularization" of advanced assisted driving.
On the o...[Details]
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
