8BA703K05PD: DescriptionMIL Series Connector, 5 Contact(s), Stainless Steel, Male, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size901KB，6 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8BA703K05PD Overview

MIL Series Connector, 5 Contact(s), Stainless Steel, Male, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Maker	SOURIAU
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	3
Total number of contacts	5

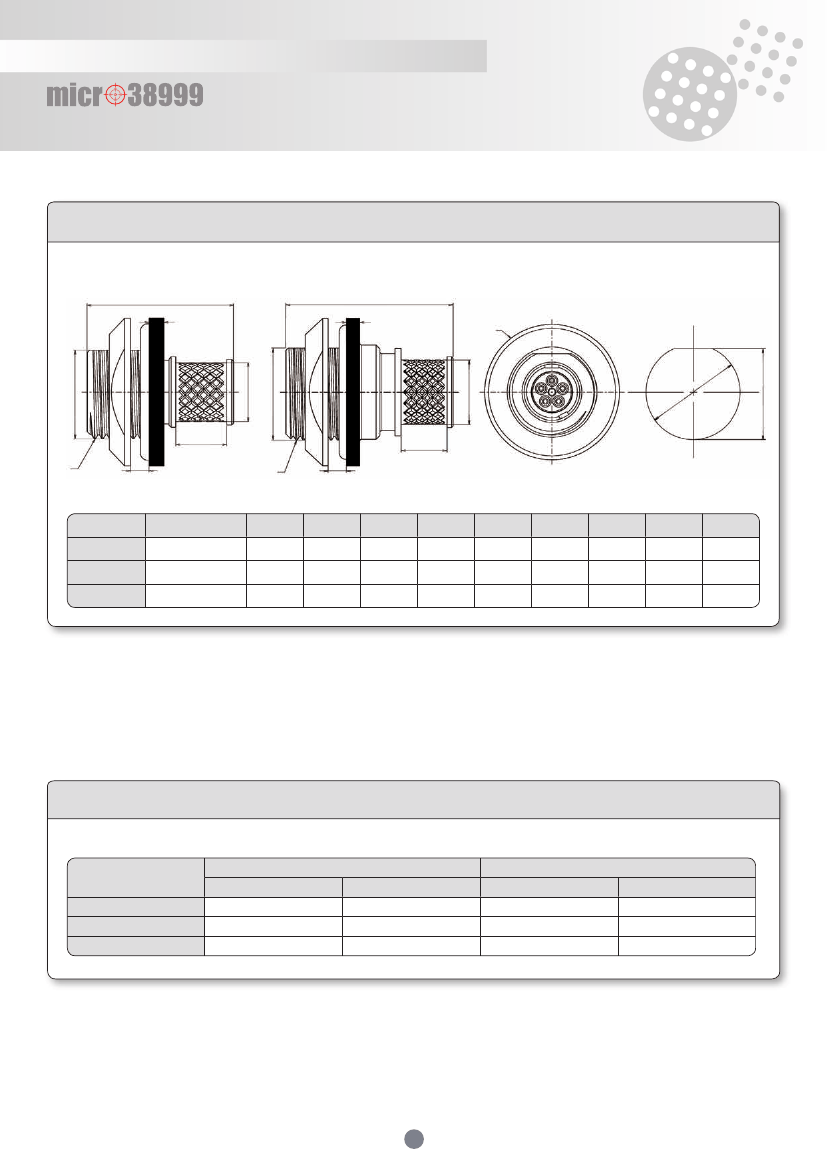

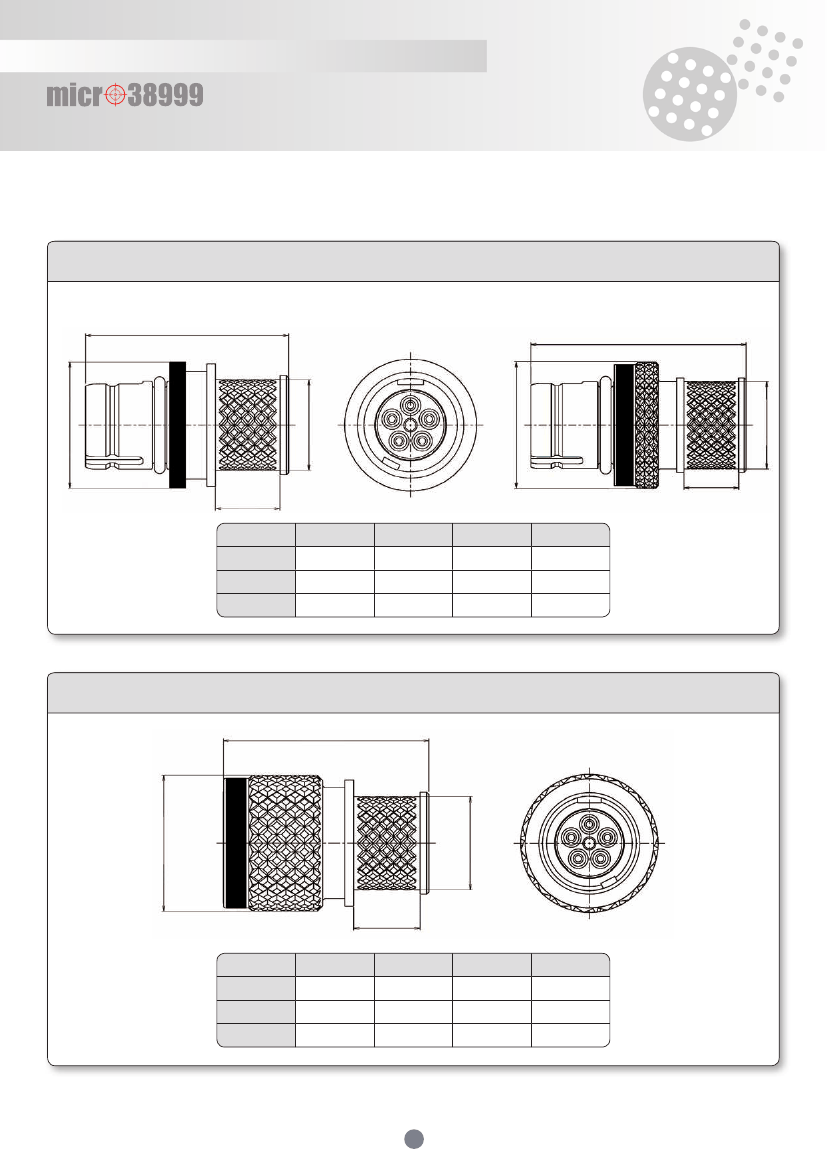

8BA Break Away

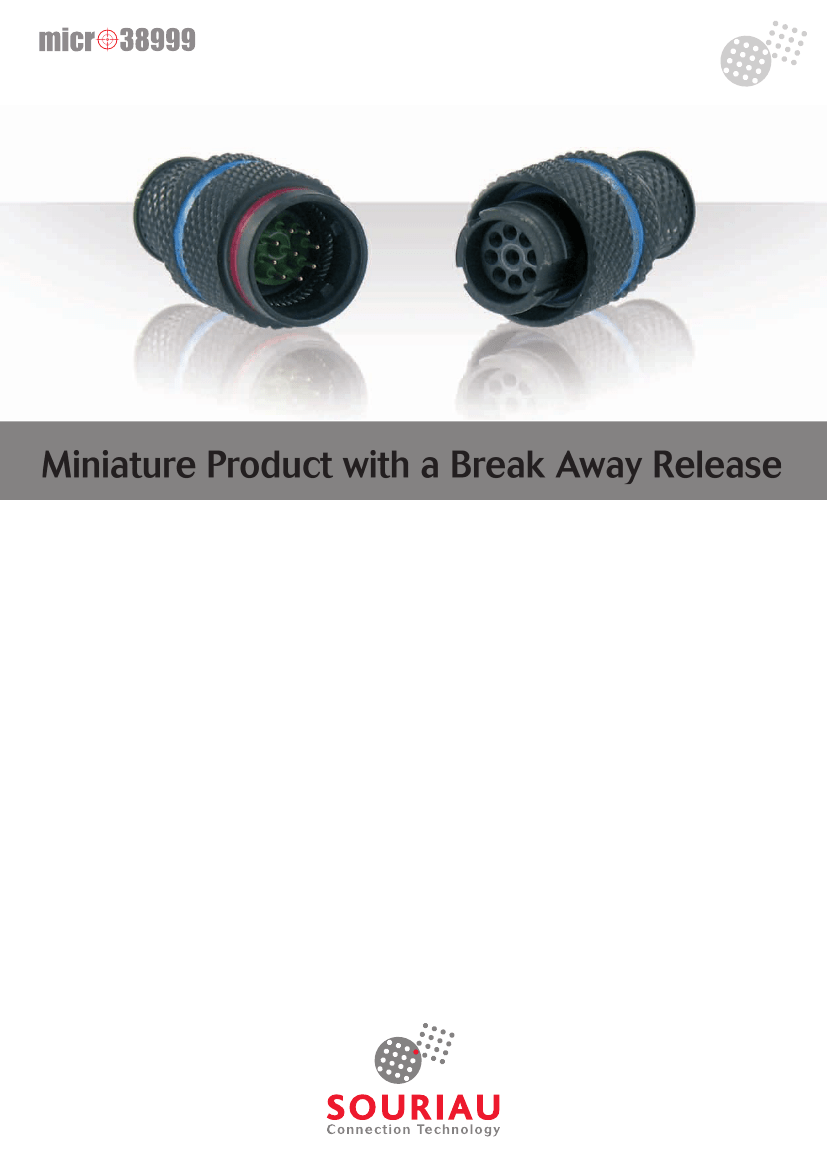

Miniature Product with a Break Away Release

Space saving with scoop proof connector for harsh and EMI applications.

A compact solution

A high density solution

Excellent features

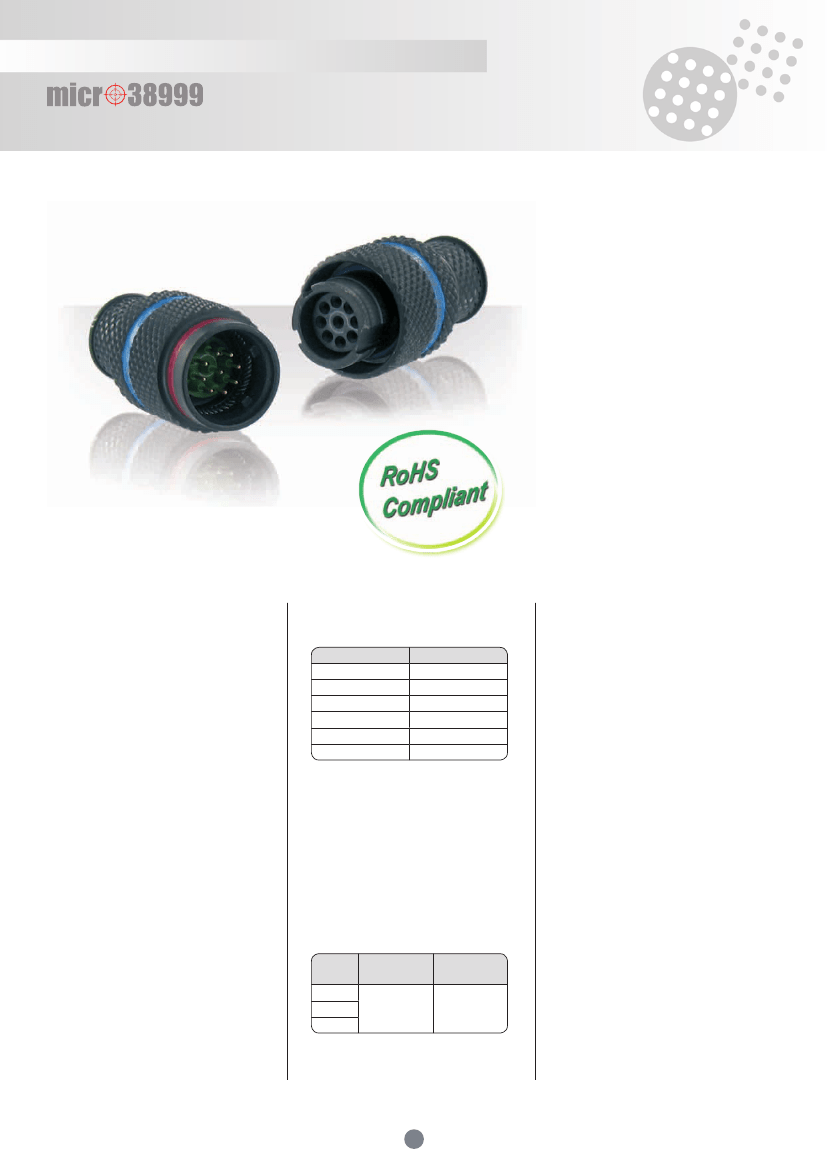

RoHS and Cadmium free

Robustness

Integrated backshell

Diameter up to 45% smaller than size 9 (D38999).

Up to 50% shorter.

With #26 contacts (according 39029).

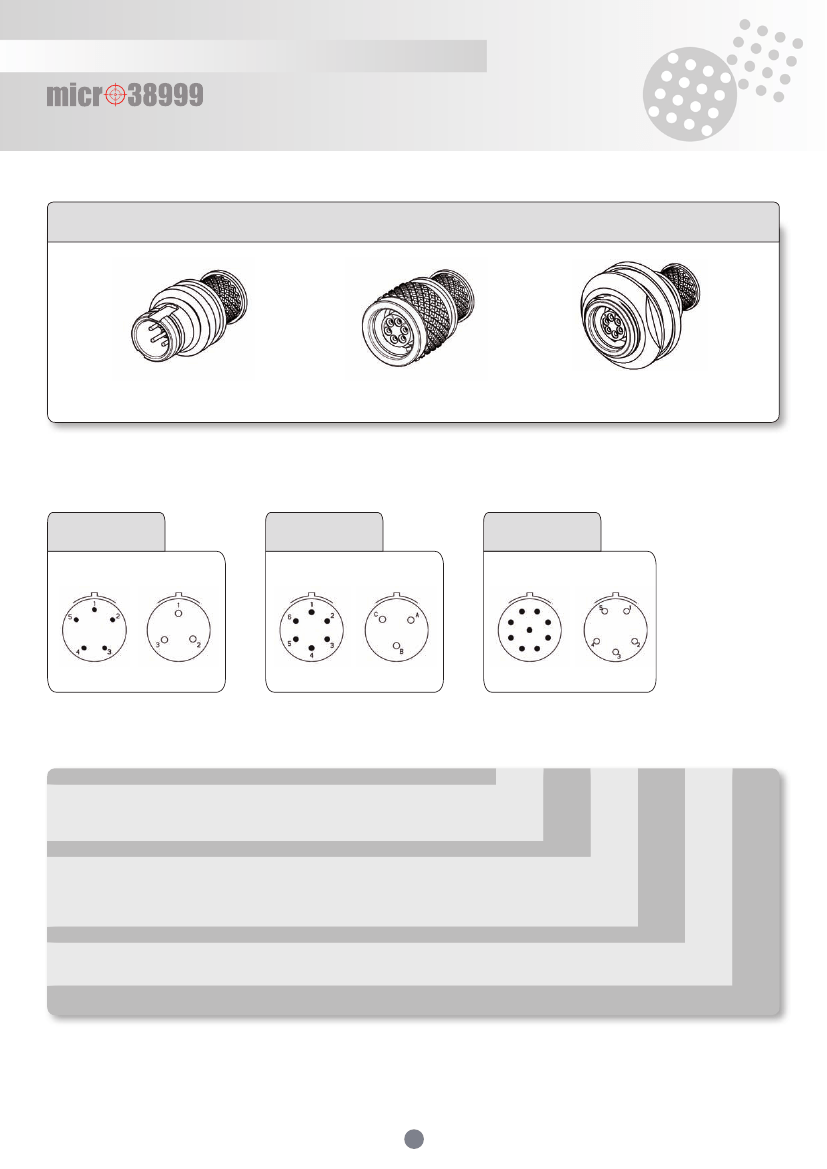

5 layouts (size 3, 5 and 7 with #22 & #26).

Designed for D38999 requirements.

IP67 sealing when mated, ballseal (EMI).

Available in zinc nickel (RoHS) plating, as well as

nickel and olive drab cadmium.

Connector available with stainless steel (1

500

matings) and aluminum shell (500 matings).

Cost and space saving.
