The DG2520/DG2521 are low-voltage single single-pole/
double-throw monolithic CMOS analog switches. Designed
to operate from 1.8 V to 5.5 V power supply, the DG2520/
DG2521 provide low on-resistance (0.8
Ω),
excellent on-
resistance matching (0.06
Ω)
and flatness (0.2
Ω)
over the
entire signal range.
The DG2520/DG2521 offers the advantage of high linearity
that reduces signal distortion, making ideal for audio, video,
and USB signal routing applications. Additionally, the
DG2520/DG2521 are 1.6 V logic compatible within the full
operation voltage range.
The DG2520/DG2521 offer over current protection. The pro-
tection circuitry activates when voltage drop across switch
reaches 0.6 V typical. A direct/sustained short circuit will
cause the switch to pulse on for typically less than 1 µs, then
turn off. The switch turns on after 5 ms. If the short circuit
condition remains, the switch turns off and on to produce
a pulsed output. The current limiting circuitry is not
instantaneous, and therefore will not activate when the out-
put charges a small 0.1 µF capacitor.
Built on Vishay Siliconix’s proprietary sub-micron high-den-
sity process, the DG2520/DG2521 brings low power con-
sumption at the same time as reduces PCB spacing with the
TSOP6 package
As a committed partner to the community and the environ-
ment, Vishay Siliconix manufactures this product with the
lead (Pb)-free device terminations. For analog switching
products manufactured with 100 % matte tin device termina-
tion, the lead (Pb)-free “- E3” suffix is being used as a desig-
nator.
FEATURES
•
•
•
•
1.8 to 5.5 V Single Supply Operation
Low Ron: Typical 0.4
Ω
at 4.5 V
+ 1.6 V Logic Compatible
Over Current Protection
RoHS
COMPLIANT
BENEFITS
•
•
•
•
High Linearity
Low Power Consumption
High Bandwidth
Full Rail Signal Swing Range
APPLICATIONS
•
•
•
•
•
•
•
USB/UART Signal Switching
Audio/Video Switching
Cellular Phone
Media Players
Modems
Hard Drives
PCMCIA
FUNCTIONAL BLOCK DIAGRAM AND PIN
CONFIGURATION
TRUTH TABLE
Logic
0
1
NC
ON
OFF
NO
OFF
ON
DG2520/2521
IN
V+
GND
1
2
3
Top
View
6
5
4
NO
COM
NC
ORDERING INFORMATION
Temp Range
- 40 to 85 °C
Package
TSOP-6
Part Number
DG2520DV-T1-E3
DG2521DV-T1-E3
DEVICE MARKING:
DG2520DV = F9xxx
DG2521DV = F0xxx
Document Number: 73898
S-61478–Rev. A, 07-Aug-06
www.vishay.com
1
DG2520/DG2521
Vishay Siliconix
ABSOLUTE MAXIMUM RATINGS
Reference to GND
V+
IN, COM, NC, NO
a
Continuous Current (Any terminal)
Peak Current (Pulsed at 1 ms, 10 % duty cycle)
Storage Temperature (D Suffix)
Power Dissipation (Packages)
b
Limit
- 0.3 to + 6
- 0.3 to (V+ + 0.3)
± 50
± 200
- 65 to 150
TSOP-6
c
Unit
V
mA
°C
mW
570
Notes:
a. Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 7 mW/°C above 70 °C.
SPECIFICATIONS (V+ = 3 V)
Parameter
Analog Switch
Analog Signal Range
d
On-Resistance
r
ON
Flatness
r
ON
Match Between Channels
Digital Control
Input High Voltage
d
Input Low Voltage
Input Capacitance
Input Current
Dynamic Characteristics
Turn-On Time DG2520
Turn-Off Time DG2520
Break-Before-Make Time DG2520
Turn-On Time DG2521
Turn-Off Time DG2521
Make-Before-Break Time DG2521
Charge Injection
d
- 3 dB Bandwidth
Off-Isolation
d
Crosstalk
d
N
O
, N
C
Off Capacitance
d
Channel On Capacitance
Power Supply
Power Supply Current
d
Symbol
V
NO,
V
NC,
V
COM
r
ON
r
ON
Flatness
Δr
ON
Test Conditions
Otherwise Unless Specified
V+ = 3 V,
±
10 %,V
IN
= 0.4 or 1.8 V
e
Limits
- 40 to 85 °C
Temp
a
Min
c
Typ
b
Max
c
Unit
Full
V+ = 2.7 V, V
COM
= 1.5 V
I
NO/NC
= 100 mA
V+ = 2.7 V, V
COM
= 0, 0.75, 1.5 V
I
NO/NC
= 100 mA
V+ = 2.7 V, V
COM
= 1.5 V
I
NO/NC
= 100 mA
Room
Full
Room
Full
Full
0
0.6
0.12
V+
1.0
1.2
0.16
0.18
0.06
V
Ω
V
INH
V
INL
C
IN
I
INL or
I
INH
t
ON
t
OFF
t
bbm
t
ON
t
OFF
t
mbb
Q
BW
OIRR
X
TALK
C
NO(off)
C
NC(off)
C
NO(on)
C
NC(on)
I+
Full
Full
Full
Full
Room
Full
Room
Full
Full
Room
Full
Room
Full
Full
Room
Room
Room
Room
Room
Room
Room
Room
Full
1.8
0.4
7
-1
30
10
1
25
18
25
1
10
115
40
- 51
- 57
50
50
160
160
20
1
45
60
17
22
25
40
45
55
V
pF
µA
V+ = 2.7 V, V
NO
or V
NC
= 1.5 V
R
L
= 50
Ω,
C
L
= 35 pF
V
NO
or V
NC
= 1.5 V, R
L
= 50
Ω,
C
L
= 35 pF
V+ = 2.7 V, V
NO
or V
NC
= 1.5 V
R
L
= 50
Ω,
C
L
= 35 pF
V
NO
or V
NC
= 1.5 V, R
L
= 50
Ω,
C
L
= 35 pF
C
L
= 1 nF, V
GEN
= 0 V, R
GEN
= 0
Ω
0 dBm, C
L
= 5 pF, R
L
= 50
Ω
f = 1 MHz
R
L
= 50
Ω,
C
L
= 5 pF
f = 1 MHz
ns
pC
MHz
dB
V
IN
= 0 or V+, f = 1 MHz
pF
V
IN
= 0 or V+
µA
Notes:
a. Room = 25 °C, Full = as determined by the operating suffix.
b. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
c. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this data sheet
d. Guarantee by design, nor subjected to production test.
e. V
IN
= input voltage to perform proper function.
f. Guaranteed by 5 V leakage testing, not production tested.
www.vishay.com
2
Document Number: 73898
S-61478–Rev. A, 07-Aug-06
DG2520/DG2521
Vishay Siliconix
SPECIFICATIONS (V+ = 5 V)
Test Conditions
Otherwise Unless Specified
Parameter
Analog Switch
Analog Signal Range
d
On-Resistance
r
ON
Flatness
r
ON
Match Between Channels
V
NO,
V
NC,
V
COM
r
ON
r
ON
Flatness
Δr
ON
I
NO(off),
I
NC(off)
I
COM(off)
Channel On Leakage Current
Digital Control
Input High Voltage
d
Input Low Voltage
Input Capacitance
Input Current
Overcurrent-Protection Current
Threshold
Dynamic Characteristics
Turn-On Time DG2520
Turn-Off Time DG2520
Break-Before-Make Time DG2520
Turn-On Time DG2521
Turn-Off Time DG2521
Make-Before-Break Time DG2521
Charge Injection
- 3 dB Bandwidth
Off-Isolation
d
Crosstalk
d
Source Off Capacitance
d
Channel On Capacitance
Power Supply
Power Supply Range
Power Supply Current
d
d
Limits
- 40 to 85 °C
Temp
a
Min
c
Typ
b
Max
c
Unit
Symbol
V+ = 5 V,
±
10 %, V
IN
= 0.8 or 2.4 V
e
Full
V+ = 4.5 V, V
COM
= 3.5 V, I
NO/NC
= 100 mA
V+ = 4.5 V, V
COM
= 0, 1, 2 V, I
NO/NC
= 100 mA
V+ = 4.5 V, V
COM
= 3.5 V
I
NO/NC
= 100 mA
V+ = 5.5 V,
V
NO
, V
NC
= 1 V/4.5 V, V
COM
= 4.5 V/1 V
V+ = 5.5 V, V
NO
, V
NC
= V
COM
= 1 V/4.5 V
Room
Full
Room
Full
Full
Room
Full
Room
Full
Room
Full
Full
Full
Full
Full
Room
0
0.4
0.15
V+
0.8
1.0
0.2
0.22
0.06
V
Ω
Switch Off Leakage Current
-2
- 20
-2
- 20
-2
- 20
2.4
2
20
2
20
2
20
nA
I
COM(on)
V
INH
V
INL
C
IN
I
INL or
I
INH
0.8
10
-1
1.7
1
V
pF
µA
A
t
ON
t
OFF
t
bbm
t
ON
t
OFF
t
mbb
Q
BW
OIRR
X
TALK
C
NO(off)
C
NC(off)
C
NO(on)
C
NC(on)
V+
I+
V+ = 4.5 V, V
NO
or V
NC
= 3 V
R
L
= 50
Ω,
C
L
= 35 pF
V
NO
or V
NC
= 3 V, R
L
= 50
Ω,
C
L
= 35 pF
V+ = 4.5 V, V
NO
or V
NC
= 3 V
R
L
= 50
Ω,
C
L
= 35 pF
V
NO
or V
NC
= 3 V, R
L
= 50
Ω,
C
L
= 35 pF
C
L
= 1 nF, V
GEN
= 0 V, R
GEN
= 0
Ω
0 dBm, C
L
= 5 pF, R
L
= 50
Ω
f = 1 MHz
R
L
= 50
Ω,
C
L
= 5 pF
f = 1 MHz
Room
Full
Room
Full
Full
Room
Full
Room
Full
Full
Room
Room
Room
Room
Room
Room
Room
Room
1
25
8
15
12
20
1
12
224
40
- 51
- 57
50
50
160
160
35
40
15
20
25
35
35
45
pC
MH
dB
ns
f = 1 MHz
pF
1.8
V
IN
= 0 or V+
Full
5.5
22
V
µA
Notes:
a. Room = 25 °C, Full = as determined by the operating suffix.
b. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
c. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this data sheet
d. Guarantee by design, nor subject to production test.
e. V
IN
= input voltage to perform proper function.
f. Guaranteed by 5 V leakage testing, not production tested.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
Document Number: 73898
S-61478–Rev. A, 07-Aug-06
www.vishay.com
3
DG2520/DG2521
Vishay Siliconix

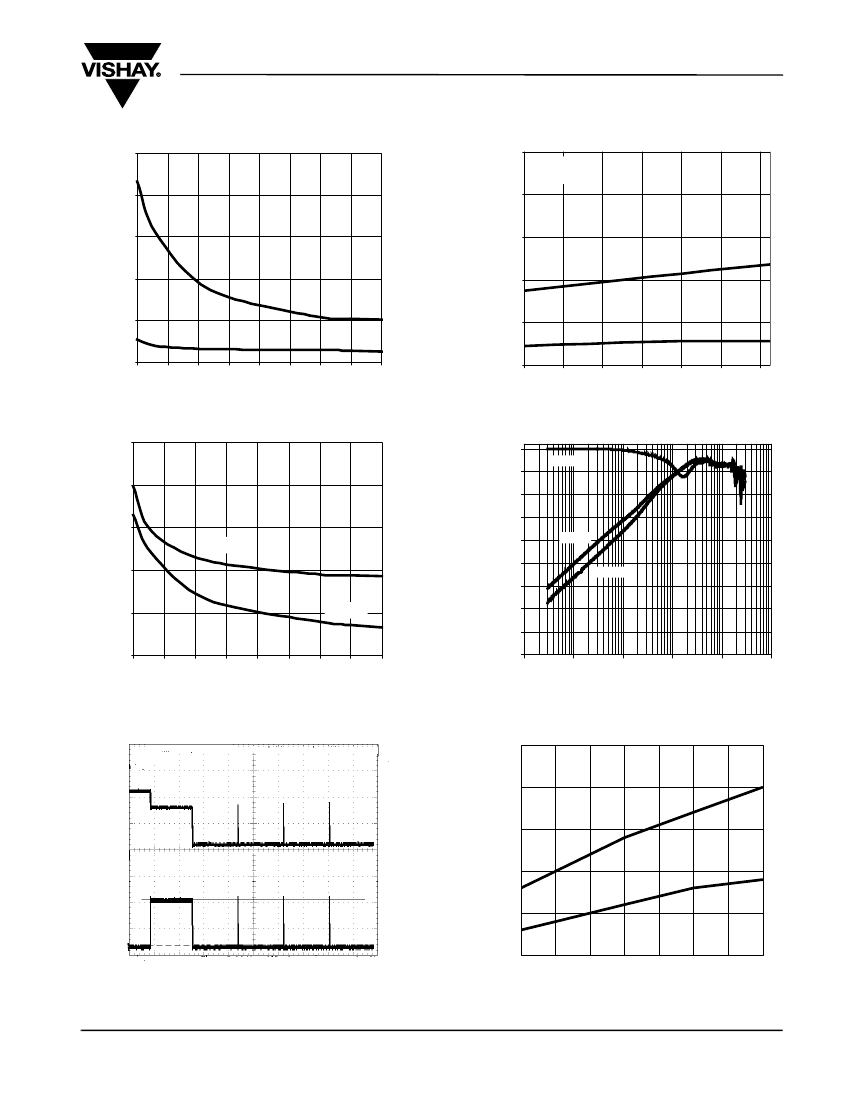

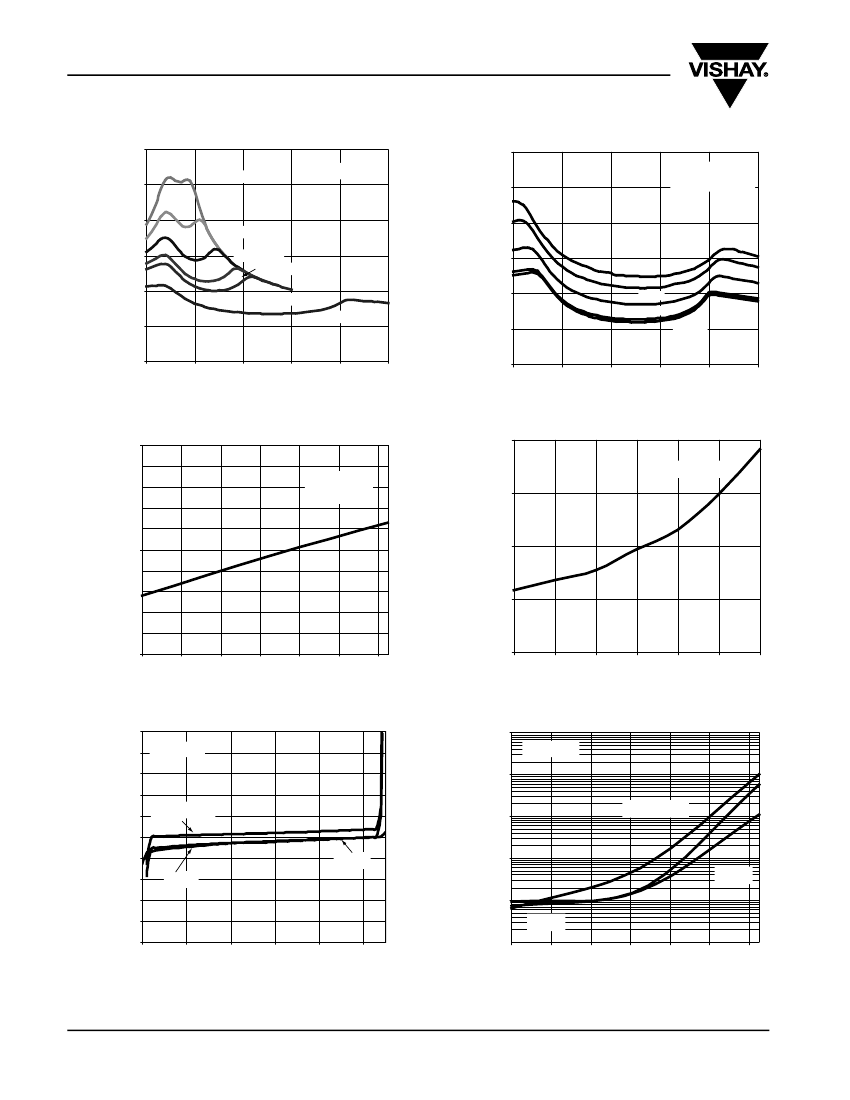

TYPICAL CHARACTERISTICS
25 °C, unless otherwise noted
1.2
V+
= 1.8
V
I
no/nc
= 100 mA
0.60
r
ON
– On-Resistance (Ω)
0.70
V+
= 5
V
I
no/nc
= 100 mA
1
r
ON
– On-Resistance (Ω)
0.8
V+
= 2.0
V
0.6
V+
= 2.3
V
V+
= 2.7
V
V+
= 3
V
V+
= 5
V
0.2
0.50
0.40
125 °C
85
°C
25 °C
- 40 °C
- 55 °C
0.4
030
0.20
0
0
1
2
3
4
5
0.10
0
1
2
3
4
5
V
COM
- Analog
Voltage
(V)
V
COM
- Analog
Voltage
(V)
r
ON
vs. V
COM
and Supply Voltage
20
V+
= 5.5
V
V
= 0,
V+
10 mA
r
ON
vs. Analog Voltage and Temperature
V+
= 5.5
V
I+ - Supply Current (µA)
1 mA
I+ - Supply Current (µA)
15
100
µA
10
µA
10
- 40
- 20
0
20
40
60
80
Temperature (°C)
1
µA
10
100
1K
10K
100K
1M
10M
Switching Frequency (Hz)
Supply Current vs. Temperature
1000
800
600
Leakage Current (pA)
400
200
0
- 200
- 400
- 600
-
800
- 1000
0
1
2
3
4
5
V
COM
,
V
NO
,
V
NC
- Analog
Voltage
(V)
1 pA
I
COM(off)
I
COM(on)
I
NO(off)
/ I
NC(off)
Supply Current vs. Input Switching Frequency
100 nA
V+
= 5.5
V
10 nA
Leakage Current (pA)
V+
= 5.5
V
1 nA
I
NO(off)
, I
NO(off)
100 pA
I
COM(off)
10 pA
I
COM(on)
40
- 40
- 20
0
20
60
80
Temperature (°C)
Leakage vs. Analog Voltage
Leakage Current vs. Temperature
www.vishay.com
4
Document Number: 73898
S-61478–Rev. A, 07-Aug-06
DG2520/DG2521
Vishay Siliconix
TYPICAL CHARACTERISTICS
T
A
= 25 °C, unless otherwise noted
100
50
V+
= 5
V
V
no/nc
= 3
V
t
ON
, t
OFF
- Switching Time (ns)
60
t
ON
40
t
ON
, t
OFF
- Switching Time (ns)
80
40
30
t
ON
20
20
t
OFF
0
1.5
10
t
OFF
0
2
2.5
3
3.5
4
4.5
5
5.5
- 40
- 20
0
20
40
60
80
Supply
Voltage
(V)
Temperature (°C)
Switching Time vs. Supply Voltage, DG2520
50
Switching Time vs. Temperature, DG2520
0
LOSS
- 10
40
t
ON
, t
OFF
- Switching Time (ns)
Loss, OIRR, XTalk (db)
- 20
- 30
- 40
- 50
XTalk
- 60
- 70
-
80
0
1.5
2
2.5
3
3.5
4
4.5
5
5.5
- 90
100K
OIRR
30
t
OFF (NC)
20
10
t
ON (NO)
1M
10M
100M
1G
10G
Supply
Voltage
(V)
Frequency (Hz)
Switching Time vs. Supply Voltage, DG2521
Off Isolation, Crosstalk and Insertion Loss vs. Frequency
Live replay: AvnetMicron unlocks automotive electronics black technology to create a new realm of future driving : https://training.eeworld.com.cn/course/5762...
Gui-guider is a new GUI designer for Littlevgl released by NXP last month, the version is littlevgl 7.0. This designer is really timely and convenient, saving the tedious steps of frequent interface d...
ADI Chinese Technical Forum: Experts answer hot topics (summary of November 2013) How to generate LDR file [url]http://ezchina.analog.com/message/10342#10342[/url] ADE7753 useful work energy measureme...
What would you think if you saw someone holding a grenade in the office? Don't worry, this is probably such a grenade mouse. It functions exactly like a normal mouse, but with the addition of a grenad...
Some netizens have been able to debug this, but I can't. A reader asked, you posted a lot of notes, and the network program was compiled and run successfully. Why can't the SD card routine be debugged...
1. Several nouns
ABI:
The specifications that an executable file must follow in order to run in a specific execution environment;
Separately generated relocatabl...[Details]
In recent years, with the increasing demand for manufacturing and automated production management, industrial barcode scanners have gradually become an indispensable part of the industrial manufact...[Details]
How do you know if a machine is operating properly? The answer: by leveraging deep learning to detect anomalies in routine vibration data from industrial machines. Anomaly detection has many uses, ...[Details]
Whether it is an electric car or an ordinary fuel car, for the vast majority of car buyers, the final cost of use is what they care about most. For fuel cars, how to save fuel is what drivers care ...[Details]
Limited vocabulary recognition
According to the number of characters, words or short sentences in the vocabulary, it can be roughly divided into: less than 100 is small vocabulary; 100-1000 is...[Details]
On August 22nd, Lantu Motors unveiled a new technology called "Lanhai Intelligent Hybrid" during a live broadcast of CCTV News' "Top Laboratory." The name sounds like another new term, but a closer...[Details]
Recently, South Korean robotics giant WIRobotics launched its first general-purpose humanoid robot, ALLEX, at the Robotics Innovation Center (RIH) at the Korea University of Science and Technology....[Details]
In June 2014, the Ministry of Industry and Information Technology issued 4G FD-LTE licenses to China Unicom and China Telecom. Together with the 4G TD-LTE licenses issued to China Mobile, China Uni...[Details]
SMT placement machines are important equipment in surface mount technology (Surface Mount Technology). Their performance has a decisive impact on the quality and efficiency of electronic manufactur...[Details]
Reflow soldering, as an electronics assembly process, has become a vital component of the electronics manufacturing industry. Choosing reflow soldering equipment is crucial for improving production...[Details]
To improve the lateral active safety of intelligent connected vehicles, the identification and definition of unexpected functional safety scenarios for the EPS (Electronic Steering System) ...[Details]
There are many motors that can use thyristor speed control, and they can be used in almost all industries. Various types of motors, such as fans, pumps, AC motors, DC motors, torque motors, single-...[Details]
As the range of electric vehicles continues to increase, driving electric vehicles for long-distance travel has become a trend. For high-speed travel, how much impact will high-speed driving of ele...[Details]
For today's new energy vehicles, they have different configurations from fuel vehicles, and some configurations have also become a selling point for manufacturers. Compared with traditional vehicle...[Details]
On August 21, according to a report by Korean media SEDaily yesterday, according to semiconductor industry sources, the HBM4 samples provided by Samsung to Nvidia last month have passed initial tes...[Details]
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
