Part Number: ZMD20X92S-4
www.SunLED.com
3.5x3.5 mm SMD CHIP LED LAMP
Features
3.5mm X 3.5mm X 1.15mm SMD LED
Zener diode provided for ESD Protection
IR-reflow compatible
Ideal for accent lighting
Standard Package: 2,000pcs / Reel
MSL (Moisture Sensitivity Level): 2a
RoHS compliant
Applications
Signal and symbol luminaire for orientation.
Marker lights (e.g. steps, exit ways, etc).
Decorative and entertainment lighting.
Commercial and residential lighting.
Automotive interior lighting.
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
ATTENTION

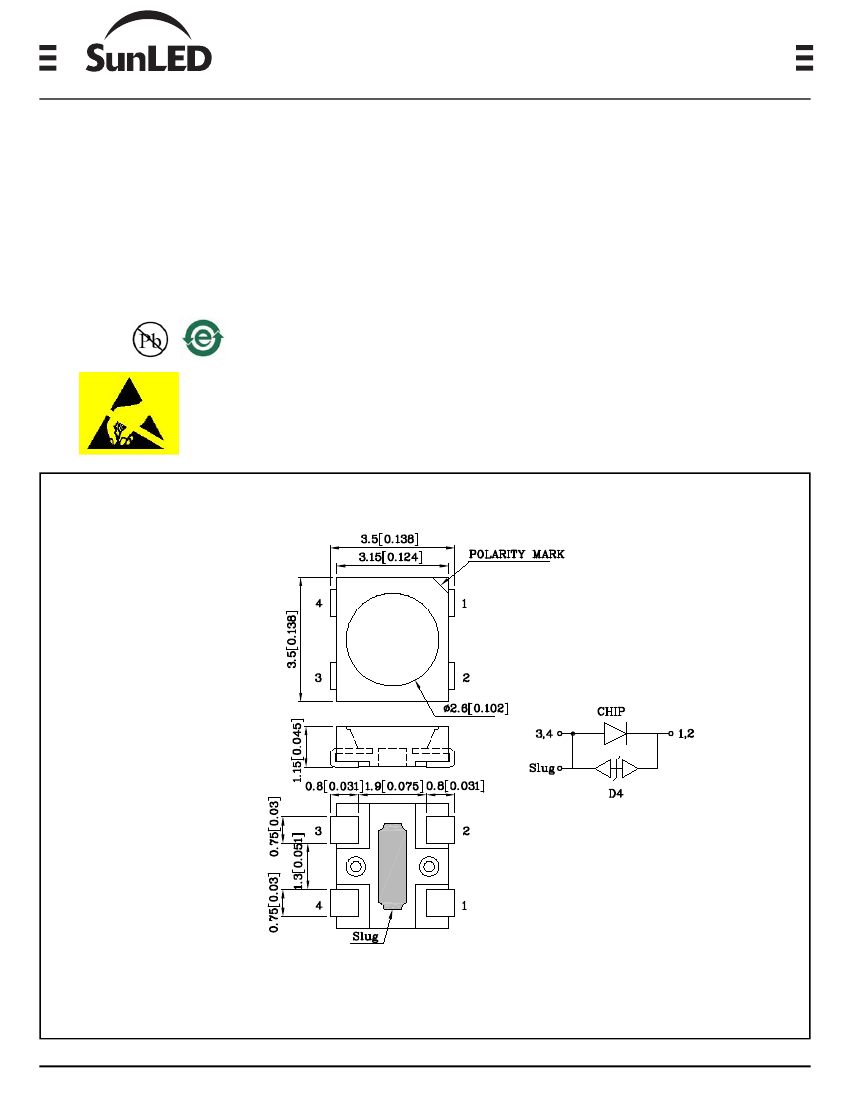

Package Schematics
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
Dec 16, 2013
SDSA9026 V2-Z
Layout: Maggie L.
P. 1/7
Part Number: ZMD20X92S-4
www.SunLED.com
3.5x3.5 mm SMD CHIP LED LAMP
Handling Precautions
Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic
significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.
As a result, special handling precautions need to be observed during assembly using silicone encapsulated
LED products. Failure to comply might lead to damage and premature failure of the LED.

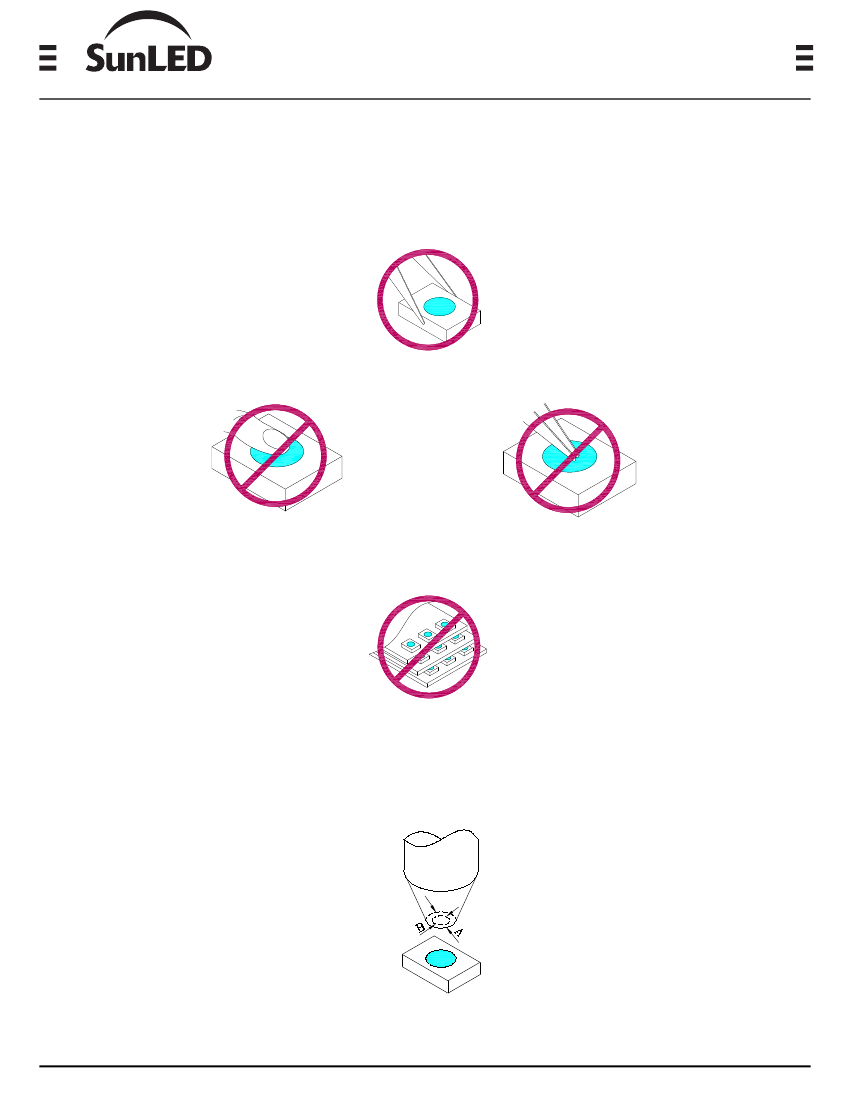

1. Handle the component along the side surfaces by using forceps or appropriate tools.
2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.
3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or
damage the internal circuitry.
4.1. The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks.
4.2. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup.
4.3. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise
pickup and avoid damage during production.
5. As silicone encapsulation is permeable to gases, some corrosive substances such as H
2
S might corrode silver plating of
leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
Dec 16, 2013
SDSA9026 V2-Z
Layout: Maggie L.
P. 2/7
Part Number: ZMD20X92S-4
www.SunLED.com
3.5x3.5 mm SMD CHIP LED LAMP
Selection Guide
Luminous Intensity
CIE127-2007*
(I
F
=150mA)
cd
min.
ZMD20X92S-4
Deep-Red
AlGaInP
Water Clear
1.6*
typ.
2.09*
Luminous Flux
CIE127-2007*
(I
F
=150mA)
lm
min.
5*
typ.
6.3*
120
°
Viewing
Angle
2
θ
1/2 [1]
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Notes:
1.
θ
1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity / luminous flux: +/-15%.
3. LEDs are binned according to their luminous flux.
*
Luminous intensity / luminous flux value is in accordance with CIE127-2007 standards.
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power Dissipation
Junction Temperature [1]
Operating Temperature
Storage Temperature
DC Forward Current [1]
Reverse Voltage
Peak Forward Current [2]
Thermal Resistance [1]
(Junction/ambient)
Thermal Resistance [1]
(Junction/solder point)
Electrostatic Discharge Threshold (HBM)
Notes:
1. Rth(j-a) Results from mounting on PC board FR4 (pad size≥16 mm
2
per pad)
2. 1/10 Duty Cycle, 0.1ms Pulse Width.
Symbol
P
D
T
J
Top
Tstg
I
F
V
R
I
FM
R
th j-a
R
th j-S
Value
465
120
-40 To +100
-40 To +110
150
5
270
178
78
8000
Unit
mW
°C
°C
°C
mA
V
mA
°C/W
°C/W
V
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Wavelength at peak emission CIE127-2007* I
F
=150mA
Dominant Wavelength CIE127-2007* I
F
=150mA
Spectral bandwidth at 50%
Φ
Forward Voltage
REL MAX
Symbol
λpeak
λdom
[1]
△λ
V
F
[2]
I
R
TCλpeak
TCλdom
TC
V
Value
Typ.
660*
640*
20
2.5
3.1
85
0.09
0.03
-2.7
Max.
Unit
nm
nm
nm
V
mA
nm/
°
C
nm/
°
C
mV/
°
C
I
F
= 150mA
I
F
=150mA
Allowable Reverse Current
Temperature coefficient of
λpeak
I
F
=150mA, -10
°
C≤ T≤100
°
C
Temperature coefficient of
λdom
I
F
=150mA, -10
°
C≤ T≤100
°
C
Temperature coefficient of V
F
I
F
=150mA, -10
°
C≤ T≤100
°
C
Notes:
1.The dominant Wavelength (
λ
d) above is the setup value of the sorting machine.
(
Tolerance
λd
:
±1nm.
)
2. Forward Voltage: +/-0.1V.
*Wavelength value is in accordance with CIE127-2007 standards.
Dec 16, 2013
SDSA9026 V2-Z
Layout: Maggie L.
P. 3/7
Part Number: ZMD20X92S-4
www.SunLED.com
3.5x3.5 mm SMD CHIP LED LAMP

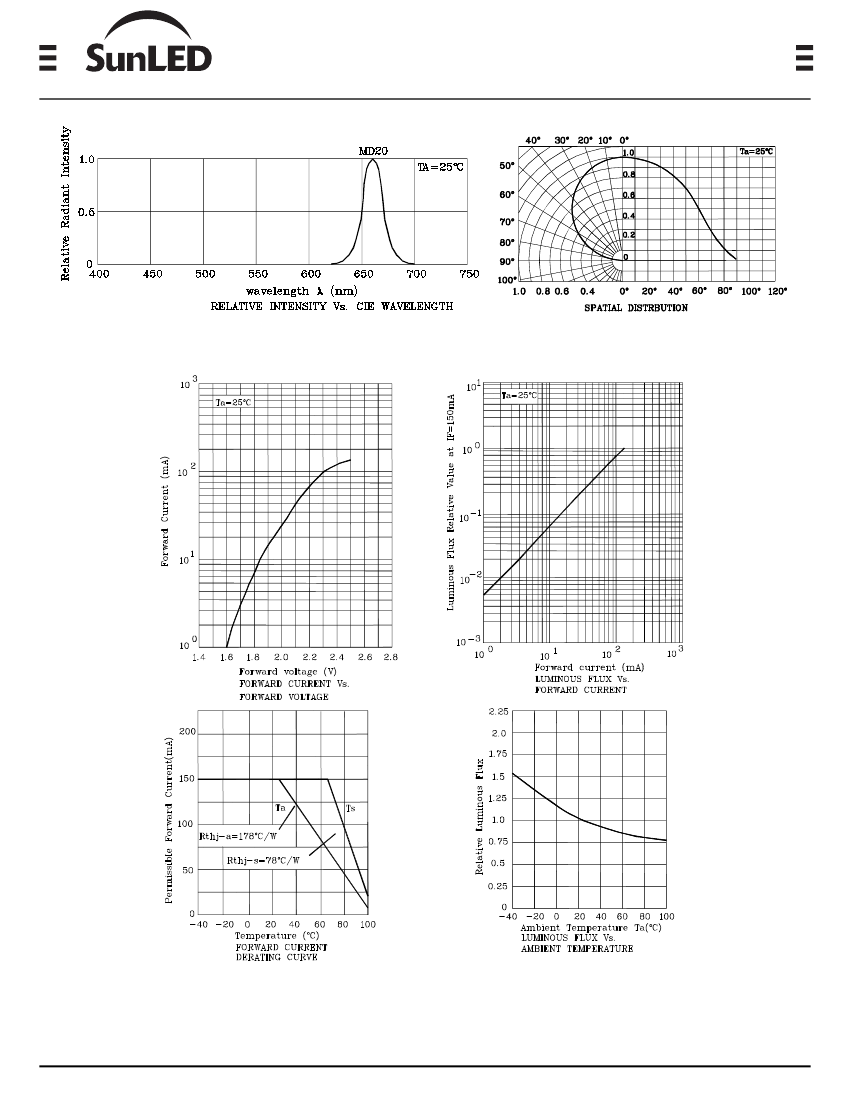

Dec 16, 2013
SDSA9026 V2-Z
Layout: Maggie L.
P. 4/7
Part Number: ZMD20X92S-4
www.SunLED.com
3.5x3.5 mm SMD CHIP LED LAMP

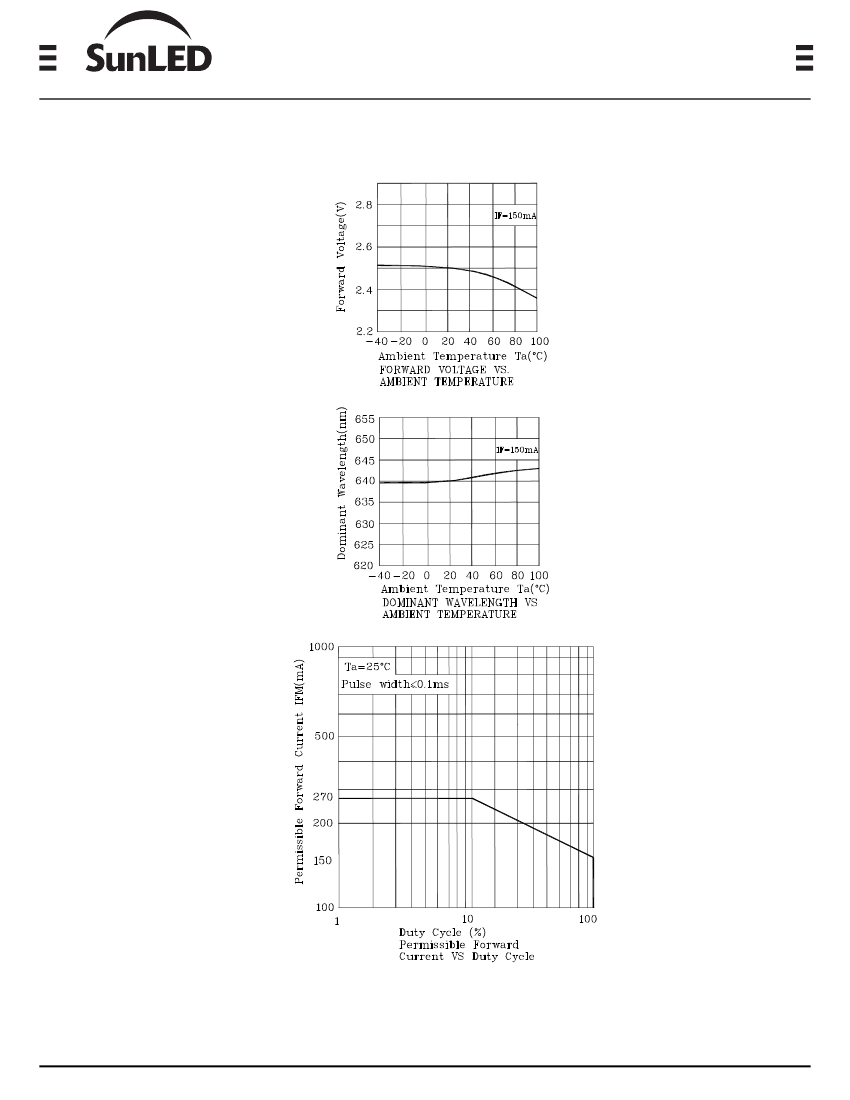

Dec 16, 2013
SDSA9026 V2-Z
Layout: Maggie L.
P. 5/7
