TA8007F datasheet, PDF - EEWORLD Datasheet

TA8007F: Description5V VOLTAGE REGULATOR WITH WATCHDOG TIMER; CategoryPower/power management The power supply circuit; File Size213KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TA8007F Overview

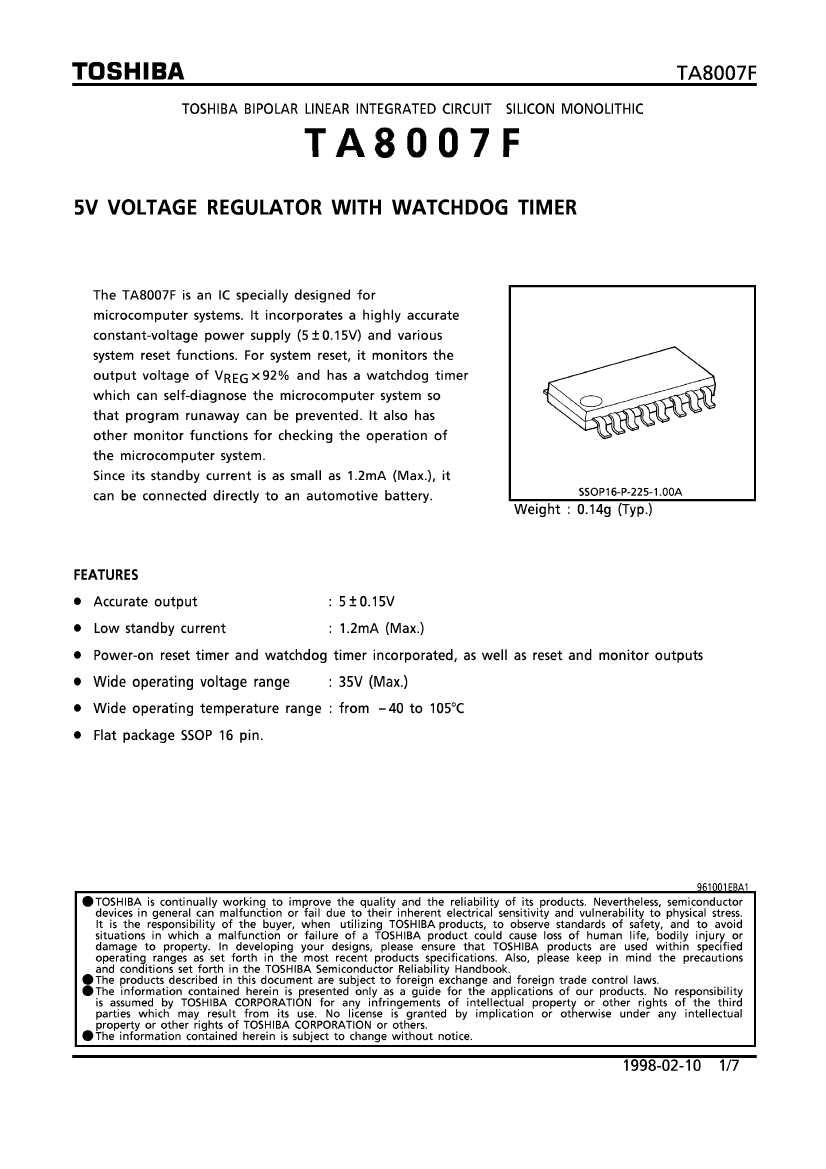

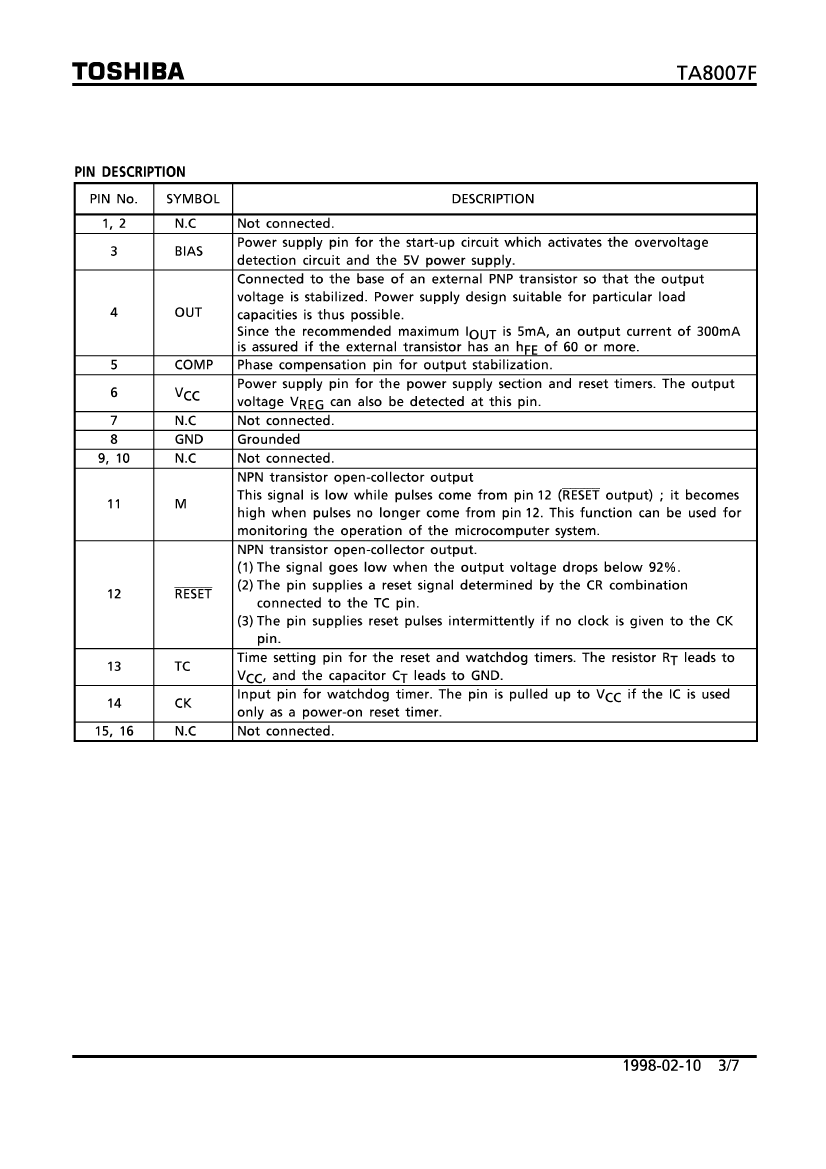

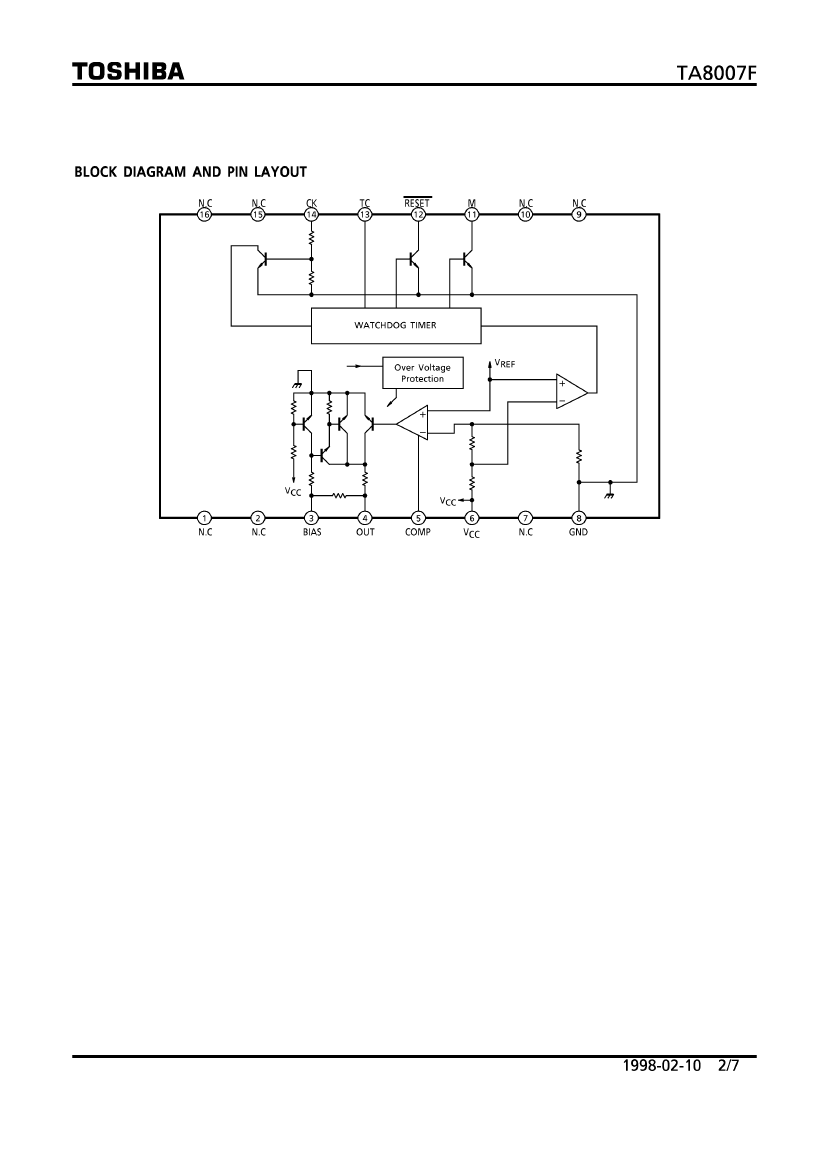

5V VOLTAGE REGULATOR WITH WATCHDOG TIMER

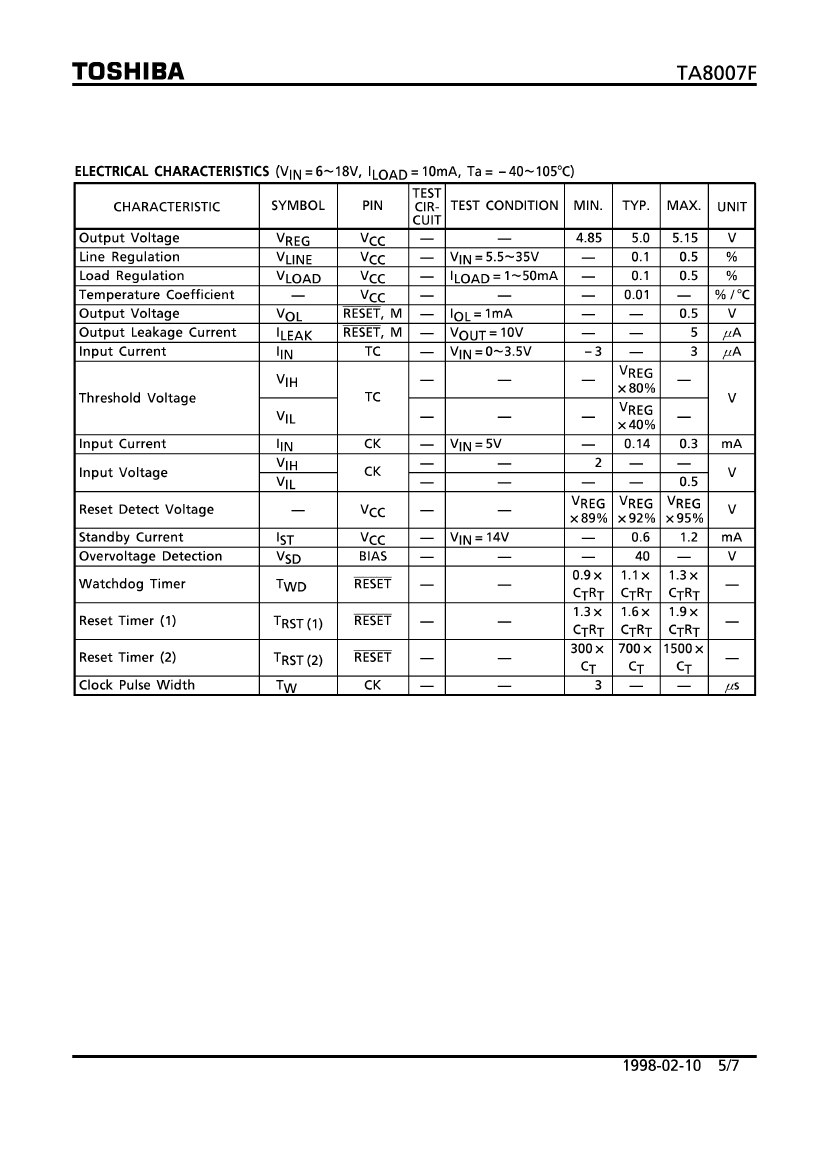

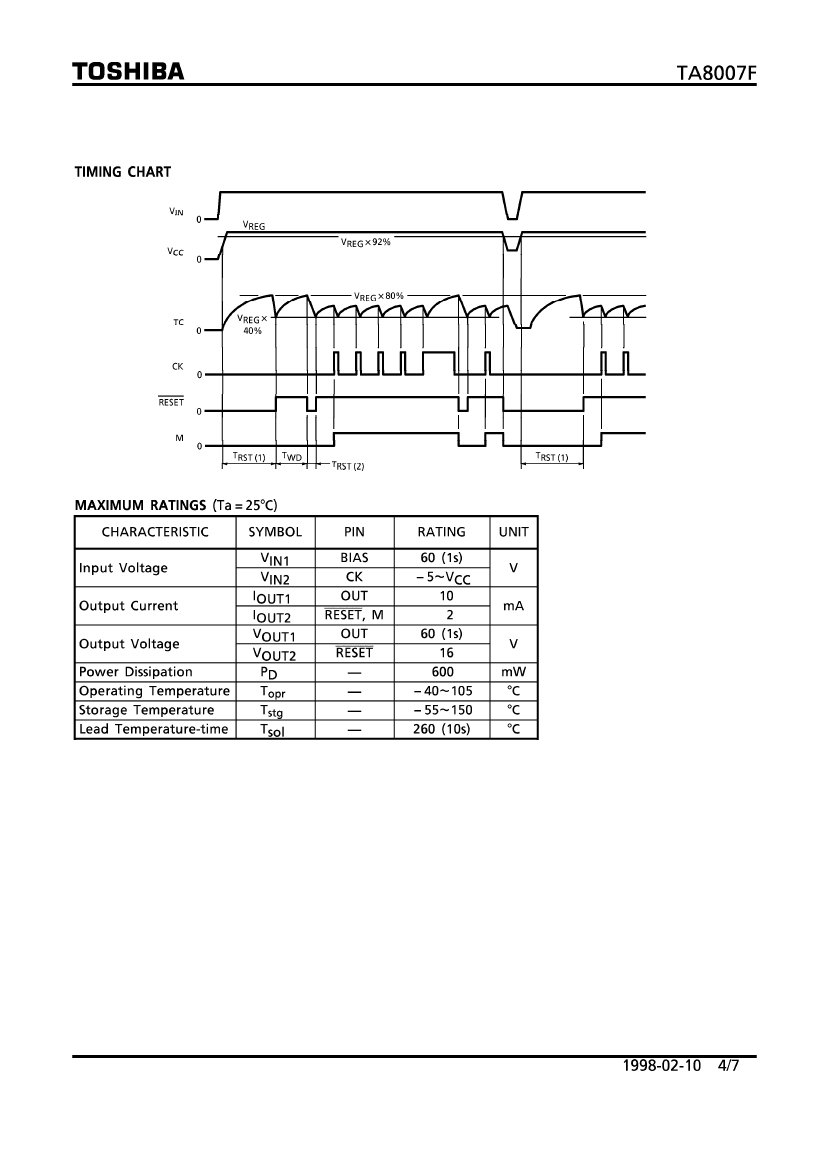

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SSOP, SOP16,.25,40
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustability	FIXED
Maximum absolute input voltage	60 V
Maximum input voltage	35 V
Minimum input voltage	5.5 V
JESD-30 code	R-PDSO-G16
length	8.2 mm
Maximum grid adjustment rate	0.025%
Maximum load regulation	0.025%
Number of functions	1
Output times	1
Number of terminals	16
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.05 A
Maximum output voltage 1	5.15 V
Minimum output voltage 1	4.85 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP16,.25,40
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	1.9 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	3%
width	4.6 mm
