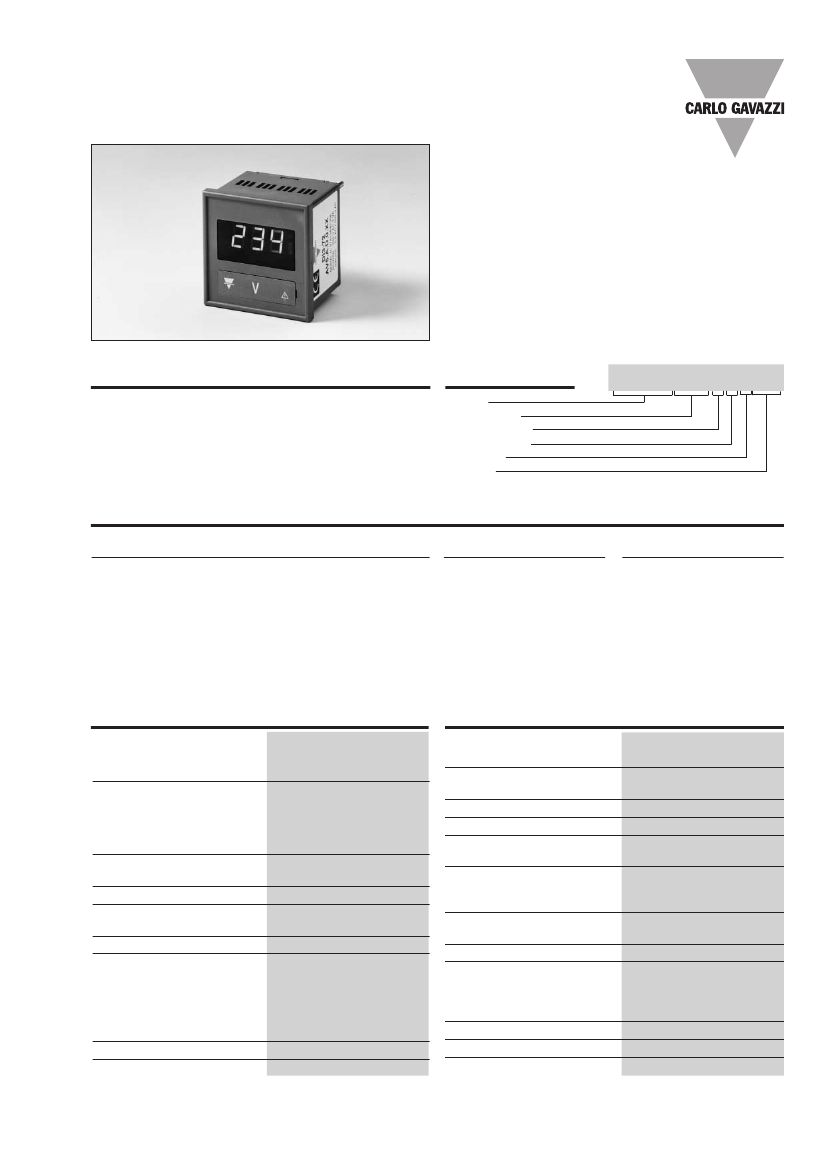

Panel Meters and Controllers
AC Ammeter or Voltmeter
Type DI3-72 AV1/AV5
•
3-dgt µP-based indicator for
AC currents or voltages
•
Selectable CT/VT primary range
•
Panel mounting
•
72 x 72 mm
•
Degree of protection (front): IP 50 (IP 65 on request)
Product Description
3-dgt µP-based meter with
double input for AC currents
or voltages. With 20 selectable
primary CT/VT ranges. The
housing is for panel mounting
and ensures a degree of
protection (front) of IP 50 (IP
65 on request).
Ordering Key
Model
Range code
Measurement
Power supply
Setpoints
Options
DI3-72AV5AD0XX
Type Selection
Range code
AV1:
AV5:
1 A/100 V
Standard cur-
rent/voltage
5 A/500 V
Standard cur-
rent/voltage
See Range Table
Power supply
A:
B:
C:
D:
24 VAC, -15% +10%,
50/60 Hz
48 VAC, -15% +10%,
50/60 Hz
115 VAC, -15% +10%,
50/60 Hz
230 VAC, -15% +10%,
50/60 Hz (standard)
1)
1)
1)
Options
XX:
EX:
None (standard)
Degree of protection
IP 65
1)
Power supply on request
Input Specifications
Rated input
5A/500 VAC, 45 to 400 Hz
(1A/100 VAC on request)
Overload protection
Cont. Current:
Voltage:
For 1 s Current:
Voltage:
Accuracy
(@ 25°C ± 5°C, R.H.
≤
60%)
Temperature drift
Display
Sampling rate
Indication
Max.
Min.
500 VAC range
Other ranges
Over range
Input range selection
Decimal point position
1.2 x rated input
1.2 x rated input
5 x rated input
2 x rated input
± 0.5% f.s., ± 1 dgt
± 350 ppm/ºC
7-segment LED, h 14.2 mm,
3 digits
1 time/s
999
000
Scalesuppressionupto 5% f.s.
Scalesuppressionupto 3% f.s.
EEE
DIP-switch selectable
DIP-switch selectable
General Specifications
Operating temperature
Storage temperature
Insulation reference voltage
Dielectric strength
Noise rejection
CMRR
EMC
0° to 50°C (32° to 122°F)
(R.H. < 90% non-condensing)
-10° to 60°C (14° to 140°F)
(R.H. < 90% non-condensing)
300 V to ground
4000 V for 1 minute
rms
rms
Safety standards
Connector
Housing
Dimensions
Material
Degree of protection
Weight
Approvals
100 dB, 40 to 60 Hz.
IEC 60801-2, IEC 60801-3,
IEC 60801-4 (level 2),
EN 50 081-1, EN 50 082-1.
EN 61 010-1, IEC 61010-1,
VDE 0411
Screw-type
72 x 72 x 75 mm
ABS,
self-extinguishing: UL 94 V-0
Front: IP 50 (IP 65 on request)
Approx 250 g
CE, CSA
Specifications are subject to change without notice
1
DI3-72 AV1/AV5
Supply Specifications
AC supply
230 VAC, -15% +10%,
50/60 Hz (standard)
24 VAC, 48 VAC, 115 VAC,
-15% +10%, 50/60 Hz
(on request)
3.2 VA
Front Panel Description
1
Power consumption
V
A
1. Display
3-dgt (maximum read-out 999).
Alphanumeric indication by means of 7-segment display
for:
- Displaying of the measured value, over-range.
Range Table
Range
1A/100 V
5A/500 V
10 A
15 A
25 A
40 A
50 A
60 A
100 A
150 A
220 V
250 A
380 V
400 A
500 A/V
500 A
600 A/V
600 A
1000 A/V
1000 A
Connection
Direct 1A
Direct 5A
CT10/1 A
CT15/1 A
CT25/1 A
CT40/1 A
CT50/1 A
CT60/1 A
CT100/1 A
CT150/1 A
CT250/1 A
CT400/1 A
CT500/1 A
CT500/5 A
CT600/1 A
CT600/5 A
CT1000/1 A
CT1000/5 A
Direct 100 V
Direct 500 V
CT10/5 A
CT15/5 A
CT25/5 A
CT40/5 A
CT50/5 A
CT60/5 A
CT100/5 A
CT150/5 A
VT220/100 V
CT250/5 A
VT380/100 V
CT400/5 A
VT500/100 V
VT600/100 V
VT1000/100 V
Decimal point Resolution
position
999/99.9
9.99/999
9.99
99.9
99.9
99.9
99.9
99.9
99.9
999
999
999
999
999
999
999
999
999
999
999
1 mA/0.1 V
10 mA/1 V
10 mA
100 mA
100 mA
100 mA
100 mA
100 mA
100 mA
1A
1V
1A
1V
1A
1 A/V
1A
1 A/V
1A
1 A/V
1A
Voltage drop Input imp. Range code
ammeters
voltmeters
1V
250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 V/250 mV
1 MΩ
1 V/250 mV
1V
250 mV
1V
250 mV
1V
250 mV
1 MΩ
1 MΩ
1 MΩ
1 MΩ
1 MΩ
AV1
AV5
AV1/AV5
AV1/AV5
AV1/AV5
AV1/AV5
AV1/AV5
AV1/AV5
AV1/AV5
AV1/AV5
AV1
AV1/AV5
AV1
AV1/AV5
AV1
AV5
AV1
AV5
AV1
AV5
1 MΩ
Dimensions (mm)
66.5 x 66.5
2
Specifications are subject to change without notice
68 x 68
DI3-72 AV1/AV5
Wiring Diagrams
Current measurements - direct
Voltage measurements - direct
IN+
V
IN+
V
IN+
A
IN+
A
IN-
IN-
NC
NC
NC
NC
Power supply
Power supply
Current measurements - C.T.
Voltage measurements - V.T.
IN+
V
IN+
A
IN+
V
IN+
A
IN-
NC
IN-
NC
NC
NC
Power supply
Power supply
Specifications are subject to change without notice
3
