B84112-B-K60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> B84112-B-K60

B84112-B-K60: DescriptionSingle Phase EMI Filter, 250V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size141KB，8 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84112-B-K60 Overview

Single Phase EMI Filter, 250V, 50/60HzHz,

B84112-B-K60 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compli
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
high	32 mm
high potential	2700 V
Maximum leakage current	0.5 mA
length	79.5 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L79.5XB50.8XH32 (mm)
Rated current	6 A
Rated voltage	250 V
width	50.8 mm

Preview

Download Datasheet

View All

2-Line Filters

SIFI-B Series

SIFI-B for enhanced insertion loss

Rated voltage 250 V~, 50/60 Hz

Rated current 1 A to 20 A

Construction

Two-line filter

Metal case

Polyurethane potting (UL 94 V-0)

B84112

Features

Compact design

Low leakage current

All relevant approvals

Cost-optimized construction

Also for assembly on top-hat rails

Applications

Switch-mode power supplies in

– industrial electronics

– telecommunications

– data systems

– medical engineering

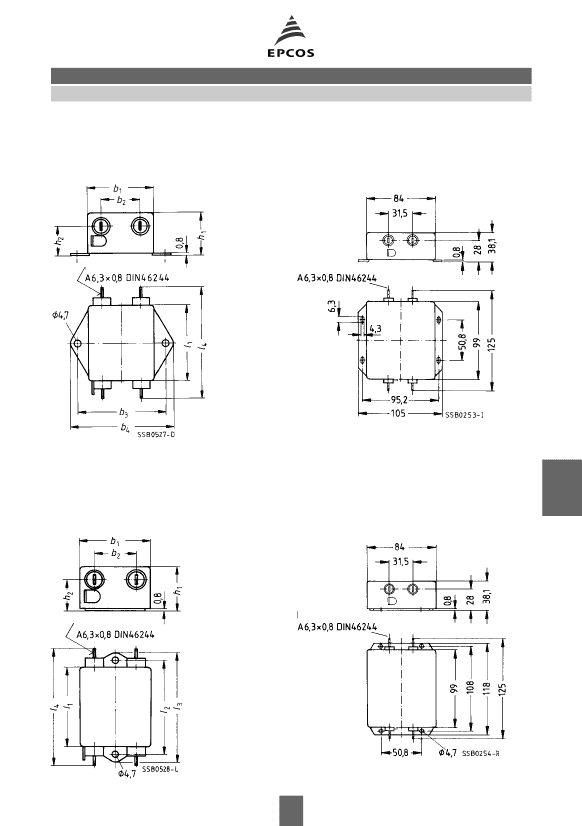

Case styles and terminal styles

Case style A

Case style B

Case style K

Case style L

Case style P

Marking

Marking on component:

Manufacturer’s logo, ordering code,

rated voltage, rated current,

date code

Minimum marking on packaging:

Manufacturer’s logo, ordering code

Tab connectors on face ends, lateral mounting tabs.

Particularly suitable for mounting on a shielding wall.

Tab connectors on face ends, mounting tabs on face ends.

IEC connector as per IEC 60320 C 14 on line side,

tab connectors on load side, mounting holes with metric thread.

Litz wires on face ends

Pins fitting PCB standard grid

147

03/01

B84112-B-K60 Related Products

	B84112-B-K60	B84112-B-K30	B84112-B-K10
Description	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,
Is it Rohs certified?	conform to	conform to	conform to
Maker	TDK Corporation	TDK Corporation	TDK Corporation
Reach Compliance Code	compli	compliant	compliant
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	32 mm	32 mm	32 mm
high potential	2700 V	2700 V	2700 V
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
length	79.5 mm	79.5 mm	63.5 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L79.5XB50.8XH32 (mm)	L79.5XB50.8XH32 (mm)	L63.5XB51XH32 (mm)
Rated current	6 A	3 A	1 A
Rated voltage	250 V	250 V	250 V
Manufacturer's serial number	-	SIFI-B	SIFI-B
