2-281524-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-281524-6

2-281524-6: DescriptionCONNECTOR, 26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-281524-6 Overview

CONNECTOR, 26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

2-281524-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2110379040
Reach Compliance Code	unknown
YTEOL	0
Other features	AMP-LATCH, LATCHED
body width	0.346 inch
subject depth	0.549 inch
body length	2.06 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0

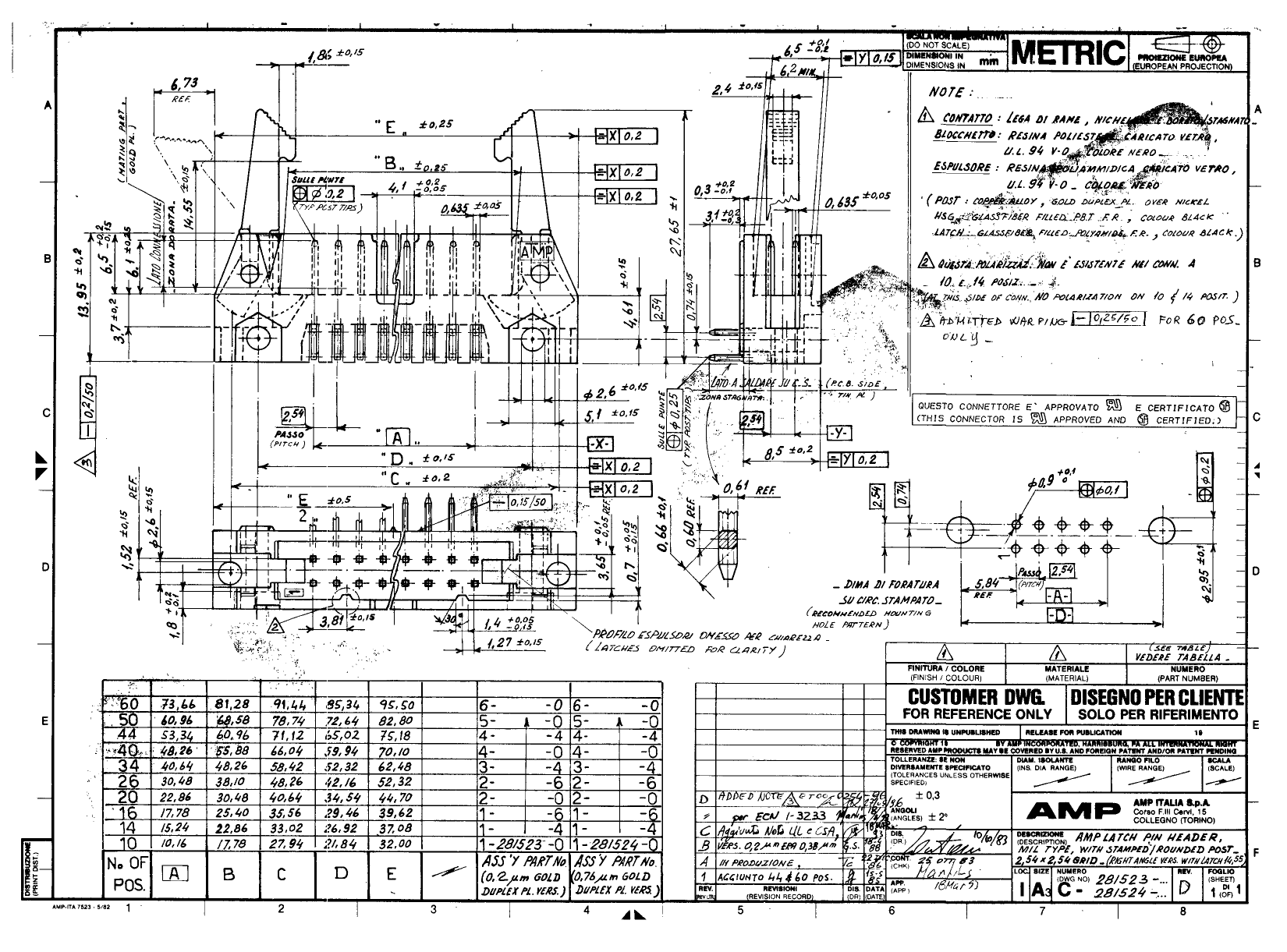

Preview

Download Datasheet

View All

2-281524-6 Related Products

	2-281524-6	3-281524-4	M80-4T1080500-06-321-04-321	M80-4T1080500-08-322-10-322	M80-4T1080500-09-322-09-322
Description	CONNECTOR, 26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	Board Connector, 18 Contact(s), Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	2110379040	2110379075	308510510	308511003	308511207
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant
body width	0.346 inch	0.346 inch	0.219 inch	0.219 inch	0.219 inch
subject depth	0.549 inch	0.549 inch	0.205 inch	0.205 inch	0.205 inch
body length	2.06 inch	2.46 inch	2.283 inch	3.543 inch	3.543 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	AU	AU	AU
Contact completed and terminated	TIN	TIN	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Contact style	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3	e3	e4	e4	e4
Mixed contacts	NO	NO	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	34	18	-	-
ECCN code	-	-	EAR99	EAR99	EAR99
Body/casing type	-	-	PLUG	PLUG	PLUG
Contact resistance	-	-	25 mΩ	25 mΩ	25 mΩ
Durability	-	-	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	-	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	-	-	BLACK	BLACK	BLACK
Manufacturer's serial number	-	-	M80	M80	M80
Installation option 1	-	-	LOCKING	LOCKING	LOCKING
Maximum operating temperature	-	-	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C
Plating thickness	-	-	12u inch	12u inch	12u inch
Rated current (signal)	-	-	3 A	3 A	3 A
Guideline	-	-	UL	UL	UL
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	-	-	0.118 inch	0.118 inch	0.118 inch
