KOAXXA SMA RF Interconnects
TE Connectivity introduces its next generation of RF products with KOAXXA RF
interconnects. This product family premiers with the KOAXXA SMA product line that is
designed to provide flexibility and value.
KEY FEATURES
•
Fully compatible with IEC-169-15
standards
•
Designed for 0-18 GHz performance
•
Ability to mass customize products
•
Global manufacturing footprints
•
Large-scale manufacturing techniques
•
500 cycle mating durability
KOAXXA.com
TE Connectivity
KOAXXA SMA RF Interconnects
Benefits
The new SMA connectors are redeveloped as an extendable product platform for large-scale manufacturing and assembly automation,
delivering many advantages to the customer:
•

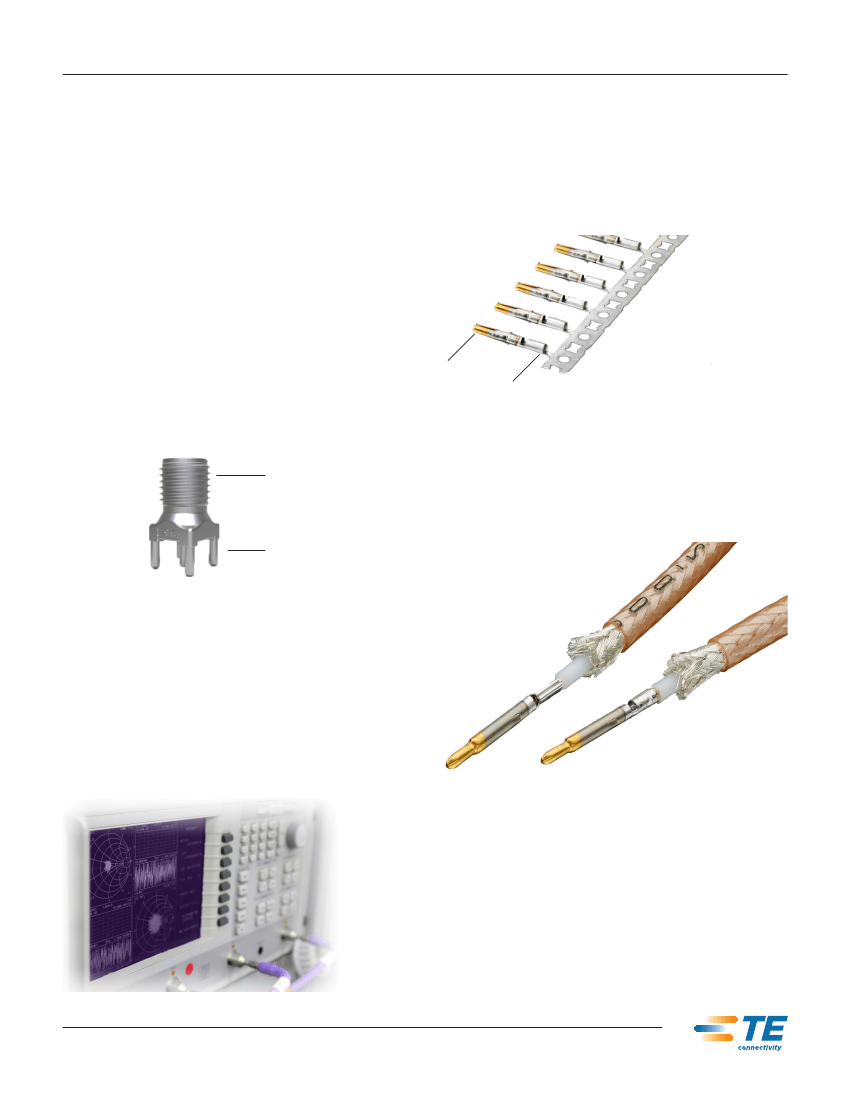

Utilizes TE’s core competencies in manufacturing such as plating,
stamping, molding and assembly to lower manufacturing cost
•
Modular platform designed to allow for the use of common
components across product types
•
Selective innovative plating of precious resources only where
needed without degradation of performance
•
Inter-mateable with all SMA standard interface products
Innovative plating features provide a cost effective, attractive, easy
to use product:
•
Selective Tin plating only in solder regions allows for easy
soldering
•
Selective Gold plating puts gold only where it is needed
•
Bright Nickel plating provides a robust attractive surface finish
Gold Plating
Tin Plating
Nickel Plated
Reduced utilization of precious and non-precious materials though
selective plating, stamping and die casting helps decrease exposure
to future material inflation.
Tin Plated
Center contacts are stamped to provide the right performance and
enable the use of selective plating, and can be soldered for best
performance, or crimped using a hand applicator.
Crimp
Solder
KOAXXA SMA Applications:
•
Test and measurement equipment
•
Transmission equipment
•
Base station and sub system components
•
Smart grid meters
•
Antennas
•
Broadband communication equipment
•
Routers
•
Industrial solutions
•
Mobile radio handsets
•
Commercialized applications in Mil/Aero
KOAXXA.com
TE Connectivity
KOAXXA SMA RF Interconnects
Product Options
(All dimensions shown are REF)

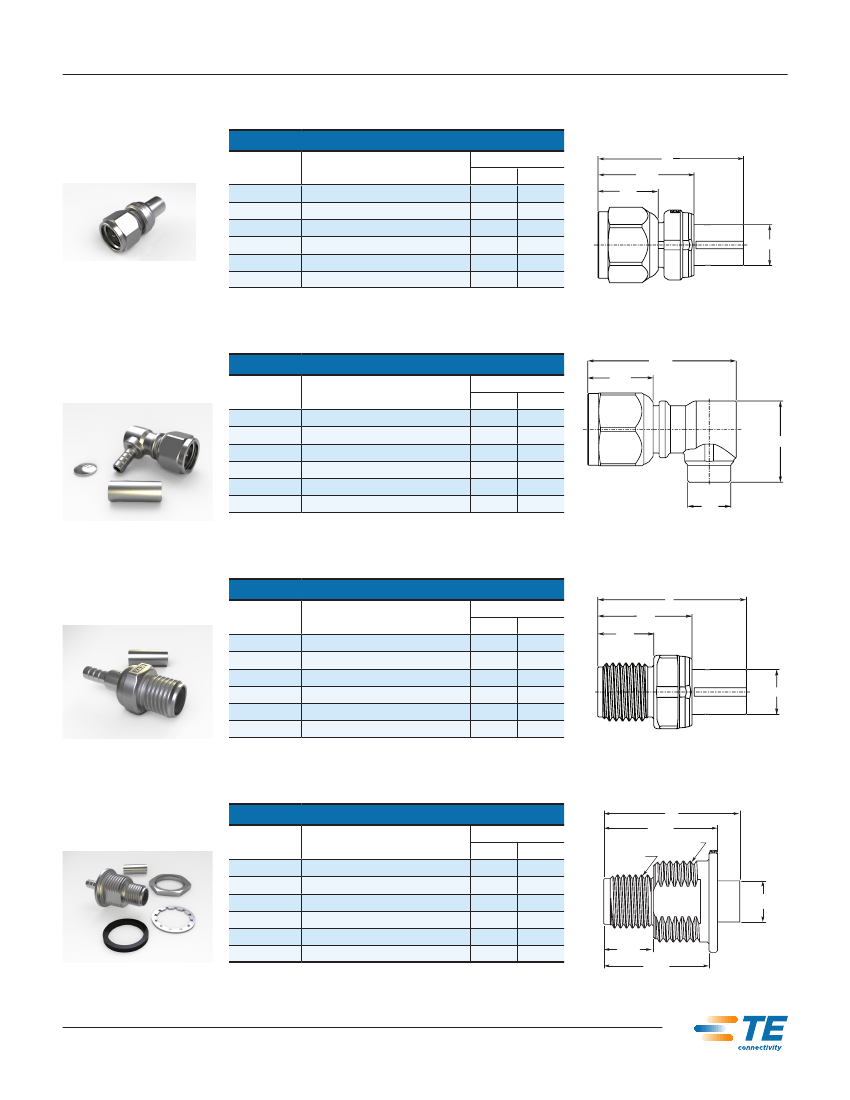

Straight Cable Plug
STRAIGHT CABLE PLUG
Part Number
SMA-PS-1A-(X)
SMA-PS-1B-(X)
SMA-PS-1C-(X)
SMA-PS-1D-(X)
SMA-PS-1F-(X)
SMA-PS-1G-(X)
Terminates To
RG 402 Semi-Rigid, RG 402 Conformable
RD316, K02252D
RG 405 Semi-Rigid, RG 405 Conformable
RG 178, RG 196
RG 174, RG 188, RG 316
RG 58, RG 141, RG 142
Dimensions (mm)
A
17.32
24.98
18.12
24.98
24.58
22.63
B
4.85
4.55
3.35
3.86
3.86
6.22
ØB
7.19
11.43
A
(X) - (S) Single Pack/ (B) Bulk Pack in qty 50
Right Angle Cable Plug
RIGHT ANGLE CABLE PLUG
Part Number
SMA-PR-1A-(X)
SMA-PR-1B-(X)
SMA-PR-1C-(X)
SMA-PR-1D-(X)
SMA-PR-1F-(X)
SMA-PR-1G-(X)
Terminates To
RG 402 Semi-Rigid, RG 402 Conformable
RD316, K02252D
RG 405 Semi-Rigid, RG 405 Conformable
RG 178, RG 196
RG 174, RG 188, RG 316
RG 58, RG 141, RG 142
Dimensions (mm)
A
8.94
16.23
8.94
16.23
16.23
18.43
B
4.85
4.55
3.35
3.86
3.86
6.22
7.19
16.32
A
ØB
(X) - (S) Single Pack/ (B) Bulk Pack in qty 50
Straight Cable Jack
STRAIGHT CABLE JACK
Part Number
SMA-JS-1A-(X)
SMA-JS-1B-(X)
SMA-JS-1C-(X)
SMA-JS-1D-(X)
SMA-JS-1F-(X)
SMA-JS-1G-(X)
Terminates To
RG 402 Semi-Rigid, RG 402 Conformable
RD316, K02252D
RG 405 Semi-Rigid, RG 405 Conformable
RG 178, RG 196
RG 174, RG 188, RG 316
RG 58, RG 141, RG 142
Dimensions (mm)
A
16.05
23.71
16.85
23.71
23.71
21.46
B
4.85
4.55
3.35
3.86
3.86
6.22
6.05
10.16
A
ØB
(X) - (S) Single Pack/ (B) Bulk Pack in qty 50
Bulkhead Cable Jack
BULKHEAD CABLE JACK
Part Number
SMA-JB-1A-(X)
SMA-JB-1B-(X)
SMA-JB-1C-(X)
SMA-JB-1D-(X)
SMA-JB-1F-(X)
SMA-JB-1G-(X)
Terminates To
RG 402 Semi-Rigid, RG 402 Conformable
RD316, K02252D
RG 405 Semi-Rigid, RG 405 Conformable
RG 178, RG 196
RG 174, RG 188, RG 316
RG 58, RG 141, RG 142
Dimensions (mm)
A
16.05
23.71
16.85
23.71
23.71
21.46
B
4.85
4.55
3.35
3.86
3.86
6.22
5.84
12.40
1/4-36
UNS-2A
A
13.40
3/8-32 UNEF-2A
ØB
(X) - (S) Single Pack/ (B) Bulk Pack in qty 50
KOAXXA.com
TE Connectivity
KOAXXA SMA RF Interconnects

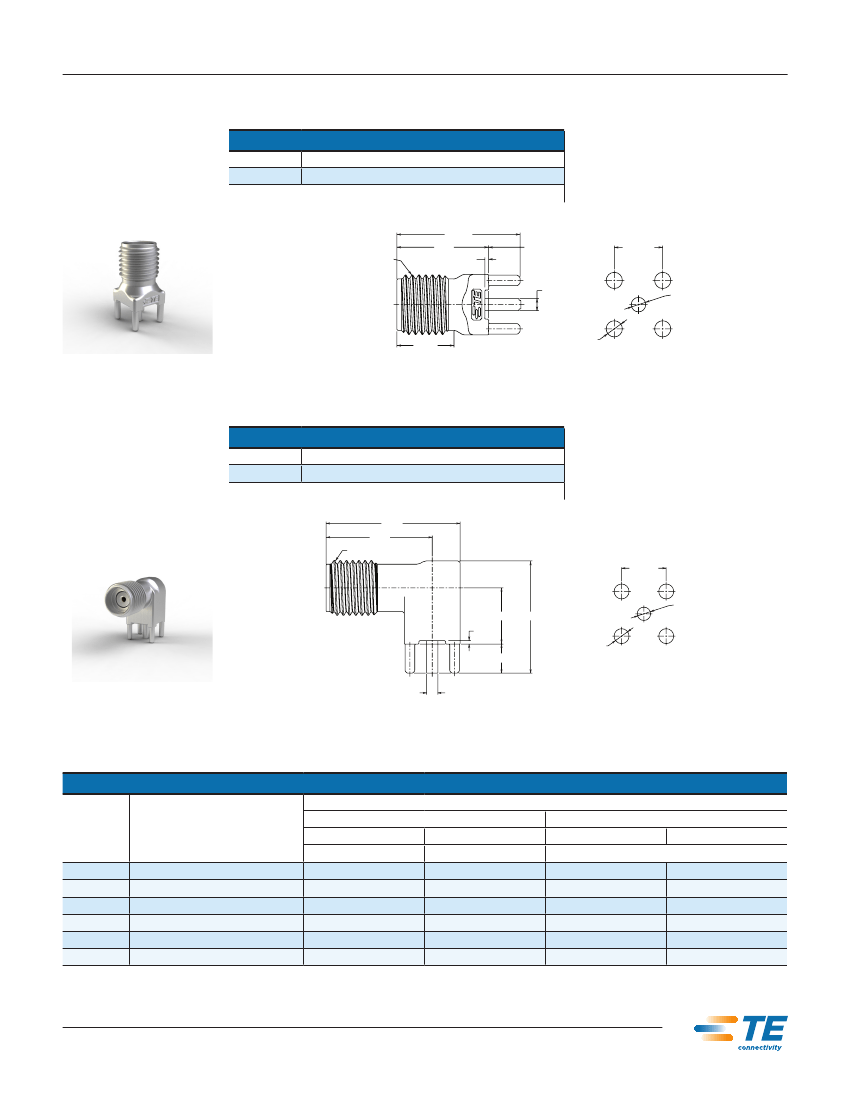

Vertical/Straight
Board Mount Jack
VERTICAL/STRAIGHT BOARD MOUNT JACK
Part Number
SMA-JS-P2-(X)
Terminates To
PCB thickness 3.175 mm (.125 in.) max.
(X) - (S) Single Pack/ (T) Tray Pack in qty 50
1/4 - 36 UNS 2A
12.93
9.63
0.40
3.30
2X 5.08
Ø1.27
Ø1.52
6.00
4X Ø1.70
Right Angle
Board Mount Jack
RIGHT ANGLE BOARD MOUNT JACK
Part Number
SMA-JR-P2-(X)
Terminates To
PCB thickness 3.175 mm (.125 in.) max.
(X) - (S) Single Pack/ (T) Tray Pack in qty 50
15.26
12.08
1/4 - 36 UNS 2A
2X 5.08
6.40
0.40
12.78
4X Ø1.70
Ø1.52
3.30
Ø1.27
APPLICATION TOOLING INFORMATION
Termination Type
Cable Group
Cable Description
Crimp
Center Contact
Tooling PN 2161864-1
1A
1B
1C
1D
1F
1G
RG402 Semi Rigid, RG402 Conformable
RD316 (Double Braid), K02252D
RG405 Semi Rigid, RG405 Conformable
RG178, RG196
RG174, RG188, RG316
RG58, RG141, RG142
No
Yes
No
No
Yes
Yes
Outer Braid
Tooling PN 2161732-1
No
Yes
No
Yes
Yes
Yes
Yes
Optional
Yes
Yes
Optional
Optional
Center Contact
Solder
Outer Braid
Tooling PN 2161890-1
Yes
No
Yes
No
No
No
KOAXXA.com
TE Connectivity
KOAXXA SMA RF Interconnects
Technology Corner

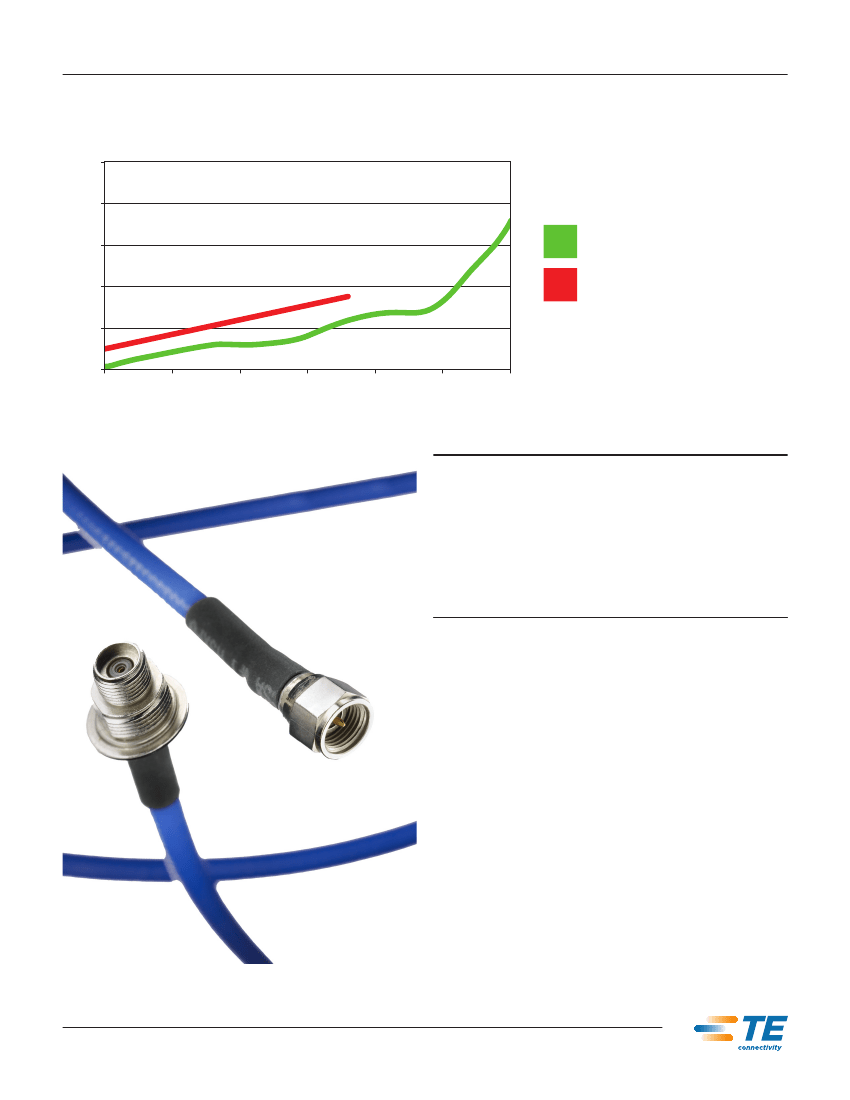

KOAXXA SMA Frequency and VSWR Measurements
1.5
1.4
1.3
1.2
1.1
1
KEY
VSWR Average Plot for RG402
VSWR Spec Limit for RG402
1.05+0.007*f(GHz)
VSWR
0
5
10
15
20
25
30
Frequency (GHz)
DESCRIPTION
The Voltage Standing Wave Ratio is a unit-less measure of the
maximum voltage of a standing wave in the transmission line.
Standing waves result from the mismatched complex impedances
between the connector and the cable, causing reflections that sum
with the input signal.
KOAXXA SMA Product Specifications
The KOAXXA SMA product family is qualified per TE Connectivity
Product Specification 108-60094.
ELECTRICAL
Low Level Contact Resistance
— 15 mOhm delta per EIA-364-23
Insulation Resistance
— 5000 Mohms per EIA-364-21
Withstanding Voltage
— 750 VAC (flex cable); 1000 VAC (SR cable)
Voltage Standing Wave Ratio
— 1.05+.007*f(GHz) up to 18 GHz
(SR cable)
MECHANICAL
Sinusoidal Vibration
— 20 G’s, 10 to 2000 Hz per EIA-364-28,
Cond IV
Mechanical Shock
— 100 G’s per EIA-364-27, Cond G
Mating Torque
— 0.45 N-m [4 in-lb] per EIA-364-13, Method A
Durability
— 500 cycles minimum per EIA-364-9
ENVIRONMENTAL
Thermal Shock
— 5 cycles from -55 to +85°C per EIA-364-32C
Humidity-Temperature Cycling
— 10 cycles from 25 to 65 c at 95%
RH per EIA-364-31B, Cond III
Temperature Life
— 85°C for 1000 hours per EIA-364-17B
Mixed Flowing Gas
— 14 days mated exposure to Class IIA per
EIA-364-65A
