5348633001

Description
WIRE AND CABLE
CategoryThe connector    Connector bracket
File Size132KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5348633001 Overview

WIRE AND CABLE

5348633001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Connector bracket typeWIRE AND CABLE

Preview

Download Datasheet
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Wire & Cable > Product Feature Selector > Product Details

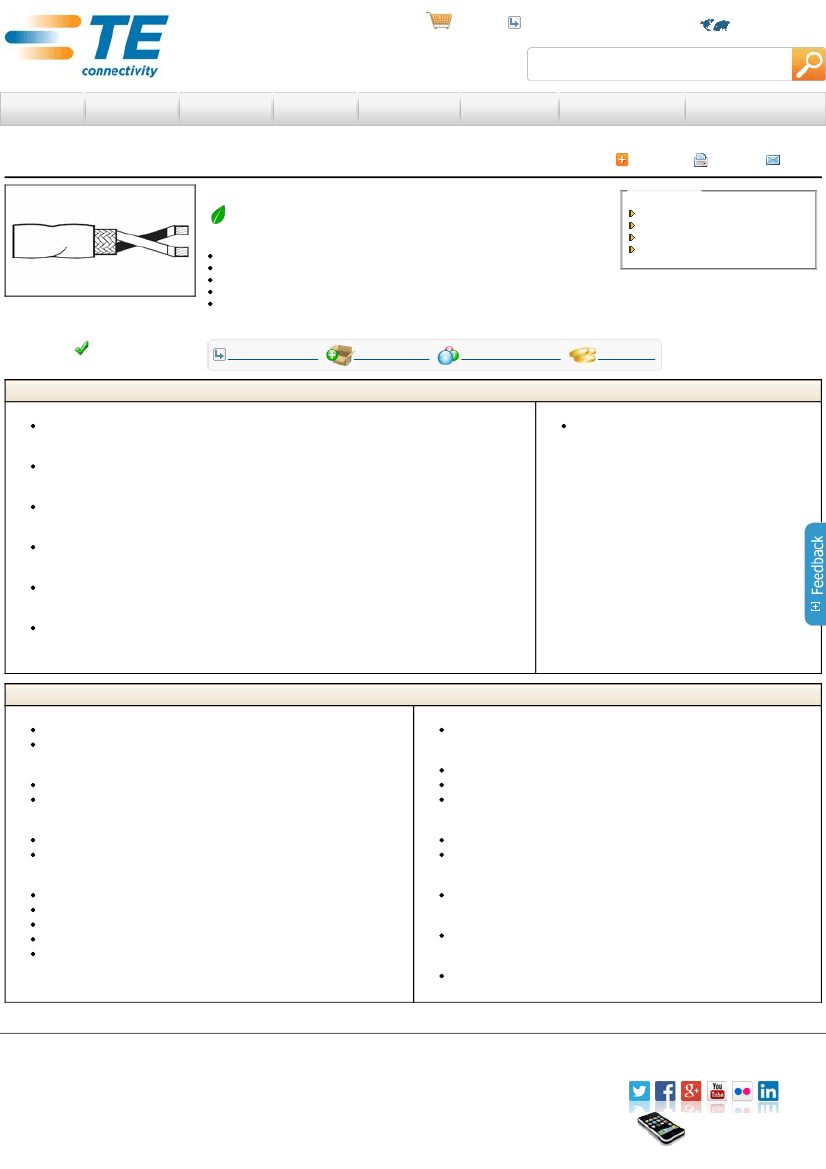

99M1121­26­0/9­0 Product Details
Spec 99 and Spec 100 Wire and Cable

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Cable Type = Spec 99M
Cable Style = Jacketed, Round­Braid Shielded
Wire Size (AWG or Metric) = 26 AWG [0.15 mm²]
Number of Conductors = Twisted Pair
Equipment Wire Application
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
99M1121­26­0/9­0

TE Internal Number: 5348633001
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
Customer Drawing (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Cable Type = Spec 99M
Cable Style = Jacketed, Round­Braid Shielded
Electrical Characteristics:
Wire Size (AWG or Metric) = 26 AWG [0.15 mm²]
Voltage Rating (VAC) = 600
Dimensions:
Conductor Outer Diameter (mm [in]) = 0.50 [0.020]
Shield (Screen) Diameter (mm [in]) = 2.18 [0.086]
Body Features:
Wire Color = Black, White
Nominal Outside Diameter (mm [in]) = 2.79 [0.1098]
Wire Diameter (mm [in]) = 0.80 [0.031]
Cable Jacket Color = Black
Conductor Type = Tin­Plated Copper
Configuration Features:
Number of Conductors = Twisted Pair
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage:
Wire Size ­ Details = 26 AWG 0.15 mm², 0.00024 in², 19 x 38 AWG
Temperature Range (°C) = ­55 – +125
Operation/Application:
Application = Equipment Wire
Packaging Features:
Wire Source = United Kingdom
Other:
Brand = Raychem
