2770-50576

Description
RF F Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack
CategoryThe connector    The connector
File Size616KB,3 Pages
ManufacturerConexcon Group
Download Datasheet Parametric Compare View All

2770-50576 Overview

RF F Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack

2770-50576 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
subject depth1.102 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF F CONNECTOR
Contact point genderFEMALE
Contact styleCOAX
Coupling typeTHREADED
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
reliabilityCOMMERCIAL
Termination typeSOLDER
Total number of contacts1
Base Number Matches1
F CONNECTORS
F SERIES
F series are economically priced connectors especially designed for use with NTSC TV antenna and other
similar applications. Countries using the NTSC system include: Canada, Central America, Japan, Korea,
Mexico, Taiwan, and U.S.A. etc….
2770
SERIES.

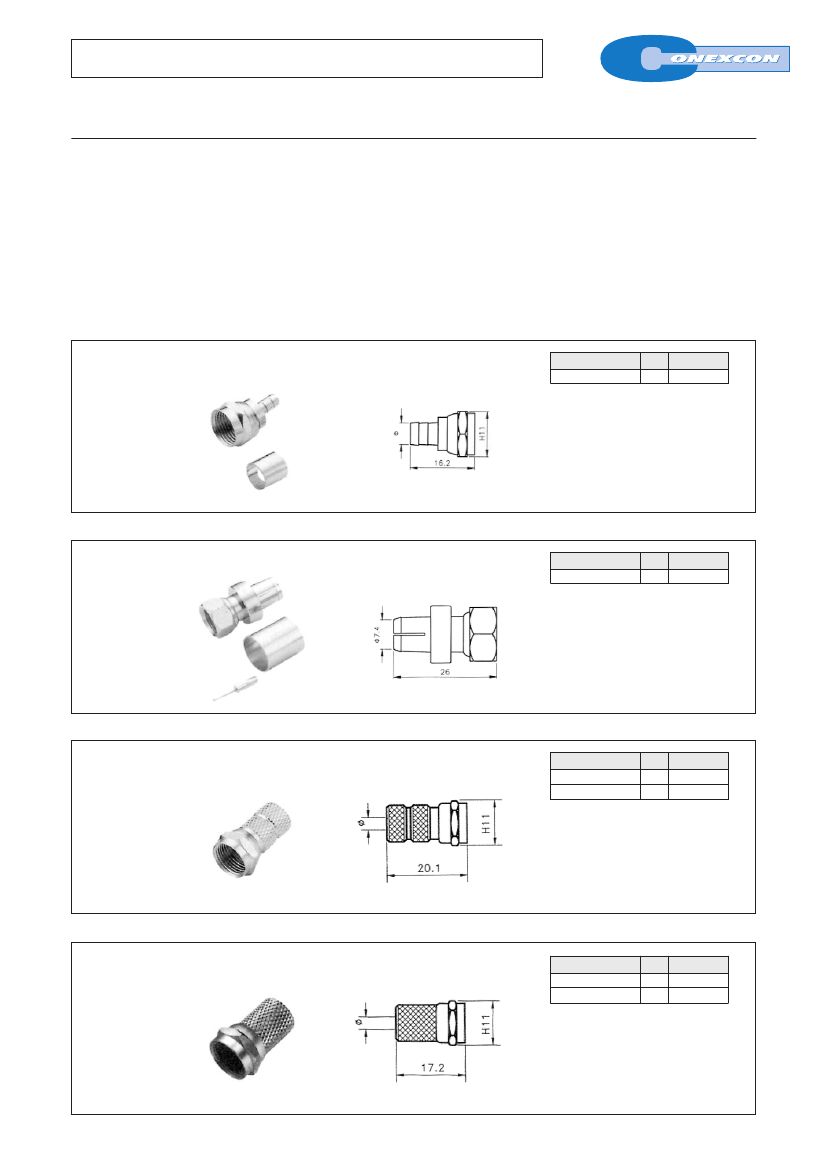

PLUG CRIMP
Part Number
2770-01501
50
Cable
RG-58
PLUG CRIMP (RG.213)
Part Number
2770-65502
50
Cable
RG-213
SECCIÓN
K
PLUG TWIST ON
Part Number
2770-01521
2770-02721
50
75
Cable
RG-58
RG-59
PLUG TWIST ON
Part Number
2770-01522
2770-02722
50
75
Cable
RG-58
RG-59

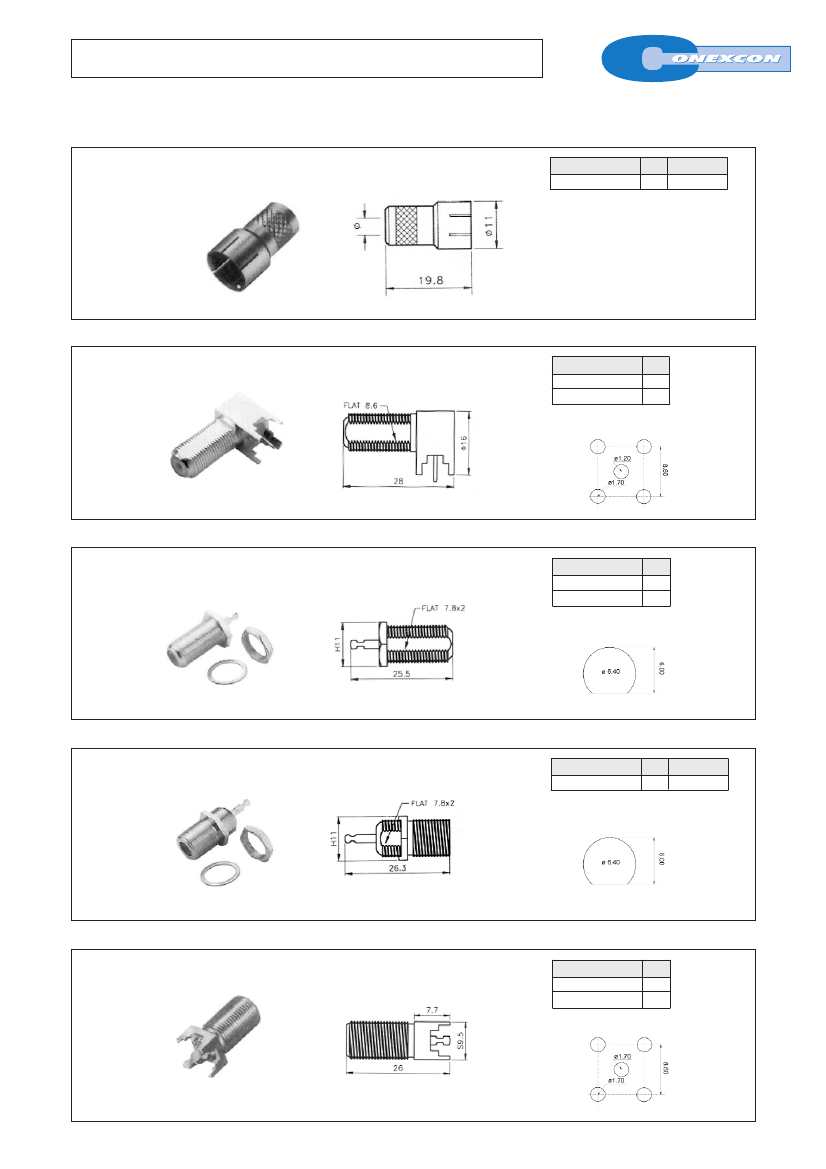

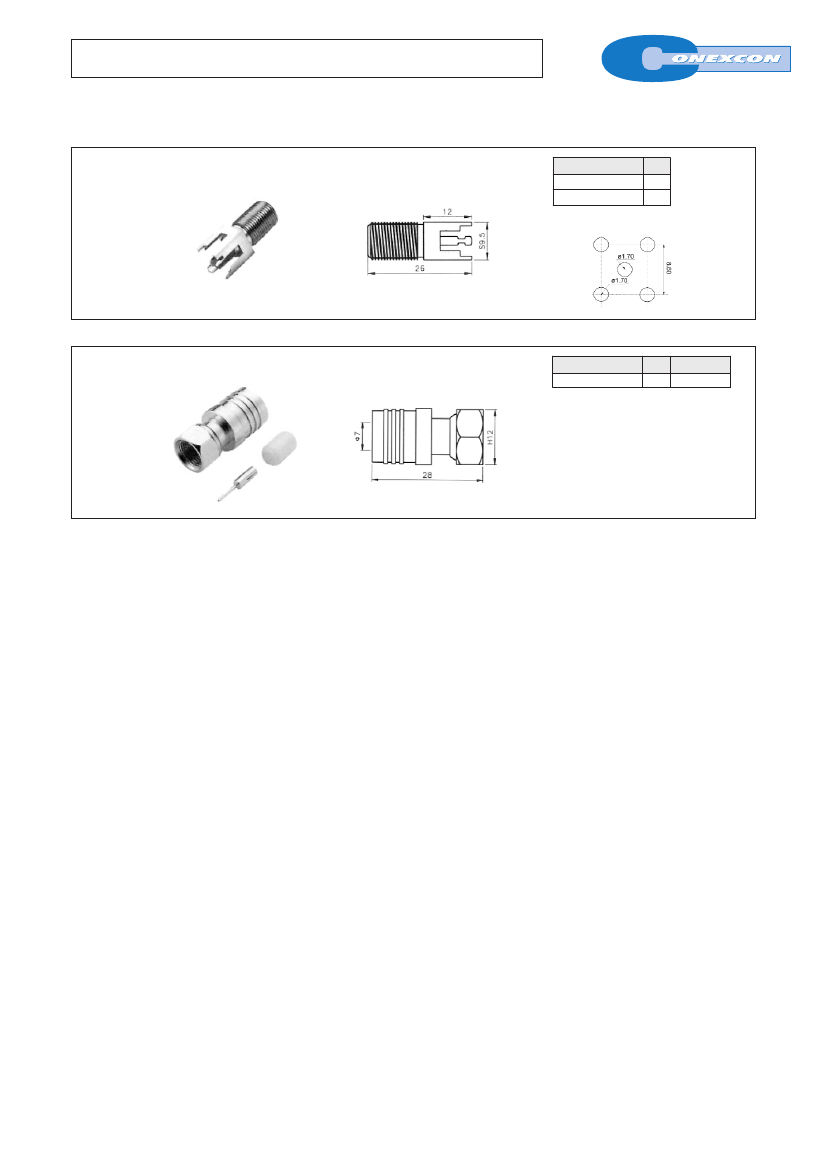

CONEXCON
Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

2770-50576 Related Products

2770-50576 2770-50776 2770-02721 2770-01523
Description RF F Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack RF F Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack RF F Connector, 1 Contact(s), Male, Panel Mount, Solder Lug Terminal, Locking, Plug RF F Connector, 1 Contact(s), Male, Panel Mount, Solder Lug Terminal, Plug
Reach Compliance Code unknow unknow unknown unknown
subject depth 1.102 inch 1.102 inch 0.791 inch 0.78 inch
Body/casing type JACK JACK PLUG PLUG
Characteristic impedance 50 Ω 75 Ω 75 Ω 50 Ω
Connector type RF F CONNECTOR RF F CONNECTOR RF F CONNECTOR RF F CONNECTOR
Contact point gender FEMALE FEMALE MALE MALE
Contact style COAX COAX COAX COAX
Installation method RIGHT ANGLE RIGHT ANGLE STRAIGHT STRAIGHT
Installation type BOARD BOARD PANEL PANEL
Number of ports 1 1 1 1
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type SOLDER SOLDER SOLDER LUG SOLDER LUG
Total number of contacts 1 1 1 1
Installation option 1 LOCKING LOCKING LOCKING -
