Telecom-, Signal and RF Relays
AXICOM
Cradle Relay P
V23003
108-98015 • Nov. 07 • Rev. C • ECOC: JM10
AXICOM
Telecom-, Signal and RF Relays
108-98015 Rev. C
Cradle Relay P V23003
Disclaimer
While Tyco Electronics has made every reasonable effort
to ensure the accuracy of the information in this datasheet,
Tyco Electronics does not guarantee that it is error-free,
nor does Tyco Electronics make any other representati-
on, warranty or guarantee that the information is accurate,
correct, reliable or current. Tyco Electronics reserves the
right to make any adjustments to the information contai-
ned herein at any time without notice. Tyco Electronics
expressly disclaims all implied warranties (and all express
warranties, except as otherwise stated in this datasheet)
regarding the information contained herein, including but
not limited to any implied warranties or merchantability or
fitness for a particular purpose. It is recommended that
you test any new or replacement product before incorpo-
rating into a system.
The dimensions in this datasheet are for reference purpo-
se only and are subject to change without notice. Specifi-
cations are subject to change without notice.
Index
Dimensions
Coil Data and operating range
Relay Code
Coil Data and Ordering Information
Instructions for Impulse Operation
Contact Data
Insulation / General Data
All specifications subject to change. Consult Tyco Electronics for latest specifications.
4
5
6
7
9
10
12
2 of 14
AXICOM
Telecom-, Signal and RF Relays
108-98015 Rev. C
Cradle Relay P V23003
Hand solder and plug-in relays,
for DC operation,
polarized, latching
ROHS compliant (Directive 2002/95/EC) as per
product date code 0501.

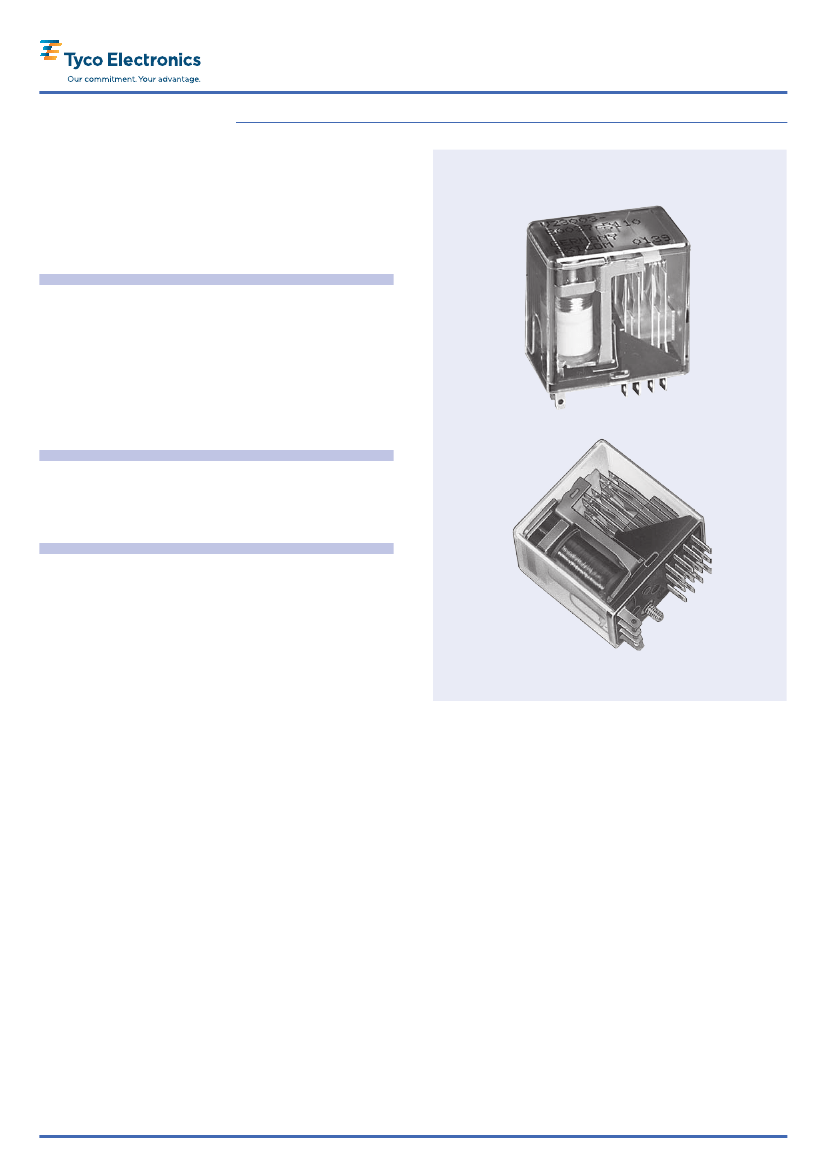

Features
•
•
•
•
Primarily intended for impulse operation
Highly reliable
Multi purpose relay
Great variety of contact arrangements and materials
to meet specific applications
• Sockets for easy and quick mounting of relays
(see datasheet Accessories)
• Contacts for signal loads and currents up to 5 A
Typical applications
• For applications where the switching status
must be maintained
• Measuring systems
Relay types
• Size I or II, depending on contact set
• Standard contact sets with max. 4 changeover,
2 break contacts, special configurations on request
• Single or bifurcated contacts
• Hand solder terminals also for plug-in
connection with screw fixing
• Dust-protected
All specifications subject to change. Consult Tyco Electronics for latest specifications.
3 of 14
AXICOM
Telecom-, Signal and RF Relays
108-98015 Rev. C
Cradle Relay P V23003

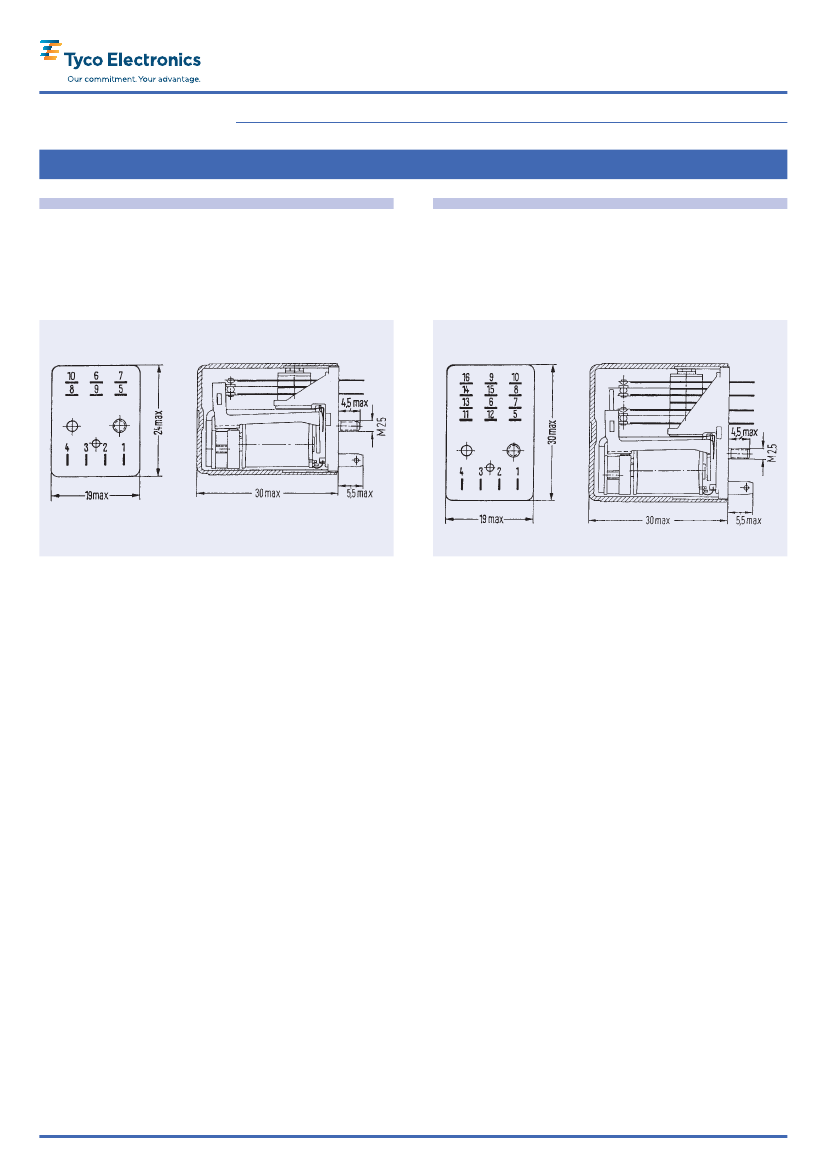

Dimensions
Type V23003-A0xxx Size I
Hand solder terminals, silver-plated
Also for plug-in connection and screw fixing
With earth terminal
Dust-protected
Dimensions in mm
Type V23003-B0xxx Size II
For sockets and hold-down springs see data sheet Accessories
All specifications subject to change. Consult Tyco Electronics for latest specifications.
4 of 14
AXICOM
Telecom-, Signal and RF Relays
108-98015 Rev. C
Cradle Relay P V23003
Coil Data and operating range
Nominal voltage
Typical nominal power consumption, at 20 °C
Class of the operative range
acc to EN 61810-1 / IEC 61810-1 and VDE 0435 Part 201
Operating voltage (according to the coil type)
from 6 Vdc to 60 Vdc
1.5 W
1
max. 73% of the nominal voltage
With continuous operation only one winding at a time may be energized within the specific voltage range.
The minimum voltage U
I
and the maximum voltage U
II
depends on the ambient temperature.
U
I tamb
=
U
I 20 °C
·
k
I tamb
U
II tamb
=
U
Il 20 °C
·
k
II tamb
t
amb
= Ambient temperature
U
I tamb
= Minimum voltage at ambient temperature, t
amb
U
II tamb
= Maximum voltage at ambient temperature, t
amb
k
I and
k
II
= Factors
Operate - negative potential at start of winding
Release - plus potential at start of winding
Ambient temperature [°C]
Ambient temperature [°C]
All specifications subject to change. Consult Tyco Electronics for latest specifications.
