TA2057F datasheet, PDF - EEWORLD Datasheet

TA2057F: DescriptionAM/FM IF+FM ST DET (FOR DIGITAL TUNING SYSTEM); CategoryOther integrated circuit (IC) Consumption circuit; File Size589KB，18 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

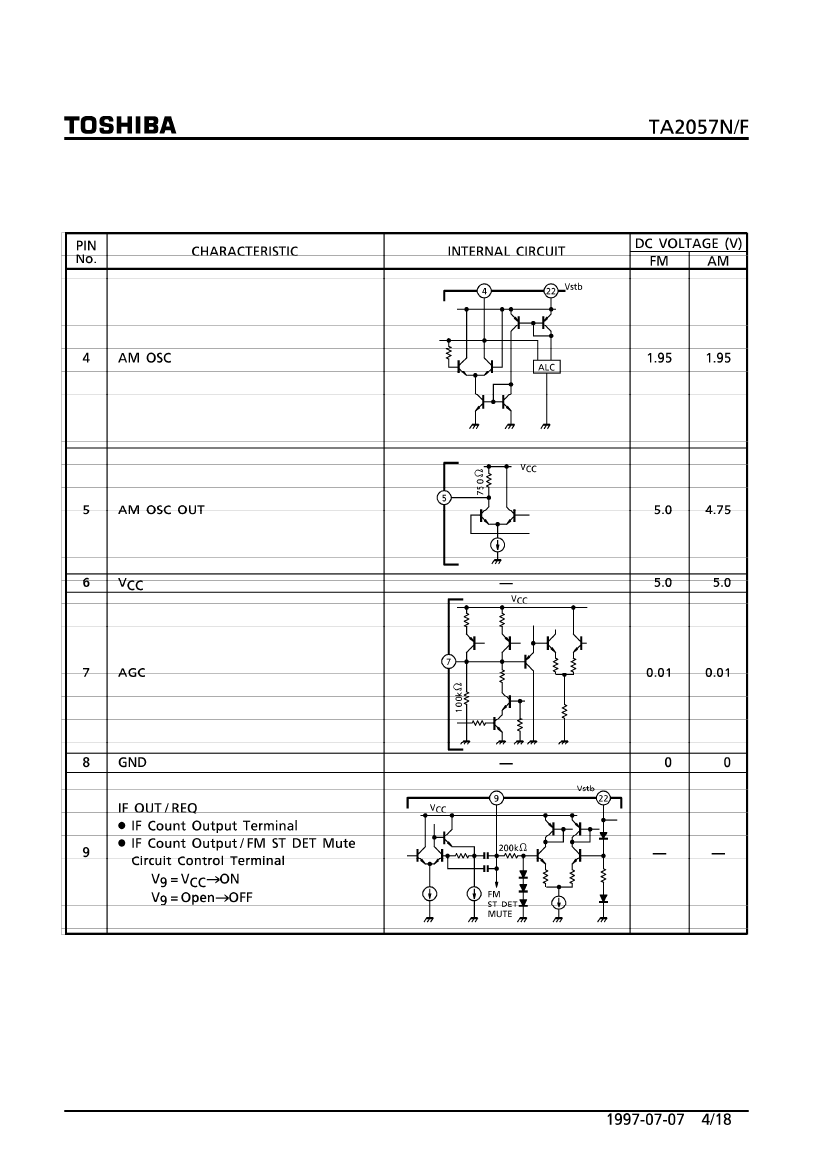

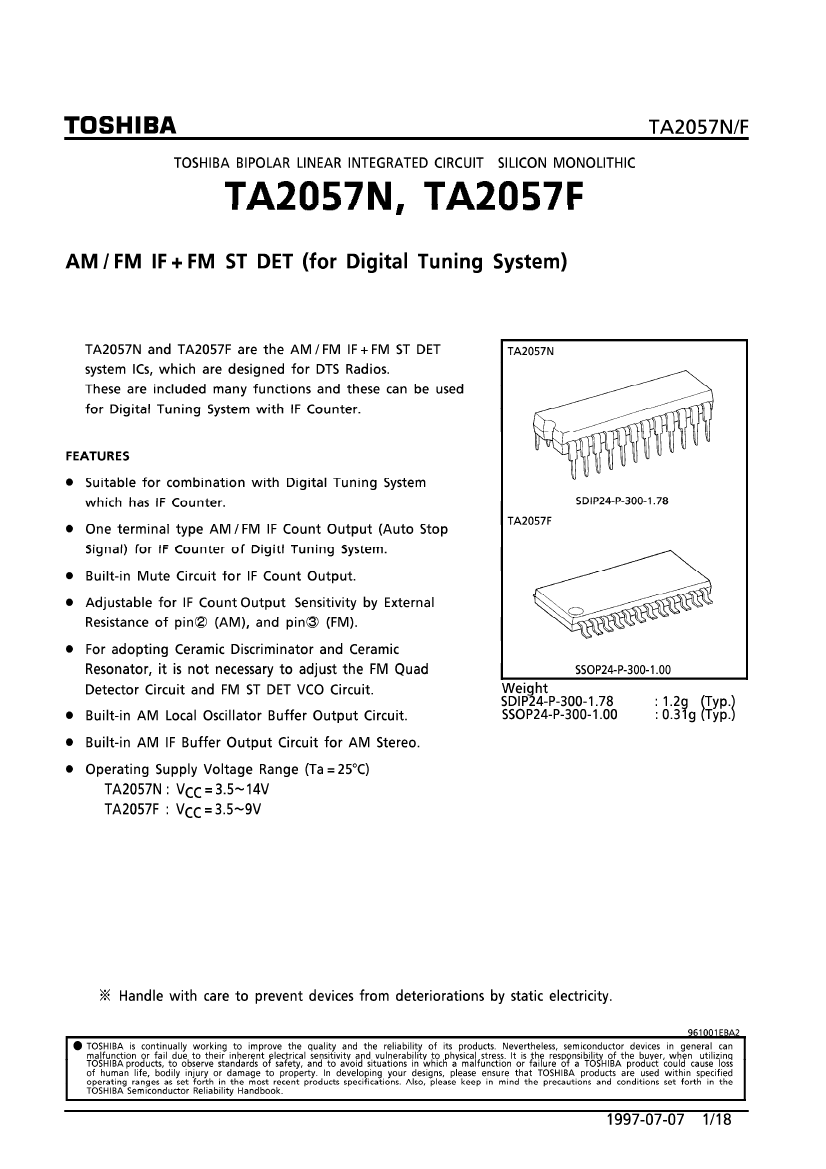

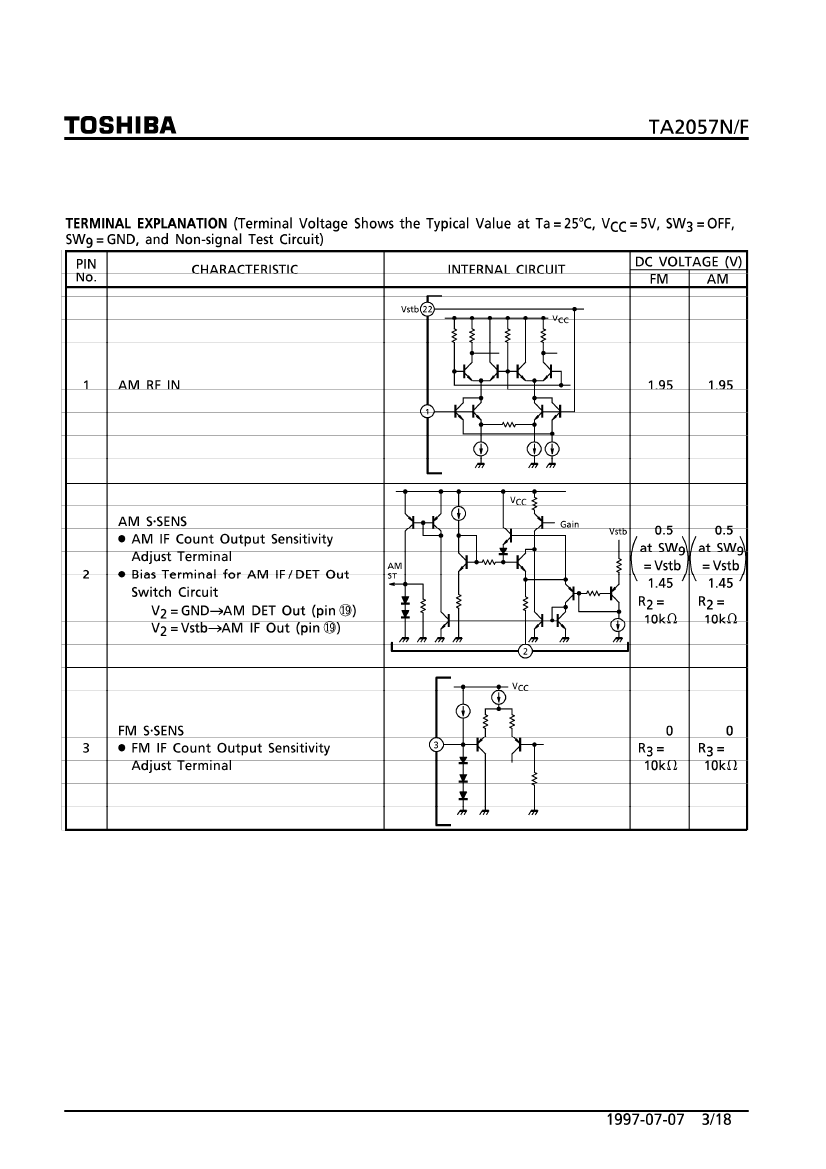

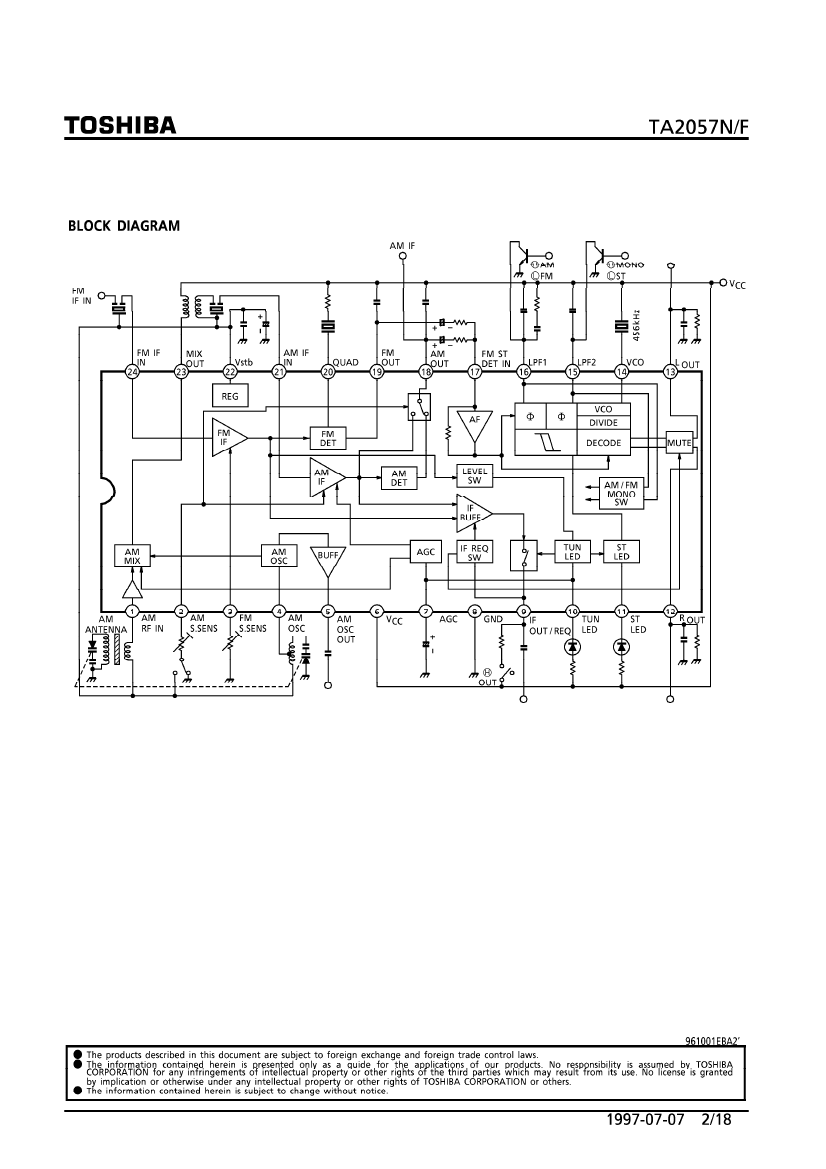

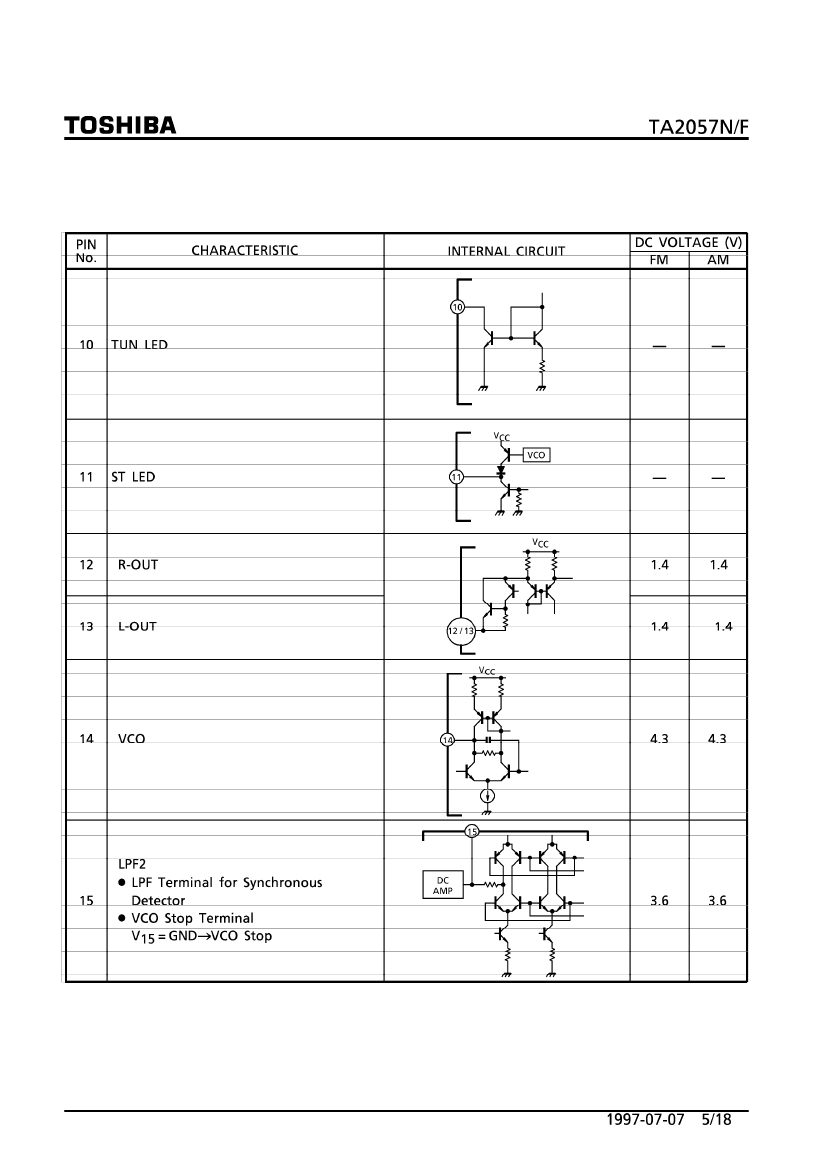

TA2057F Overview

AM/FM IF+FM ST DET (FOR DIGITAL TUNING SYSTEM)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SSOP
package instruction	0.300 INCH, 1 MM PITCH, PLASTIC, SSOP-24
Contacts	24
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	13 mm
Number of functions	1
Number of terminals	24
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	14 V
Minimum supply voltage (Vsup)	3.5 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6 mm

	TA2057F	TA2057	TA2057N
Description	AM/FM IF+FM ST DET (FOR DIGITAL TUNING SYSTEM)	AM/FM IF+FM ST DET (FOR DIGITAL TUNING SYSTEM)	AM/FM IF+FM ST DET (FOR DIGITAL TUNING SYSTEM)
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor
Parts packaging code	SSOP	-	DIP
package instruction	0.300 INCH, 1 MM PITCH, PLASTIC, SSOP-24	-	SDIP-24
Contacts	24	-	24
Reach Compliance Code	unknow	-	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	-	AUDIO SINGLE CHIP RECEIVER
JESD-30 code	R-PDSO-G24	-	R-PDIP-T24
length	13 mm	-	22 mm
Number of functions	1	-	1
Number of terminals	24	-	24
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SSOP	-	SDIP
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	-	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	2.2 mm	-	4.5 mm
Maximum supply voltage (Vsup)	14 V	-	14 V
Minimum supply voltage (Vsup)	3.5 V	-	3.5 V
surface mount	YES	-	NO
Terminal form	GULL WING	-	THROUGH-HOLE
Terminal pitch	1 mm	-	1.778 mm
Terminal location	DUAL	-	DUAL
width	6 mm	-	7.62 mm
