BAT64-04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT64-04

BAT64-04: Description0.12 A, 40 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size93KB，3 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAT64-04 Overview

0.12 A, 40 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAT64-04 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	R-PDSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

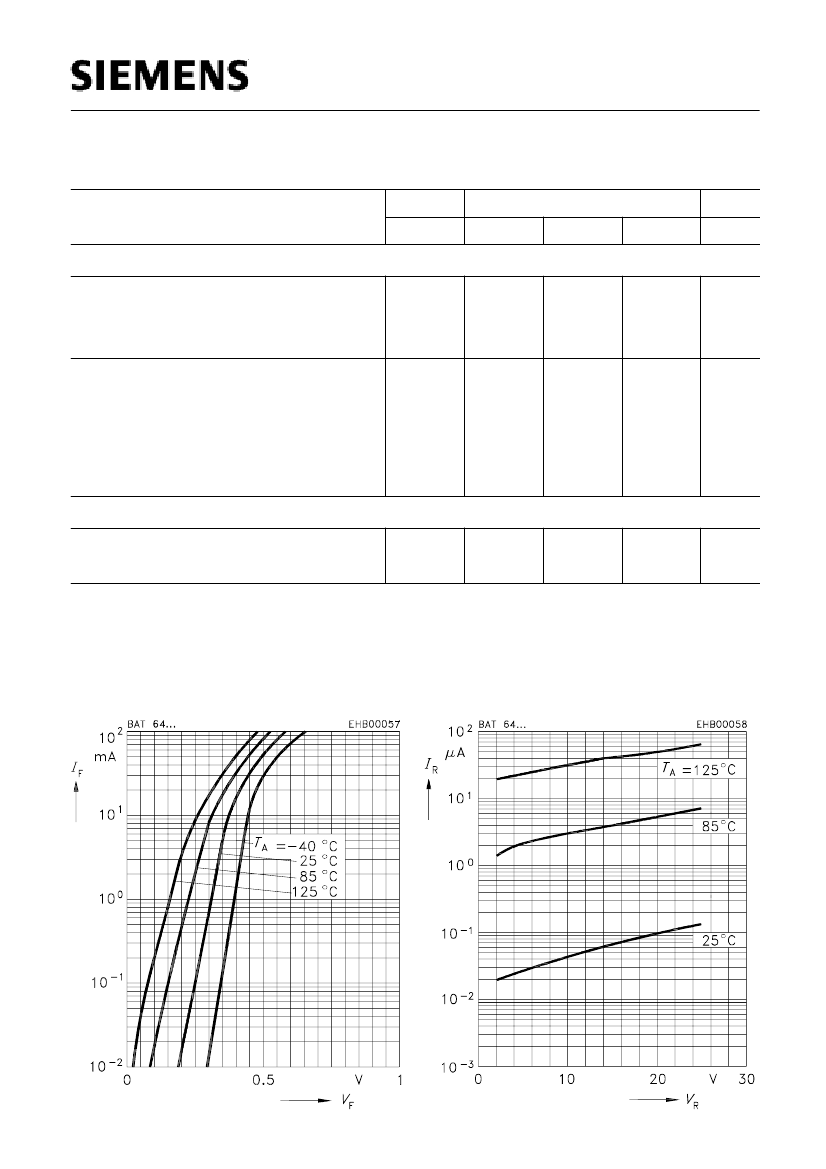

Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	0.8 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum reverse current	2 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

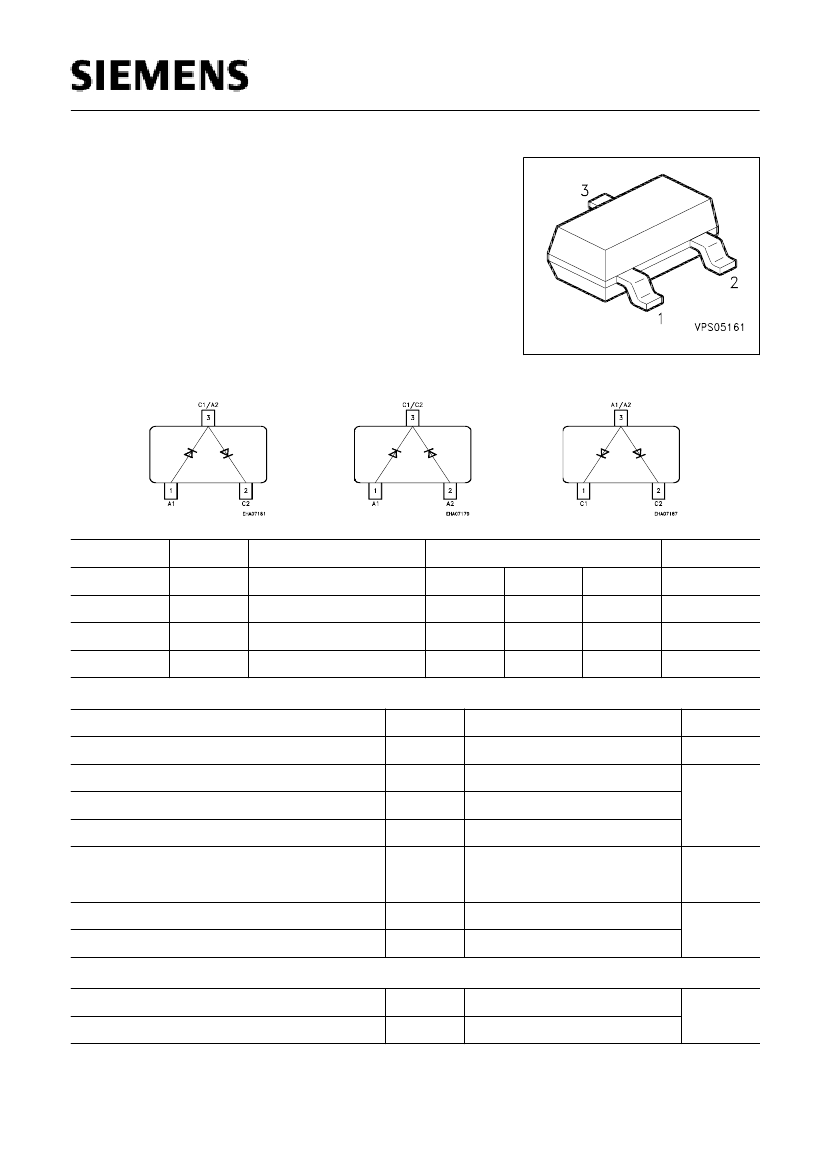

BAT 64

Silicon Schottky Diodes

Preliminary data

• For low-loss, fast-recovery, meter protection,

bias isolation and clamping applications

• Integrated diffused guard ring

• Low forward voltage

Pin Configuration

BAT 64-04

BAT64-05

BAT64-06

ESD: ElectroStatic Discharge

sensitive device, observe handling precautions!

Type

Marking Ordering Code

Pin Configuration

BAT 64

BAT 64-04

BAT 64-05

BAT 64-06

63s

64s

65s

66s

Q62702-A879

Q62702-A961

Q62702-A962

Q62702-A963

1=A

1=C

2=C

2=A

2=C

3=C

3 = C/A

3 = C/C

3 = A/A

Package

SOT-23

Maximum Ratings

Parameter

Diode reverse voltage

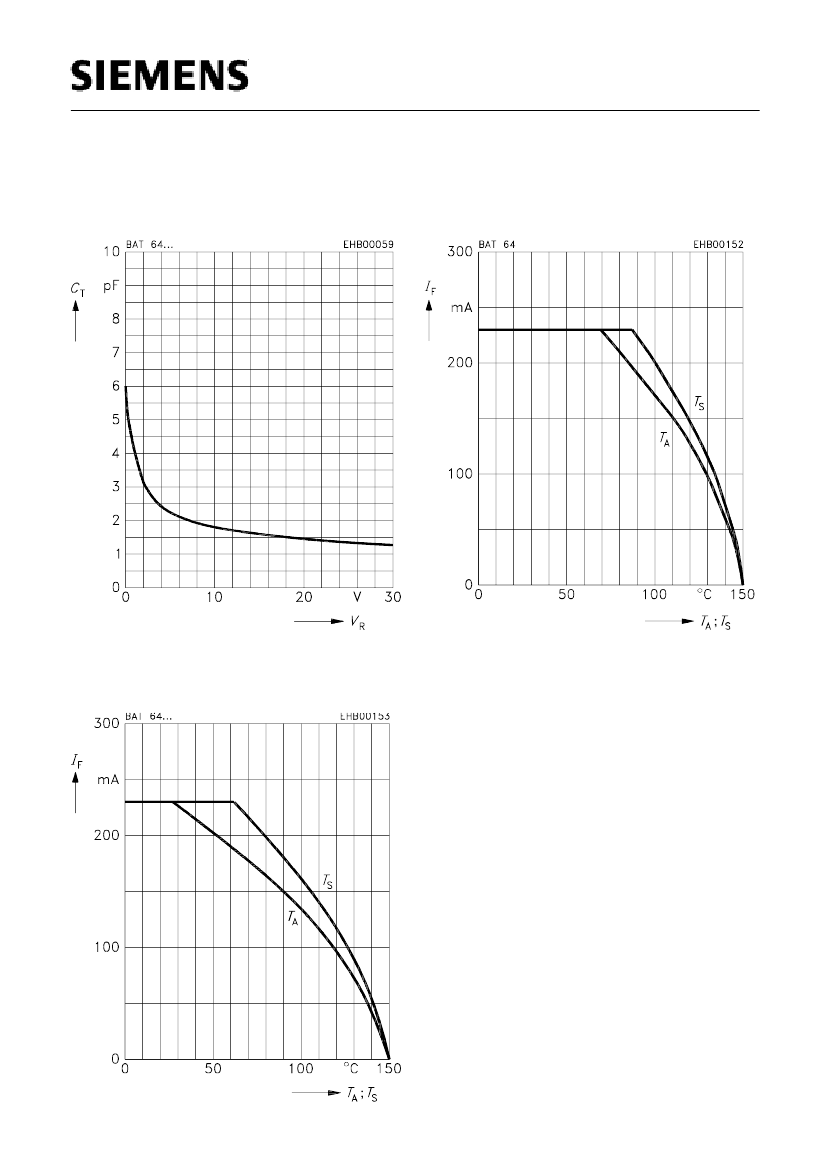

Forward current

Symbol

Values

250

120

800

250

150

- 55 ... + 150

≤

495

≤

355

°C

Unit

Average forward current (50/60Hz, sinus)

FAV

Surge forward current (t

≤ 10ms)

FSM

Total Power dissipation

tot

stg

thJA

thJS

= 61 °C

Junction temperature

Storage temperature

Thermal Resistance

Junction ambient

K/W

Junction - soldering point

1) Package mounted on epoxy pcb 40mm x 40mmm x 1.5mm / 0.5cm

Semiconductor Group

Jan-31-1997
