BI4-G12K-AP6X-2-RS4T
Inductive sensor – With increased switching distance
Features
■
Threaded barrel, M12x1
■
Chrome-plated brass
■
Large sensing range
■
DC 3-wire, 10…30 VDC
■
NO contact, PNP output
■
Pigtail with male end M12 x 1

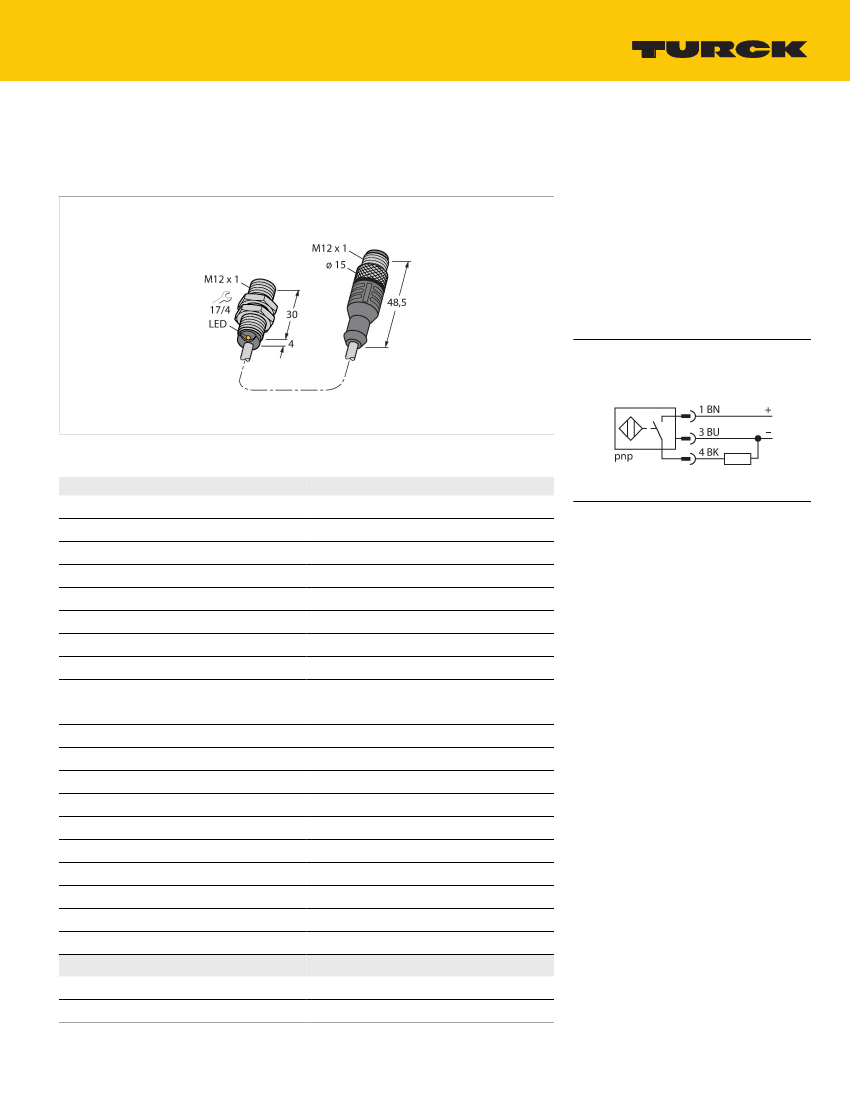

Wiring diagram
Technical data
Type
Ident. no.
Rated switching distance
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
No-load current
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at
Wire breakage/Reverse polarity protection
Output function
Switching frequency
Design
Dimensions
Housing material
BI4-G12K-AP6X-2-RS4T
4670272
4 mm
Flush
≤ (0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
≤ 2 % of full scale
≤ ± 10 %
3…15 %
-25…+70 °C
10…30 VDC
≤ 10 % U
ss
≤ 200 mA
≤ 15 mA
≤ 0.1 mA
≤ 0.5 kV
yes / Cyclic
≤ 1.8 V
yes / Complete
3-wire, NO contact, PNP
2 kHz
Threaded barrel,M12 × 1
34 mm
Metal, CuZn, Chrome-plated
BI4-G12K-AP6X-2-RS4T| 10/04/2019 17-37 | technical changes reserved
1|3
Functional principle
Inductive sensors detect metal objects contactless
and wear-free. For this, they use a high-frequency
electromagnetic AC field that interacts with the
target. Inductive sensors generate this field via an
RLC circuit with a ferrite coil.
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
Technical data
Active area material
Material coupling nut
Max. tightening torque housing nut
Electrical connection
Cable quality
Core cross-section
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
Plastic, PA12-GF30
metal, CuZn, nickel-plated
10 Nm
Cable with connector, M12 × 1
Ø 5.2 mm, LifYY, PVC, 2 m
3 x 0.34 mm
2
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
LED, Yellow

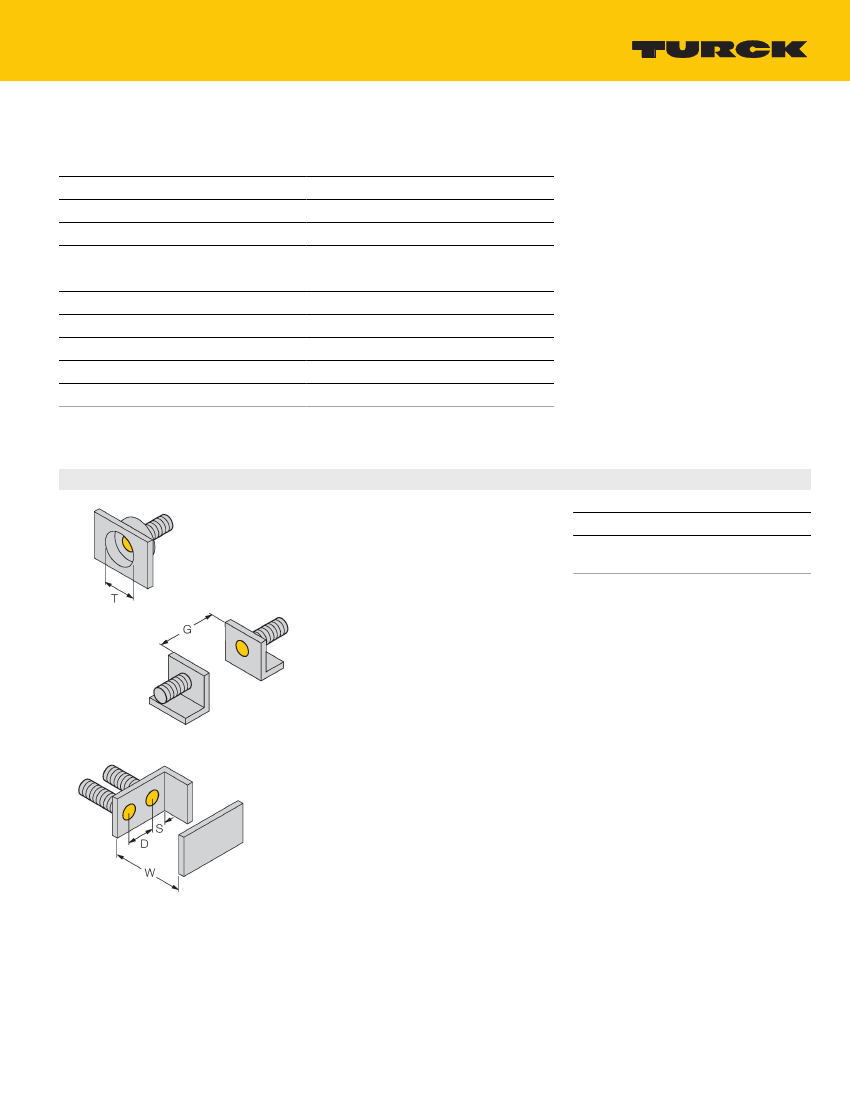

Mounting instructions
Mounting instructions/Description
Distance D
Distance T
2xB
3xB
Diameter active area Ø 12 mm
B
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
2|3
BI4-G12K-AP6X-2-RS4T| 10/04/2019 17-37 | technical changes reserved

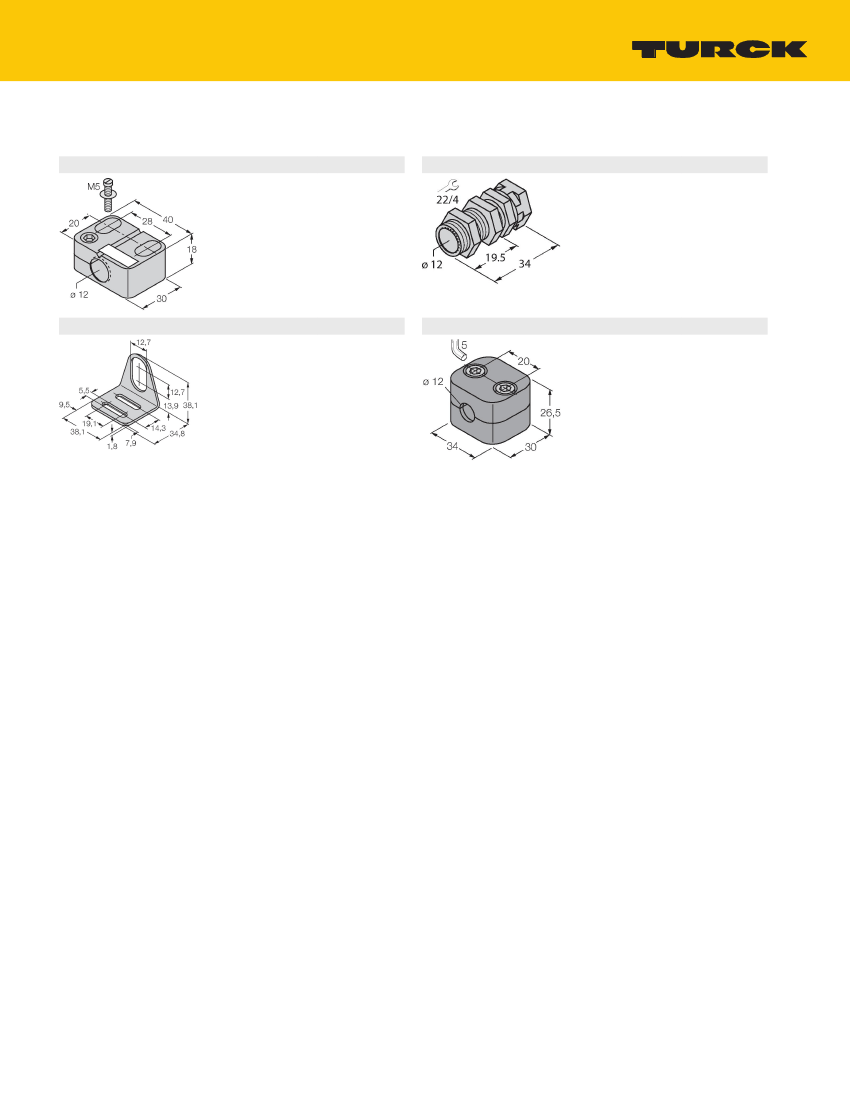

Accessories
BST-12B
6947212
Mounting clamp for threaded barrel
sensors, with dead-stop; material: PA6
QM-12
6945101
Quick-mount bracket with dead-stop;
material: Chrome-plated brass. Male
thread M16 × 1. Note: The switching
distance of the proximity switches
may change when using quick-mount
brackets.
MW12
6945003
Mounting bracket for threaded barrel
sensors; material: Stainless steel A2
1.4301 (AISI 304)
BSS-12
6901321
Mounting clamp for smooth and
threaded barrel sensors; material:
Polypropylene
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
3|3
