OCXO-PRIDEB1Y,14.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> OCXO-PRIDEB1Y,14.0MHZ

OCXO-PRIDEB1Y,14.0MHZ: DescriptionHCMOS Output Clock Oscillator, 14MHz Nom; CategoryPassive components oscillator; File Size74KB，4 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

OCXO-PRIDEB1Y,14.0MHZ Overview

HCMOS Output Clock Oscillator, 14MHz Nom

OCXO-PRIDEB1Y,14.0MHZ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknow
Ageing	0.05 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.0005%
Frequency Stability - Voltage	0.0003 ppm
input power	2.4 W
Manufacturer's serial number	OCXO-PRIDE
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	14 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Oscillator type	HCMOS
Output load	1 KOHM, 15 pF
Oven power supply voltage	12V

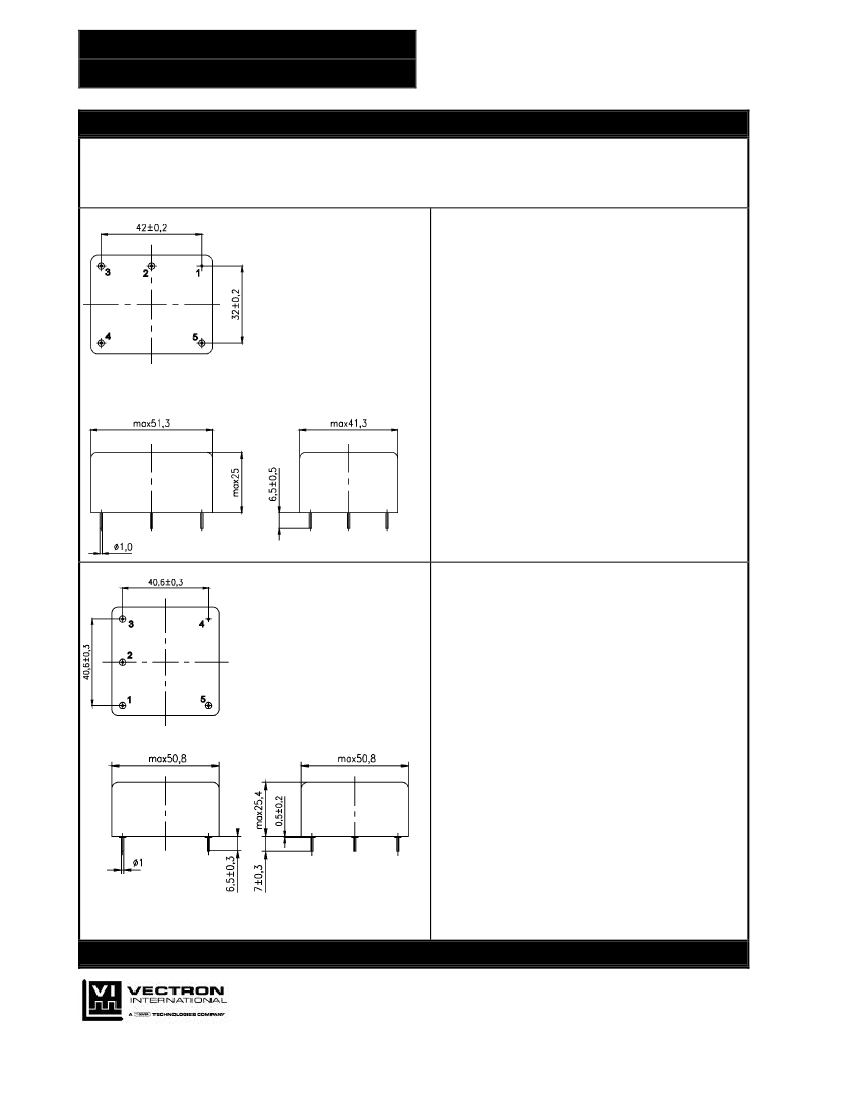

physical size	51.3mm x 41.3mm x 25mm
Nominal supply voltage	12 V
surface mount	NO
Preheating power	6 W
Maximum warm-up time	8.5 Minute

Preview

Download Datasheet

View All

OCXO-PRIDE

1. Specification

Frequency range:

Standard frequencies ( 1 ) :

4.096 MHz ... 16.384 MHz

8.192; 10.0; 12.0; 12.8; 13.0; 14,0;14.4;

16.384 MHz

Type:

Frequency stability

in the temperature range - 25°C to + 70°C:

< + 5x10

-10

( 1 )

< + 1x10

-9

( 2 )

< + 2x10

-9

( 3 )

< + 3x10

-10

< + 3x10

-10

< + 5x10

-10

per day

-8

< + 5x10 per year

< + 3x10

-7

in 10 years

< 5x10

-12

> + 3x10

-7

12 V

10 %

< 250 mA

< 200 mA

< 500 mA

vs. supply voltage changes UB

10 %:

vs. load changes 50 Ohm

10 %:

Long term stability after 30 days of operation:

Short term stability(allan variance) 1 s:

Frequency control range with ext. trimmer 20 kOhm

or external voltage 1 ... 5 V:

Supply voltage U

Current consumption at steady state

@ - 25°C:

@ + 25°C:

Peak Current consumption during warm-up:

Warm-up time

within < + 1x10

-7

-8

within < + 5x10 :

< 7 min.@ -20°C

< 5 min.@ +25°C

< 8.5 min.@ -20°C

< 7.0 min.@ +25°C

Temperature ranges

Operating:

Storage:

Output voltage :

load:

Duty cycle

Harmonic suppression

-25°C ... + 70°C

-55°C ... + 85°C

Sinewave > 225mV

50 Ohm

> 30dB

HCMOS

1 kOhm // 15 pF

45% ...55%

USA:

Vectron International • 166 Glover Avenue, Norwalk, CT 06856 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON

EUROPE:

In Denmark, Finland, Ireland, Italy, Israel, Norway, Spain, UK: Tel: 44(0) 1703 766 288 • Fax: 44 (0) 1703 766 822

In Austria, Belgium, France, Germany, Luxembourg, Netherlands, Sweden, Switzerland: Tel: 49 (0) 72 63 648 0 • Fax: 49(0) 72 63 619 6

ASIA:

In China, Taiwan, Japan: Tel: 1-603-598-0075 • In Korea, Singapore, Australia, India: Tel: 1-203-853-4433 • Fax: 1-203-849-1423

Vectron International reserves the right to make changes to the product(s) and/or information contained herein without notice.

No liability is assumed as a result of their use or application.

No rights under any patent accompany the sale of any such product(s) or information.

www.vectron.com
