832-10-064-20-001000: DescriptionCONN HDR DBL; CategoryThe connector The connector; File Size399KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

832-10-064-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	832-10-064-20-001000	-	-	View	Buy Now

832-10-064-20-001000 Overview

CONN HDR DBL

832-10-064-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	832
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	64

Preview

Download Datasheet

View All

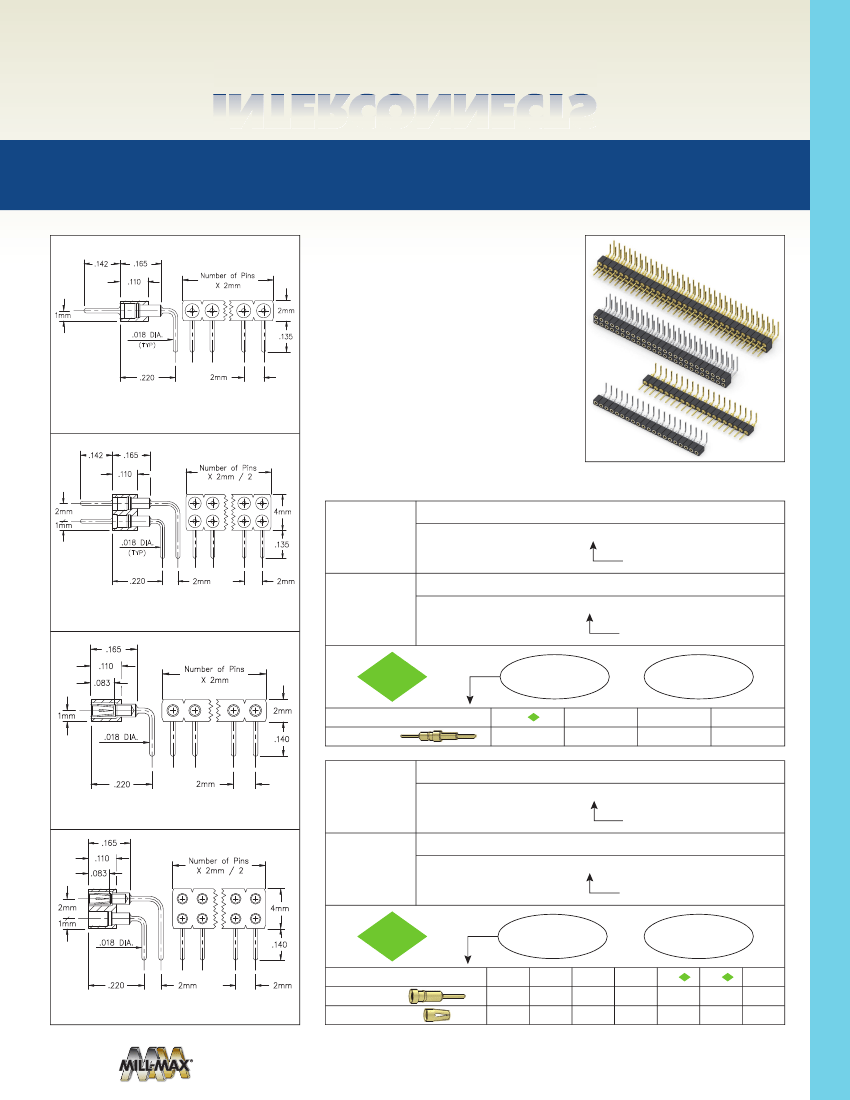

INTERCONNECTS

SERIES 830, 831, 832, 833 • 2mm

GRID RIGHT ANGLE

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

•

Series 830 & 832 use MM #3790 & MM #3796

.142

.165

.110

Number of Pins

X 2mm

2mm

.018 DIA.

pins. See page 209 for details

•

Series 831 & 833 use MM #1805 and MM

.135

1mm

#3805 receptacles and accept pin diameters

from .015”-.025”. See page 169 for details

•

Receptacles use Hi-Rel, Low force, 6- nger

.220

2mm

BeCu #32 contact rated at 3 amps. See page

253 for details

FIG. 1

.142

.165

.110

Number of Pins

X 2mm / 2

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

4mm

2mm

1mm

.018 DIA.

Series 830...001

Single Row Right Angle Header

830 10 0_ _ 20 001000

01-50

.135

FIG. 1

Series 832...001

Specify number of pins

.220

2mm

Double Row Right Angle Header

832 10 _ _ _ 20 001000

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.165

.110

.083

Number of Pins

X 2mm

FIG. 2

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

10

µ”

Au

2011/65/EU

2mm

1mm

.018 DIA.

SPECIFY PLATING CODE XX=

Pin Plating

.140

.220

2mm

Series 831...001

Single Row Right Angle Socket

831 XX 0_ _ 20 001000

01-50

FIG. 3

.165

.110

.083

Number of Pins

X 2mm / 2

FIG. 3

Series 833...001

Specify number of pins

Double Row Right Angle Socket

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

2mm

1mm

.018 DIA.

.140

4mm

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

.220

2mm

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

41

200

µ”

Sn

10

µ”

Au

43

200

µ”

Sn

30

µ”

Au

FIG. 4

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 45 | INTERCONNECTS

FIG. 4

833 43 _ _ _ 20 001000
