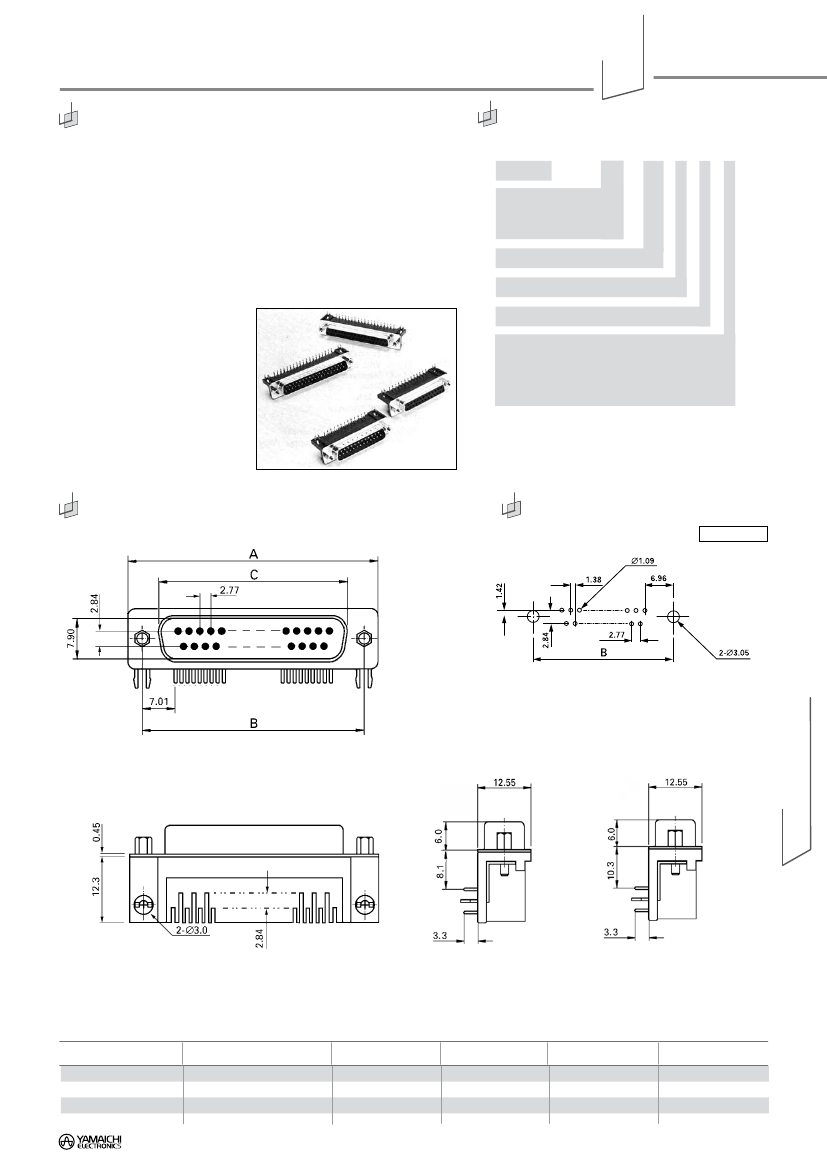

Series D
(Standard D-Sub)
90° Solder Dip (Male / Female)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Soldering Temp.:
5,000MΩ min.
1,000 V AC
10mΩ max.
5A
–55°C to +105°C
240°C / 3 sec.
I/O
Connectors
Part Number
(Details)
D
R* - 25 * 1 *
Series
Terminal Version:
A = 7.2mm
(US Std.)
B = 9.4mm
(Euro. Std.)
No. of Contacts
S = Female P = Male
PCB Assembly: 1 = With Snap-in
Connection Assembly Option:
1 = Fixed Female Screw Locks, 4-40
2 = Clinch Nut Rivetted, 4-40
(Without Female Screw Locks)
Materials and Finish
Insulator: Polyester Resin (glass filled) Fiber reinforced, UL94V-0
Contacts: Stamped Copper Alloy
Plating: Gold over Nickel
Features
M3 female threaded screw
available on request
Outline Connector Dimensions (Male and Female)
Recommended PCB Layout
Top View
Part Number
DR*-09*1*
DR*-15*1*
DR*-25*1*
DR*-37*1*
Trading Division
No. of Contacts
9
15
25
37
A
30.81
39.14
53.04
69.32
B
24.99
33.32
47.04
63.50
C (Male)
16.92
25.25
38.96
55.42
C (Female)
16.33
24.66
38.38
54.84
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Standard D-Sub
US- Standard:
(RA Terminal Version)
European- Standard:
(RB Terminal Version)
