DRA5124E
Silicon PNP epitaxial planar type
For digital circuits
Complementary to DRC5124E
DRA2124E in SMini3 type package
Features
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)
Unit: mm
Marking Symbol: LE
Packaging
DRA5124E0L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
1: Base
2: Emitter
3: Collector
Panasonic
JEITA
Code
R
1
R
2
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector current
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
I
C
P
T
T
j
T
stg
Rating
–50
–50
–100
150
150
–55 to +150
Unit
V
V
mA
mW
°C
°C

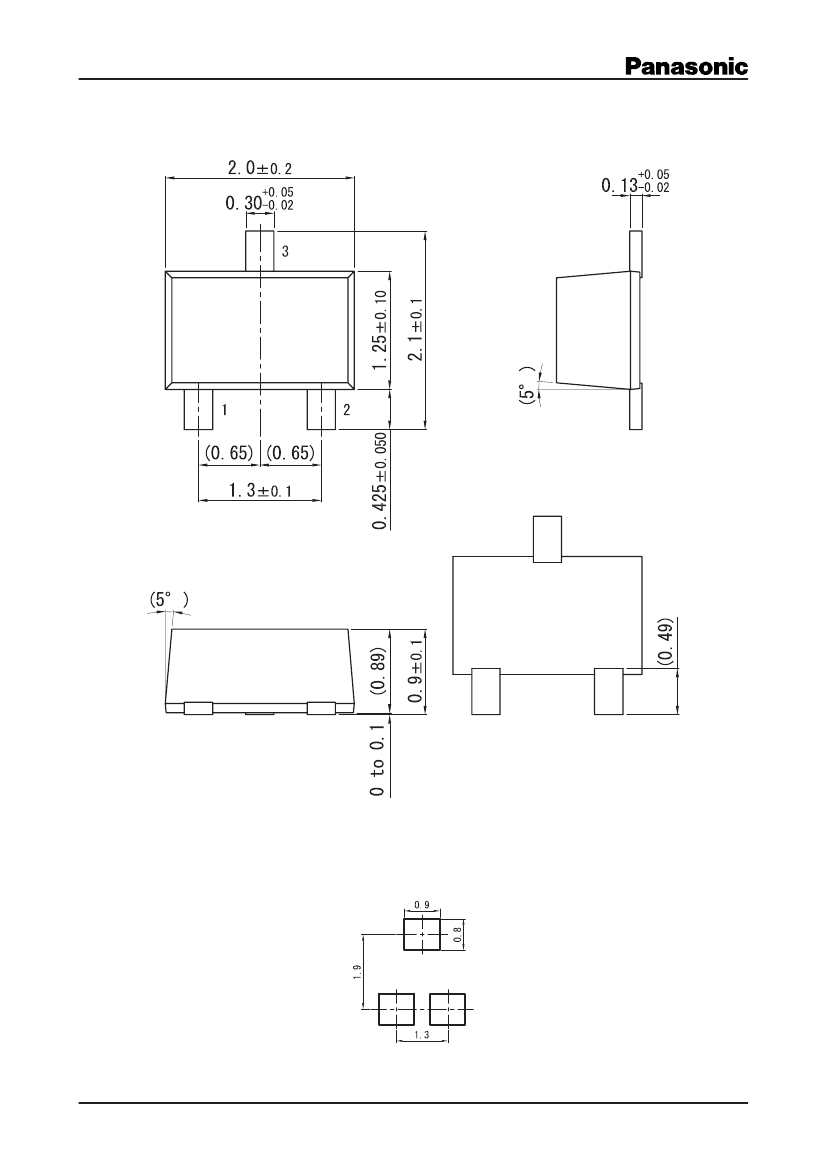

SMini3-F2-B
SC-85
C
B
E
Resistance value
R
1
R
2
Typ
22
22
Max
kΩ
kΩ
Unit
V
V
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Resistance ratio
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
R
1
/ R
2
Conditions
I
C
= –10 µA, I
E
= 0
I
C
= –2 mA, I
B
= 0
V
CB
= –50 V, I
E
= 0
V
CE
= –50 V, I
B
= 0
V
EB
= –6 V, I
C
= 0
V
CE
= –10 V, I
C
= –5 mA
I
C
= –10 mA, I
B
= – 0.5 mA
V
CE
= – 0.2 V, I
C
= –5 mA
V
CE
= –5 V, I
C
= –100 µA
–30%
0.8
22
1.0
–2.6
– 0.8
+30%
1.2
60
– 0.25
Min
–50
–50
– 0.1
– 0.5
– 0.2
µA
µA
mA
V
V
V
kΩ
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: November 2012
Ver. DED
1
