DIN & MINI DIN PLUGS
Adam Technologies, Inc.
INTRODUCTION:

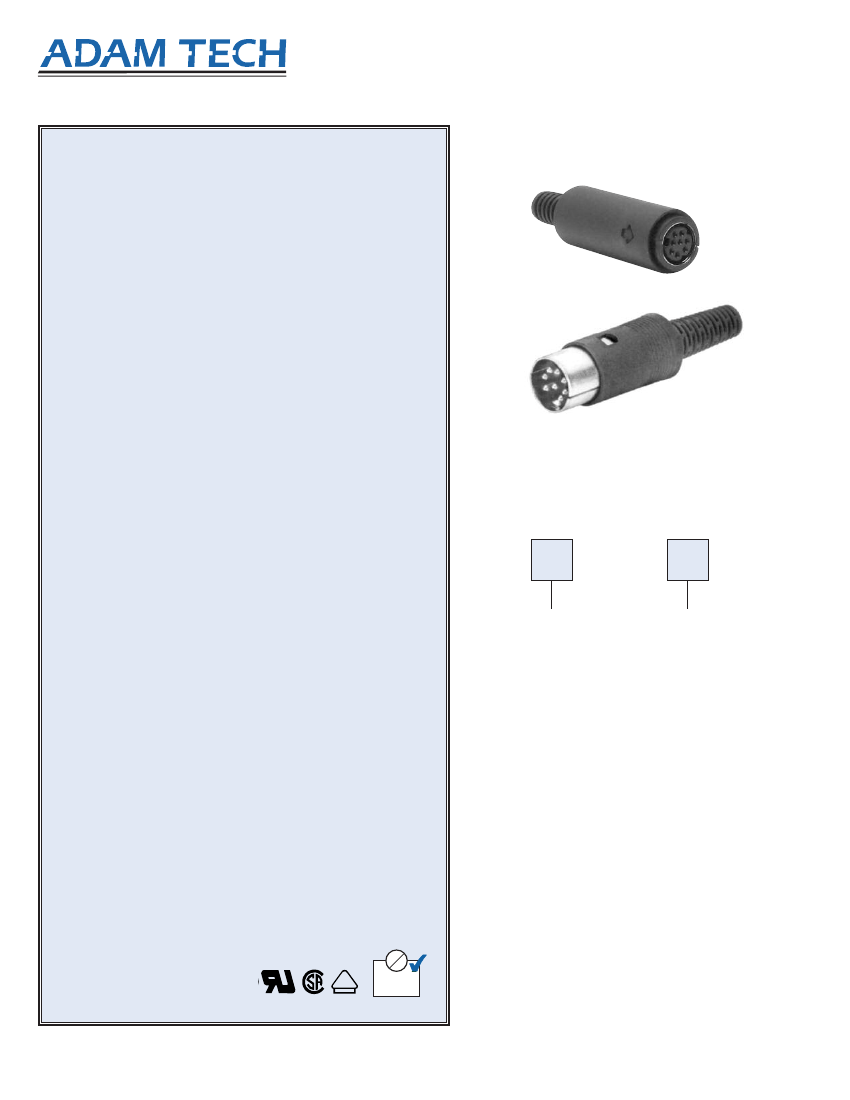

Adam Tech DP and MDP series male and female DIN and Mini DIN
plugs are offered in an assembly version which contains a fitted two-
piece snap-together metal shell with a slide over boot which
surrounds the center contact pad or a molded version which has a
one piece metal shell permanently attached to the contact pad which
is used in over-molded cable production. Their simple yet extremely
sturdy design make them perfect for most applications.
FEATURES:
DIN and Mini DIN styles
Easy two-piece metal shell assembly
Over-mold or assembly versions
MATING CONNECTORS:
All industry standard circular Mini DIN and DIN jacks.
SPECIFICATIONS:
Material:
Insulator: PBT glass filled, rated UL94V-0
Insulator Color: Black standard, custom colors available
Contacts: Brass
Shield: Copper Alloy, Tin Plated
Contact Plating:
Nickel on mating area, Tin over Copper underplate on solder area.
Electrical:
Operating voltage: 100V AC / 12V DC max.
Current rating: Mini Din: 1 Amp max.
Din: 2 Amps max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 9.9 lbs max.
Withdrawal force: 0.8 lbs min
Mating durability: 5000 cycles min.
Temperature Rating:
Operating temperature: -25°C to +70°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596)
DP, DS, MDP & MDS SERIES
ORDERING INFORMATION
MDP
008
SERIES
DP
=
DS
=
MDP
=
MDS
=
INDICATOR
Male DIN Plug
Female DIN Plug
Male Mini DIN Plug
Female Mini DIN Plug
NO. OF POSITIONS
003 thru 008 (DP/DS)
003 thru 009 (MDP/MDS)
Pb
UL
®
®
®
D E
V
RoHS
COMPLIANT
2002
/ 95
/ EC
OPTIONS:
Add designator(s) to end of part number
G
= Gold plated contacts
M
= Single piece barrel and contact pad
without plastic shell for molding
applications
222
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
