DS 030070, DS 030110, DS 055100
Vishay Draloric
Feed-Through Capacitors with Band Conductor
DS 030070 8 KV
P
DS 030110 12 KV
P
DS 055100 12 KV
P
(0.59
±
0.04)
15
±
1
(0.79
±
0.04)
20
±
1
10 x 2 (0.394 x 0.08)
5.5
+ 0.3
(0.216
+ 0.01
)
Holes
10 x 2 (0.394 x 0.08)
5.5
+ 0.3
Holes
(0.216
+ 0.01
)
(1.38
±
0.04)
35
±
1
20 x 2 (0.787 x 0.08)
8.5
+ 0.2
Holes
(0.335
+ 0.008
)
140
±
1 (5.512
±
0.04)
0.8 (0.31)
0.8 (0.31)
0.8 (0.31)
ø 55
(2.165 DIA)
ø 78
(3.071 DIA)
60°
5.5
+ 0.2
(0.217
+ 0.008
)
Holes
=
=
ø
30
(1.181 DIA)
ø
30
(1.181 DIA)
ø 45
(1.771 DIA)
ø 45
(1.771 DIA)
70
±
0.5 (2.756
±
0.02)
100
±
0.5 (3.937
±
0.02)
70
±
0.5 (2.756
±
0.02)
60
±
0.5
(2.362
±
0.02)
60
±
0.5
(2.362
±
0.02)
86
±
0.5
(2.386
±
0.02)
60°
60°
60°
60°
4.3
+ 0.2
Holes
(0.169
+ 0.08
)
60°
4.3
+ 0.2
Holes
(0.169
+ 0.08
)

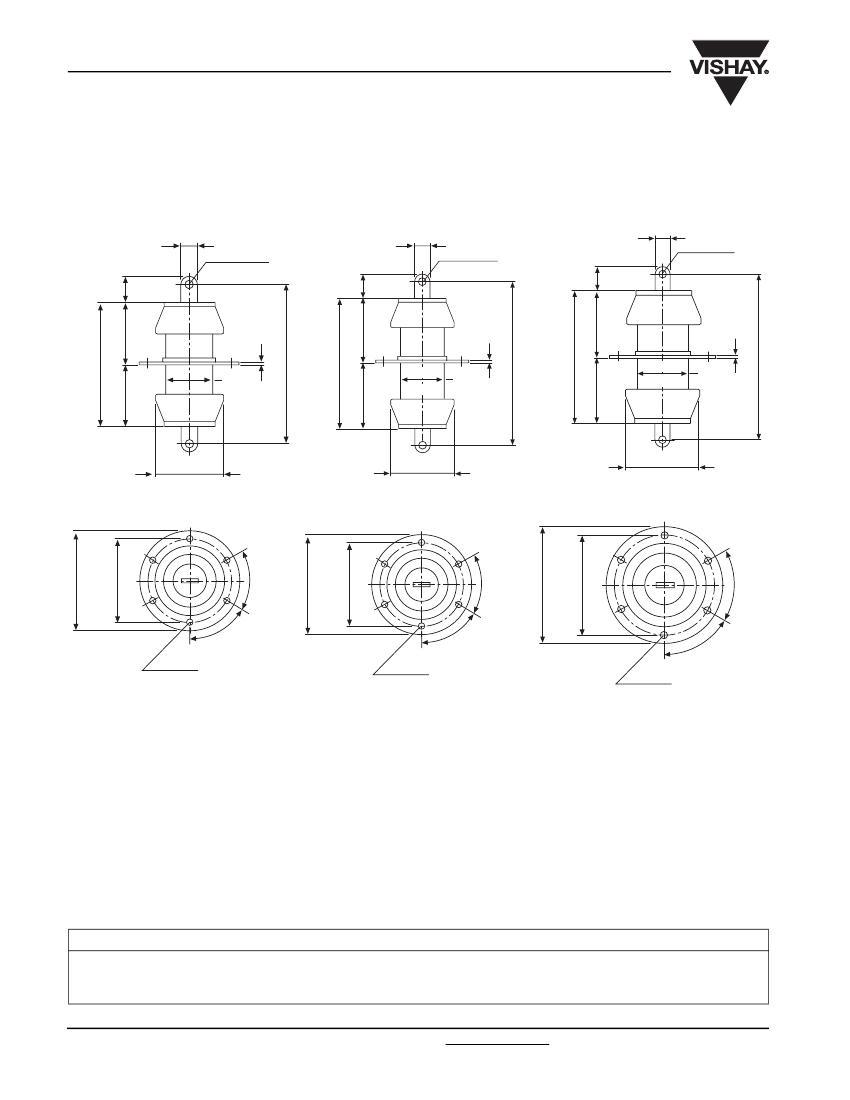

• Dimensions in millimeters (inches)
MATERIAL:
Capacitor elements made from Class 1 ceramic dielectric
with noble metal electrodes.
Connection Terminals: Copper/brass, silver plated.
MARKING:
Type designator, Capacitance value and tolerance, Rated
voltage (peak value), Production date code, Ceramic
material code, DRALORIC Logo.
FINISH:
Noble metal electrodes completely lacquered. Contoured
rims glazed.
ORDERING INFORMATION
DF 030070
MODEL
8
KV
P
RATED VOLTAGE
600 pF
CAPACITANCE VALUE
±5%
TOLERANCE
R
85
CERAMIC
www.vishay.com
1
For technical questions contact: powcap@vishay.com
Document Number: 22103
Revision: 21-Jan-02
150
±
1 (5.906
±
0.04)
90
±
1 (3.543
±
0.04)
=
=
110 (4.330)
100 (3.937)
=
70 (2.756)
=
DS 030070, DS 030110, DS 055100
Feed-Through Capacitors with Band Conductor
Vishay Draloric
DS 030070
CERAMIC
CAPACITANCE VALUE
[pF]
500
R 85
600
800
Feed-through current DC or low frequency RMS current (< 20 KHz): 20 A
8
16
10
RATED VOLTAGE
[KV
P
]
RATED POWER
[KVA
r
]
RATED CURRENT
[A
RMS
]
DS 030110
CERAMIC
R 85
R 230
CAPACITANCE VALUE
[pF]
800
1800
RATED VOLTAGE
[KV
P
]
12
12
RATED POWER
[KVA
r
]
30
30
RATED CURRENT
[A
RMS
]
10
10
Feed-through current DC or low frequency RMS current (< 20 KHz): 20 A
DS 055100
CERAMIC
R 85
CAPACITANCE VALUE
[pF]
1000
RATED VOLTAGE
[KV
P
]
12
RATED POWER
[KVA
r
]
60
RATED CURRENT
[A
RMS
]
30
Feed-through current DC or low frequency RMS current (< 20 KHz): 30 A
CAPACITANCE TOLERANCES:
± 20 %, ± 10 %, ± 5 %
Document Number: 22103
Revision: 21-Jan-02
For technical questions contact: powcap@vishay.com
www.vishay.com
2
