Document 205-1
Backlight Inductors – DS1608B Series
• Specially designed for demanding backlighting applications
• High breakdown voltage and very low DCR
Designer’s Kit C334
contains 3 of each value
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight
0.14 – 0.16 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+115°C with derated current
Storage temperature
Component: –40°C to +115°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750/7″reel; 2500/3″ reel Plastic tape: 12 mm wide,
0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part number
1
DS1608B-104ML_
DS1608B-154ML_
DS1608B-224ML_
DS1608B-334ML_
DS1608B-474ML_
DS1608B-684ML_
DS1608B-105ML_
DS1608B-155ML_
DS1608B-225ML_
DS1608B-335ML_
DS1608B-475ML_
DS1608B-685ML_
DS1608B-106ML_
L
DCR
Insulation
SRF
Irms
3
±20%
2
max core-winding typ
(mH) (Ohms) (MOhms) (MHz) (mA)
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
0.95
1.4
1.7
2.2
3.8
4.9
9
11
19
24
30
56
74
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
12
10
8
6
5
4
2
1
1
1
1
0.9
0.8
220
200
180
160
140
120
100
80
50
40
30
20
10
1. When ordering, please specify
termination
and
packaging
codes:
DS1608B-106MLC
Termination:L
= RoHS compliant gold over nickel over moly-manganese
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape
(750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (2500 parts per full reel).
2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc using an Agilent/HP
4263B LCR meter or equivalent.
3. Current that causes a 30°C temperature rise from 25°C ambient.
4. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 205-1
Revised 10/06/08
© Coilcraft, Inc. 2009

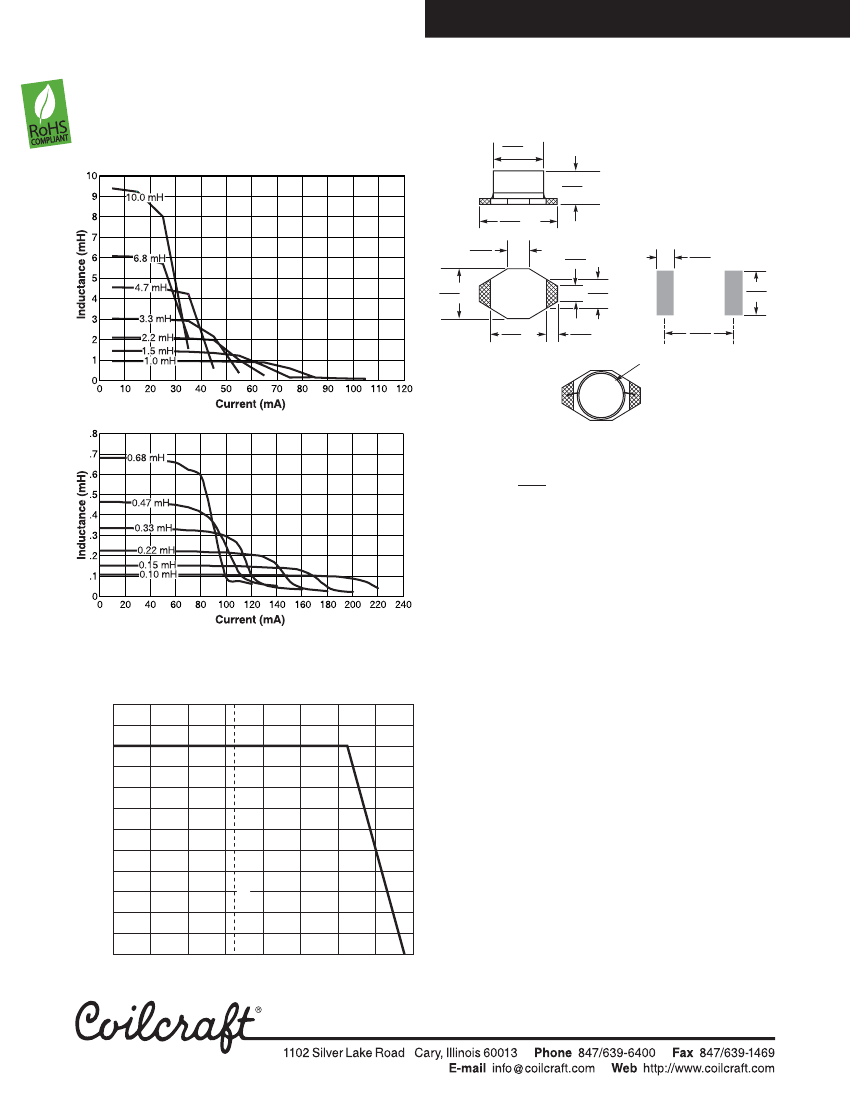

Document 205-2
Backlight Inductors – DS1608B Series
Typical Inductance vs. Current
0.160
dia
4,06
0.115 max
2,92
0.260 max
6,60
0.070
1,78
0.175max
4,45
Recommended
Land Pattern
0.050
1,27
0.090
2,29
0.040
1,02
0.215
5,46
Dash number
0.055
1,40
0.140
3,56
0.170min
4,32
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm for details.
XXX
Dimensions are in
inches
mm
Irms Derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120
Ambient temperature (°C)
Specifications subject to change without notice.
Please check our website for latest information.
25°C
Document 205-2
Revised 10/06/08
© Coilcraft, Inc. 2009
