Model 802
Vishay Spectrol
1
13
/
16
" (46 mm) Ten Turn Wirewound
Upper Grade Precision Potentiometer
FEATURES
•
Large range of ohmic values: 20
Ω
to 200 kΩ
•
Bushing mount, servo mount and screw mount versions
•
Gangable up to 3 sections
•
Extra taps available upon request
ELECTRICAL SPECIFICATIONS
PARAMETER
Total Resistance
Tolerance: 200
Ω
and Above
Below 200
Ω
Linearity (Independent)
20
Ω
to 50
Ω
50
Ω
to 200
Ω
200
Ω
and Above
Noise
Electrical Rotation
Power Rating
Section 1
Each Additional Sections:
Insulation Resistance
Dielectric Strength
Absolute Minimum Resistance
End Voltage
Phasing (CCW End Points)
Taps (Extra)
STANDARD
20
Ω
to 200 k
Ω
±3%
±5%
STANDARD
± 0.25 %
± 0.25 %
± 0.25 %
100
Ω
ENR
3600° + 4° - 0°
5.00 W 70 °C ambient, derated to zero at 125 °C
75 % of the rating of section 1 (3.8 W at 70 °C)
1000 MΩ minimum, 500 V
DC
1000 V
RMS
, 60 Hz
Linearity x total resistance or 0.5
Ω
, whichever is greater
Linearity x total applied voltage for total resistance
above 20
Ω,
2.0 % of total applied voltage for 20 and below
Additional sections phased to section 1 within ± 1°
Available as special, standard tolerance ± 1°
SPECIAL
500 k
Ω
±1%
±3%
SPECIAL
± 0.15 %
± 0.10 %
± 0.05 %
ORDERING INFORMATION/DESCRIPTION
Model 802 can be ordered from this data sheet with a variety of alternate characteristics, as shown above. For most rapid service on your
order, please state:
802
MODEL
S
MOUNTING
B:
Bushing
S:
Servo
C:
Screw
1
NUMBER OF SECTIONS
From 1 up to 3 max.
10K
RESISTANCE OF EACH SECTION
Beginning with the section nearest the
mounting end
BO1
PACKAGING
Box of 1 piece
SAP PART NUMBERING GUIDELINES
802
MODEL
S
STYLE
1
NUMBER OF SECTIONS
103
OHMIC VALUE OF SECTION N
O
1
B01
PACKAGING
www.vishay.com
132
For technical questions, contact: sfer@vishay.com
Document Number: 57072
Revision: 23-Mar-07
Model 802
1
13
/
16
" (46 mm) Ten Turn Wirewound
Upper Grade Precision Potentiometer

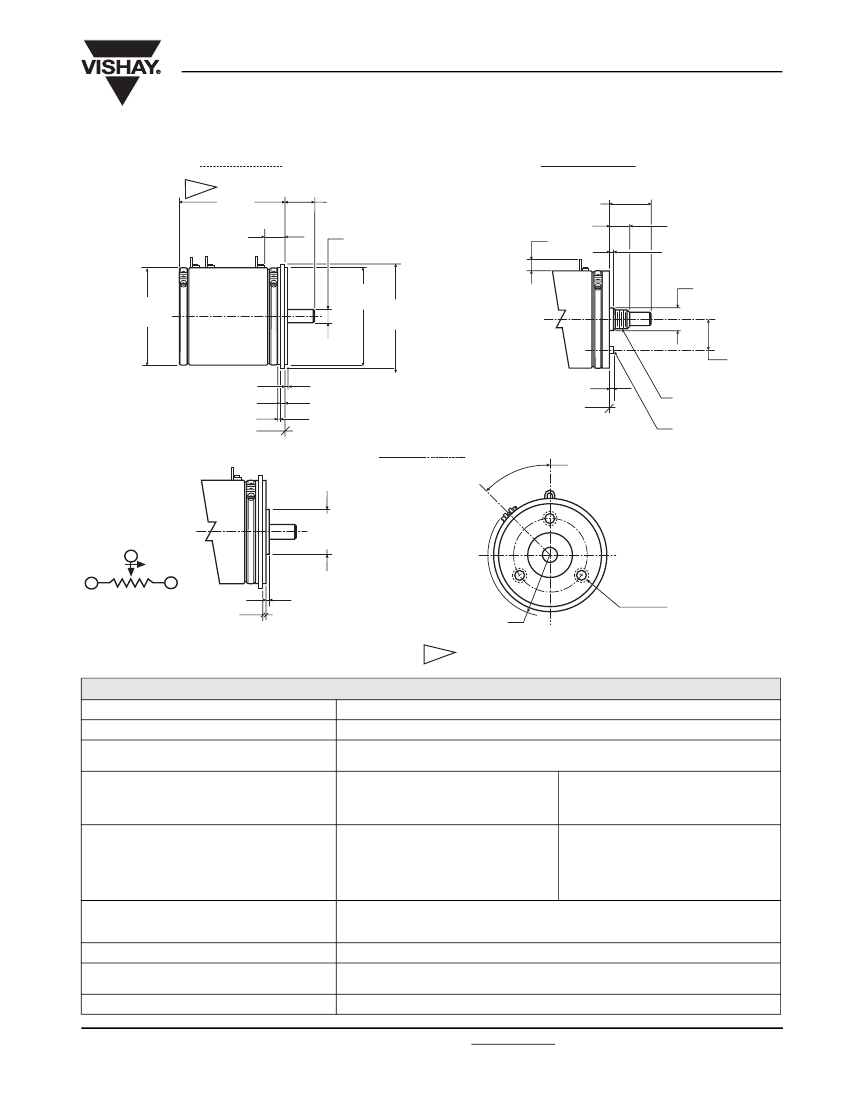

DIMENSIONS
in inches (millimeters)
SERVO MOUNT
1
2.062
(52.37)
± 0.010
Vishay Spectrol
BUSHING MOUNT
0.625
(15.88)
± 0.031
± 0.031
± 0.015
0.812
(20.62)
+ 0.0000
TYP.
- 0.0003
± 0.015
0.301 MIN.
(7.64)
2 1
3
Ø 0.2497
(6.34)
0.219 TYP.
(5.56)
0.312
(7.92)
0.062
(1.57)
+ 0.000
- 0.001
± 0.015
+ 0.0000
Ø 1.812
(46.02)
Ø 1.875
(47.62)
Ø 2.000
(50.80)
Ø 0.4062
- 0.0010
(10.32)
0.562
(14.27)
0.093
(2.36)
MTG. FACE
0.062
(1.57)
0.073 MIN.
(1.85)
0.062
(1.57)
MTG. FACE
Ø 0.125
(3.18)
3
/
8
- 32 UNEF - 2A
SCREW MOUNT
± 10°
45°
Ø 0.7500
- 0.0005
(19.05)
2
1
+ 0.0000
CW
3
± 0.015
SCHEMATIC
MTG. FACE
0.062
(1.57)
1.062 R MAX.
(26.97)
1
8
- 32 UNC - 2B 0.156
DEEP (3.96) 3 HOLES
EQUALLY SPACED ON A
1.250 DIA. (31.75) B.C
TOLERANCES: UNLESS OTHERWISE NOTED.
DECIMALS ± 0.005 ANGLES ± 2°
ADD 1.770 ± 0.010 (44.96) FOR EACH
ADDITIONAL SECTION
MECHANICAL SPECIFICATIONS
PARAMETER
Rotation
Bearing Type
Torque (Maximums)
Servo or Screw Section 1
Bushing Section 1
Each Additional Section
Mechanical Runouts (Maximums):
Shaft (TIR/in)
Pilot Dia. Runout (TIR)
Lateral Runout (TIR)
Shaft End Play
Shaft Radial Play
Weight:
Single Section
Each Additional Section
Stop Strength
Ganging
Moment of Inertia
Document Number: 57072
Revision: 23-Mar-07
SERVO
Ball bearing
MAX STARTING
1.20 oz. - in (86.4 g - cm)
1.75 oz. - in (126.0 g - cm)
0.80 oz. - in (57.6 g - cm)
SERVO OR SCREW
0.002" (0.05 cm)
0.002" (0.05 cm)
0.003" (0.08 cm)
0.005" (0.13 cm)
0.002" (0.05 cm)
5.5 oz. (156 g)
3.7 oz. (105 g)
1000 oz. - in, static (72 kg - cm)
3 sections maximum terminal alignment, added
sections within ± 10° of section 1 terminals
15 g - cm
2
per section maximum
For technical questions, contact: sfer@vishay.com
www.vishay.com
133
3600° + 10° - 0°
BUSHING
Sleeve
SCREW
Ball bearing
MAX RUNNING
0.80 oz. - in (57.6 g - cm)
1.25 oz. - in (90.0 g - cm)
0.60 oz. - in (43.2 g - cm)
BUSHING
0.002" (0.05 cm)
0.002" (0.05 cm)
0.005" (0.13 cm)
0.005" (0.13 cm)
0.003" (0.08 cm)
Model 802
Vishay Spectrol
1
13
/
16
" (46 mm) Ten Turn Wirewound
Upper Grade Precision Potentiometer
ENVIRONMENTAL SPECIFICATIONS
Vibration
Shock
Salt Spray
Rotational Life
Internal tooth steel, nickel plated
Brass, nickel plated
Load Life
Operating Temperature Range
Units shall be marked with Spectrol name and
Model No, resistance and resistance tolerance,
linearity, terminal identification, and date code
15 g thru 2000 CPS
50 g
96 h
2 million shaft revolutions
900 h
- 55 °C to + 125 °C
MATERIAL SPECIFICATIONS
Housing
Lids
Shaft
Terminals
Clamp Ring
Bushing Mount Hardware
Lockwasher:
Panel Nut:
Glass filled thermoset plastic
Aluminum, anodized
Stainless steel, non-magnetic,
non-passivated
Brass, plated for solderability
Stainless steel
MARKING
Unit
Identification
POWER RATING CHART
(Ratings for cup N
O
1.
Additional cups 75 % of values shown)
12
10
RESISTANCE ELEMENT DATA
STANDARD
RESISTANCE
VALUES
(Ω)
20
50
100
200
500
SPECIAL 150 °C
RESO-
LUTION
(%)
0.044
0.027
0.024
0.028
0.023
0.018
0.020
0.015
0.013
0.010
0.007
0.007
0.005
0.004
OHMS
PER
TURN
0.009
0.014
0.024
0.056
0.115
0.182
0.402
0.754
1.229
1.970
3.686
6.507
6.929
19.987
MAXIMUM MAXIMUM
WIRE
CURRENT VOLTAGE
TEMP.
AT 70 °C ACROSS
COEF.
COIL
AMBIENT
(ppm/°C)
(V)
(mA)
500
316
224
158
100
70.7
50.0
31.6
22.4
15.8
10.0
7.07
5.00
2.00
10.0
15.8
22.4
31.6
50.0
70.7
100
158
224
316
500
707
1000
1000
800
800
800
180
20
20
20
20
20
20
20
20
20
20
RATED POWER IN W
8
6
4
2
0
20
STANDARD 125 °C
1K
2K
5K
10K
20K
50K
100K
200K
500K
40
60
80
100
120
140
160
AMBIENT TEMPERATURE IN °C
www.vishay.com
134
For technical questions, contact: sfer@vishay.com
Document Number: 57072
Revision: 23-Mar-07
