DG406AK/883: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,; CategoryAnalog mixed-signal IC The signal circuit; File Size343KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG406AK/883 Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,

DG406AK/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Number of channels	16
Number of functions	1
Number of terminals	28
Maximum on-state resistance (Ron)	125 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	12/+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum signal current	0.02 A
surface mount	NO
Maximum connection time	600 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

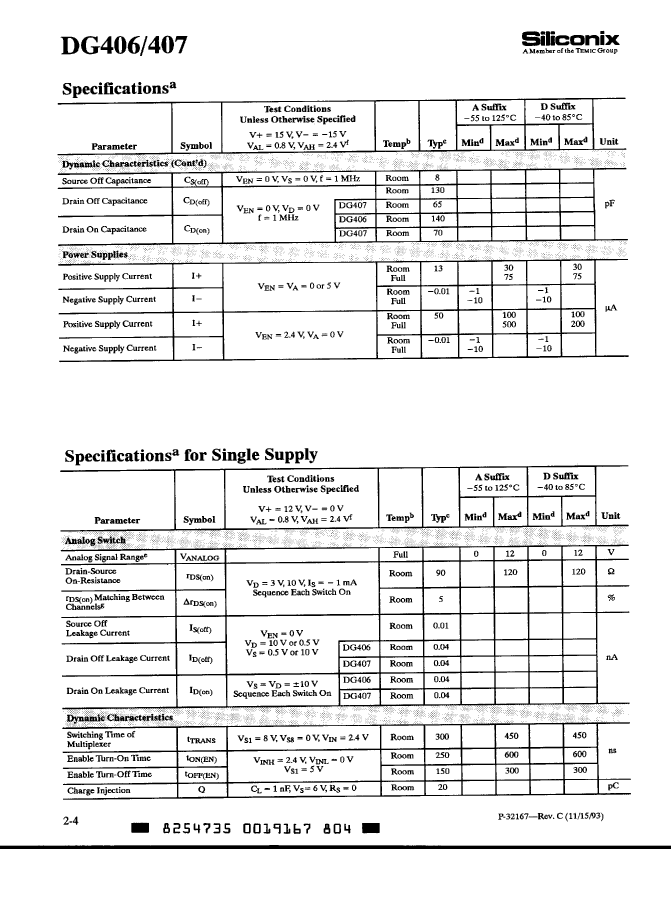

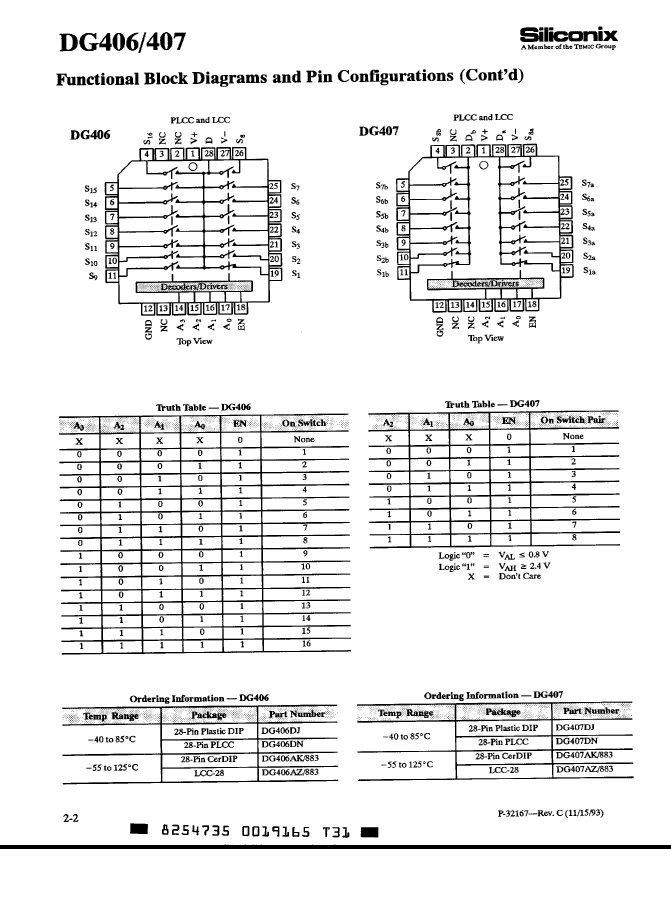

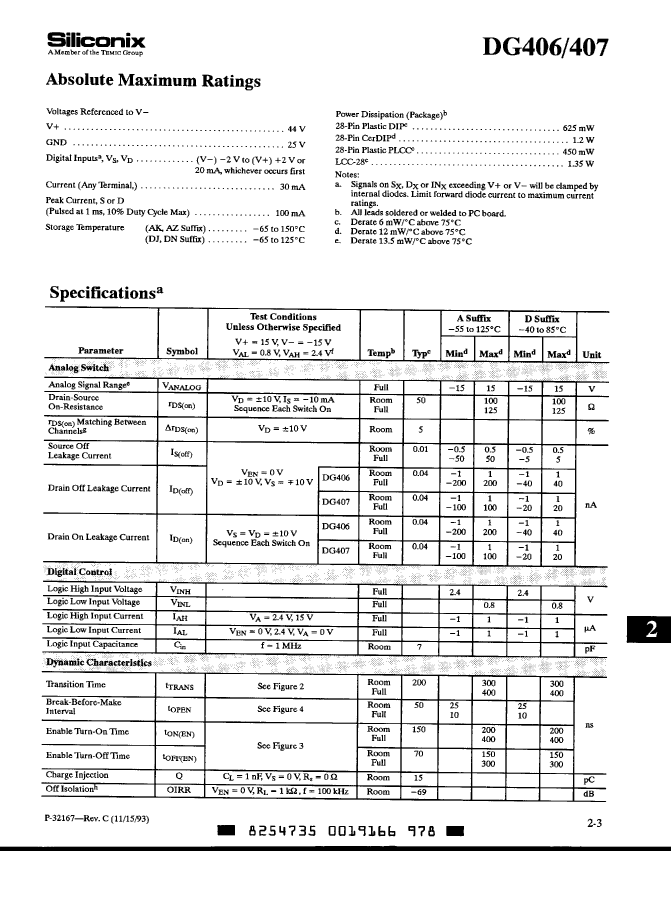

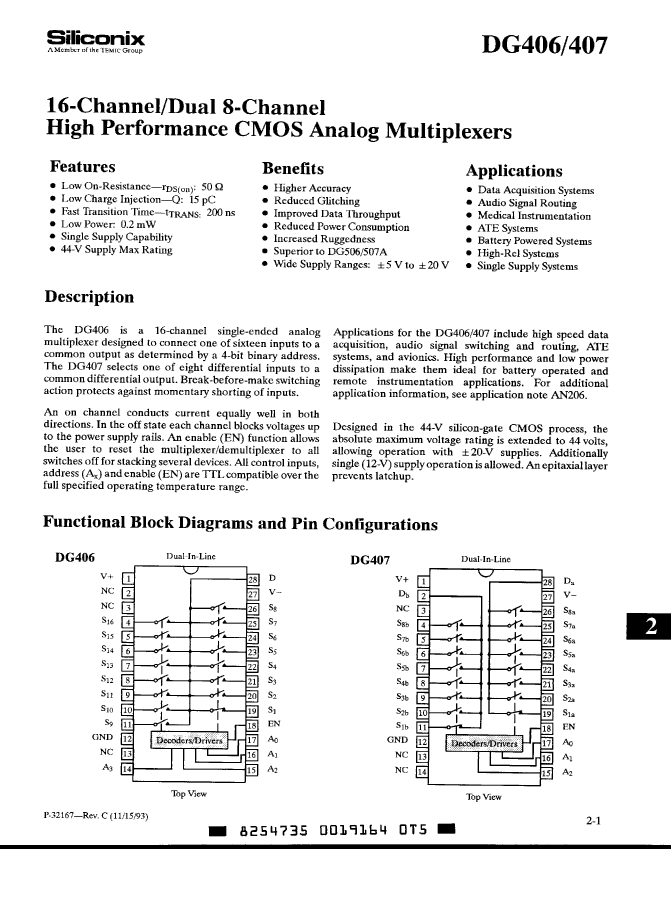

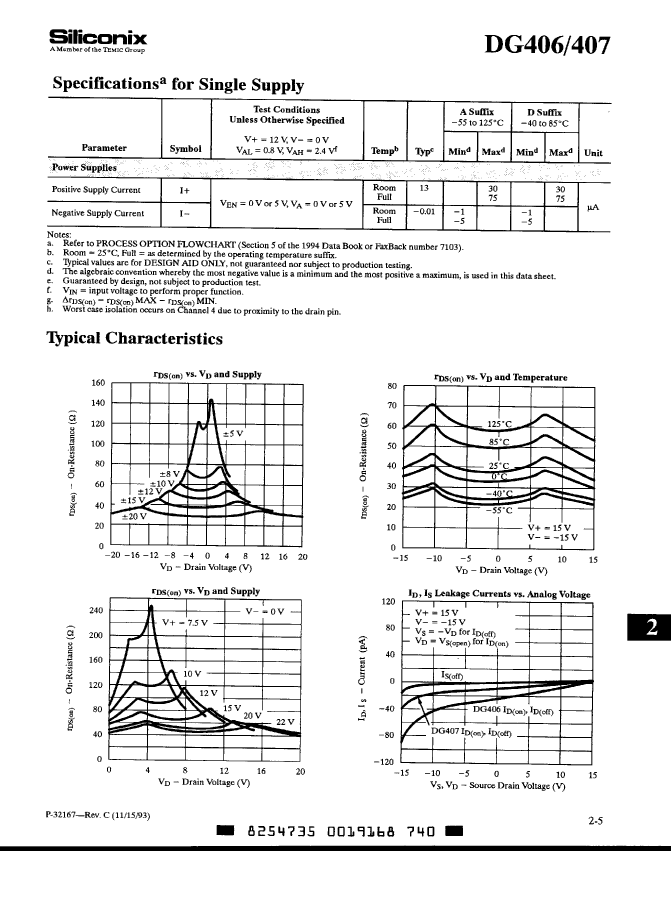

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DG406AK/883 Related Products

	DG406AK/883	DG407AZ/883	DG407AK/883	DG406AZ/883
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CQCC28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28,	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CQCC28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Vishay	Vishay	Vishay	Vishay
package instruction	DIP, DIP28,.6	QCCN, LCC28,.45SQ	DIP, DIP28,.6	QCCN, LCC28,.45SQ
Reach Compliance Code	unknow	unknown	unknown	unknow
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XDIP-T28	S-XQCC-N28	R-XDIP-T28	S-XQCC-N28
JESD-609 code	e0	e0	e0	e0
Number of channels	16	8	8	16
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum on-state resistance (Ron)	125 Ω	125 Ω	125 Ω	125 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DIP	QCCN
Encapsulate equivalent code	DIP28,.6	LCC28,.45SQ	DIP28,.6	LCC28,.45SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
power supply	12/+-15 V	12/+-15 V	12/+-15 V	12/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A
surface mount	NO	YES	NO	YES
Maximum connection time	600 ns	600 ns	600 ns	600 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD
