Part Number

Search

DG568AP

Description
Single-Ended Multiplexer, 1 Func, 8 Channel, CDIP18
CategoryAnalog mixed-signal IC    The signal circuit
File Size484KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

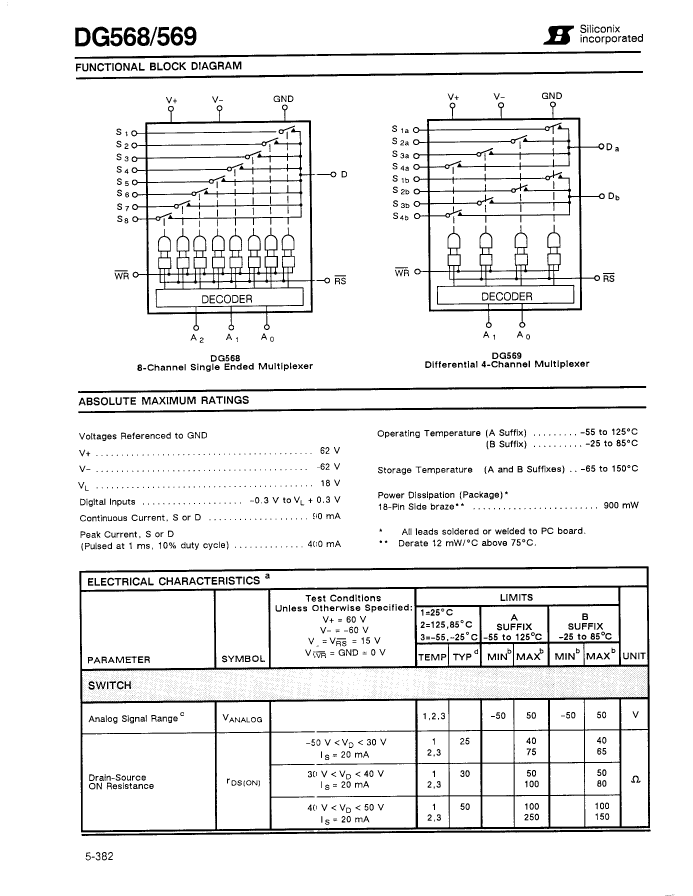

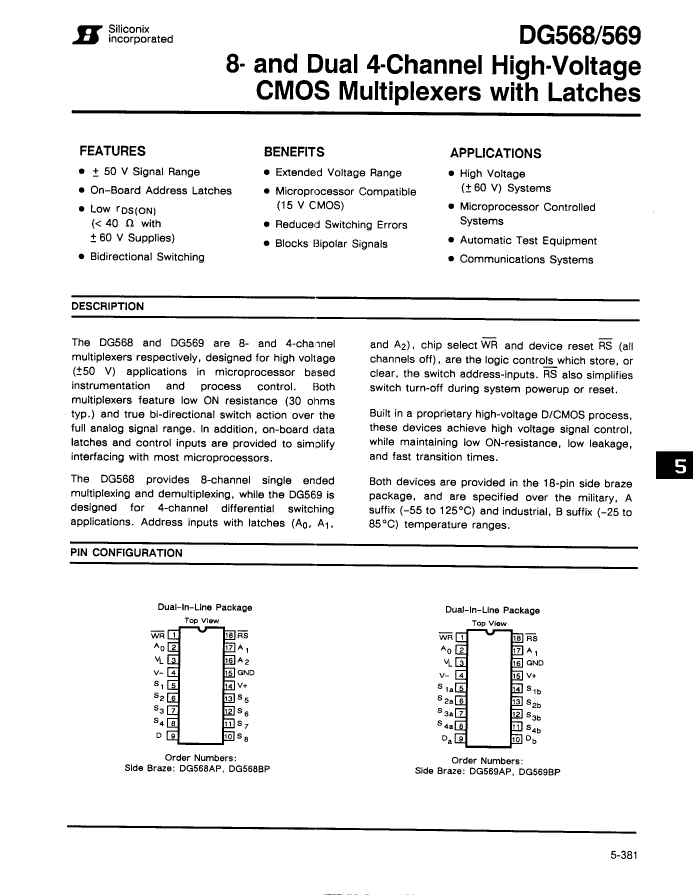

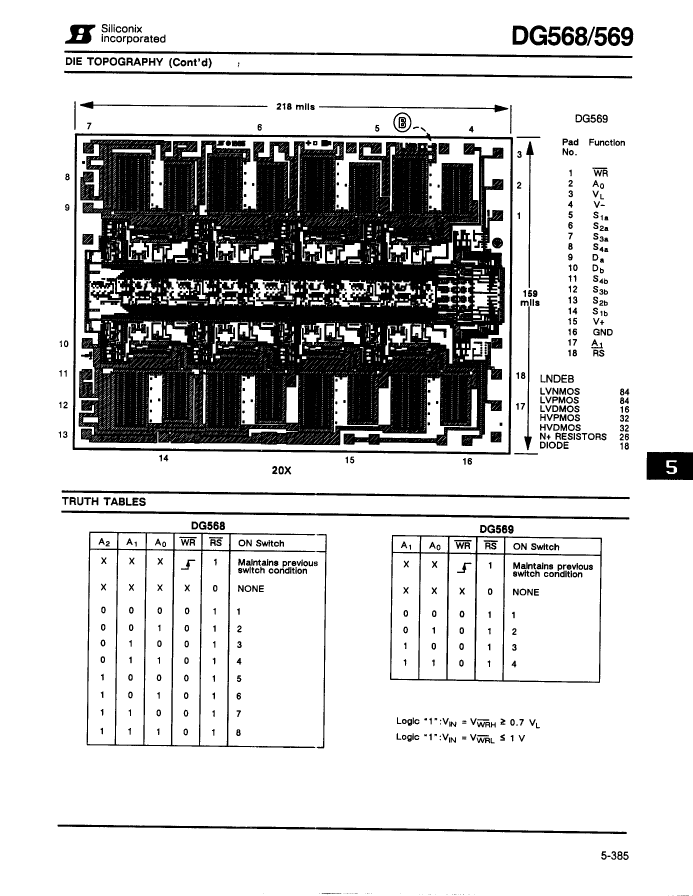

DG568AP Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CDIP18

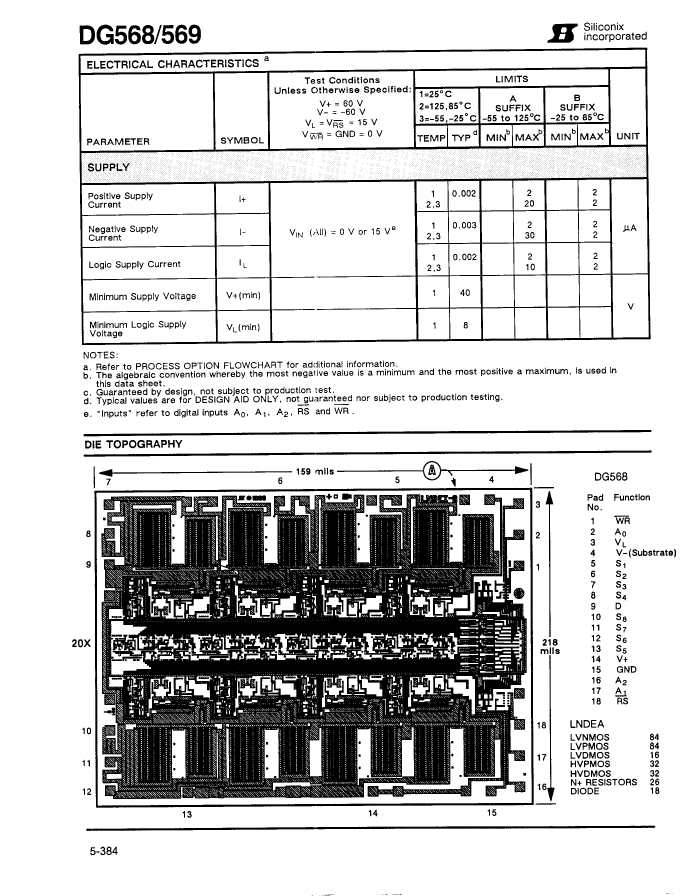

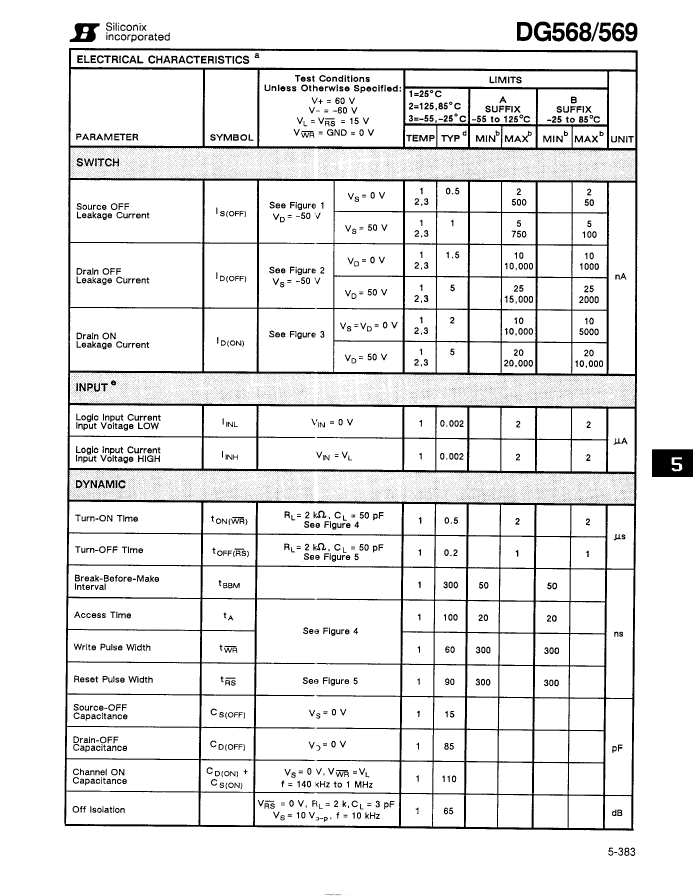

DG568AP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay
package instructionDIP, DIP18,.3
Reach Compliance Codeunknow
Analog Integrated Circuits - Other TypesSINGLE-ENDED MULTIPLEXER
JESD-30 codeR-XDIP-T18
JESD-609 codee0
Number of channels8
Number of functions1
Number of terminals18
Maximum on-state resistance (Ron)250 Ω
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP18,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply15,+-60 V
Certification statusNot Qualified
Maximum signal current0.09 A
Maximum supply current (Isup)0.06 mA
surface mountNO
Maximum connection time2000 ns
switchBREAK-BEFORE-MAKE
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

DG568AP Related Products

DG568AP DG568AP-2 DG569AP DG569AP-2
Description Single-Ended Multiplexer, 1 Func, 8 Channel, CDIP18 Multiplexers/Switches Differential Multiplexer, 1 Func, 4 Channel, CDIP18 Differential Multiplexer, 1 Func, 4 Channel, CDIP18
Maker Vishay Vishay Vishay Vishay
package instruction DIP, DIP18,.3 , DIP, DIP18,.3 DIP, DIP18,.3
Reach Compliance Code unknow unknow unknow unknow
Is it Rohs certified? incompatible - incompatible incompatible
Analog Integrated Circuits - Other Types SINGLE-ENDED MULTIPLEXER - DIFFERENTIAL MULTIPLEXER DIFFERENTIAL MULTIPLEXER
JESD-30 code R-XDIP-T18 - R-XDIP-T18 R-XDIP-T18
JESD-609 code e0 - e0 e0
Number of channels 8 - 4 4
Number of functions 1 - 1 1
Number of terminals 18 - 18 18
Maximum on-state resistance (Ron) 250 Ω - 250 Ω 500 Ω
Maximum operating temperature 125 °C - 125 °C 125 °C
Minimum operating temperature -55 °C - -55 °C -55 °C
Package body material CERAMIC - CERAMIC CERAMIC
encapsulated code DIP - DIP DIP
Encapsulate equivalent code DIP18,.3 - DIP18,.3 DIP18,.3
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR
Package form IN-LINE - IN-LINE IN-LINE
power supply 15,+-60 V - 15,+-60 V 15,+-60 V
Certification status Not Qualified - Not Qualified Not Qualified
Maximum signal current 0.09 A - 0.09 A 0.07 A
Maximum supply current (Isup) 0.06 mA - 0.06 mA 0.03 mA
surface mount NO - NO NO
Maximum connection time 2000 ns - 2000 ns 2000 ns
switch BREAK-BEFORE-MAKE - BREAK-BEFORE-MAKE BREAK-BEFORE-MAKE
Temperature level MILITARY - MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE - THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm - 2.54 mm 2.54 mm
Terminal location DUAL - DUAL DUAL
