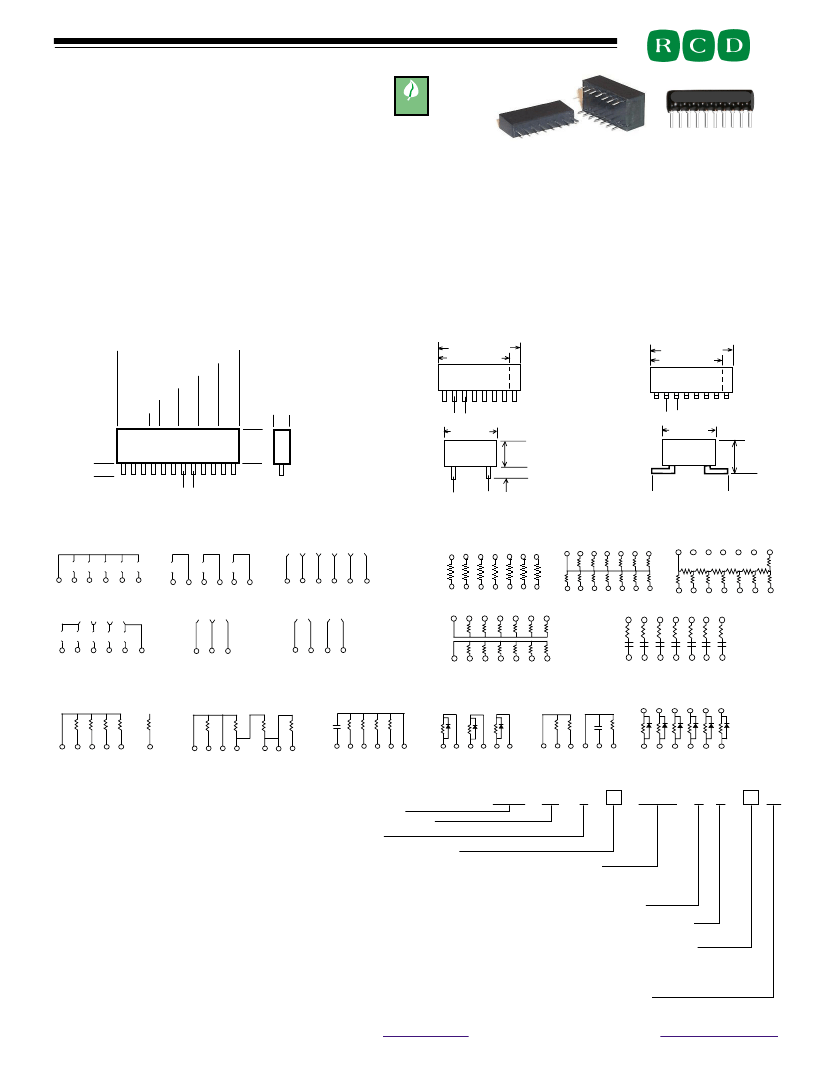

CUSTOM NETWORKS
DSN SERIES
- SIP Networks
DDN SERIES
- DIP Networks
DLN SERIES
- SM Networks
Industry’s widest range of custom networks!
Available on exclusive
SWIFT
delivery program
Very economical in any volume
SIP package sizes: 3 to 12-pin std., (2 to 40-pin avail.)
DIP package sizes: 14 & 16-pin std., (4 to 40-pin avail.)
Resistor matching to .005% 1PPM TC
Wide range of custom and low-profile sizes available.
Custom circuits are designed to the specific application
utilizing virtually any combination of R/L/C/D components.
RESISTORS CAPACITORS COILS DELAY LINES
Term. W is
RoHS
compliant &
260°C process
compatible
RoHS
.
RCD DSN10
Custom R/L/C/D networks with little or no tooling charge!
RCD’s custom networks are a cost effective approach for numerous
applications. Networks can be comprised solely of resistors, capacitors,
inductors, diodes, or any combination. Depending on the requirements,
custom networks are produced via monolithic (single substrate) or
discrete construction. Discrete networks utilize various chip or leaded
components welded or soldered into a circuit, then encapsulated into a
molded epoxy case. Discrete networks provide wide design flexibility,
fast delivery, and low set-up costs. Monolithic networks are conformal
coated and generally enable lowest cost in medium to higher volumes.
SERIES DSN SIP DIMENSIONS
Odd pin counts also available
1.2
1.0
.80
.60
.40
.31
[30.5]
←
12 Pin
[25.4]
←
10 Pin
[20.3]
←
8 Pin
[15.2
]
←
6 Pin
[10.2] 4 Pin
[7.9] 3 Pin
SERIES DDN DIP
16 pin= .87 [22]
14 pin=.77 [19.5]
----
SERIES DLN SURFACE MOUNT
16 pin= .87 [22]
14 pin=.77 [19.5]
----
→
-------
→
→
→
-------
-------
-------
-------
↓→
.35
[8.9]
←
.125 [3.2]
(.095 [2.4] avail.)
→ ←
.100 [2.54]
.475[12]max,
.397[10]avail
→ ←
.100 [2.54]
.475[12]max,
.397[10]avail
.125 [3.2]
Min.
↓
↑
→ ←
.100 [2.54]
↑
→ ←
.025 [.64] Max.
Dimensions, typ Inch [mm]
.277 [7]
Max.
←
.300
→
[7.62]
.125 [3.2] Min.
.307
[7.8]
Max.
←
.620 [15.7]
→
DSN STANDARD CONFIGURATIONS
Config.#1 (3-12 pin)
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
DDN & DLN STANDARD CONFIGURATIONS
Config. A
Config. B
R
Config.2 (4,6,8,10,12pin)
>
>
>
>
>
>
>
>
>
Config. #6 (3-12 pin)
vvv vvv vvv vvv vvv
Config. C
R
R
R
R
R
2R
2R
1
2R 2R 2R 2R 2R 2R
1
Config.#7 (6 -12 pin)
vvv vvv vvv
>
>
>
>
>
>
>
2R
>
2R
>
2R
>
2R
>
2R
>
>
>
>
R
R
R
Config.8 (3pin)
vvv vvv
Config.9 (4pin)
vvv
vvv
Config. D
R1 R1 R1 R1 R1 R1
R2 R2 R2 R2 R2 R2
1
Config. E
R
1
R
2
R
1
R
2
Standard configurations have single resistance value per package exept Config’s 7, 8, & 9.
TYPICAL CUSTOM CONFIGURATIONS:
(part numbers are assigned by factory)
- - - - --
-
R
1
R
2
R
3
R
4
R
N
R
1
R
2
R
3
R
4
R
1
R
2
C
1
R
3
SPECIFICATIONS:
Resistors
(thick-film, thin-film, wirewound,
foil, composition): 0.005Ω to 4000Meg,
±0.005% to 5%, ±2 to 200ppm, .125W is
standard (available up to 1W)
Capacitors
(ceramic or tantalum):
NPO: 0.47pf - 0.1pf, ±0.5% to ±10%
X7R: 100pf - 2.2µf, ±2% to ±20%
X5R: 100pf - 10µf, ±2% to ±20%
Z5U/Y5V: 1000pf-10µf, ±10% to +80-20%
Tantalum: 0.1uF- 220uF, ±1% to ±20%
Diodes:
fast speed diodes such as
1N3595, 1N4148, 1N4150, etc., Schottky,
Germanium,etc.
Inductors
(thick-film, thin-film, wirewound):
1nH to 1000uH, ±10% (±1% to ±20% avail)
P/N DESIGNATION
:
DSN, DDN, or DLN
Number of Pins
(02 to 40)
Configuration
Option
(leave blank if standard)
(consult factory for non-std circuits)
DSN
08
2
- 1002 - F F
W
Res.Code
.01%-1%: 3 sig. figures & multiplier (10R0=10Ω, 1001=1KΩ)
2%-5%: 2 sig. figures & multiplier (1R0=1Ω, 102=1K, 105=1M). When comprised of 2
values, separate with /, e.g. 181/391=180Ω/390Ω
Tolerance:
T=.01%,Q=.02%,A=.05%,B=.1%,C=.25%,D=.5%,F=1%,G=2%,J=5%
Ratio Tolerance:
V=0.005%, Y=0.01%, Q=0.02%, A=0.05%, Z=0.1%, C=0.25%, D=0.5%,
F=1%, G=2% (leave blank if not required)
TC
(leave blank for 200ppm std): 101=100ppm, 125=100ppm abs/25ppm track, 50=50ppm,
525=50ppm abs/25ppm track, 510=50ppm ab/10ppm track, 25=25ppm, 210=25ppm ab/10ppm track,
205=25ppm ab/5ppm track, 10=10ppm, 105=10ppm ab/5ppm track, 102=10ppm ab/2ppm track, 5=5ppm,
55=5ppm abs/5ppm track, 53=5ppm ab/3ppm track, 52=5ppm ab/2ppm track, 51=5ppm ab/1ppm track
Termination:
W= Lead-free, Q= Tin/Lead (leave blank if either is acceptable)
RCD Components Inc,
520 E.Industrial Park Dr, Manchester, NH, USA 03109
rcdcomponents.com
Tel: 603
-
669
-
0054 Fax: 603
-
669
-
5455 Email:sales@rcdcomponents.com
FA050F
Sale of this product is in accordance with GF-061. Specifications subject to change without notice.
