EBT15618E1ZA

Description
Edgeboard Connectors Single Readout, Dip Solder, Eyelet and Wire Wrap™ Termination
File Size182KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet View All

EBT15618E1ZA Overview

Edgeboard Connectors Single Readout, Dip Solder, Eyelet and Wire Wrap™ Termination

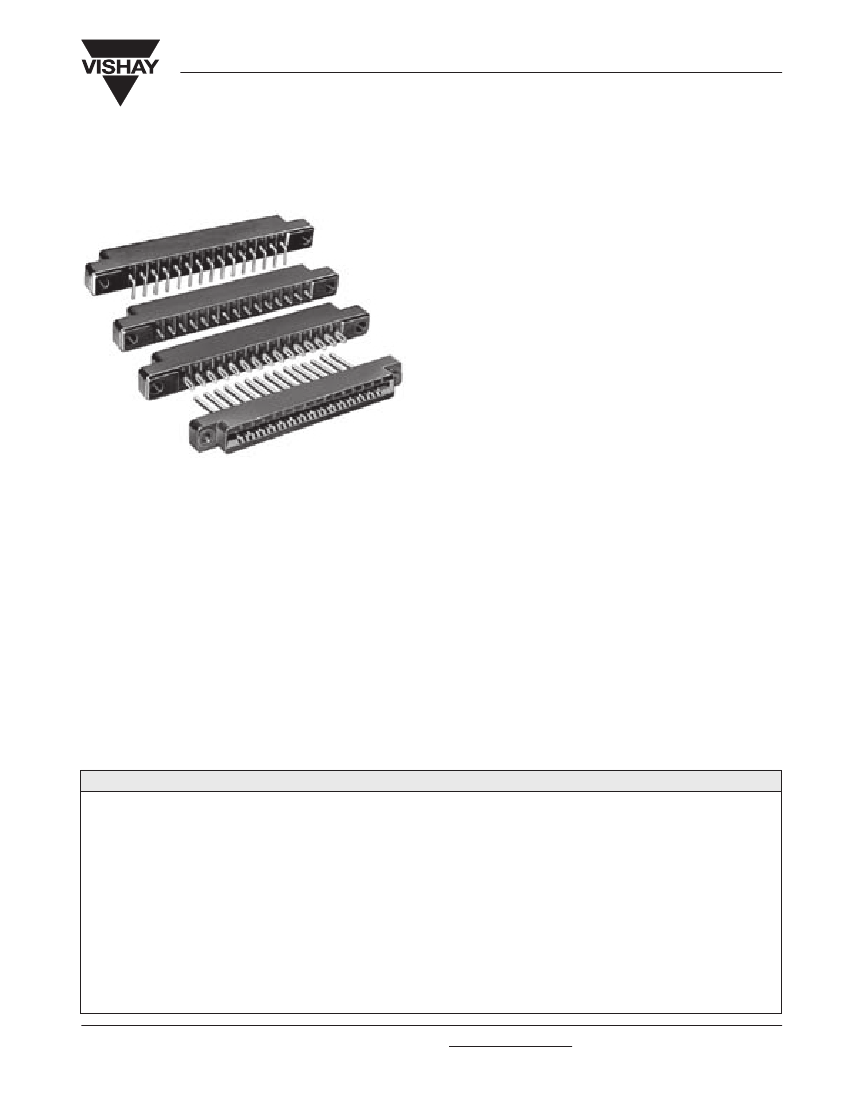

EBT156
Vishay Dale
Edgeboard Connectors
Single Readout, Dip Solder, Eyelet and Wire Wrap™ Termination
FEATURES
• 0.156" [3.96mm] C-C.
• Modified tuning fork contacts have chamfered lead-in to
reduce wear on printed circuit board contacts without
sacrificing contact pressure and wiping action.
• Accepts PC board thickness of 0.054" to 0.070" [1.37mm
to 1.78mm].
• Polarization on or between contact position in all sizes.
Between contact polarization permits polarizing without loss
of a contact position.
• Polarizing key is reinforced nylon, may be inserted by hand,
requires no adhesive.
• Protected entry, provided by recessed leading edge of
contact, permits the card slot to straighten and align the
board before electrical contact is made. Prevents damage
to contacts which might be caused by warped or out of
tolerance boards.

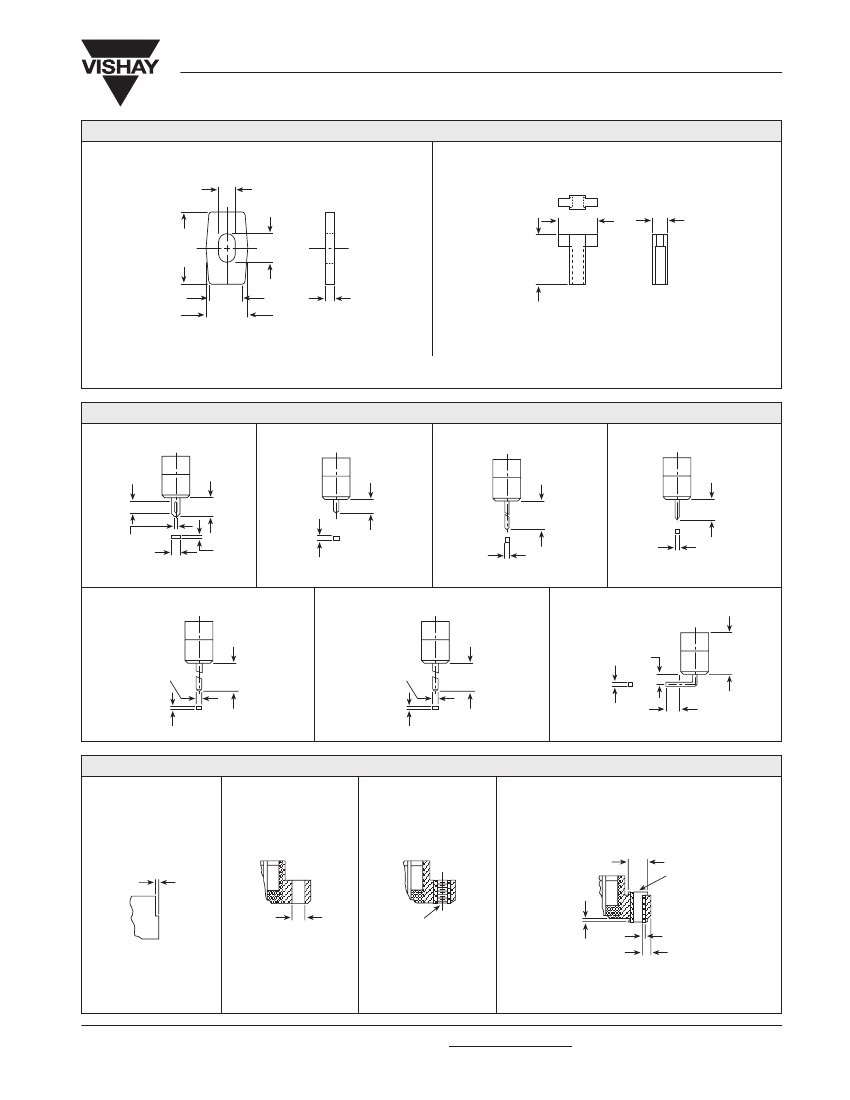

• Optional terminal configurations, including eyelet (Type A),
dip-solder (Types B, C, D, R), Wire Wrap™ (Types E, F).
Connectors with Type A, B, C, D or R contacts are
recognized under the Component Program of
Underwriters Laboratories, Inc. Listed under
File 65524, Project 77CH3889.
ELECTRICAL SPECIFICATIONS
Current Rating:
5 amps.
Test Voltage Between Contacts:
At Sea Level: 1800VRMS.
At 70,000 feet [21,336 meters]: 450VRMS.
Insulation Resistance:
5000 Megohm minimum.
Contact Resistance:
(Voltage Drop) 30 millivolts maximum
at rated current with gold flash.
APPLICATIONS
For use with 0.062" [1.57mm] printed circuit boards requiring
an edgeboard type connector on 0.156" [3.96mm] centers.
MATERIAL SPECIFICATIONS
Body:
Glass-filled phenolic per MIL-M-14, Type MFH, black,
flame retardant (UL 94V-0).
Contacts:
Copper alloy.
Finish:
1 = Electro tin plated. 2 = Gold flash.
Polarizing Key:
Glass-filled nylon.
Optional Threaded Mounting Insert:
Nickel plated brass
(Type Y).
Optional Floating Mounting Bushing:
Cadmium plated
brass (Type Z).

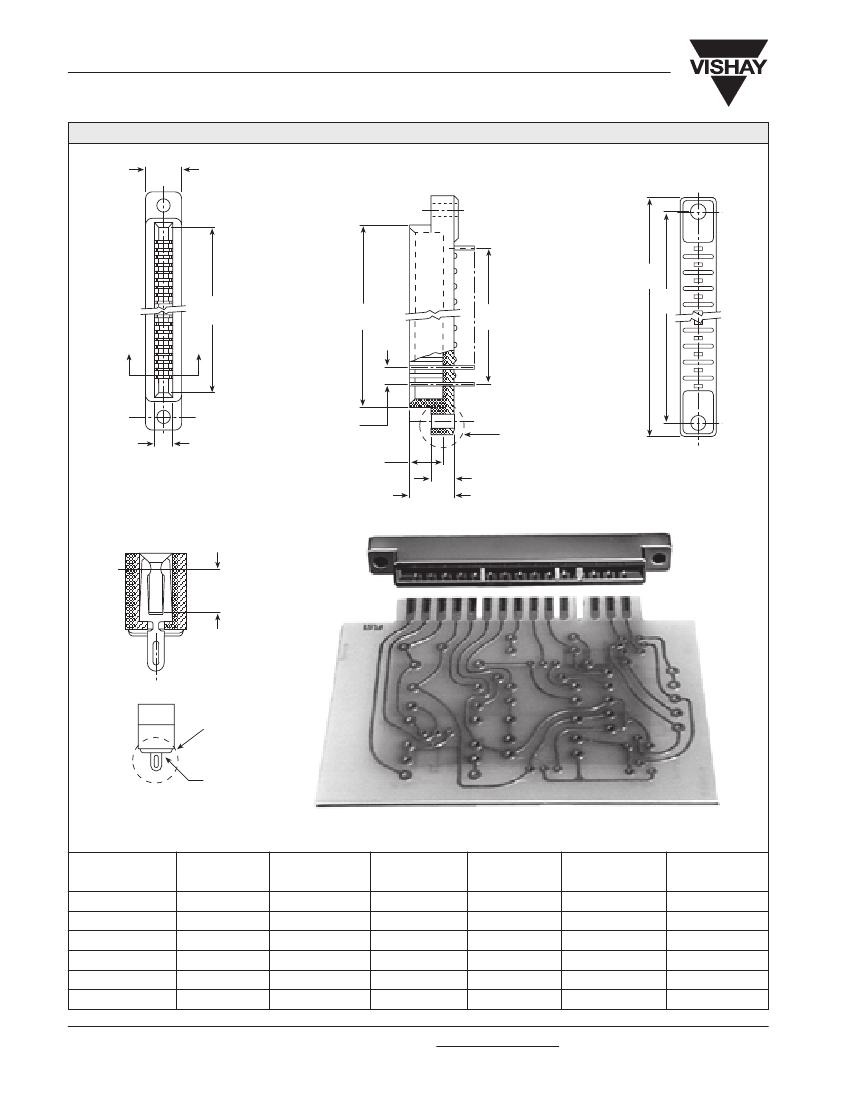

PHYSICAL SPECIFICATIONS
Number of Contacts:
6, 10, 12, 15, 18 or 22.
Contact Spacing:
0.156" [3.96mm].
Card Thickness:
0.054" to 0.070" [1.37mm to 1.78mm].
Card Slot Depth:
0.330" [8.38mm].
ORDERING INFORMATION
EBT156
MODEL
10
CONTACTS
6, 10, 12,
15, 18, 22
A
CONTACT TERMINAL
VARIATIONS
A, B, C, D,
E, F, R
1
CONTACT
FINISH
1 = Electro Tin
Plated
2 = Gold Flash
X
MOUNTING
VARIATIONS
W, X,
Y, Z
A, J
BETWEEN CONTACT
POLARIZATION
A9, J9
ON CONTACT
POLARIZATION
Required
only
when polarizing key(s) are to
be
factory installed.
Polarization key positions: Between contact
polarization key(s) are located to the right of
the contact position(s) desired.
Example:
A, J
means keys between
A and
B,
and
J and K.
Required
only
when polarizing
key(s) are to be
factory
installed.
Polarization key replaces
contact. When polarizing key(s)
replaces contact(s), indicate by
adding suffix
“9” to contact position(s)
desired. Example:
A9, J9
means keys replace terminals
A
and J.
www.vishay.com
17
Document Number 36007
Revision 14-Aug-02
For technical questions, contact Connectors@vishay.com
