2N1771A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 2N1771A

Preview

2N1771A: DescriptionSCRs; CategoryAnalog mixed-signal IC Trigger device; File Size56KB，1 Pages; ManufacturerCentral Semiconductor; Related ProductsFound18parts with similar functions to 2N1771A

Download Datasheet Parametric View All

2N1771A Overview

SCRs

2N1771A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	_compli
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	15 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-64
JESD-30 code	O-MUPM-D2
JESD-609 code	e0
Maximum leakage current	9 mA
On-state non-repetitive peak current	60 A
Number of components	1
Number of terminals	2
Maximum on-state current	4700 A
Maximum operating temperature	155 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	50 V
Repeated peak reverse voltage	50 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

SCRs

(Continued)

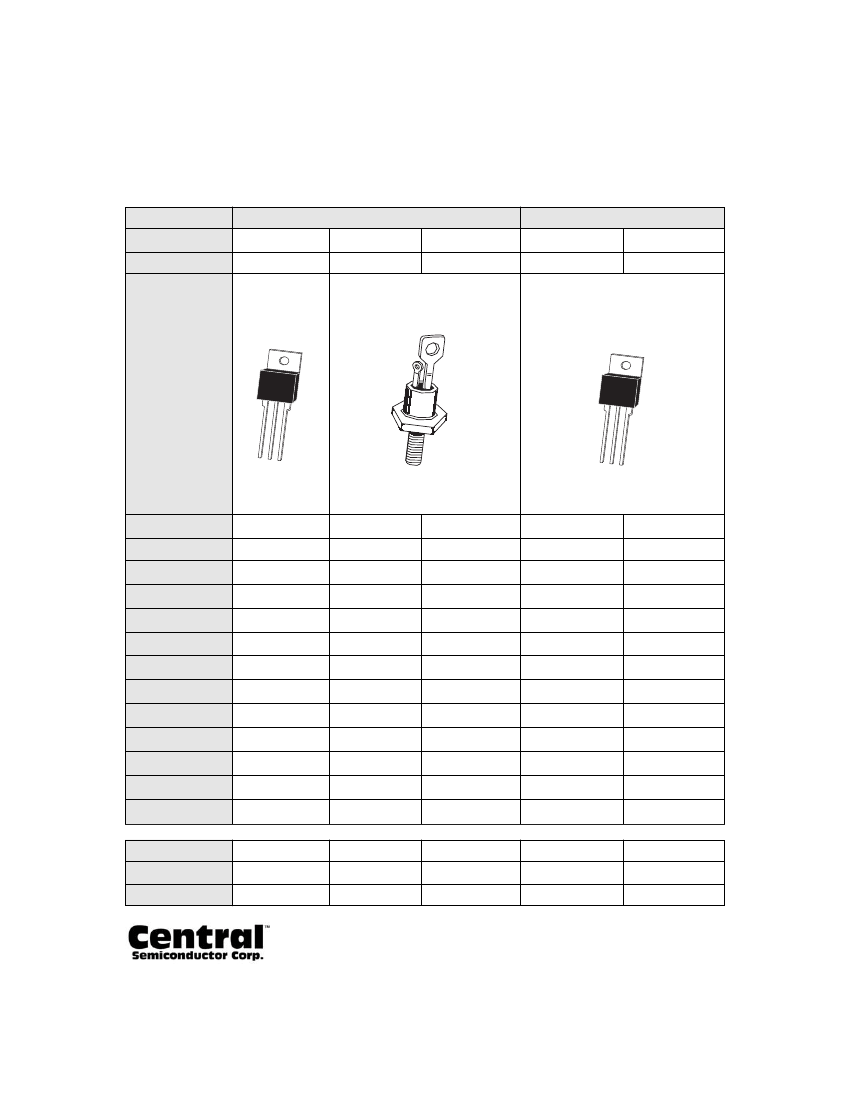

IT (AMPS)

@ TC (

o

C)

ITSM (AMPS)

8.0

10

12

90

100

90

100

90

120

CASE

VRRM (VOLTS)

TO-220

TO-64

TO-220**

25

50

100

150

200

250

300

400

500

600

800

1000

IGT

VGT

IH

2N1770,A

2N1771,A

2N1772,A

2N1773,A

CS220-8B

2N1774,A

2N1775,A

2N1776,A

CS220-8D

2N1777,A

2N1778,A

CS220-8M

CS220-8N

2N2619

2N4167

2N4168

2N4169

2N4170

CS220-10B

CS220-12B

2N4171

2N4172

2N4173

2N4174

CS220-10M

CS220-10N

CS220-12M

CS220-12N

CS220-12P

CS220-10D

CS220-12D

15mA

1.5V

30mA

15mA

1.5V

25mA

30mA

1.5V

30mA

15mA

1.5V

30mA

15mA

1.5V

30mA

**Available in TO-220FP Full Pak upon request.

182

w w w. c e n t r a l s e m i . c o m

Recommended Resources

Transistor voltage stabilizing circuit simulation analysis and design plan, you are worth collecting

Voltage-current conversion circuit diagram

PFC boost pre-regulator circuit diagram composed of TOP

Bistable counting collector trigger circuit

Active high power factor correction pre-regulator circuit diagram using UC3852

6OXT(1.0) computer motherboard circuit diagram_22

2N1771A Similar Products

Part Number	Manufacturer	Description
JAN2N1771A	Semitronics Corp	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 50V V(DRM), 50V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2
2N1771ALEADFREE	Central Semiconductor	Silicon Controlled Rectifier, 8A I(T)RMS, 50V V(RRM), 1 Element, TO-64
2N1771A	Advanced Semiconductor, Inc.	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 50V V(DRM), 1 Element, TO-64, TO-64, 2 PIN
2N3027	Digitron	Silicon Controlled Rectifier; Max Peak Repetitive Reverse Voltage: 30; Max TMS Bridge Input Voltage: 0.5; Max DC Reverse Voltage: 0.0001; Capacitance: 5; Package: TO-18
2N2328	SSDI	Silicon Controlled Rectifier, 2.5A I(T)RMS, 1600mA I(T), 300V V(DRM), 1 Element, TO-5, TO-5, 3 PIN
2N6396	Advanced Semiconductor, Inc.	Silicon Controlled Rectifier, 5000mA I(T), 200V V(DRM)
2N6402	Toshiba(东芝)	SILICON CONTROLLED RECTIFIER,200V V(DRM),5A I(T),TO-220
C126F	Semitronics Corp	Silicon Controlled Rectifier, 12A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN
BT151X-650R,127	WeEn Semiconductors	Silicon Controlled Rectifier, 12A I(T)RMS, 650V V(DRM), 650V V(RRM), 1 Element, TO-220AB, PLASTIC, TO-220F, FULL PACK-3
2N1772A	SSDI	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 100V V(DRM), 1 Element, TO-64, TO-64, 2 PIN
2N1776A	Advanced Semiconductor, Inc.	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 1 Element, TO-64, TO-64, 2 PIN
2N879	Advanced Semiconductor, Inc.	Silicon Controlled Rectifier, 0.55A I(T)RMS, 350mA I(T), 100V V(DRM), 1 Element, TO-18, TO-18, 3 PIN
2N1880	Digitron	Silicon Controlled Rectifier; Max Peak Repetitive Reverse Voltage: 200; Max TMS Bridge Input Voltage: 1.25; Max DC Reverse Voltage: 0.01; Capacitance: 3; Package: TO-5
C15F	Semitronics Corp	Silicon Controlled Rectifier, 8A I(T)RMS, 3000mA I(T), 50V V(DRM), 50V V(RRM), 1 Element, TO-64
MCR718	Central Semiconductor	SURFACE MOUNT SILICON CONTROLLED RECTIFIER 4 AMP, 400 THRU 600 VOLTS
2N2327	New Jersey Semiconductor	Thyristor SCR 250V 15A 3-Pin TO-39
C106E1	Central Semiconductor	4 A, 400 V, SCR, TO-202
2N1772	Semitronics Corp	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-64
