SM035M0330A3SV1015 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SM035M0330A3SV1015

SM035M0330A3SV1015: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size62KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SM035M0330A3SV1015 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

SM035M0330A3SV1015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	38 mΩ
leakage current	0.1155 mA
Manufacturer's serial number	SM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	1430 mA
surface mount	NO
Delta tangent	0.12
Terminal shape	WIRE

Preview

Download Datasheet

View All

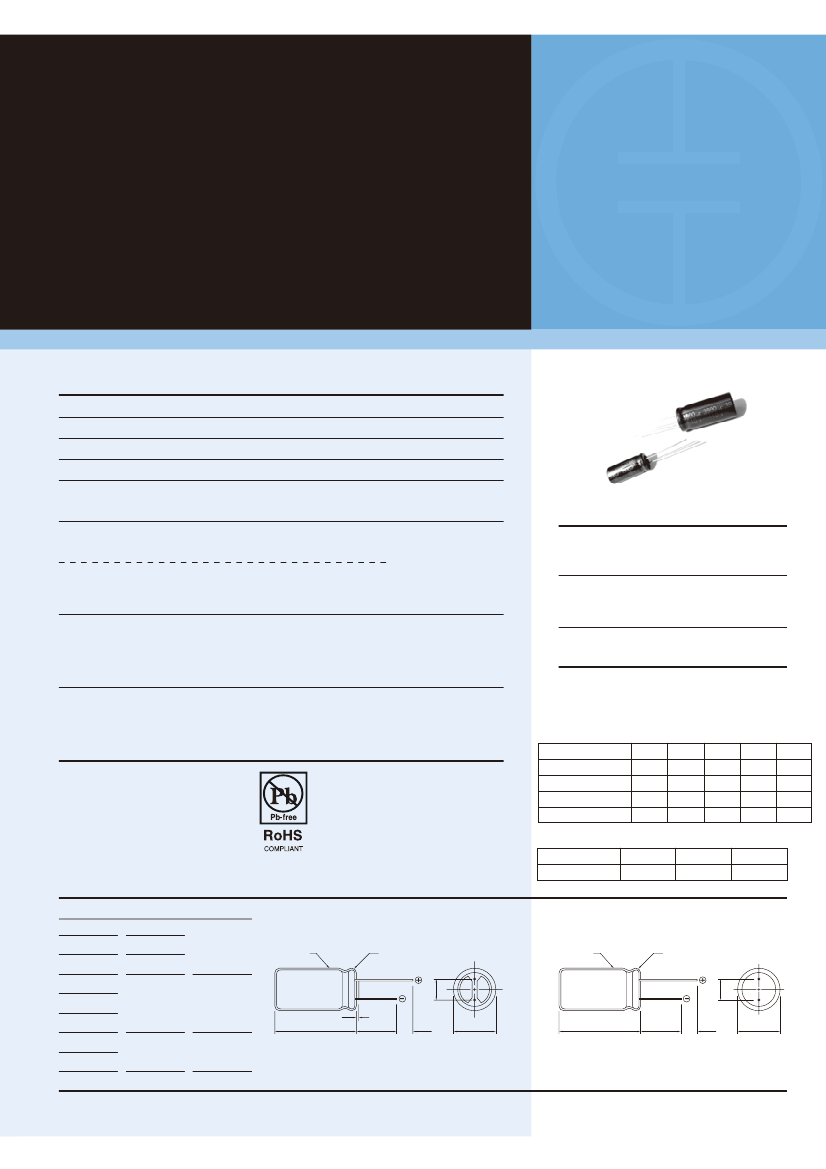

YAGEO CORPORATION

ALUMINUM ELECTROLYTIC CAPACITORS

[ For Very Low Impedance and Very Low E.S.R

Suitable for Output of Mother Board ]

Miniature Size Aluminum

Electrolytic Capacitors

105°C Single-Ended Lead Aluminum Electrolytic Capacitors For High Frequency Applications

ELECTRICAL CHARACTERISTICS

Operating Temperature : -40° ~ +105°C

Working Voltage : 6.3 ~ 50V

Rate Capacitance Range : 22 ~ 6800µF

Capacitance Tolerance : -20 ~ +20%

DC Leakage Current (µA) : I = 0.01 CV(µA)

(Measurements shall be Made After a 2 Minute Charge at Rated Working Voltage)

Dissipation Factor : at 120 Hz, 25°C

W V (V) : 6.3

D.F (%) : 2.2

For capacitor whose capacitance exceeds 1000µF. The value of D.F(%) is increased by 2% for every

addition of 1000µF.

Used in switching regulator applications in com-

puters. Especially for high frequency.

Very low impedance and E.S.R., high permissible

ripple current at high frequency and higher operat-

ing temperature (-40°C to +105°C).

High Temperature Load Life at 105°C for 3000

Hours

DESCRIPTION

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

Shelf Life : 1000 Hours, No Voltage Applied, at 105°C

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200 % of Initial Requirement

Multiplier for Ripple Current

Frequency(Hz)

5.6~33µF

39~330µF

470~1000µF

1200~6800µF

0.45

0.6

0.65

0.75

120

0.55

0.70

0.75

0.80

0.75

0.85

0.90

0.95

10K

0.90

0.95

0.98

1.00

100K

1.00

Temperature(°C)

Factor

2.00

1.60

105

1.00

DIAGRAM OF DIMENSIONS

Dø

5.0

6.3

8.0

10.0

12.0

13.0

16.0

18.0

22.0

10.0

0.8

7.5

0.8

0.4Max.

15Min.

2.0

2.5

3.5

5.0

dø

0.5

Dimensions : mm

Rubber Stand-off

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

Rubber End Seal

0.6

5Min.

F 0.5

D 0.5

15Min.

5Min.

F 0.5

D 0.5
