HMC410AMS8G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> HMC410AMS8G

HMC410AMS8G: Description9000MHz - 15000MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 11dB CONVERSION LOSS-MAX, PLASTIC, SMT, MSOP-8; CategoryWireless rf/communication Radio frequency and microwave; File Size671KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

HMC410AMS8G Overview

9000MHz - 15000MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 11dB CONVERSION LOSS-MAX, PLASTIC, SMT, MSOP-8

HMC410AMS8G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
package instruction	MSOP-8
Reach Compliance Code	unknown
ECCN code	EAR99
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	11 dB
Maximum input power (CW)	20 dBm
JESD-609 code	e0
Maximum operating frequency	15000 MHz
Minimum operating frequency	9000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)

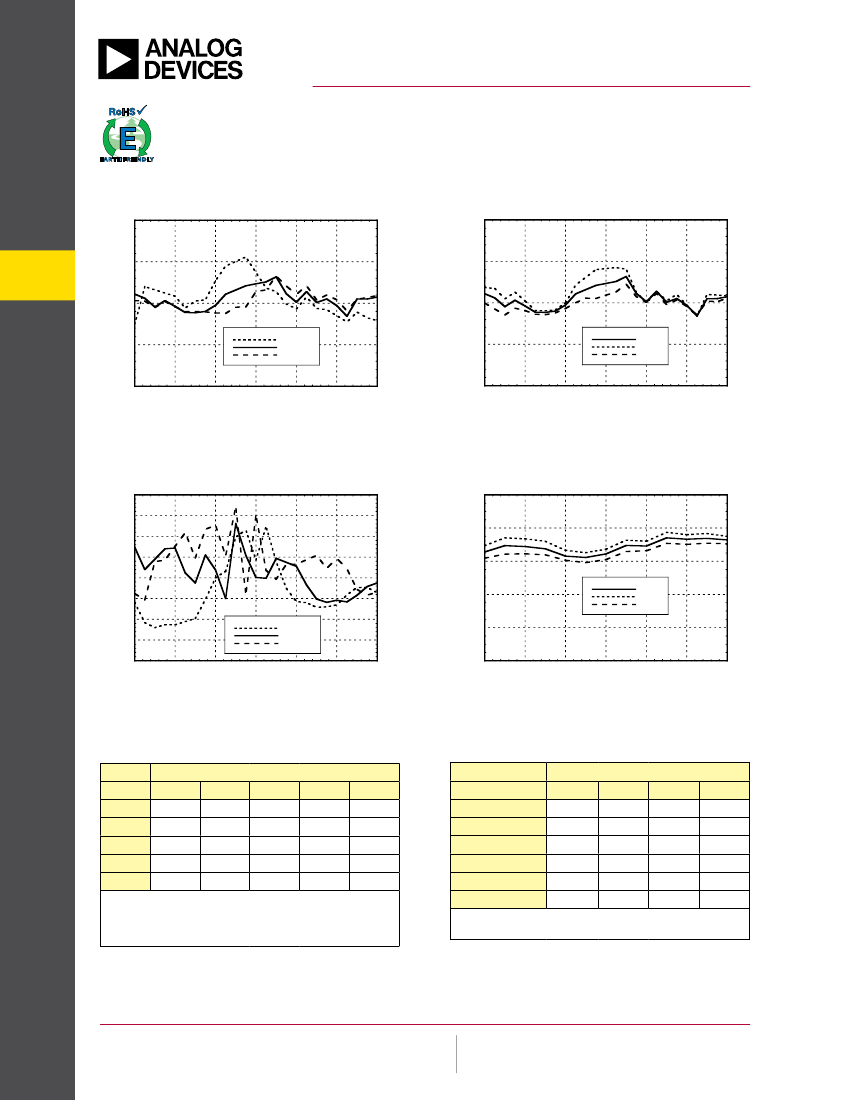

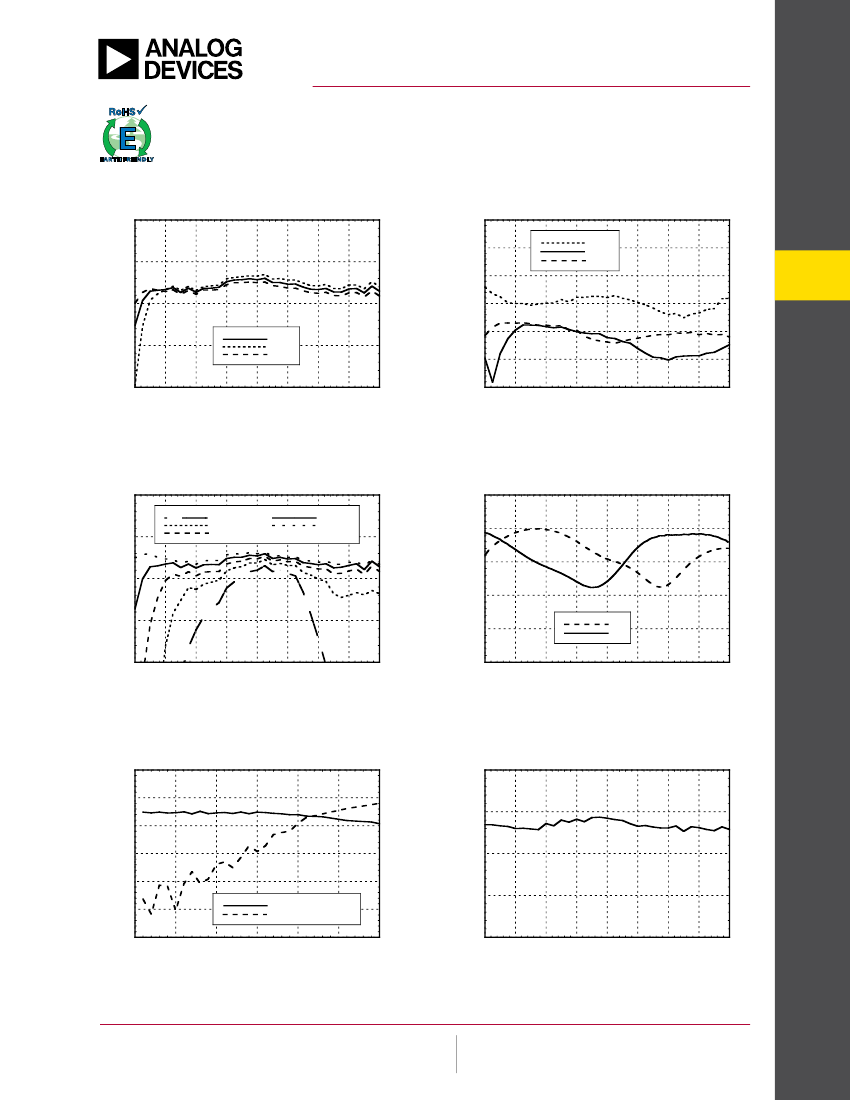

Preview

Download Datasheet

View All

HMC410AMS8G

410AMS8GE

v00.0410

GaAs MMIC DOUBLE-BALANCED

HIGH IP3 MIXER, 9 - 15 GHz

Features

Conversion Loss: 8 dB

LO/rF isolation: 40 dB

LO/iF isolation: 37 dB

input iP3: +24 dBm

No external Components

Typical Applications

The HMC410AMs8G(e) is ideal for:

• Long Haul radio Platforms

• Microwave radio

• VsAT

Mixers - siNGLe & DOUBLe BALANCeD - sMT

Functional Diagram

General Description

Electrical Specifications,

= +25° C

Parameter

Frequency range, rF & LO

Frequency range, iF

Conversion Loss

Noise Figure (ssB)

LO to rF isolation

LO to iF isolation

rF to iF isolation

iP3 (input)

1 dB Compression (input)

Min.

Typ.

9 - 15

* Unless otherwise noted, all measurements performed as downconverter, IF= 1.45 GHz.

The HMC410AMs8G(e) is a passive double-balanced

high iP3 mixer that operates between 9 and 15 GHz.

The HMC410AMs8G(e) operates with LO drive levels

between +13 dBm and +19 dBm, and provides 8 dB

conversion loss across the entire specified frequency

band. These mixers require no external components

or bias.

iF = 1.45 GHz

LO = +17 dBm

Max.

GHz

dBm

Units

DC - 2.5

40 - 45

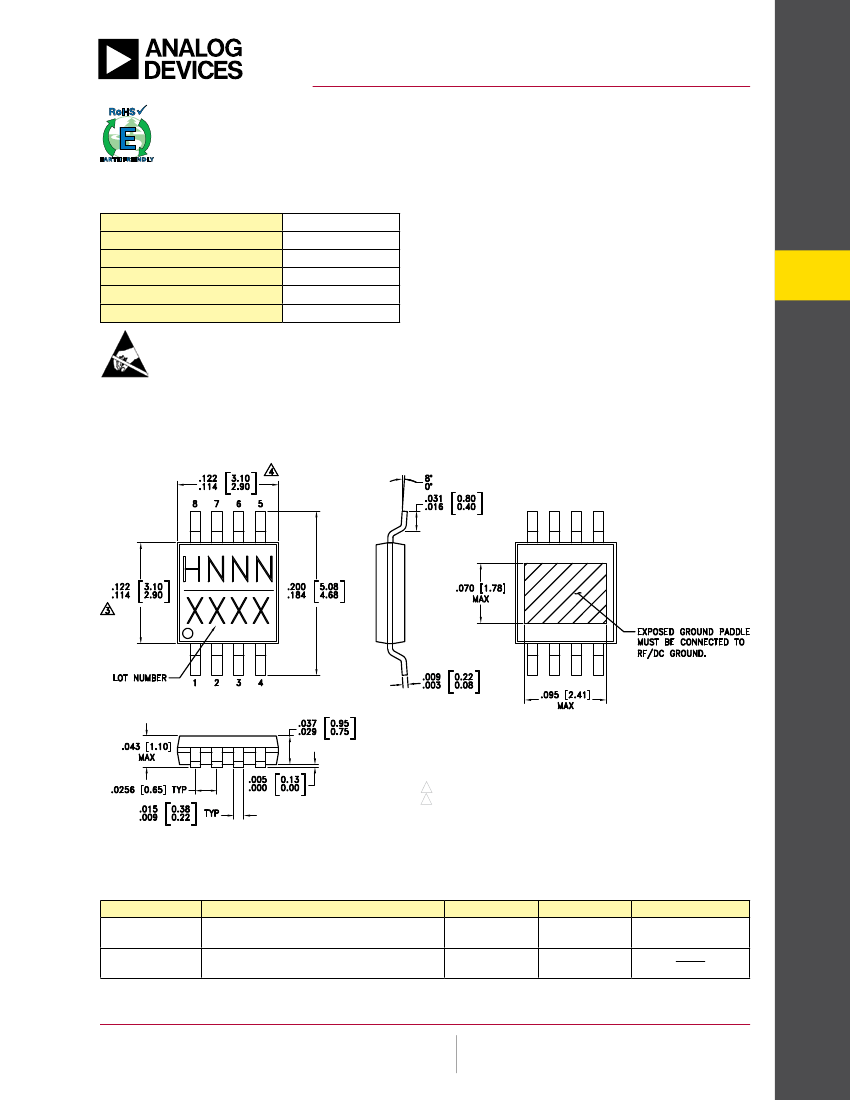

MsOP8G sMT Package

10 - 1

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

For price,

20 Alpha

to place orders: Analog Devices, Inc.,

For price, delivery and to place

nor for any

Hittite Microwave Corporation,

delivery, and

Road, Chelmsford, MA 01824

responsibility is assumed by Analog Devices for its use,

orders:

infringements of patents or other

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

rights of third parties that may result from its use. Specifications subject to change without notice. No

Phone: 978-250-3343

Fax: 978-250-3373

Phone: 781-329-4700

www.hittite.com

Order On-line at

• Order online at www.analog.com

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Application Support: Phone: 1-800-ANALOG-D

Trademarks and registered trademarks are the property of their respective owners.

Application Support: Phone: 978-250-3343 or apps@hittite.com

HMC410AMS8G Related Products

	HMC410AMS8G	HMC410AMS8GE	HMC410AMS8GTR	HMC410AMS8GETR
Description	9000MHz - 15000MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 11dB CONVERSION LOSS-MAX, PLASTIC, SMT, MSOP-8	High IP3 DBL-BAL Mixer SMT, 9 - 15 GHz	RF/MICROWAVE DOUBLE BALANCED MIXER	High IP3 DBL-BAL Mixer SMT, 9 - 15 GHz
Is it Rohs certified?	incompatible	conform to	incompatible	conform to
Maker	ADI	ADI	ADI	ADI
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
