W3F15C2238AT4A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> W3F15C2238AT4A

W3F15C2238AT4A: DescriptionFeed Through Capacitor; CategoryAnalog mixed-signal IC filter; File Size639KB，16 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

W3F15C2238AT4A Overview

Feed Through Capacitor

W3F15C2238AT4A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	EIA STD PACKAGE SIZE 1206, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22000 µF
Maximum DC resistance	0.6 Ω
filter type	FEED THROUGH CAPACITOR
high	1.27 mm
Minimum insulation resistance	1000 MΩ
length	3.2 mm
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TR, EMBOSSED, 13 INCH
physical size	L3.2XB1.6XH1.27 (mm)/L0.126XB0.063XH0.05 (inch)
Rated current	0.3 A
Rated voltage	50 V
width	1.6 mm

Preview

Download Datasheet

View All

AVX

Multilayer Ceramic

SMD Feedthru Capacitors

www.avx.com

Version 16.4

Feedthru 0805/1206 Capacitors

Table of Contents

W2F/W3F Series - 0805 & 1206 Feedthru Chips . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Tin/Lead L2F/L3F Series - 0805 & 1206 Feedthru Chips . . . . . . . . . . . . . . . . . . . 5

W2H - High Current Feedthru Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

W2F/W3F Series - Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

W2H Series - Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

W2F/W3F Series - Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REV 01

Feedthru 0805/1206 Capacitors

W2F/W3F Series

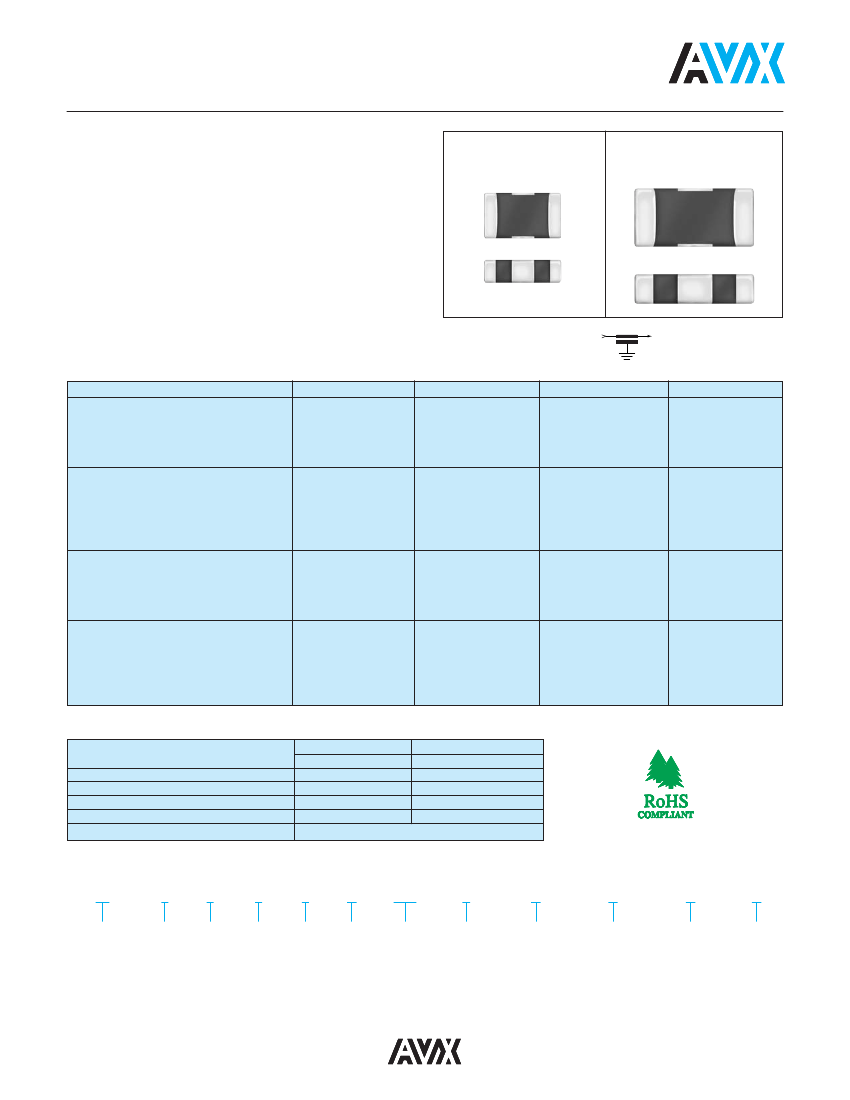

GENERAL DESCRIPTION

Available in both a standard 0805 and 1206 size, AVX’s line

of feedthru capacitors are ideal choices for EMI suppres-

sion, broadband I/O filtering, or Vcc power line condition-

ing. The unique construction of a feedthru capacitor pro-

vides low parallel inductance and offers excellent decou-

pling capability for all high di/dt environments and provides

significant noise reduction in digital circuits to <5 GHz. A

large range of capacitor values are available in either NP0

or X7R ceramic dielectrics. AVX FeedThru filters are AEC

Q200 qualified. High reliability screening options are avail-

able for spacecraft designs.

W2F Series

0805

W3F Series

1206

SIGNAL LINE - INPUT

OUTPUT

CAPACITOR VALUES

Part Number

W2F11A 220 8ATxx

W2F11A 470 8ATxx

W2F11A 101 8ATxx

W2F11A 221 8ATxx

W2F11A 471 8ATxx

W2F15C 102 8ATxx

W2F15C 222 8ATxx

W2F15C 472 8ATxx

W2F15C 103 8ATxx

W2F15C 223 8ATxx

W2F15C 473 8ATxx

W3F11A 220 8ATxx

W3F11A 470 8ATxx

W3F11A 101 8ATxx

W3F11A 221 8ATxx

W3F11A 471 8ATxx

W3F15C 102 8ATxx

W3F15C 222 8ATxx

W3F15C 472 8ATxx

W3F15C 103 8ATxx

W3F15C 223 8ATxx*

W3F15C 473 8ATxx

Size

0805

1206

Voltage

100V

50V

100V

50V

GROUND

Dielectric

NP0

X7R

NP0

X7R

Capacitance

22pF

47pF

100pF

220pF

470pF

1000pF

2200pF

4700pF

10000pF

22000pF

47000pF

22pF

47pF

100pF

220pF

470pF

1000pF

2200pF

4700pF

10000pF

22000pF

47000pF

PERFORMANCE CHARACTERISTICS

Capacitance Tolerance

Voltage Rating

Current Rating

Insulation Resistance

DC Resistance

Operating Temperature Range

NP0

X7R

+50%, -20%

100V

50V

300mA

1000MΩ

<0.6Ω

-55 to +125°C

HOW TO ORDER

Style

Size

Feedthru

223

W = Plated Ni & Sn 2 = 0805

L = Plated SnPb

3 = 1206

Number Voltage** Dielectric Capacitance Capacitance

Failure Rate

Termination

Packaging Code Quantity

1 = 100V A = NP0

Code

Tolerance

A = Not Applicable T = Plated Ni & Sn

(Reel Size)

Code

Elements

5 = 50V

C = X7R

8 = +50/-20% 4 = AUTOMOTIVE B = Plated SnPb

1 & 2 = 7" Reel

(Pcs./Reel)

Embossed Tape

3 & 4 = 13" Reel

Embossed Tape

F = 1,000

A = 2,000,

4,000 or

10,000

*AECQ-200 Qualified. Contact factory for other values.

**Note: NP0 available in 100V only and X7R available in 50V only.

REV 01

Feedthru 0805/1206 Capacitors

W2F/W3F Series

Common Ground

Feedthru Pad

Common Ground

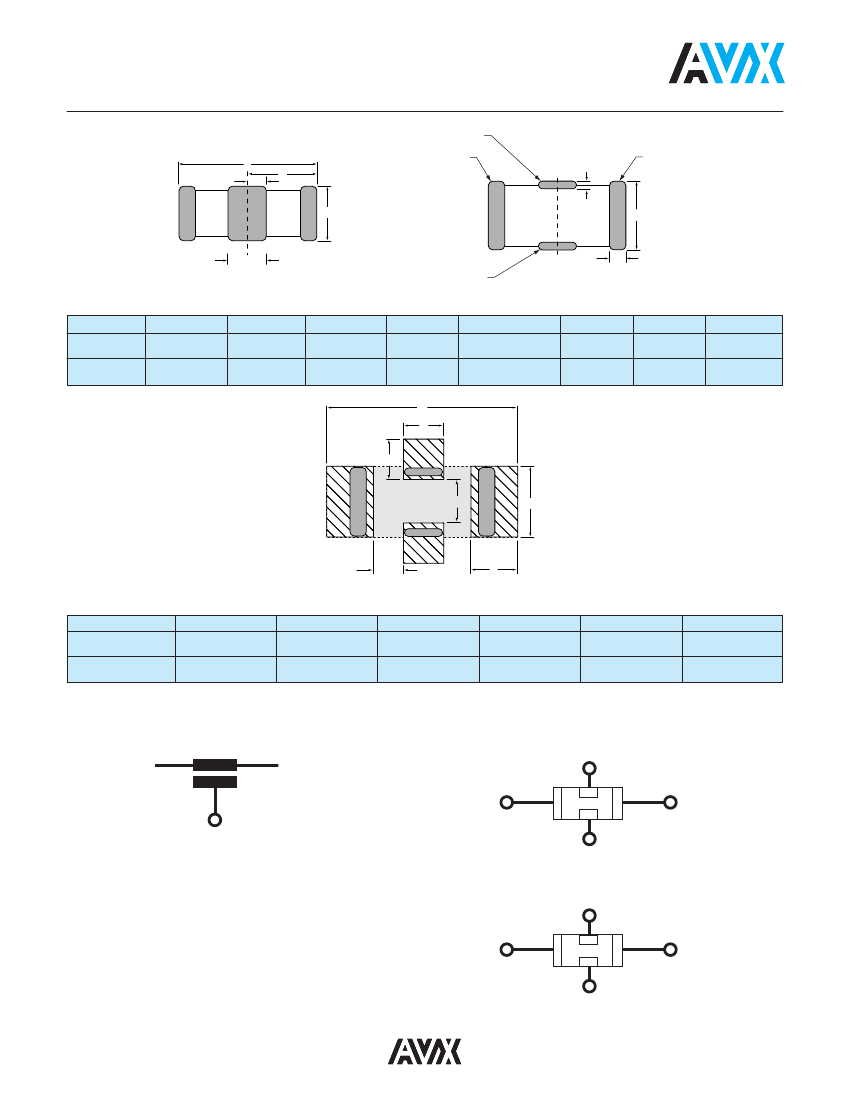

DIMENSIONS

0805 MM

(in.)

1206 MM

(in.)

2.01 ± 0.20

(0.079 ± 0.008)

3.20 ± 0.20

(0.126 ± 0.008)

1.25 ± 0.20

(0.049 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

1.14 Max.

(0.045 Max.)

1.27 Max.

(0.050 Max.)

0.46 ± 0.10

0.18 + 0.25 -0.08

(0.018 ±0.004) (0.007 + 0.010 -0.003)

0.89 ± 0.10

0.18 + 0.25 -0.08

(0.035 ± 0.004) (0.007 + 0.010 -0.003)

0.25 ± 0.13

(0.010 ± 0.005)

0.38 ± 0.18

(0.015 ± 0.007)

1.02 ± 0.10

(0.040 ± 0.004)

1.60 ± 0.10

(0.063 ± 0.004)

0.23 ± 0.15

(0.009 ± 0.006)

0.46 ± 0.15

(0.018 ± 0.006)

RECOMMENDED SOLDER PAD LAYOUT

(TYPICAL DIMENSIONS)

0805 MM

(in.)

1206 MM

(in.)

3.45

(0.136)

4.54

(0.179)

0.51

(0.020)

0.94

(0.037)

0.76

(0.030)

1.02

(0.040)

1.27

(0.050)

1.65

(0.065)

1.02

(0.040)

1.09

(0.043)

0.46

(0.018)

0.71

(0.028)

TYPICAL FEEDTHRU CHIP CAP CONNECTION

Feedthru Chip Component Model

Vcc or

Signal In

Vcc or

Signal Out

Signal In

Ground

The terminals are connected internally side to side.

Left side and right side are connected and front and

back are connected internally.

For Decoupling, the chip is usually surrounded by

four vias, two for Vcc and two for GND.

For Signal Filtering, the in and out lines need to be

separated on the circuit board.

Physical Layout - A

Ground

Signal Out

Physical Layout - B

Ground

Vcc

Ground

REV 01

Feedthru 0805/1206 Capacitors

W2F/W3F Series

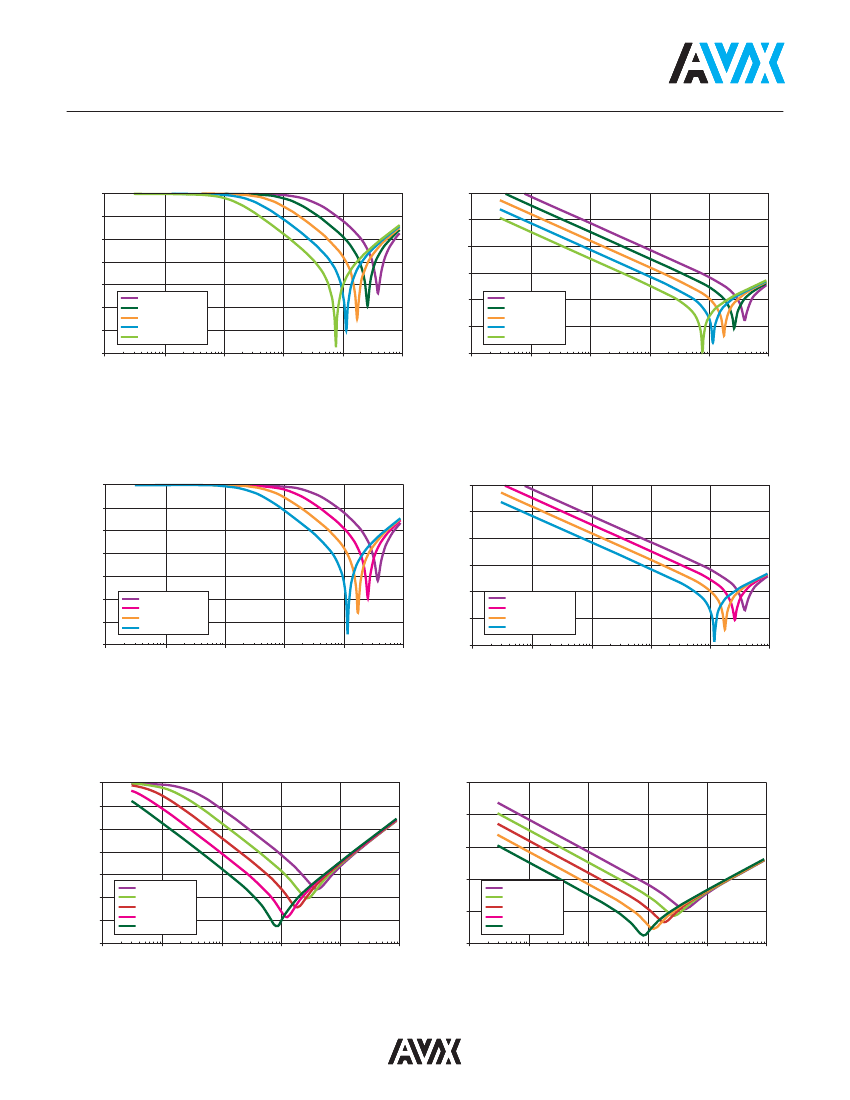

PERFORMANCE CHARACTERISTICS

S21 0805 – 100V

-10

-20

-30

-40

-50

-60

-70

1.E+05

W2F11A2208AT

W2F11A4708AT

W2F11A1018AT

W2F11A2218AT

W2F11A4718AT

IMPEDANCE 0805 – 100V

10000

1000

|Z| (Ohms)

S21 (dB)

100

0.1

0.01

1.E+05

W2F11A2208

W2F11A4708

W2F11A1018

W2F11A2218

W2F11A4718

1.E+06

1.E+07

1.E+08

1.E+09

1.E+10

1.E+06

1.E+07

1.E+08

1.E+09

1.E+10

Freq (0.3 MHz – 9 GHz)

S21 1206 – 100V

-10

-20

-30

-40

-50

-60

-70

1.E+05

W3F11A2208

W3F11A4708

W3F11A1018

W3F11A2218

IMPEDANCE 1206 – 100V

10000

1000

|Z| (Ohms)

S21 (dB)

100

0.1

0.01

1.E+05

W3F11A2208

W3F11A4708

W3F11A1018

W3F11A2218

1.E+06

1.E+07

1.E+08

1.E+09

1.E+10

1.E+06

1.E+07

1.E+08

1.E+09

1.E+10

Freq (0.3 MHz – 9 GHz)

S21 1206 – 50V

-10

-20

1000

IMPEDANCE 1206 – 50V

100

|Z| (Ohms)

S21 (dB)

-30

-40

-50

-60

-70

1.E+05

W3F15C2228

W3F15C4728

W3F15C1038

W3F15C2238

W3F15C4738

W3F15C2228

W3F15C4728

W3F15C1038

W3F15C2238

W3F15C4738

0.1

1.E+06

1.E+07

1.E+08

1.E+09

1.E+10

0.01

1.E+05

1.E+06

1.E+07

1.E+08

1.E+09

1.E+10

Freq (0.3 MHz – 9 GHz)

REV 01
