JX5012B0212.500000

Description
CMOS Output Clock Oscillator, 212.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN
CategoryPassive components    oscillator
File Size620KB,2 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric View All

JX5012B0212.500000 Overview

CMOS Output Clock Oscillator, 212.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN

JX5012B0212.500000 Parametric

Parameter NameAttribute value
MakerDiodes Incorporated
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresENABLE/DISABLE FUNCTION
maximum descent time1.6 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
Installation featuresSURFACE MOUNT
Nominal operating frequency212.5 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeCMOS
Output load15 pF
physical size5.0mm x 3.2mm x 1.2mm
longest rise time1.6 ns
Maximum supply voltage2.625 V
Minimum supply voltage2.375 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry55/45 %

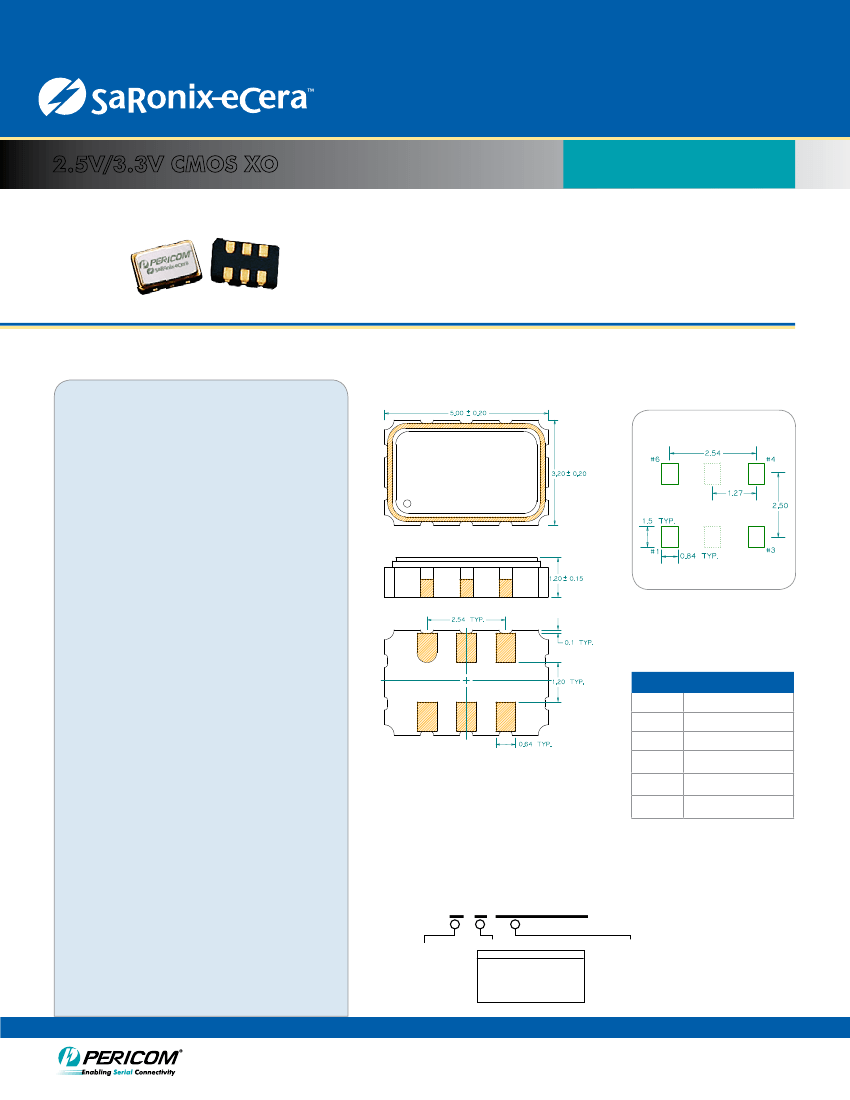

Ultra Low Jitter PLL Crystal Oscillator 5.0 x 3.2mm
2.5V/3.3V CMOS XO
JX501
5.0 x 3.2mm Ceramic SMD
Package:
(Scale: none, Dimensions are in mm)
Product Features
• Very low phase jitter - 0.8ps RMS typical
• Thicker crystal for improved reliability
• Low supply current - 45mA max.
• Industrial Temperature Range
Pb-free & RoHS compliant
Fast lead time
Recommended Land Pattern:
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Product Description
The JX501 XO series is a high performance
CMOS crystal oscillator family with very
low jitter performance. It supports various
options including wider frequency range,
2.5V/3.3V voltage, and various stabilities.
It is designed to meet the clock source
specifications for communication systems,
and other high performance equipment.
*Note: pads 2 and 5 are
optional (shown as dotted lines).
XO's are designed to fit on industry
standard, 4 pad layouts.
Pin Functions:
Pin
Function
1
2
3
4
5
6
OE Function
N/C
Ground
Output
N/C
V
DD
Applications
• Networking systems
Servers and storage systems
Profession video equipments
• Test and measurement
• FPGA/ASIC clock generation
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
*Extended high frequency power decoupling is recommended (see test circuit for minimum
recommendation). To ensure optimal performance, do not route RF traces beneath the
package.
Part Ordering Information:
WX 70
V
JX 501
A
B
C
I FFFF.FFFFFF
1 FFFF.FFFFFF
Stability
A = +/-20 ppm
B = +/-25 ppm
C = +/-50 ppm
D = +/-25 ppm
E = +/-50 ppm
Temp Range
-20/+70°C
-20/+70°C
-20/+70°C
-40/+85°C
-40/+85°C
Voltage:
1=+3.3V
2=+2.5V
Stability and Temp Range:
Frequency:
FFFF.FFFFFF
MHz, “4 digits/decimal/6 digits” format
SaRonix-eCera™ is a Pericom® Semiconductor company
US: +1-408-435-0800 TW: +886-3-4518888
www.pericom.com
12-0056
All specifications are subject to change without notice.
JX501XO
RevC
10/30/12
1
