LV7720DEV-80.0M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LV7720DEV-80.0M

LV7720DEV-80.0M: DescriptionLVDS Output Clock Oscillator, 1MHz Min, 325MHz Max, 80MHz Nom, LCC-6; CategoryPassive components oscillator; File Size1MB，9 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric Compare View All

LV7720DEV-80.0M Overview

LVDS Output Clock Oscillator, 1MHz Min, 325MHz Max, 80MHz Nom, LCC-6

LV7720DEV-80.0M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pletronics
package instruction	LCC-6
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	325 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	80 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	50 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 1.7mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	0.7 ns
Maximum slew rate	66 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

LV77D Series 3.3 V

LVDS Clock Oscillators

February 2016

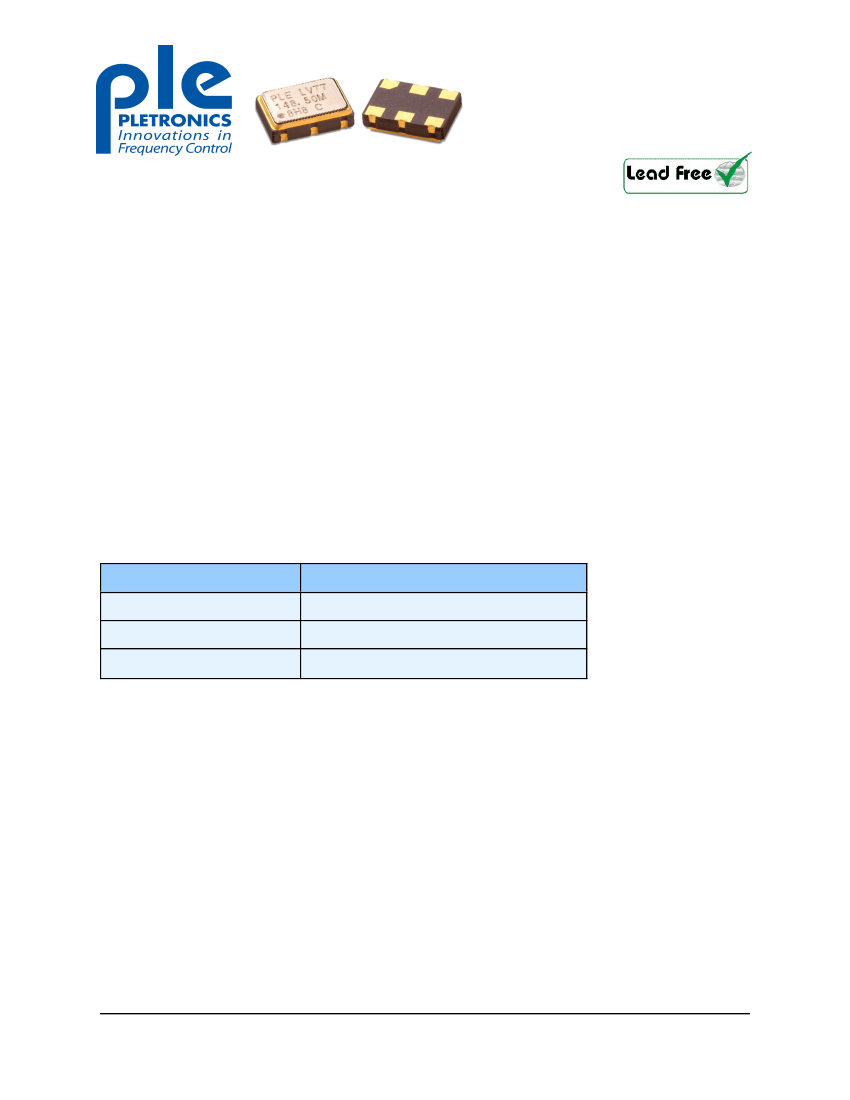

• Pletronics’ LV77D Series is a quartz crystal

controlled precision square wave generator with

an LVDS output.

• The package is designed for high density surface

m ount designs.

• Low cost m ass produced oscillator.

• Tape and Reel or cut tape packaging is available.

• 5 x 7 m m LCC Ceram ic Package

• Enable/Disable Function on pad 1

• Disable function includes low standby power

m ode

• Low Jitter

• 80 MHz ~ 325 MHz

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2011/65/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadm ium , Hexavalent Chrom ium , Lead, Mercury, PBB’s, PBDE’s

W eight of the Device: 0.16 gram s

Moisture Sensitivity Level: 1 As defined in J-STD-020D.1

Second Level Interconnect code: e4

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Unit

-0.5V to +5.0V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

Thermal Characteristics

The m axim um die or junction tem perature is 155

The therm al resistance junction to board is 30 to 50

C/W att depending on the solder pads, ground plane

and construction of the PCB.

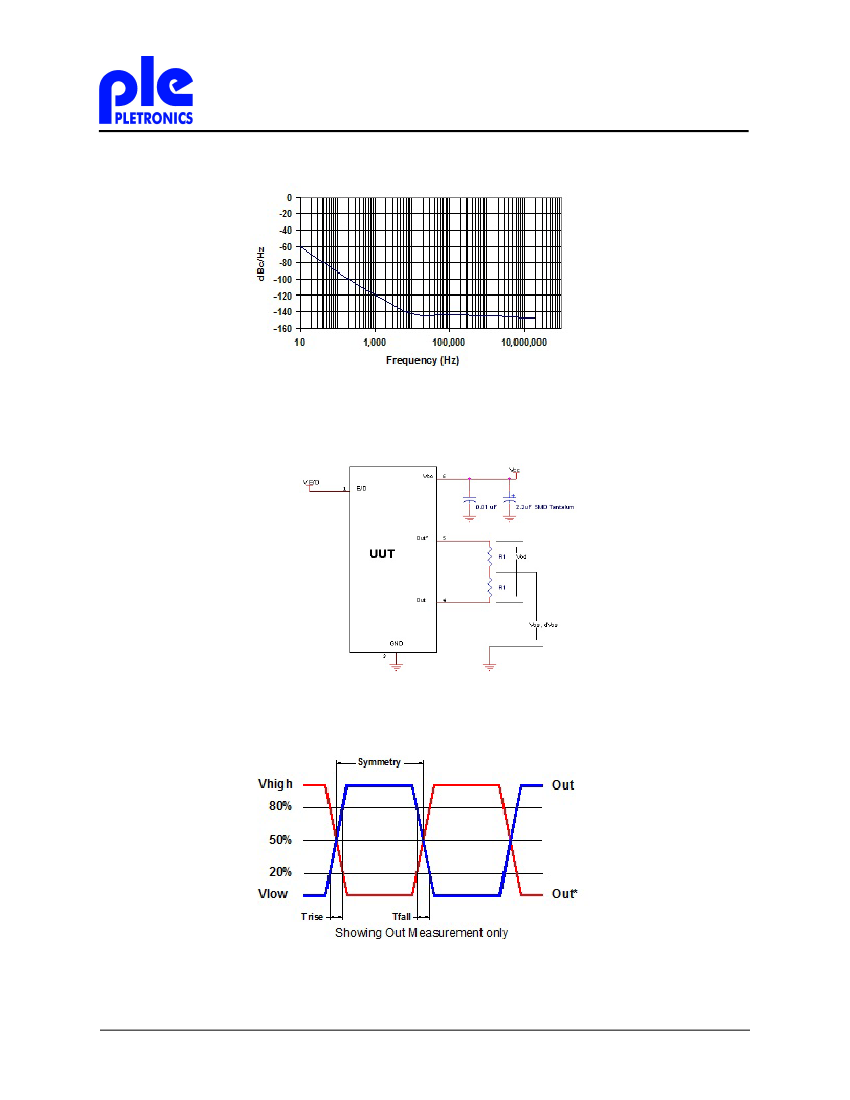

P roduct inform ation is current as of publication date. T he product conform s

to specifications per the term s of the P letronics standard warranty. Production

processsing does not necessarily include testing of all param eters.
