SMDJ210A

Description
Trans Voltage Suppressor Diode, 3000W, 210V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN
CategoryDiscrete semiconductor    diode
File Size749KB,6 Pages
ManufacturerPulse Electronics
Environmental Compliance
Download Datasheet Parametric View All

SMDJ210A Overview

Trans Voltage Suppressor Diode, 3000W, 210V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN

SMDJ210A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPulse Electronics
package instructionSMC, 2 PIN
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresEXCELLENT CLAMPING CAPABILITY, PRSM-MIN
Maximum breakdown voltage263 V
Minimum breakdown voltage237 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-214AB
JESD-30 codeR-PDSO-C2
Maximum non-repetitive peak reverse power dissipation3000 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation6.5 W
Maximum repetitive peak reverse voltage210 V
surface mountYES
technologyAVALANCHE
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

SMDJ210A Preview

SMDJ SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
3000W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 1μA above 10V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Mechanical Data
Case: JEDEC DO-214AB. Molded plastic over glass passivated junction
Terminal: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.28g
Applications
I/O interface
AC/DC power supply
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
A
=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 3000
See Table
6.5
300
-55 to +150
15
75
Units
Watts
Amps
Watts
Amps
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. Mounted on 8.0mm×8.0mm copper pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.

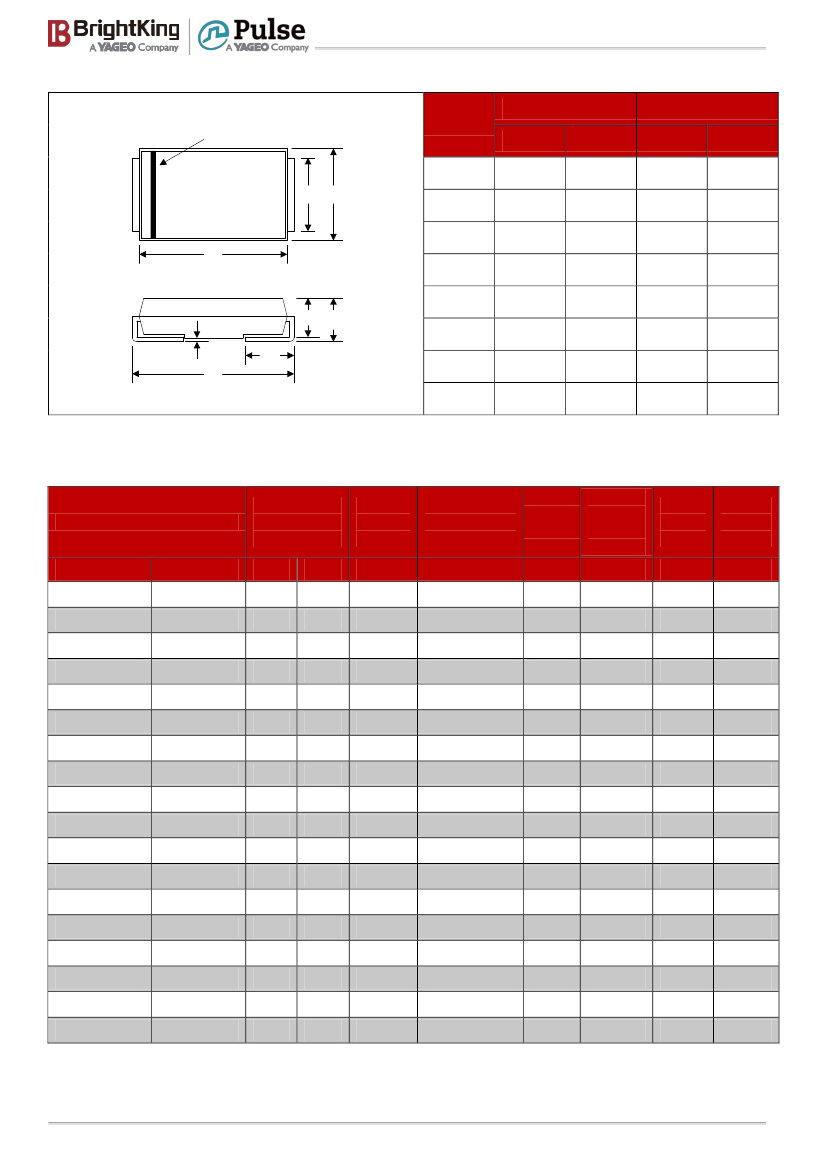

Dimensions (SMC/DO-214AB)
Revision:TVS-SMDJ SERIES-001(A1)
1/6
http://brightking.pulseelectronics.com
SMDJ SERIES
Millimeters
Inches
Min.
0.260
0.220
0.114
0.305
0.030
-
0.087
0.079
Max.
0.280
0.245
0.126
0.320
0.060
0.008
0.110
0.103
Cathode Band
Symbol
Min.
L
6.60
5.59
2.90
7.75
0.76
-
2.20
2.06
Max.
7.11
6.22
3.20
8.13
1.52
0.203
2.80
2.62
D1 D
D
D1
L
T
T1
H1 H
d
T
T1
d
H
H1
Electrical Characteristics (T
A
=25℃)
Device
Marking
Code
UNI
RDE
RDG
RDK
PDM
PDP
PDR
PDT
PDV
PDX
PDZ
PEE
PEG
PEK
PEM
PEP
PER
PET
PEV
BI
DDE
DDG
DDK
DDM
DDP
DDR
DDT
DDV
DDX
DDZ
DEE
DEG
DEK
DEM
DEP
DER
DET
DEV
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
Breakdown
Voltage
@I
T
V
BR
(V)
6.40~7.00
6.67~7.37
7.22~7.98
7.78~8.60
8.33~9.21
8.89~9.83
9.44~10.40
10.00~11.10
11.10~12.30
12.20~13.50
13.30~14.70
14.40~15.90
15.60~17.20
16.70~18.50
17.80~19.70
18.90~20.90
20.00~22.10
22.20~24.50
Test
Current
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
Peak
Pulse
Current
I
PP
(A)
326.1
291.3
267.9
250.0
232.6
220.6
208.3
194.8
176.5
164.8
150.8
139.5
129.3
123.0
115.4
108.7
102.7
92.6
Reverse
Leakage
@V
RWM
I
R
(μA)
800
800
500
200
100
50
20
10
5
2
2
2
2
2
2
2
2
2
Part Number
Unidirectional
SMDJ5.0A
SMDJ6.0A
SMDJ6.5A
SMDJ7.0A
SMDJ7.5A
SMDJ8.0A
SMDJ8.5A
SMDJ9.0A
SMDJ10A
SMDJ11A
SMDJ12A
SMDJ13A
SMDJ14A
SMDJ15A
SMDJ16A
SMDJ17A
SMDJ18A
SMDJ20A
Bidirectional
SMDJ5.0CA
SMDJ6.0CA
SMDJ6.5CA
SMDJ7.0CA
SMDJ7.5CA
SMDJ8.0CA
SMDJ8.5CA
SMDJ9.0CA
SMDJ10CA
SMDJ11CA
SMDJ12CA
SMDJ13CA
SMDJ14CA
SMDJ15CA
SMDJ16CA
SMDJ17CA
SMDJ18CA
SMDJ20CA
Electrical Characteristics (T
A
=25℃)
Revision:TVS-SMDJ SERIES-001(A1)
2/6
http://brightking.pulseelectronics.com
SMDJ SERIES
Part Number
Device
Marking
Code
UNI
PEX
PEZ
PFE
PFG
PFK
PFM
PFP
PFR
PFT
PFV
PFX
PFZ
PGE
PGG
PGK
PGM
PGP
PGR
PGT
PGV
PGX
PGZ
PHE
PHG
PHK
PHM
PHP
PHR
HHT
HHV
HHX
HHZ
HIE
BI
DEX
DEZ
DFE
DFG
DFK
DFM
DFP
DFR
DFT
DFV
DFX
DFZ
DGE
DGG
DGK
DGM
DGP
DGR
DGT
DGV
DGX
DGZ
DHE
DHG
DHK
DHM
DHP
DHR
IHT
IHV
IHX
IHZ
IIE
Reverse
Stand-Off
Voltage
V
RWM
(V)
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
190.0
200.0
210.0
220.0
Breakdown
Voltage
@I
T
V
BR
(V)
24.40~26.90
26.70~29.50
28.90~31.90
31.10~34.40
33.30~36.80
36.70~40.60
40.00~44.20
44.40~49.10
47.80~52.80
50.00~55.30
53.30~58.90
56.70~62.70
60.00~66.30
64.40~71.20
66.70~73.70
71.10~78.60
77.80~86.00
83.30~92.10
86.70~95.80
94.40~104.00
100.00~111.00
111.00~123.00
122.00~135.00
133.00~147.00
144.00~159.00
167.00~185.00
178.00~197.00
189.00~209.00
201.00~222.00
211.00~233.00
224.00~247.00
237.00~263.00
246.00~272.00
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
292.0
308.0
324.0
340.0
356.0
Peak
Pulse
Current
I
PP
(A)
84.5
77.1
71.3
66.1
62.0
56.3
51.6
46.5
43.2
41.3
38.8
36.4
34.4
32.1
31.0
29.1
26.5
24.8
23.8
21.9
20.5
18.5
16.9
15.5
14.4
12.3
11.6
10.9
10.3
9.7
9.3
8.8
8.4
Reverse
Leakage
@V
RWM
I
R
(μA)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Unidirectional
SMDJ22A
SMDJ24A
SMDJ26A
SMDJ28A
SMDJ30A
SMDJ33A
SMDJ36A
SMDJ40A
SMDJ43A
SMDJ45A
SMDJ48A
SMDJ51A
SMDJ54A
SMDJ58A
SMDJ60A
SMDJ64A
SMDJ70A
SMDJ75A
SMDJ78A
SMDJ85A
SMDJ90A
SMDJ100A
SMDJ110A
SMDJ120A
SMDJ130A
SMDJ150A
SMDJ160A
SMDJ170A
SMDJ180A
SMDJ190A
SMDJ200A
SMDJ210A
SMDJ220A
Bidirectional
SMDJ22CA
SMDJ24CA
SMDJ26CA
SMDJ28CA
SMDJ30CA
SMDJ33CA
SMDJ36CA
SMDJ40CA
SMDJ43CA
SMDJ45CA
SMDJ48CA
SMDJ51CA
SMDJ54CA
SMDJ58CA
SMDJ60CA
SMDJ64CA
SMDJ70CA
SMDJ75CA
SMDJ78CA
SMDJ85CA
SMDJ90CA
SMDJ100CA
SMDJ110CA
SMDJ120CA
SMDJ130CA
SMDJ150CA
SMDJ160CA
SMDJ170CA
SMDJ180CA
SMDJ190CA
SMDJ200CA
SMDJ210CA
SMDJ220CA
Notes: For bidirectional type having V
RWM
of 10V and less, the I
R
limit is double.
Revision:TVS-SMDJ SERIES-001(A1)
3/6
http://brightking.pulseelectronics.com
SMDJ SERIES

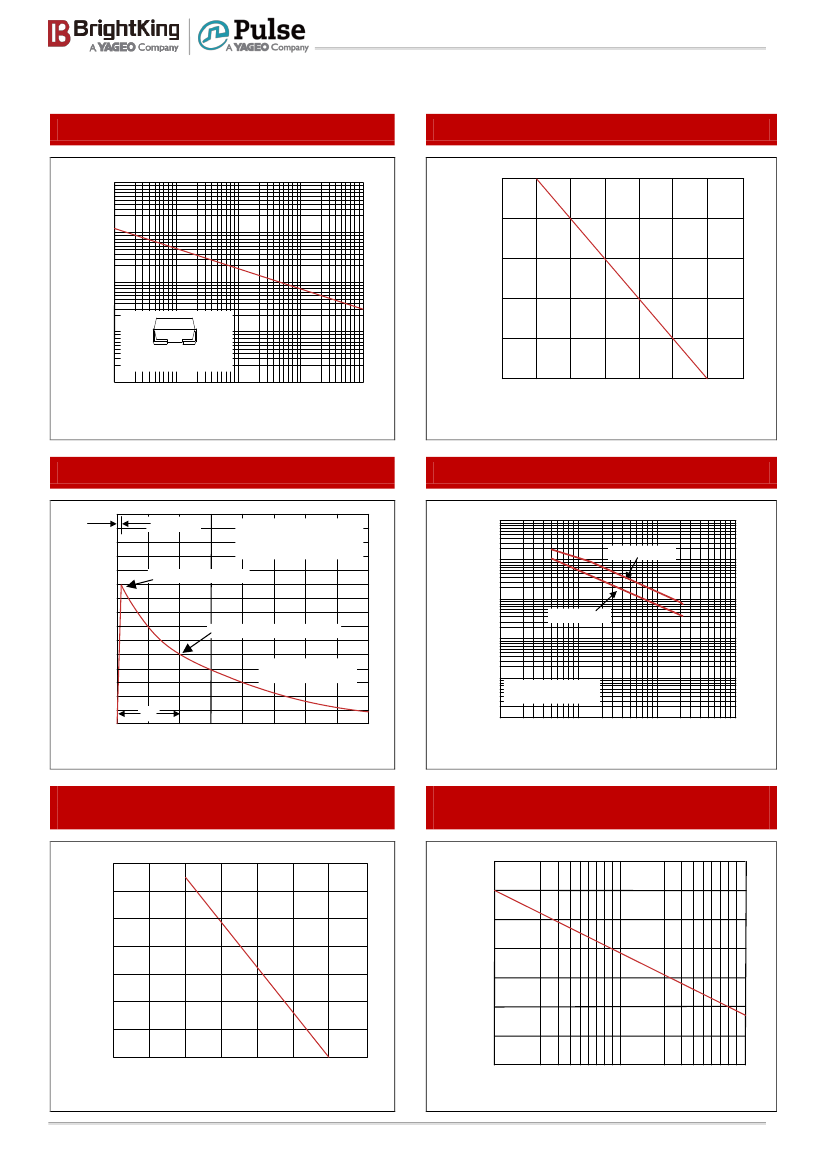

Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
Figure 2. Pulse Derating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
1000
100
P
PPM
- Peak Pulse Power (kW)
100
80
60
10
40
1
0.31×0.31″(8.0×8.0mm)
Copper Pad Area
20
0.1
0.1
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (℃)
1
10
t
d
-Pulse Width (µs)
100
1000
Figure 3. Pulse Waveform
150
I
PPM
- Peak Pulse Current, %I
RSM
Figure 4. Typical Junction Capacitance
100000
Uni-directional
t
r
=10µs
T
J
=25℃
Pulse Width(t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
10000
Cj (pF)
100
Peak Value I
PPM
1000
Bi-directional
Half Value I
PPM
(I
PPM
/2)
50
10/1000µs Waveform
as defined by R.E.A
100
10
1
Measured at
1MHz, 100mV, 0V bias
0
0
t
d
1.0
2.0
t-Time (ms)
3.0
4.0
1
10
100
V
RWM
-Reverse Stand-Off Voltage (V)
1000
Figure 5. Steady State Power Dissipation Derating
Curve
7
6
5
4
3
2
1
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (℃)
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60Hz
100
Revision:TVS-SMDJ SERIES-001(A1)
P
M(AV)
, Steady State Power Dissipation (W)
4/6
I
FSM
- Peak Forward Surve Current (A)
http://brightking.pulseelectronics.com
SMDJ SERIES

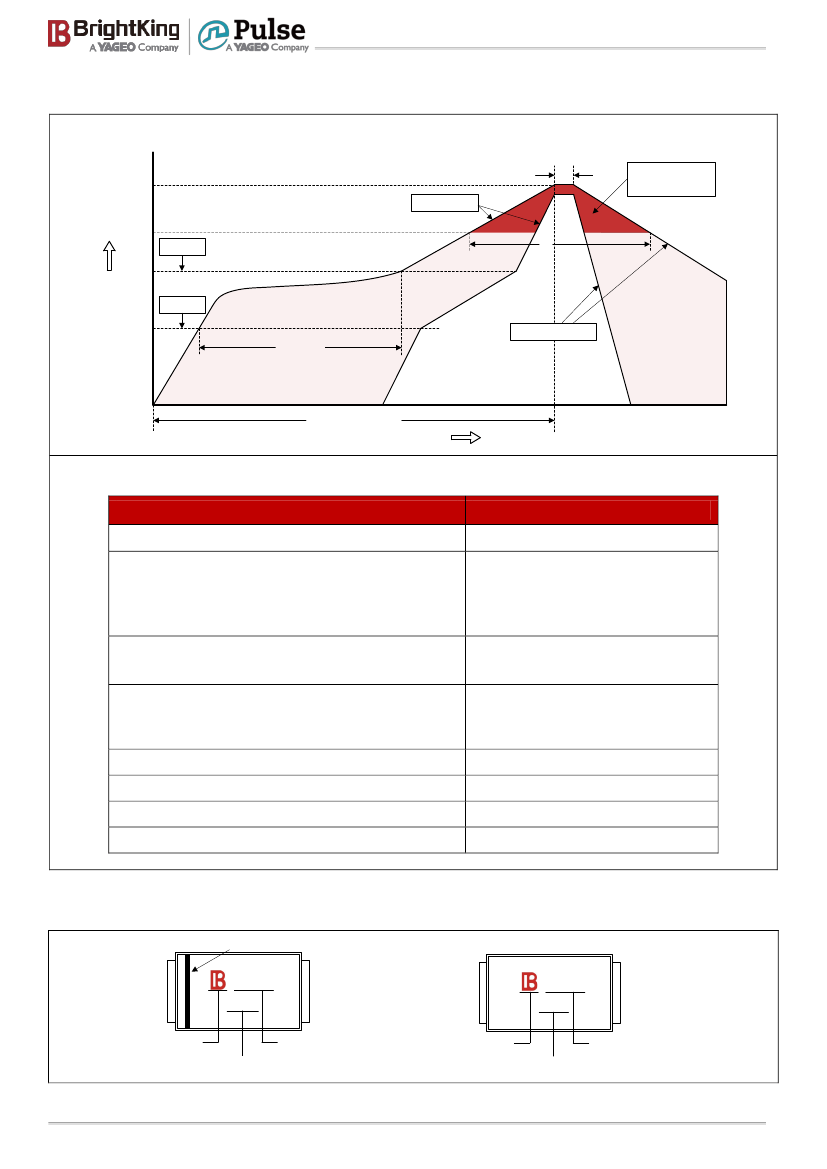

Recommended Soldering Conditions
Reflow Soldering
Critical Zone
T
L
to T
P
T
P
Ramp-up
T
L
T
S max
Temperature
t
P
t
L
T
S min
t
S
Preheat
Ramp-down
25
t 25℃ to Peak
Time
Recommended Conditions
Profile Feature
Average ramp-up rate (T
L
to T
P
)
Preheat
-Temperature Min (T
S min
)
-Temperature Max (T
S max
)
-Time (min to max) (t
S
)
T
S max
to T
L
-Ramp-up Rate
Time maintained above:
-Temperature (T
L
)
-Time (t
L
)
Peak Temperature (T
P
)
Time within 5℃ of actual Peak Temperature (t
P
)
Ramp-down Rate
Time 25℃ to Peak Temperature
Pb-Free Assembly
3℃/second max.
150℃
200℃
60-180 seconds
3℃/second max.
217℃
60-150 seconds
260℃
20-40 seconds
6℃/second max.
8 minutes max.
Marking Code
Cathode Band
YXXX
RDE
Logo
Date Code
Logo
YXXX
DDE
Date Code
Marking Code
Marking Code
Revision:TVS-SMDJ SERIES-001(A1)
5/6
http://brightking.pulseelectronics.com
【Learning LPC1768】PM2.5/PM10 Display
The PM2.5/PM10 sensor is a serial port interface with a simple interface and relatively simple communication protocol processing. The protocol processing is shown in the figure below. The sensor will ...
加勒比海盗 NXP MCU
12. Beaglebone peripheral circuit design week 3: Questions about 16bpp image display quality!!
Last week I posted this question: [url=https://bbs.eeworld.com.cn/viewthread.php?tid=353950]https://bbs.eeworld.com.cn/viewthread.php?tid=353950[/url], and I haven't solved this problem yet. In order ...
anananjjj DSP and ARM Processors
Some knowledge about the adjustable voltage regulator LM317
[i=s]This post was last edited by dontium on 2015-1-23 11:08[/i] :) The following are purely personal opinions or copied from books;...
music_586 Analogue and Mixed Signal
Introducing several foreign RF strongman websites! !
[url=http://www.fritz.dellsperger.net/]http://www.fritz.dellsperger.net/[/url] The famous Smith software is his work, and the website also provides a lot of information for download! [url=http://www.r...
banana RF/Wirelessly
Has anyone ported raw os to stm8?
STM8 should be quite popular now. In many cases, STM8 is used directly instead of 51. Has anyone transplanted raw os or micro raw os on STM8? Can you share and exchange?...
yaodong379 Embedded System
Debugging MSP430 string pointer issues
The core code is as follows: char* Reverse(char* s) { char* p = s; //p points to the head of the string char* q = s; while( *q ) { ++q ; } q -- ; //q points to the tail of the string while(q > p) { ch...
cat3902982 Microcontroller MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2880  1402  236  102  209  58  29  5  3  19
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
