1101M2S5CSE2

Description
SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size917KB,6 Pages
ManufacturerC&K
Environmental Compliance
Download Datasheet Parametric View All

1101M2S5CSE2 Online Shopping

Suppliers Part Number Price MOQ In stock
1101M2S5CSE2 - - View Buy Now

1101M2S5CSE2 Overview

SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

1101M2S5CSE2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerC&K
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time16 weeks
Actuator colorBLACK
Actuator length0.37 inch
Actuator materialNYLON
Actuator typeHIGH TYPE
body width6.6 mm
body height6.35 mm
Body length or diameter12.7 mm
center contact materialCOPPER ALLOY
Center contact platingSILVER
Contact (AC) maximum rated R load6A@120VAC
Maximum contact current (AC)6 A
Maximum contact current (DC)6 A
Contact (DC) maximum rated R load6A@28VDC
Contact resistance0.01 mΩ
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)28 V
Dielectric withstand voltage1000VRMS V
Electrical life40000 Cycle(s)
End contact materialCOIN SILVER
End contact platingSILVER
Shell materialSTAINLESS STEEL
Insulation resistance1000000000 Ω
insulator materialDIALLYL PHTHALATE
JESD-609 codee3
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating temperature65 °C
Minimum operating temperature-30 °C
sealEPOXY TERMINAL SEALED
SolderabilityMIL-STD
surface mountNO
Switch actionLATCHED
switch functionSPDT
Switch typeSLIDE SWITCH
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal materialCOPPER ALLOY
Termination typeSOLDER
1000 Series
Miniature Slide Switches
Features/Benefits
Variety of actuators and terminations
Panel mount tabs available
Epoxy terminal seal—compatible with
bottom-wash cleaning
Typical Applications
Test & measurement equipment
Telecommunications
Computer & peripherals
RoHS compliant
Models Available
Specifications
CONTACT RATING: B contact material: 0.4 VA max. @
20 V AC or DC max. Q contact material: 6 AMPS @
120 V AC or 28 V DC, 3 AMPS @ 250 V AC.
See page I-16 for additional ratings.
ELECTRICAL LIFE: 100,000 make-and-break cycles at full
load on models with B, K or P contact material; 40,000 cycles
on models with G, Q, L, M, S or R contact material.
CONTACT RESISTANCE: Below 10 m Ω typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109 Ω min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 65ºC
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
Materials
CASE: diallyl phthalate (DAP), (UL 94V-0).
ACTUATOR: Nylon, black, standard.
HOUSING: Stainless steel.
SWITCH SUPPORT: Brass or steel, matte-tin plated.
END CONTACTS: B contact material: Copper alloy, with gold plate over
nickel plate. Q contact material: Coin silver, silver plated. See
page I-16 for additional contact materials.
CENTER CONTACT & ALL TERMINALS: B contact material: Copper
alloy, with gold plate over nickel plate. Q contact material: Copper
alloy, silver plated. See page I-16 for additional contact materials.
TERMINAL SEAL: Epoxy. Refer to Soldering and Cleaning in Technical
Data chapter
NOTE:
Any models supplied with Q, B, G, P, S or R contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
I
Slide
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages I–12 through I–16. For additional options not shown in catalog, consult Customer Service Center. All models
have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.

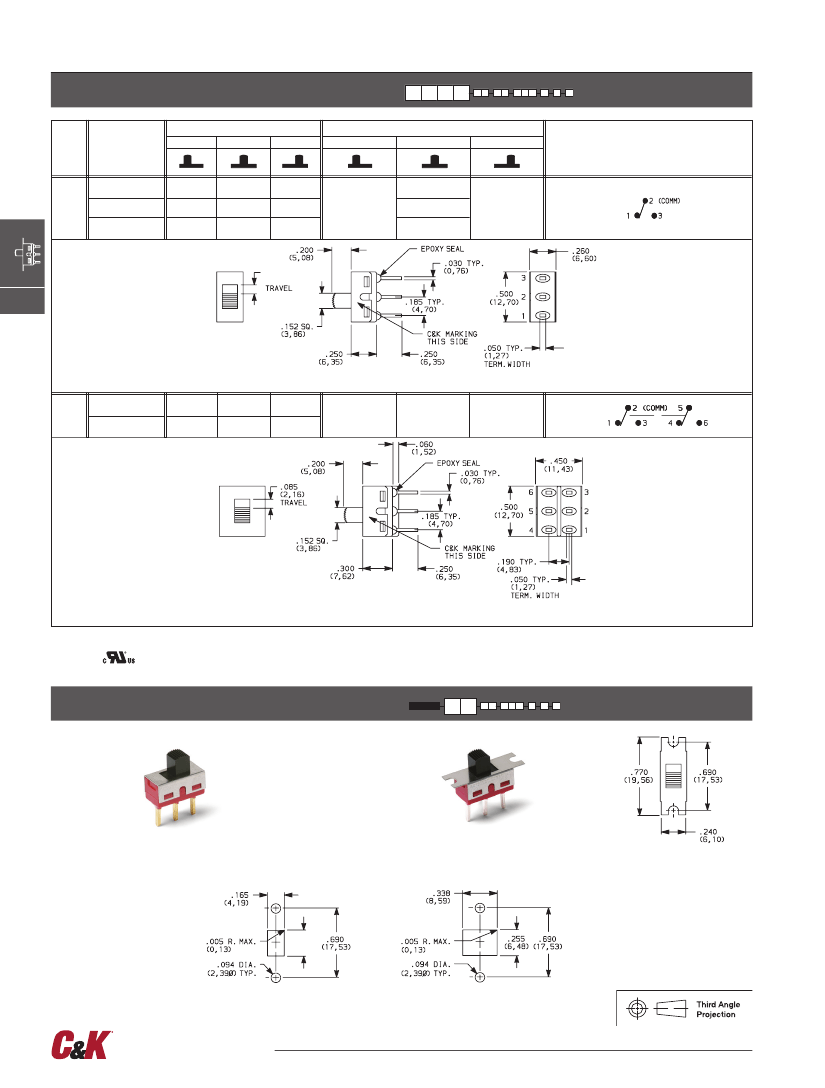

Switch Function
1101
SP On-None-On
1103
SP On-Off-On
1108
SP Mom-None-On
1201
DP On-None-On
1203
DP On-Off-On
Mounting Style
M2
PC mount without tabs
M1
Panel mount with tabs

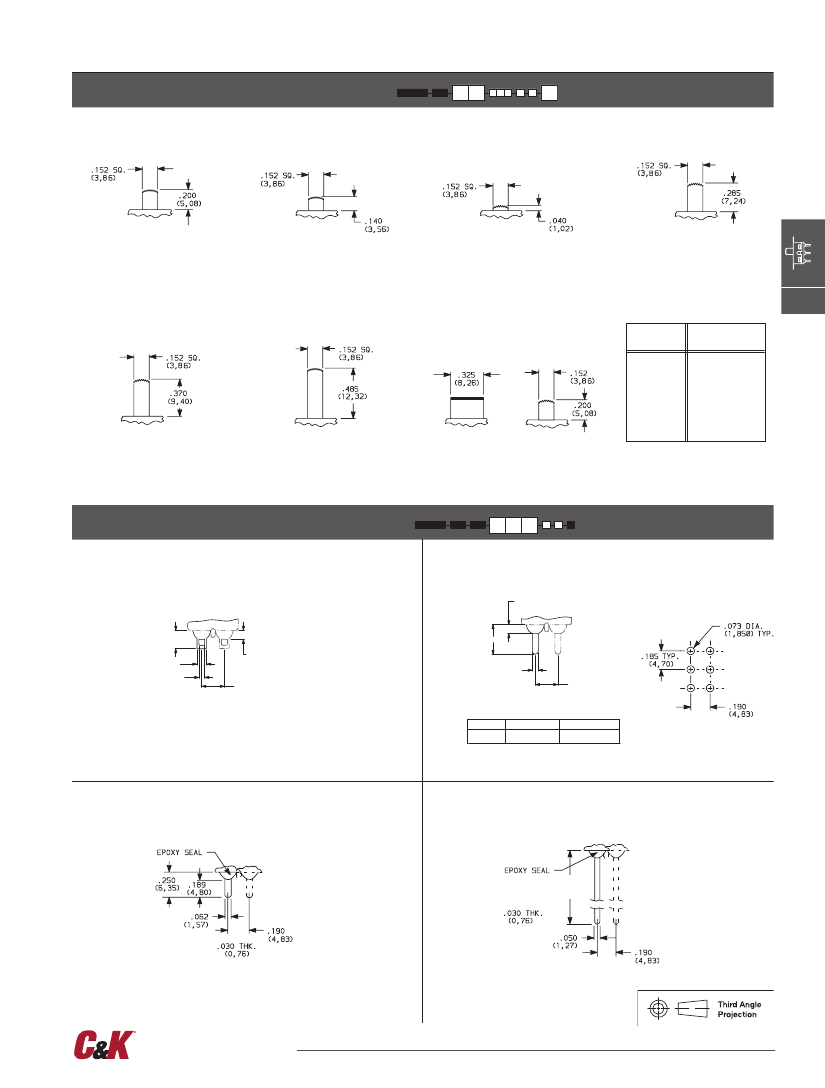

Actuator
S3
.200” high
S1
.040” high
S2
.140” high
S4
.285” high
S5
.370” high
S6
.485” high
T3
.200” high

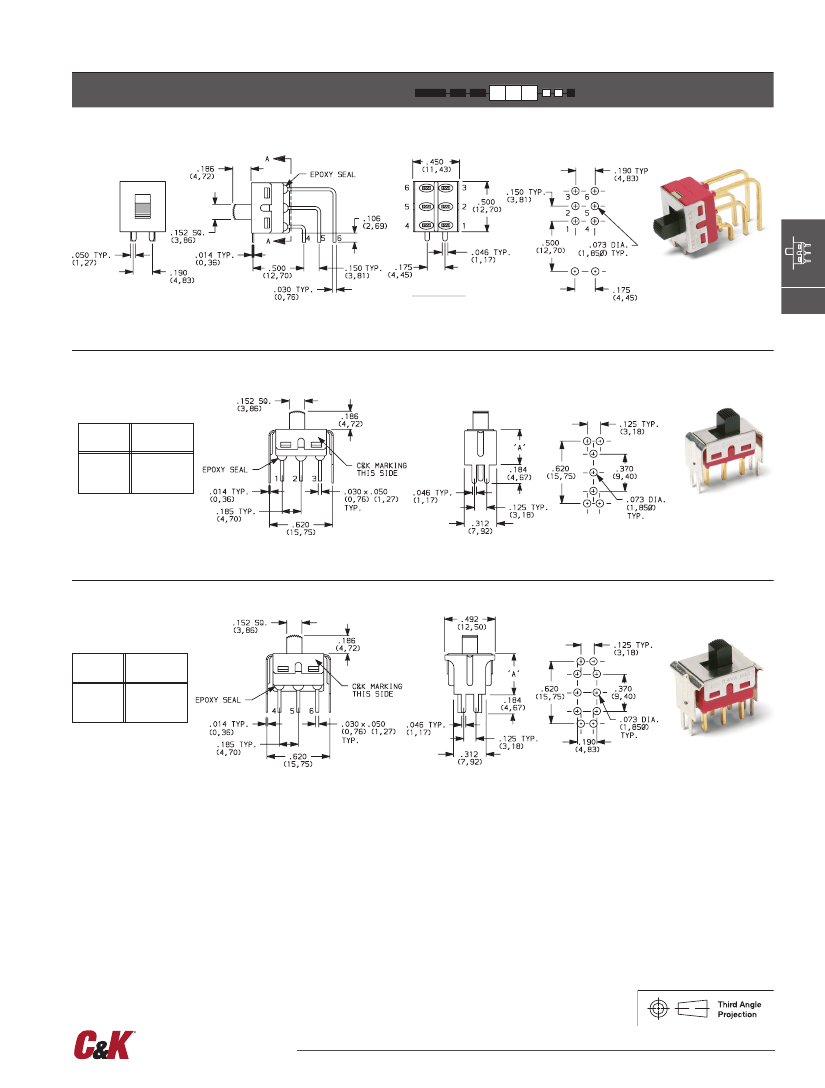

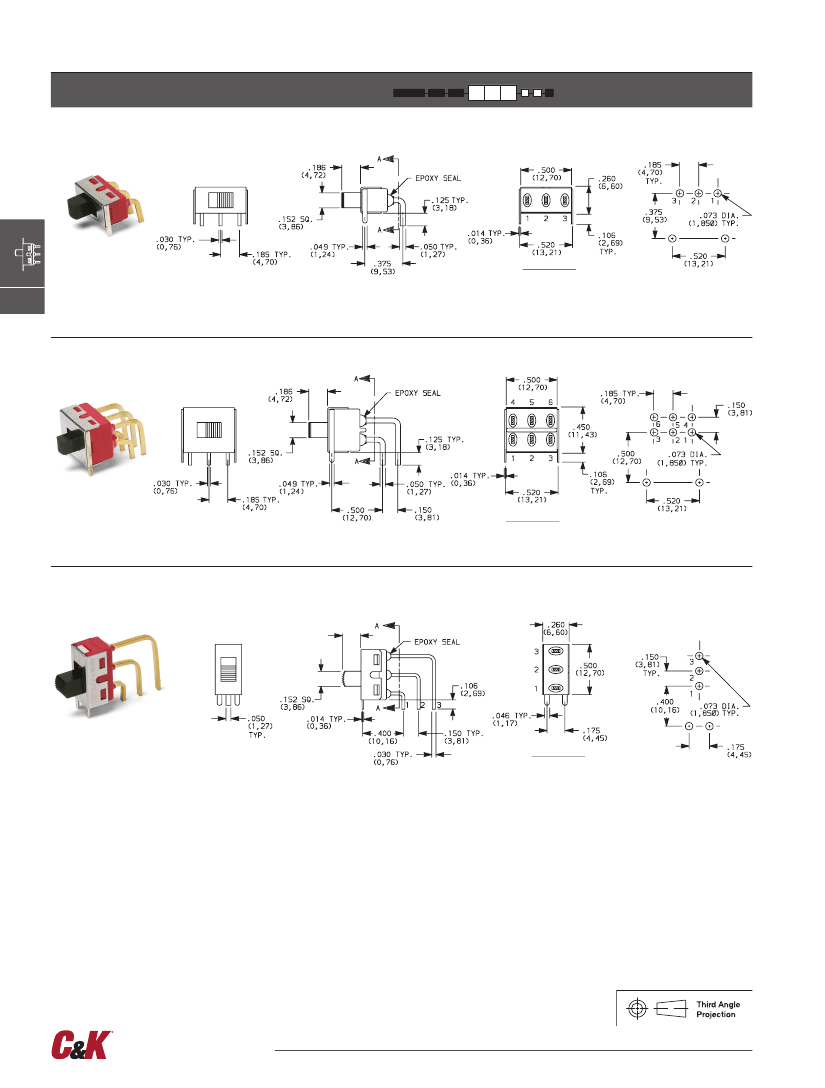

Terminations
A
Right angle, PC thru-hole
C
PC Thru-hole
AV2
Vertical right angle, PC thru-hole
Z
Solder lug
V3
V-bracket
V4
V-bracket
W
.750” long, wire wrap
Z3
Quick connect
Contact Material
B
Gold
Q
Silver
G
Gold over silver
P
Gold, matte-tin
S
Silver, matte-tin
R
Gold over silver, matte-tin
Seal
E
Epoxy
D
No epoxy seal
I
Epoxy potted base
Actuator Color
2
Black
1
White
3
Red
19 dec 18
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–11
www.ckswitches.com
