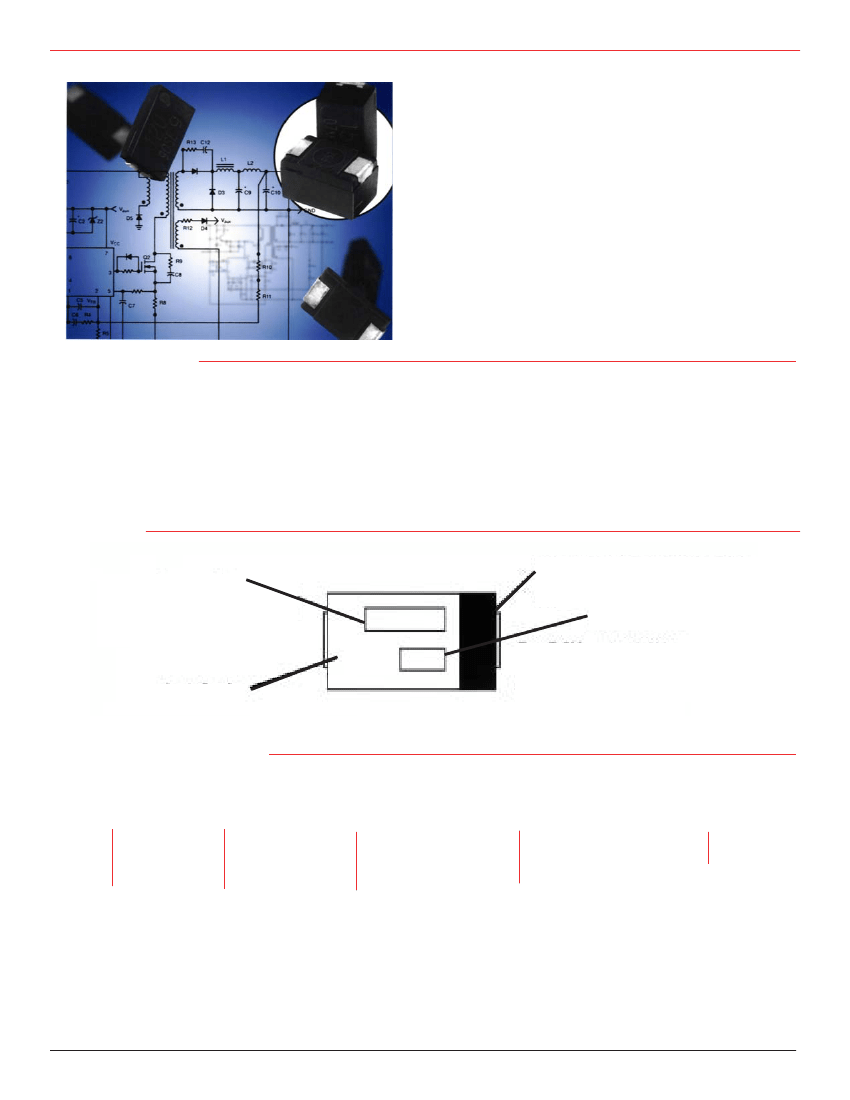

Type ESRH
Solid Polymer Aluminum SMT Capacitors
Solid
Polymer Aluminum
capacitors are now available
with a +125ºC temperature rating. CDE’s type ESRH
capacitors are rated at +125ºC for 1000 hours when
operated at 3/4 of the 105ºC rated voltage. Solid
Polymer Aluminum electrolytic capacitors feature
extremely low ESR which yields a capacitor with very
low high frequency impedance and high ripple current
capability. When low ESR is your requirement,
one type ESRH capacitor can replace three or more
tantalum or aluminum electrolytic capacitors. The
solid electrolyte in a polymer aluminum capacitor
results in a long (and ignition free) life, and the 7.3
x 4.3 footprint is compatible with “D” case solid
tantalum capacitors.
-55 ºC to +105 ºC at rated voltage
(+125 ºC at .75 x rated voltage)
±20% at 120 Hz and +20 ºC
≤0.10 at 120 Hz and +20 ºC
1.25 x rated voltage
I ≤ .1 CV
Specifications
Operating Temperature Range:
Capacitance Tolerance:
Dissipation Factor (DF):
Surge Voltage:
DC Leakage Current (after 2 minutes):
Markings
Capacitance
(“R” = Decimal Point)
Polarity Stripe (Anode)
+
W.V. Code
D = 2.0V
E = 2.5V
G = 4.0V
J = 6.3V
K = 8.0V
Lot Code
Ordering Information
ESRH
101
M
08
R
Packaging Code
CDE
Type
Capacitance
Code
680
= 68 µF
101
= 100 µF
Capacitance
Tolerance
M
= ±20%
WVDC Code
02
=2.0 Vdc
0E
=2.5 Vdc
04
=4.0 Vdc
06
= 6.3 Vdc
08
= 8.0 Vdc
R
= Tape & Reel 2000 pcs/reel
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type ESRH
Solid Polymer Aluminum SMT Capacitors
Specifications (continued)
Life Test:
Apply rated DC working voltage at 105 ºC (or
0.75 x WVDC at 125 ºC) for 1000 hours, and
then stabilize them to +20 ºC. Capacitors will
meet the following limits:
∆C
=
±10%
of the initial measured value
DF & DCL
≤
the initial specified value
Shelf Life Test:
Shelf life is typically 5 to 10 years. Accelerated test:
after 500 hours at125 ºC, capacitors will meet the
following limits after stabilization at 20 ºC:
∆C
=
±10%
of the initial measured value
DF & DCL
≤
the initial specified value
Moisture Resistance:
After 500 hours storage at +60 ºC and 90% R.H.
without load, the capacitor will meet the following
limits:
∆C = +70%/–20% of the initial measured value
(2.0 & 2.5 Vdc),+60%/–20% of the initial
measured value (4.0 Vdc), +50%/–20%
of the initial measured value (6.3 Vdc),
+40%/–20% of the initial measured value
(8.0 Vdc).
DF ≤ two times the initial specified value
DCL ≤ the initial specified value
(For more information on this product see the Solid Polymer Aluminum Application Guide)
Resistance to Soldering Heat:
Capacitors withstand being heated in an oven at
235 ºC for 200 seconds.
Soldering:
Solid Polymer Aluminum capacitors are designed
for reflow soldering.
Preheat the capacitors at 160 ºC for a maximum of
120 seconds. The time at or above 200 ºC on the
surface of the capacitor should be per the
following chart:

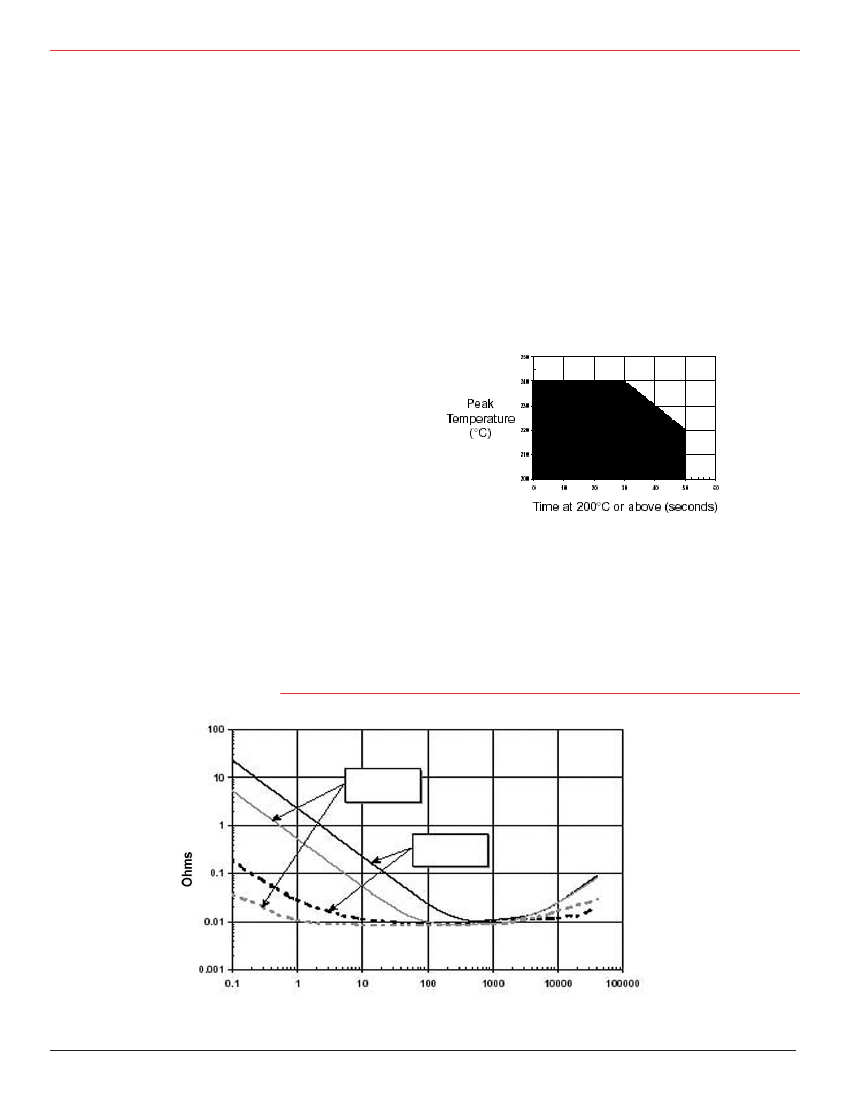

Typical Impedance & ESR
ESRH271M02R
270 µF/2V
Impedance/ESR
ESRH680M02R
680 µF/2V
Impedance/ESR
Frequency (kHz)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
