This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Material Properties:
Insulator Material
Insulator Color
Center Contact Material
Center Contact Plating
Body Material
Body Plating
PTFE
White
Beryllium Copper
Gold, min. 0.76µm over Nickel
Brass
Gold, min. 0.076µm over Nickel
Contact Resistance After Test
4)
Withstanding Voltage
Working Voltage
5)
1)
Center Contact
2)
Center Contact
3)
Outer Contact
4)
Outer Contact
5)
At sea level
R
500 V (AC) in 60 sec.
2
1000
335
mΩ
max.
V (RMS) min.
V (RMS) min.
VSWR: The VSWR in application varies decisively according to PCB layout
Kind Properties:
Interface
Connector Type
Gender
Orientation Type
MIL-STD-348
SMA
Jack
Straight
Mechanical Properties:
Properties
Center Contact Retention (Axial)
Mating Cycle
Recommended Mating Torque
Value
26.7
500
57
Unit
N
Cycles
Ncm
Tol.
min.
General Information:
Operating Temperature
Compliance
-65 °C up to +165 °C
RoHS
Packaging Properties:
Properties
Packaging
Packaging Unit
Qty.
Value
Tray
60
Electrical Properties:
Properties
Impedance
Frequency Range
VSWR
Insertion Loss
VSWR
Insertion Loss
Insulation Resistance
Contact Resistance Initial
1)
Contact Resistance After Test
Contact Resistance Initial
3)
2)
Test conditions
DC~18 GHz
DC~12.4 GHz
DC~12.4 GHz
12.4 GHz~18 GHz
12.4 GHz~18 GHz
500 V (DC) in 120 sec.
IL
R
ISO
R
R
R
IL
Z
f
Value
50
DC~18 GHz
1.2
0.14
1.4
0.2
5000
3
4
2
Unit
Ω
Tol.
max.
dB
dB
MΩ
mΩ
mΩ
mΩ
max.
max.
max.
min.
max.
max.
max.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaSc
DESCRIPTION
JTs
DIN ISO 2768-1m

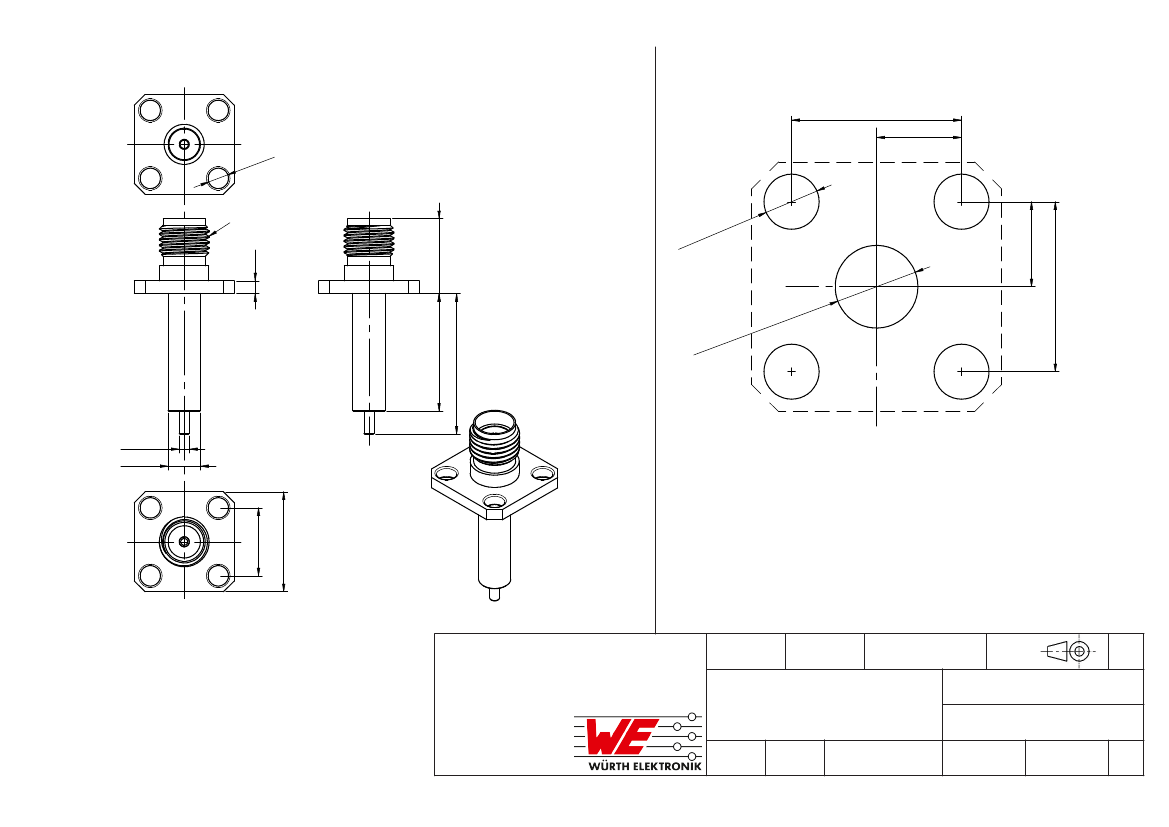

SMA Panel Jack 4-Hole Flange
