DDE-50ST-II datasheet, PDF - EEWORLD Datasheet

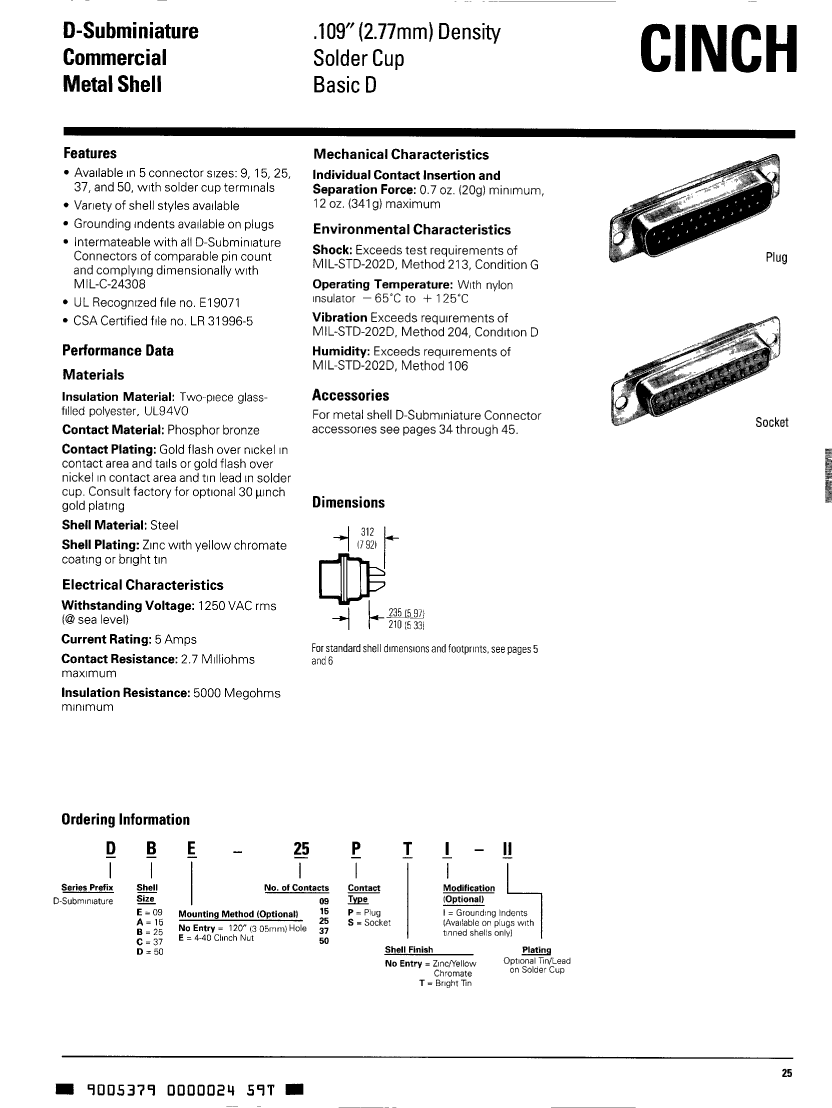

DDE-50ST-II: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size195KB，3 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

DDE-50ST-II Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.605 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	BASICD
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

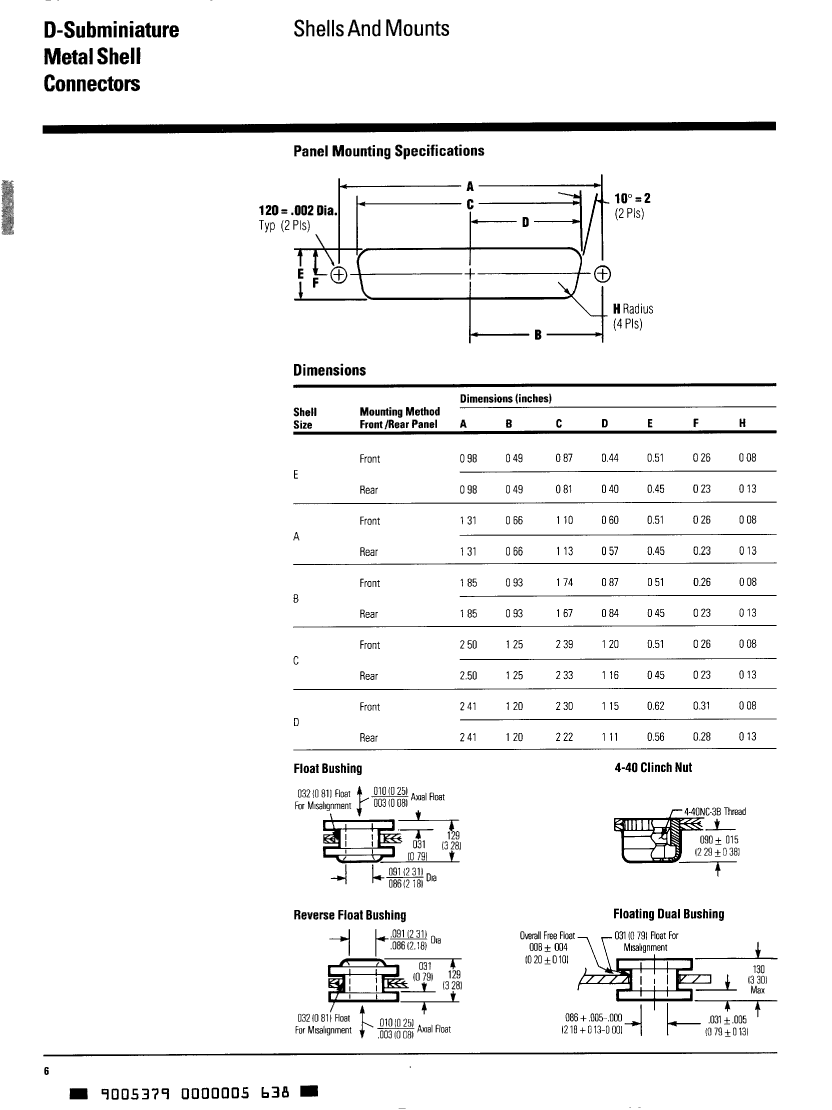

Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.077 inch
Termination type	SOLDER LUG
Total number of contacts	50
Evacuation force-minimum value	.1946 N
